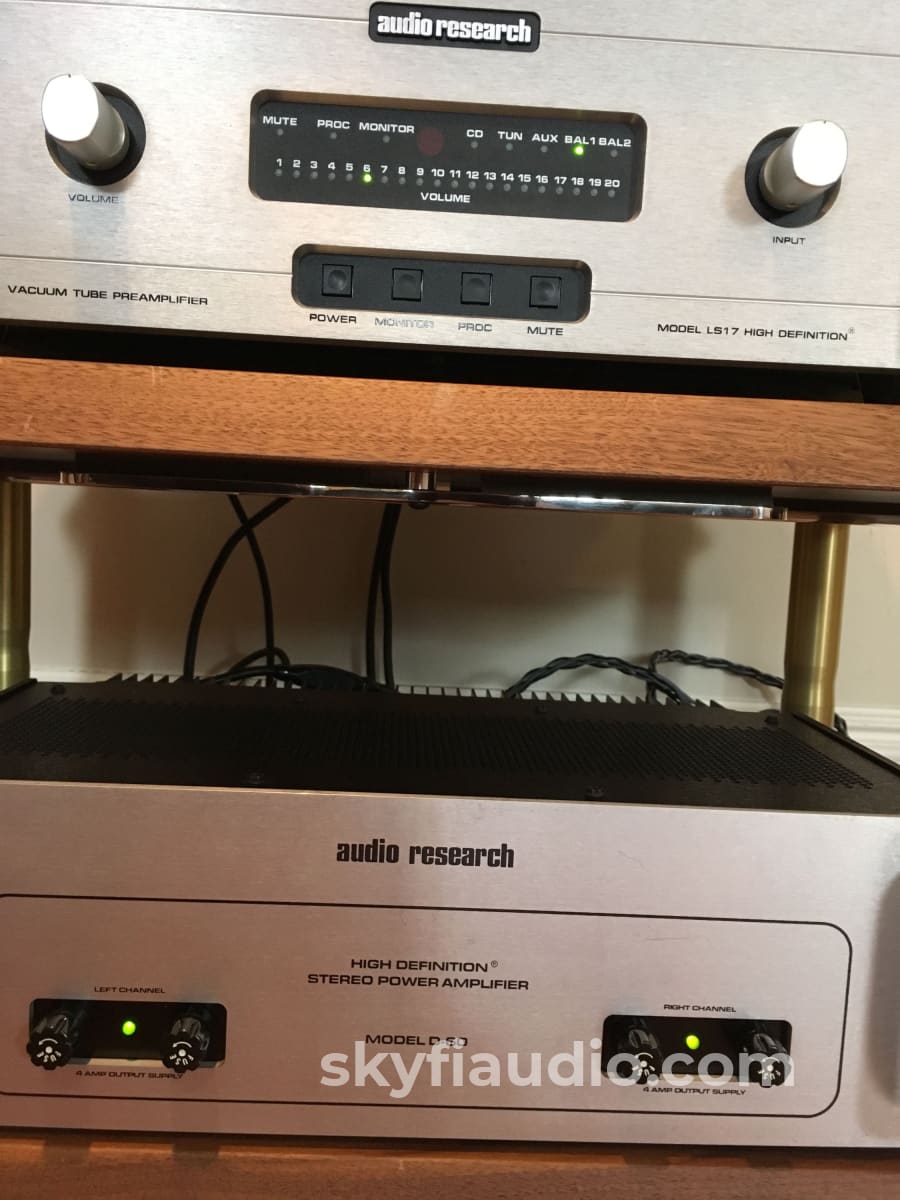

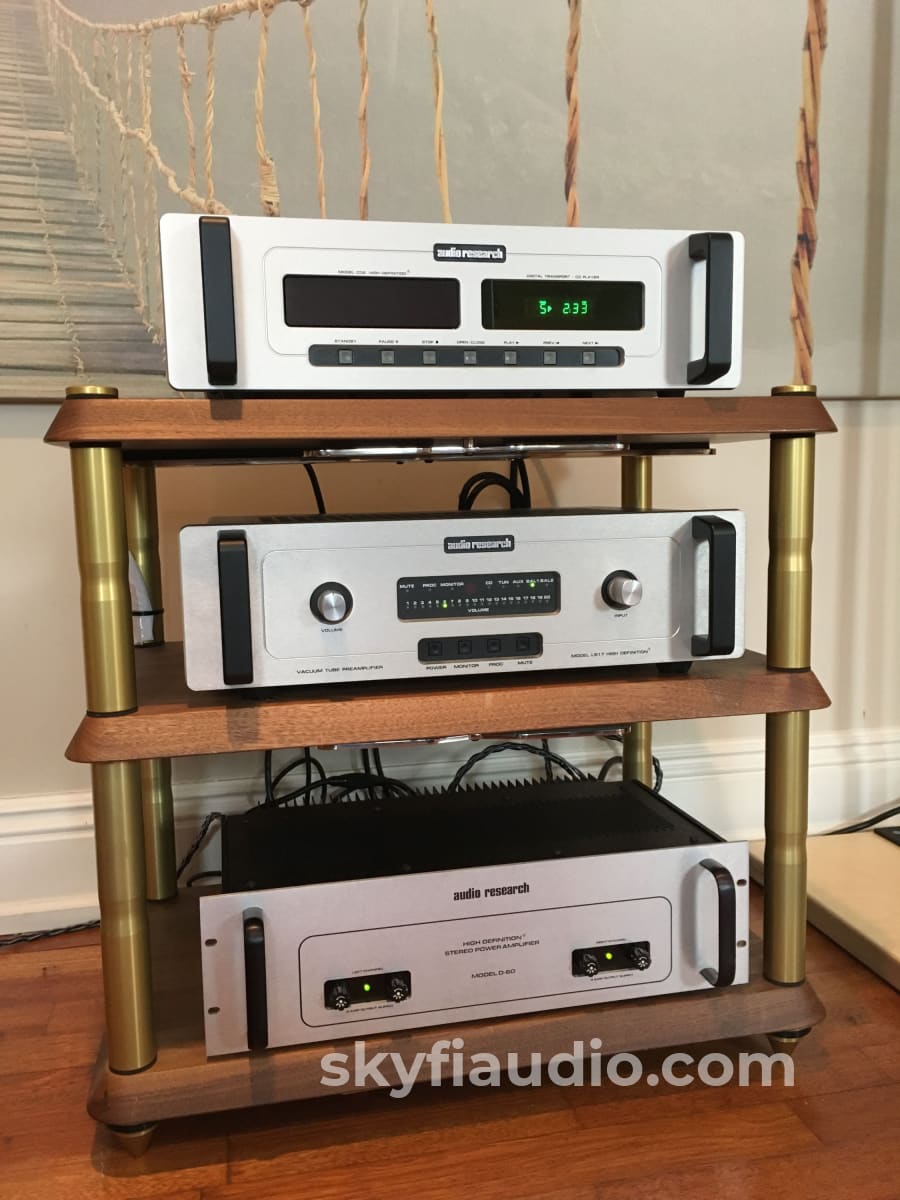

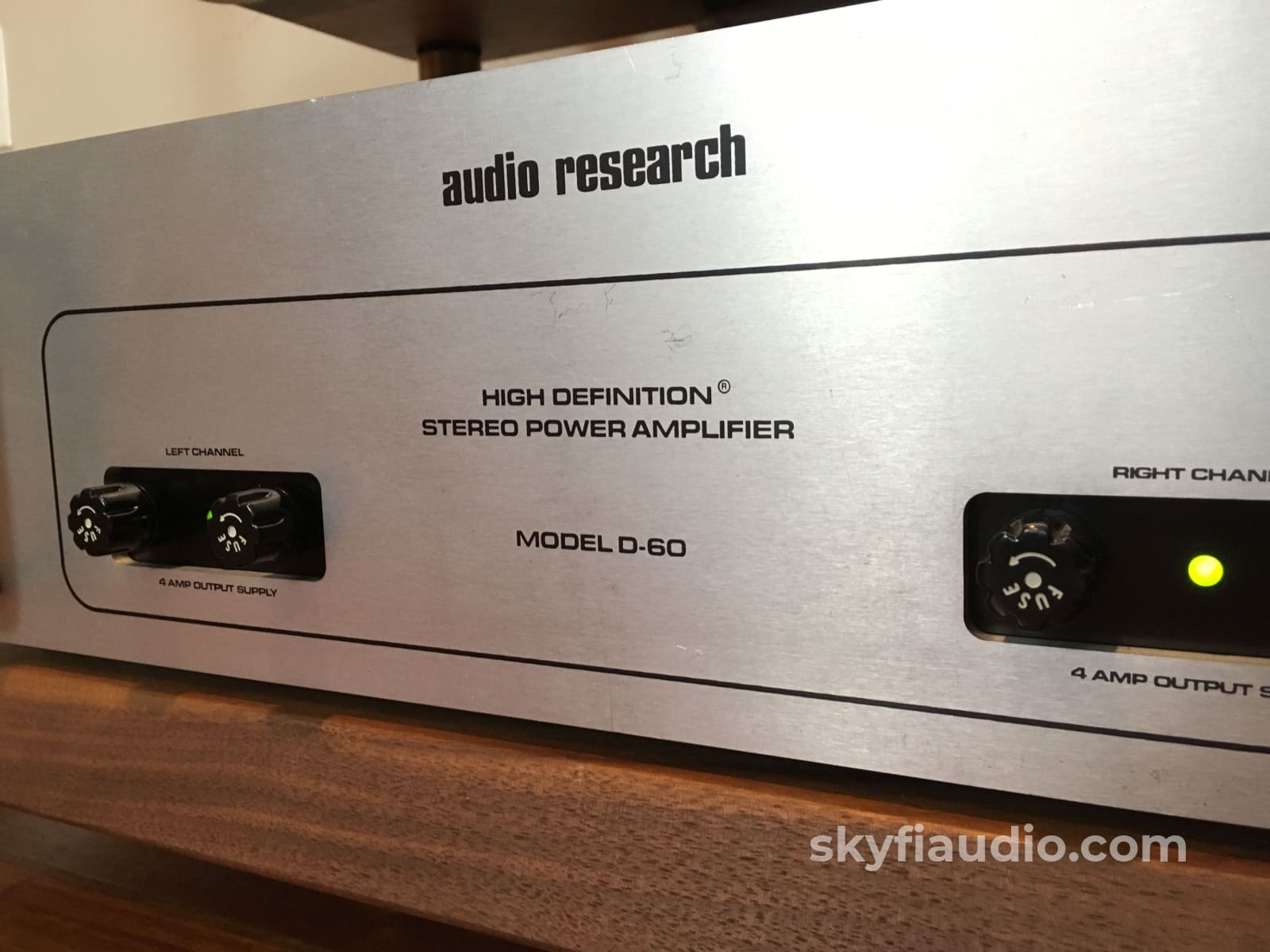

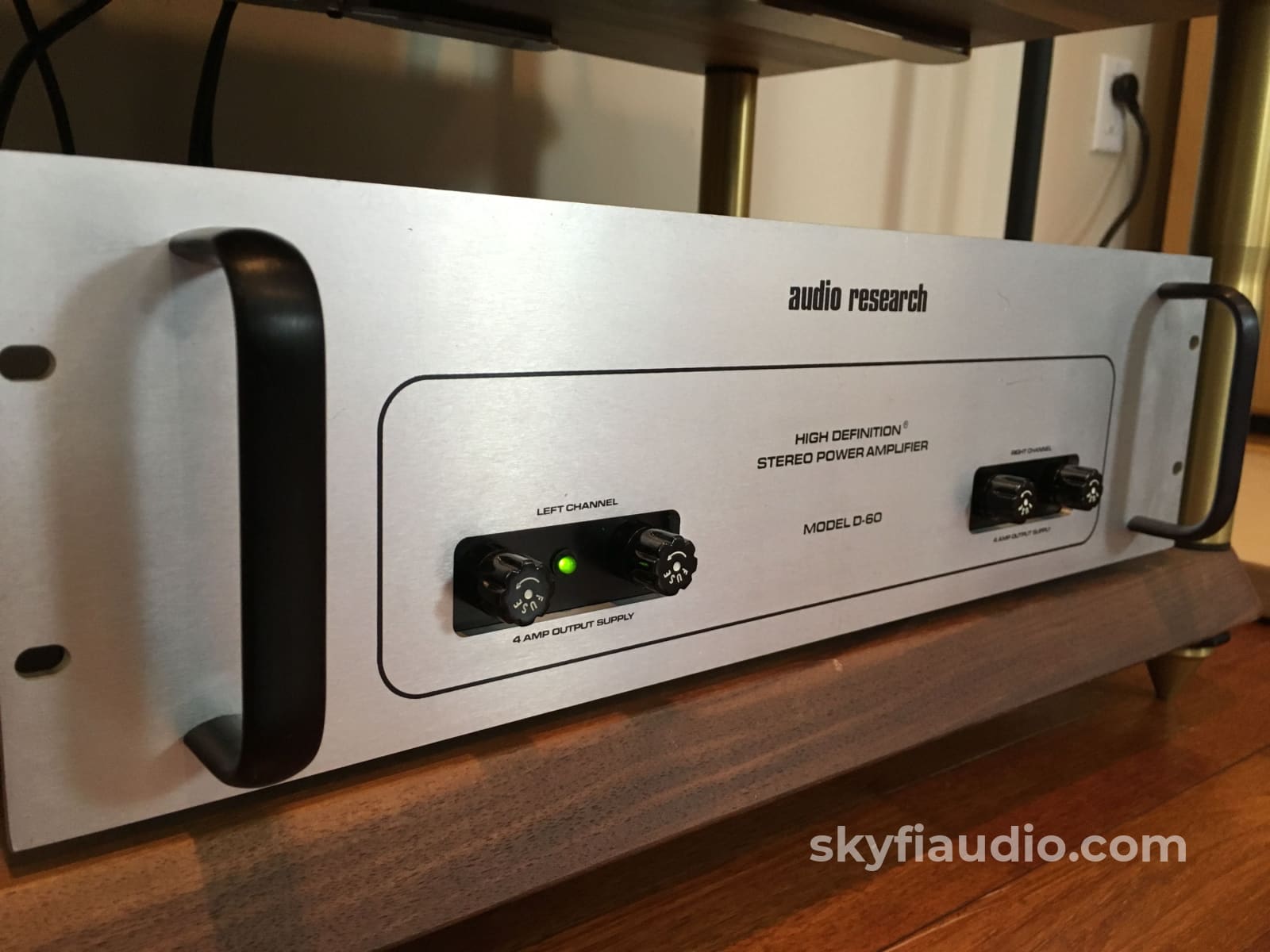

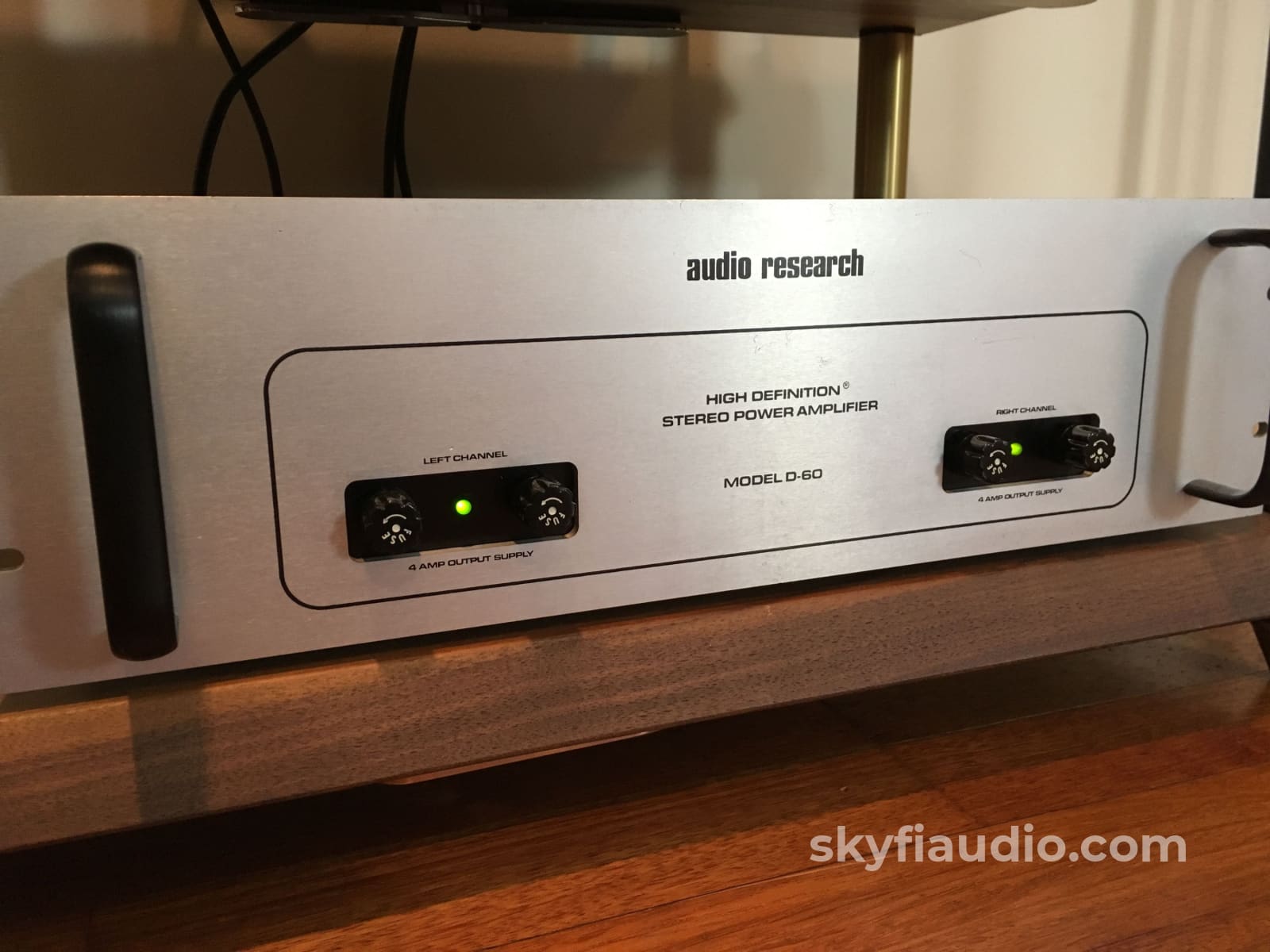

Audio Research D-60 Solid State Amplifier
Great vintage solid state amplifier and a perfect match for an SP6, SP3, SP9 etc.
Perfect working condition and fully tested.
At this price, I’m not sure why anyone would buy a modern Chinese made unit over this piece of USA made heavy duty amp.
Beautifully made with massive transformer and caps.
The power supply caps are the size of soda cans.
Some Tech Specs:
Power output 60 watts per channel minimum RMS (both channels operating) at 8 ohms from 1 Hz to 20 kHz with less than .25% total harmonic distortion. Typically less than .02% at rated power in midband. Approximate actual power available at "clipping" (both channels operating) 150 watts (4 ohms), 75 watts (8 ohms).
Frequency response 1 Hz to 100 kHz
Input sensitivity 1.1 V RMS for rated power and load
Input impedance 30 K ohms
Damping factor More than 500 at rated power and load
Distortion Intermodulation distortion: Less than .1% at rated output
Hum & noise Wide band unweighted, more than 90db below 60 watts at 8 ohms-power line components (Hum) more than 80 db below 60 watts at 8 ohms
Power requirements 105-120/210-240 VAC 50/60 Hz 600 watts maximum. 120 watts at idle. 300 watts at rated power.
Dimensions 19" W x 5 ¼" H x 10 ½" D. Handles extend 1 ½" forward of the front panel. (Standard rack mount panel)
Weight 38 lbs. Net, 45 lbs. Shipping
