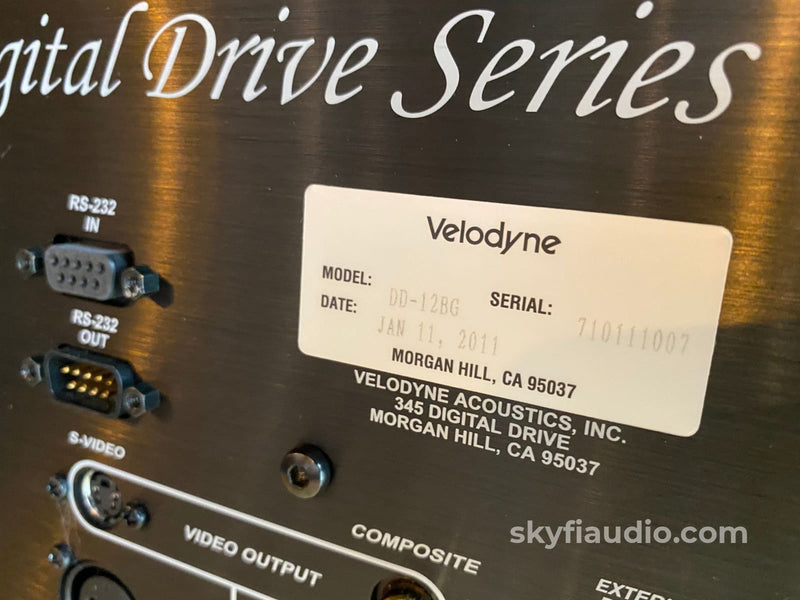

Velodyne DD-12BG Subwoofer 12" - Complete Set


Very capable and feature-packed sub from Velodyne.

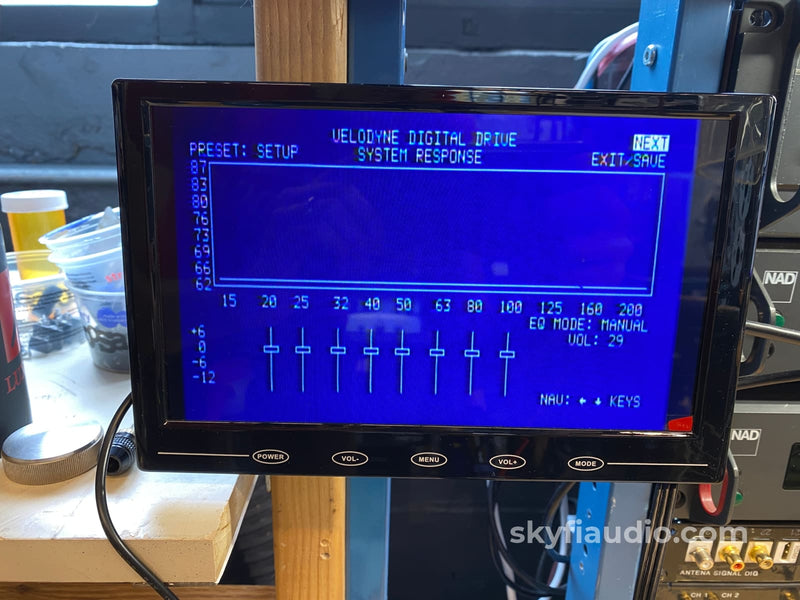

It even has an on-screen GUI interface for configuration if you choose to tweak it to the max!

Tested in our lab and working absolutely perfect. Cosmetics are very good with no significant signs of use.

This listing is a complete set including the original setup mic, mic stand, cables, and remote. Best of all we have the original packing so it will travel perfectly.

Velodyne DD-12BG Subwoofer - Owner's Manual

Click below to add our recommended matching cables from Kimber Kable, all brand new as SkyFi is an official Kimber dealer.

Kimber Kable - Power Cords

More from Velodyne:
Prominent features of your new digital drive Subwoofer include:
• Cone and Motor sizes:
- 10” (8” Piston diameter) or 12” (9.7” Piston diameter) cone with 310 oz. magnet or,
• Built-in 1250 watt (RMS), 3,000 watt peak power high-efficiency Class-D amplifier
• Tandem 3” voice coil
• Multi-layer resin laminate cone
• High-excursion rubber surround
• Gain compression, anti-clipping circuit to prevent over excursion and amp clipping
• Fixed 80Hz high-pass crossover (RCA output)
• Balanced (XLR) input
• Line-level (RCA) inputs and thruputs
• Speaker-level inputs
• Variable volume control
• Frequency response of 20Hz - 120Hz +/-3dB
• On-screen controls:
- Auto-eQ/Self-eQ
- Graphic or Parametric Equalizer controls for room EQ
- Adjustable (15Hz - 199Hz) low-pass crossover (defeatable)
- multiple staggered low pass crossovers (6dB/octave, initial to 36dB/octave, ultimate) - Adjustable (15Hz - 35Hz) subsonic filter (defeatable)
- Multiple staggered subsonic filters (12dB/octave, initial to 24dB/octave, ultimate)
- Variable volume control
- Adjustable phase control (0° - 180° in 15° increments)
- Selectable polarity (+/-)
2 - Digital Drive Series User’s Manual
- Theater/music selection indicator (servo gain control)
- Signal sensing auto turn on/off/12 Volt trigger (defeatable) - 6 presets for customized listening modes and eQ defeat - Selectable default preset
- Switchable Velodyne logo indicator
- night mode maximum volume setting
- Save settings indicator
- daisy chain feature



Original Box

Yes Included


Online Only


Yes Included


Yes - See Photos

Physical Condition

8 / 10

Working Condition

10 / 10
