IsoAcoustics GAIA Series Isolation Feet (Set Of 4)

Free Shipping on Most Electronics - Excludes Speakers and Items Requiring Freight - Contiguous U.S. Only

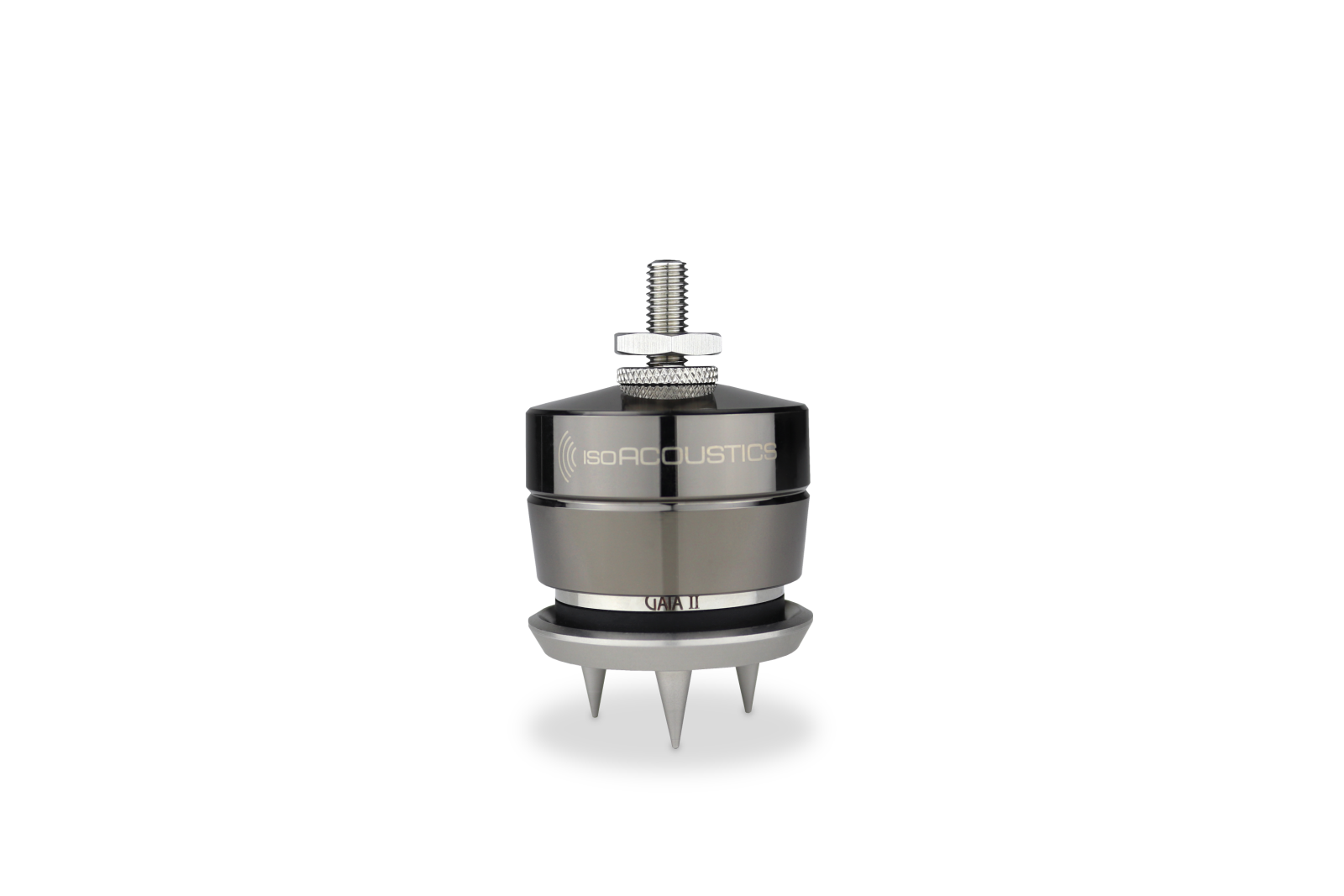

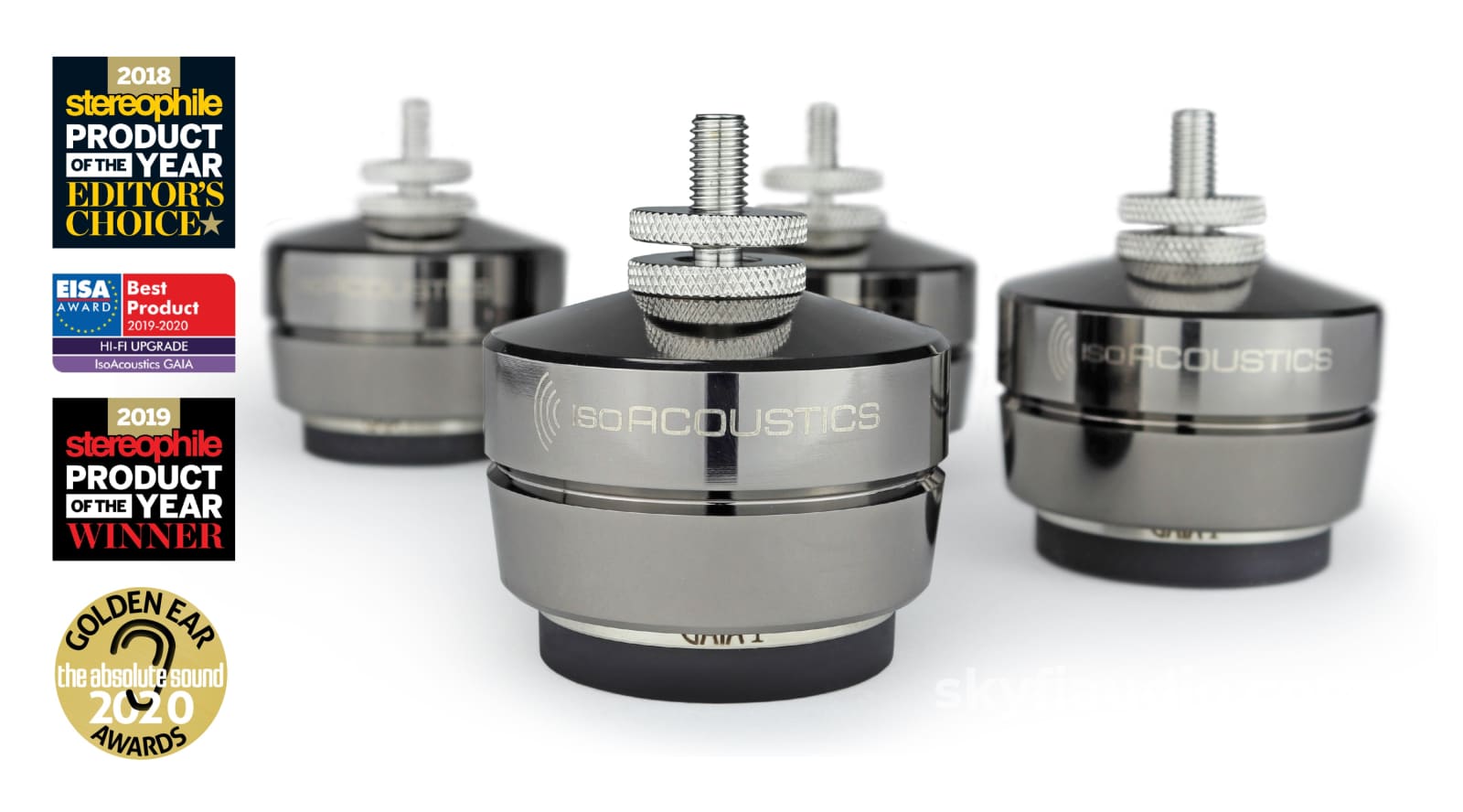

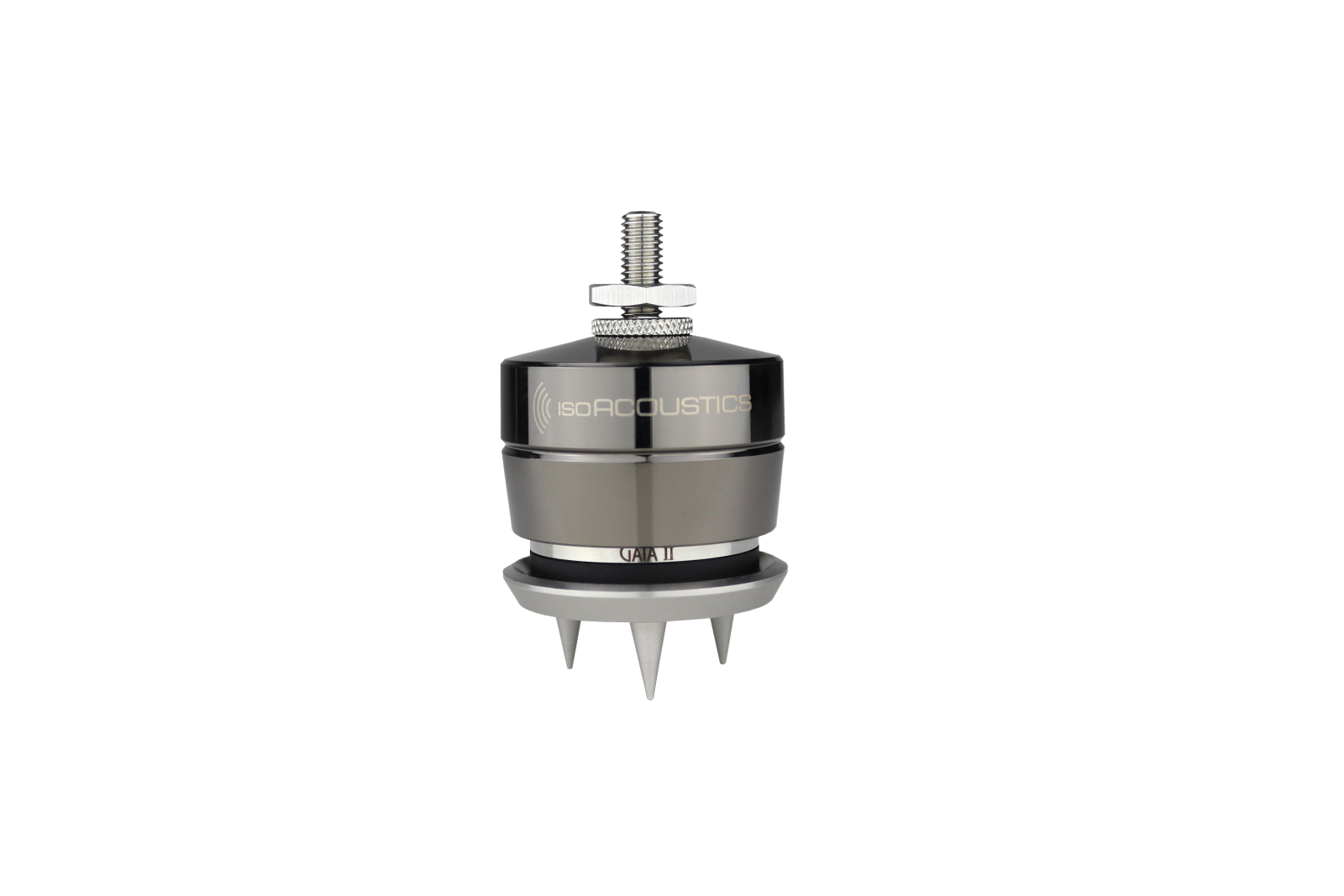

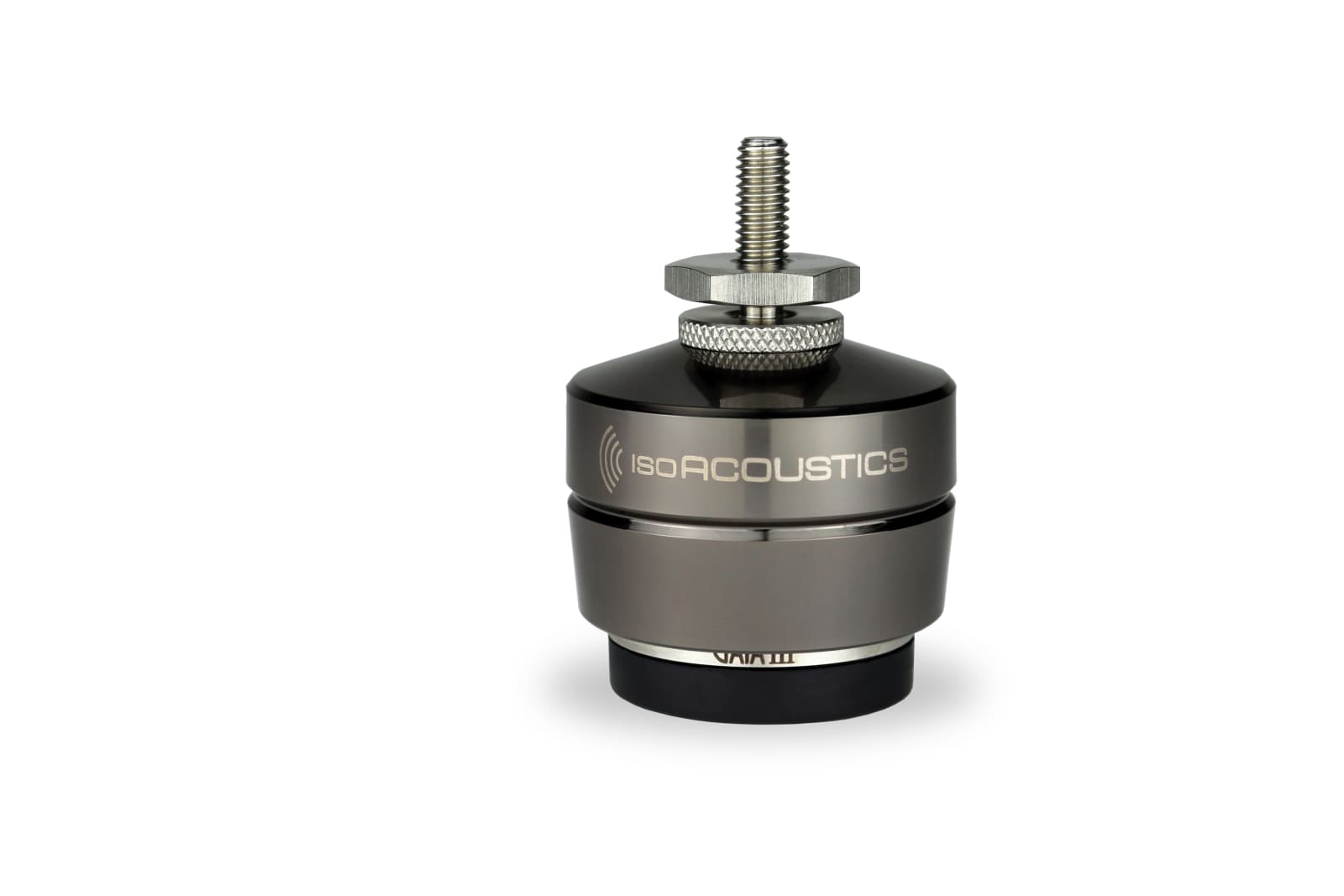

The GAIA speaker isolation feet consist of acoustic isolators contained within an elegant machined dark chrome metal housing. Incorporating IsoAcoustics patented design principles, the GAIA’s provides a high degree of isolation while resisting lateral movement and oscillations to maintain alignment with the listening position. Internal reflections from the hard-supporting surface are attenuated resulting in greater sound clarity and openness. The GAIA’s will reveal clarity and openness from your speakers like you’ve never heard.

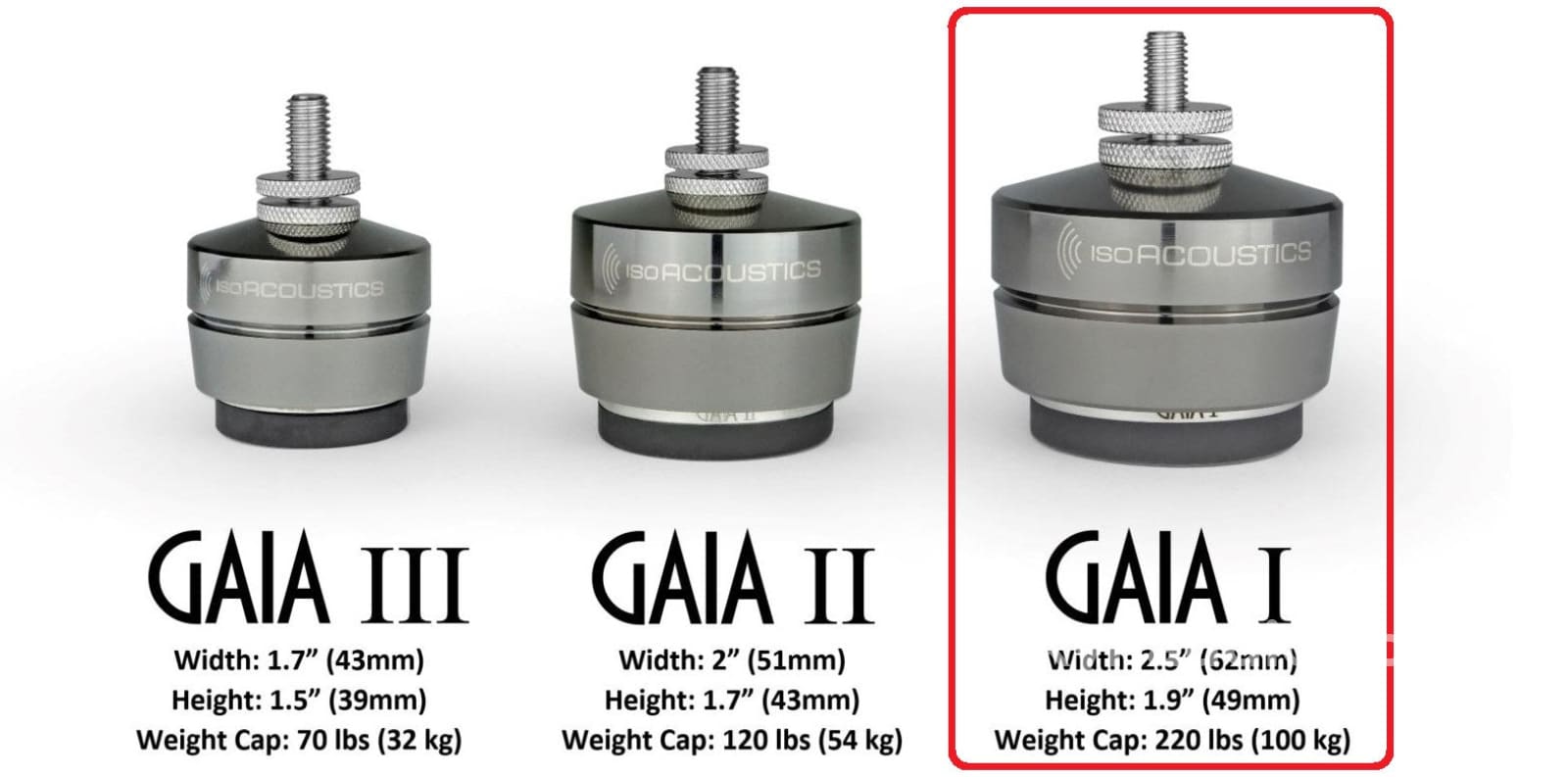

Specifications

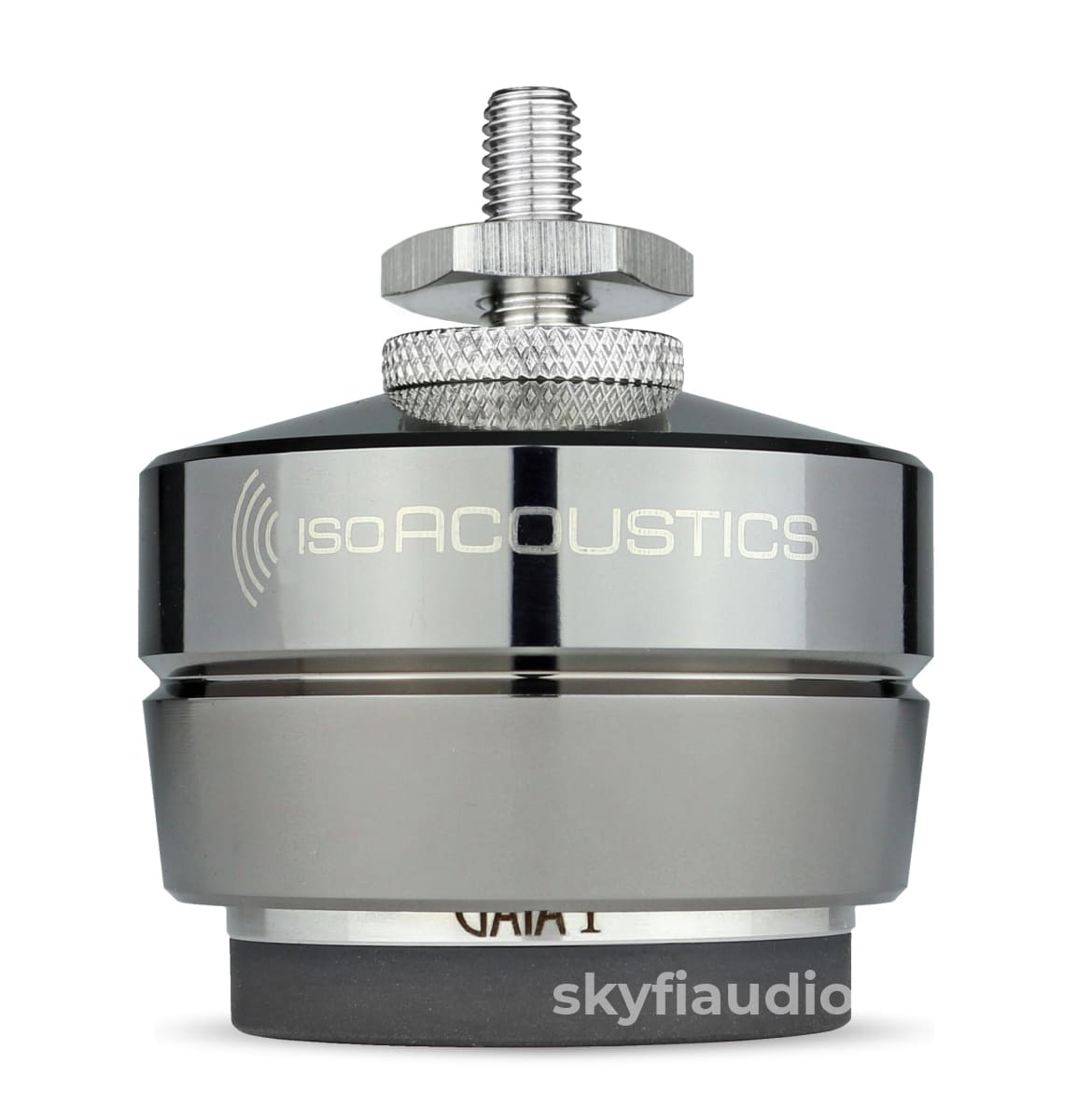

GAIA I
For floor-standing speakers and subwoofers weighing 220 lbs (100 kg) or less.
Size: 2.5" (62 mm) W x 1.9" (49 mm) H
Thread: M8-1.25, M12-1.25, 1/4"-20

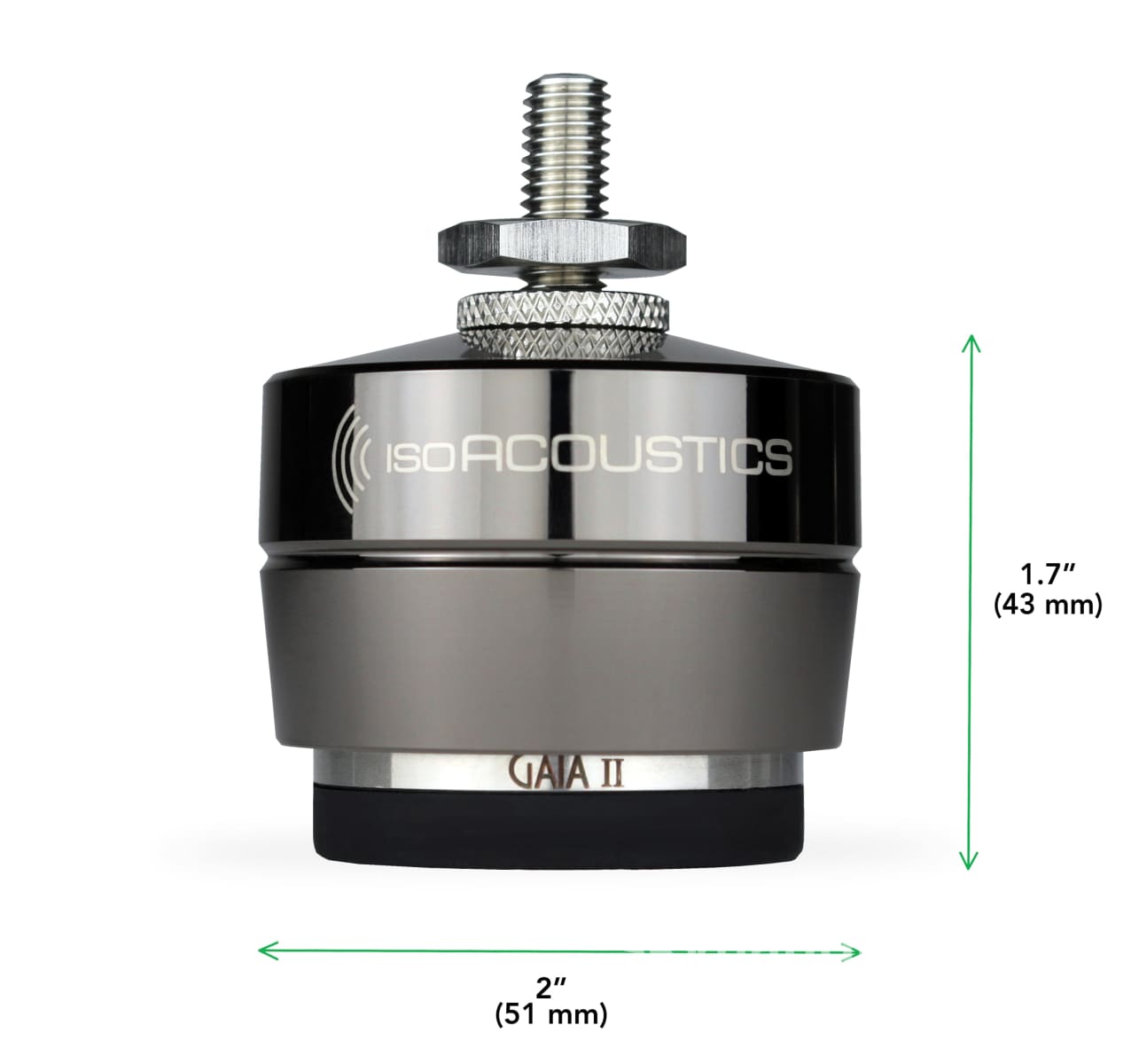

GAIA II
For floor-standing speakers and subwoofers weighing 120 lbs (55 kg) or less.
Size: 2.0" (51 mm) W x 1.7" (43 mm) H
Thread: M6-1.0, M8-1.25, 1/4"-20

GAIA III
For floor-standing speakers and subwoofers weighing 70 lbs (32 kg) or less.
Size: 1.7" (43 mm) W x 1.5" (39 mm) H
Thread: M6-1.0, M8-1.25, 1/4"-20

How to install GAIA speaker isolation feet

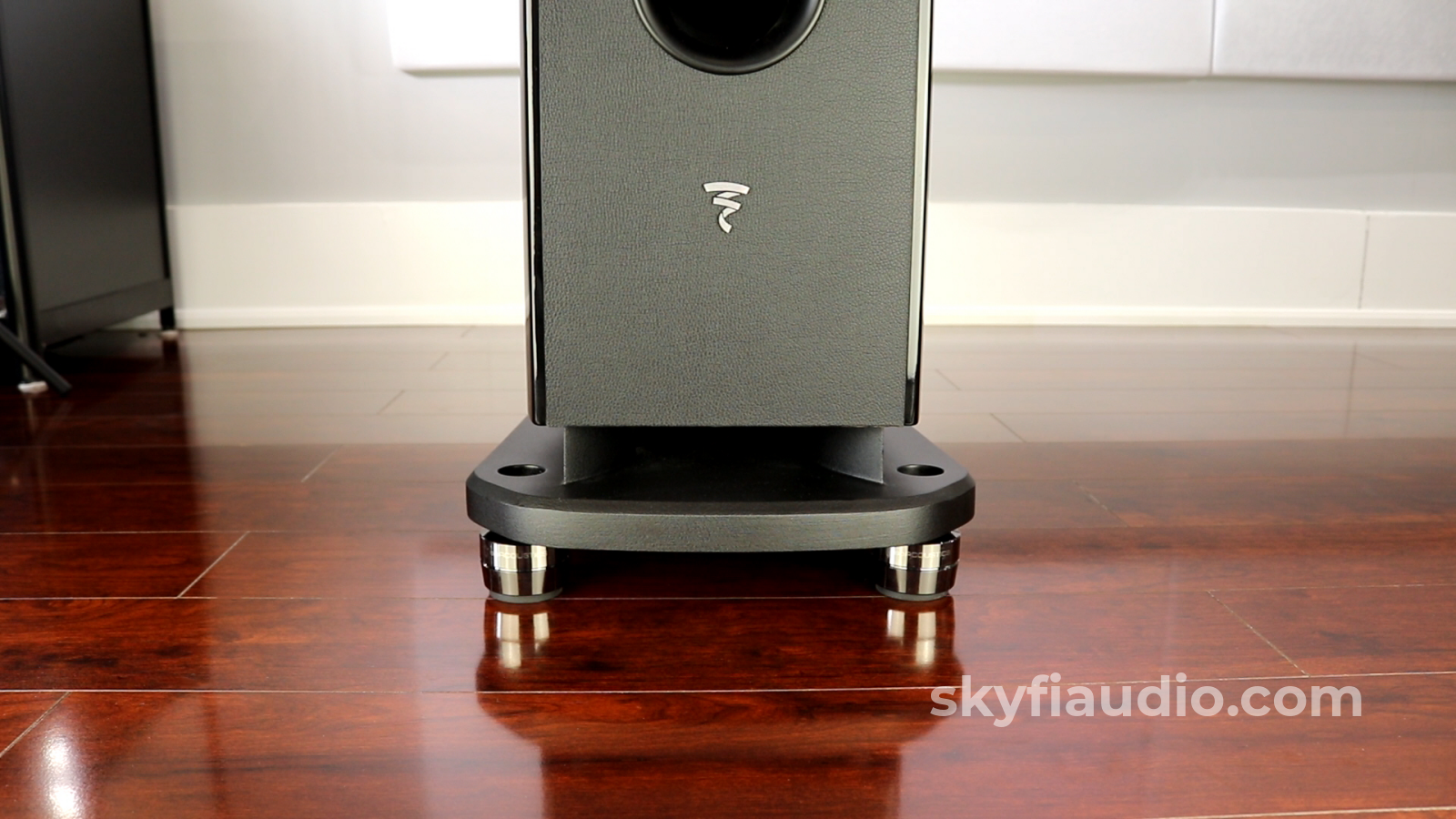

Optimal results are achieved by installing the GAIA isolation feet with the logo facing the listening position, or rotated 180 degrees, to align the isolation feet with the speaker’s motive forces. Lift and place the speakers into position as the GAIA lower isolation feet will adhere to the supporting surface.

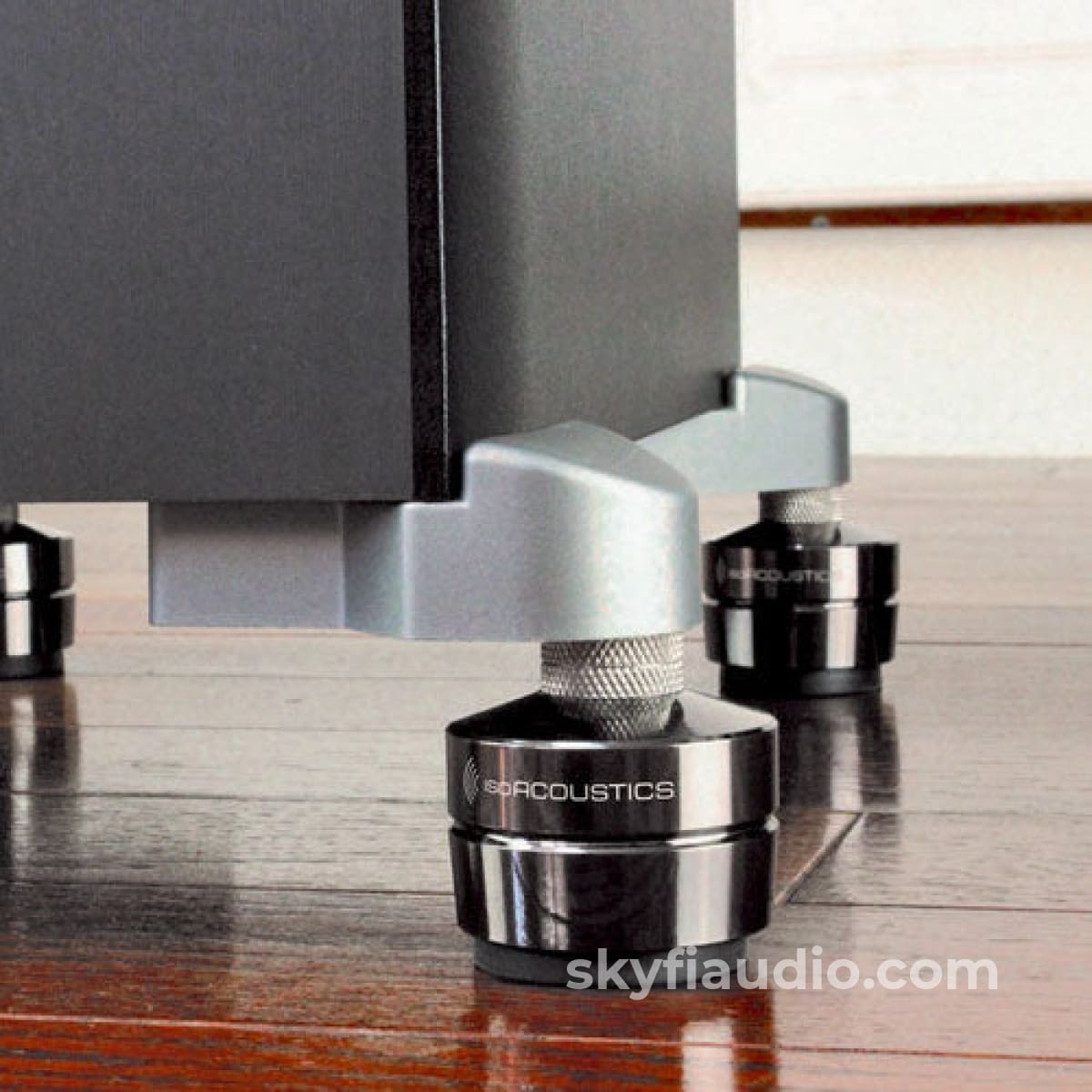

The GAIA’s are threaded into the base of the speaker or subwoofer to replace the existing spikes or feet. Threading the GAIA’s into the base of the speaker creates a strong connection with the speaker. With the top of the GAIA housing connected with the speaker and the bottom of the GAIA connected to the supporting surface, all of the energy is then managed by the GAIA’s internal isolator.

Optional Speaker Jack

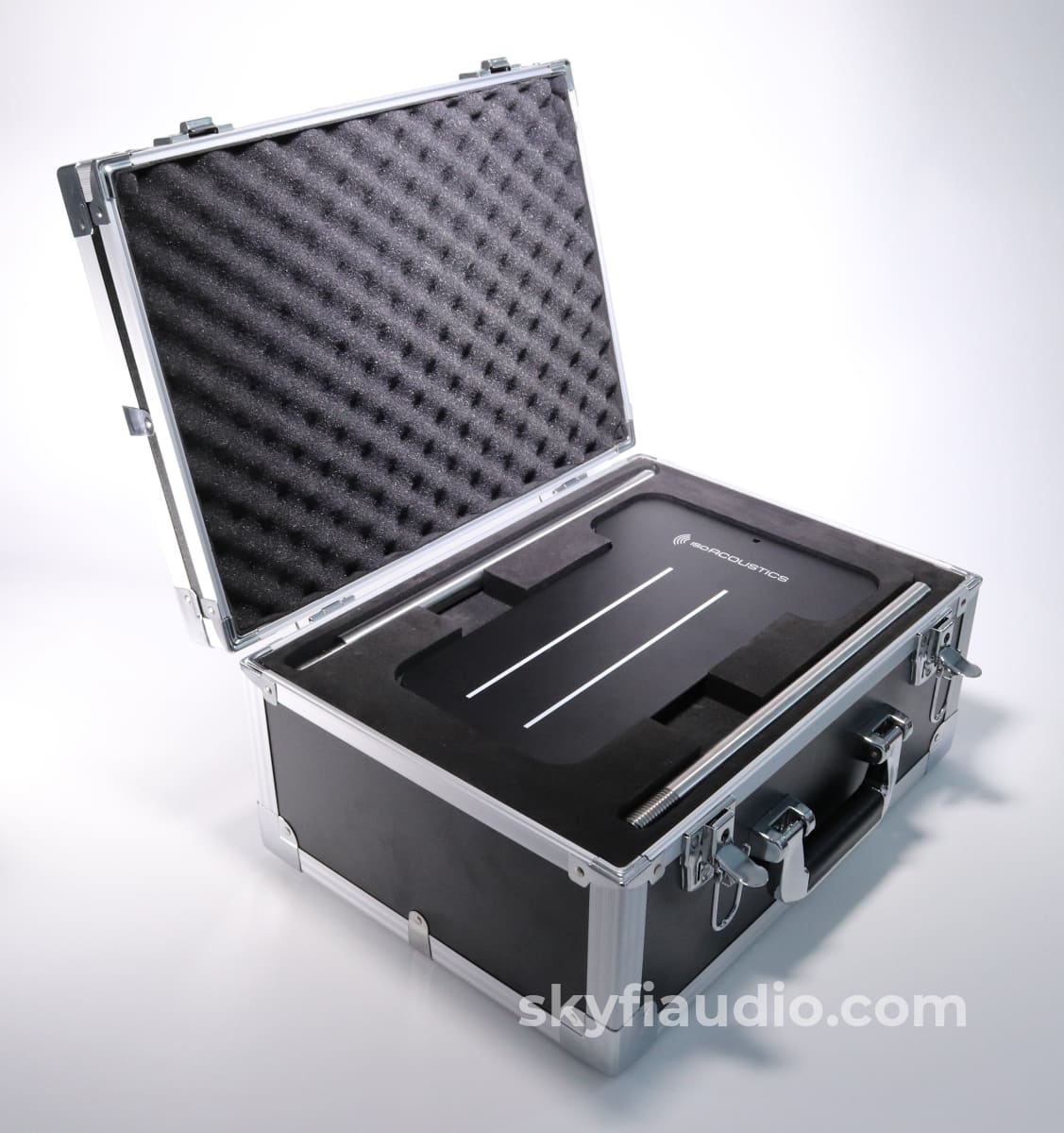

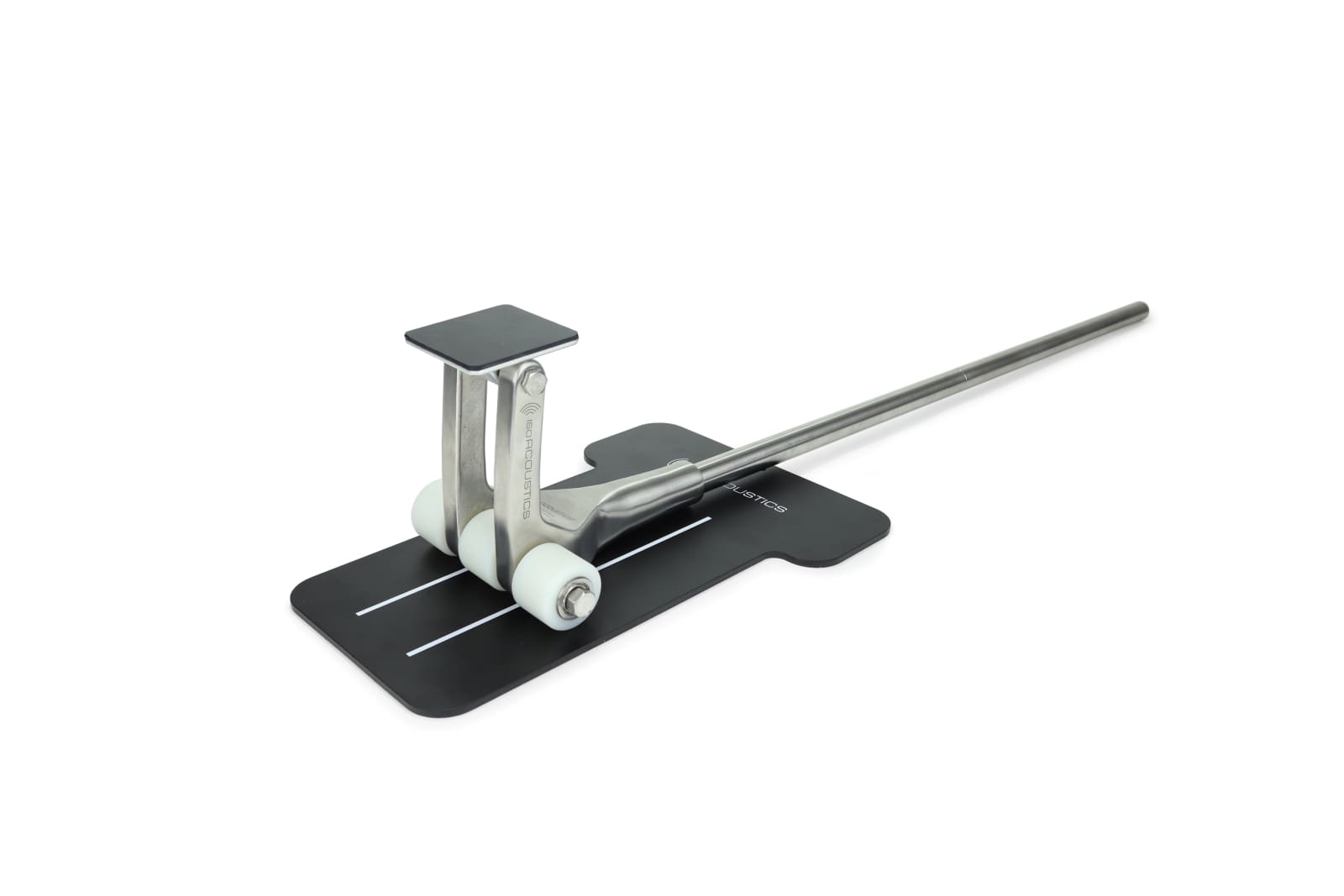

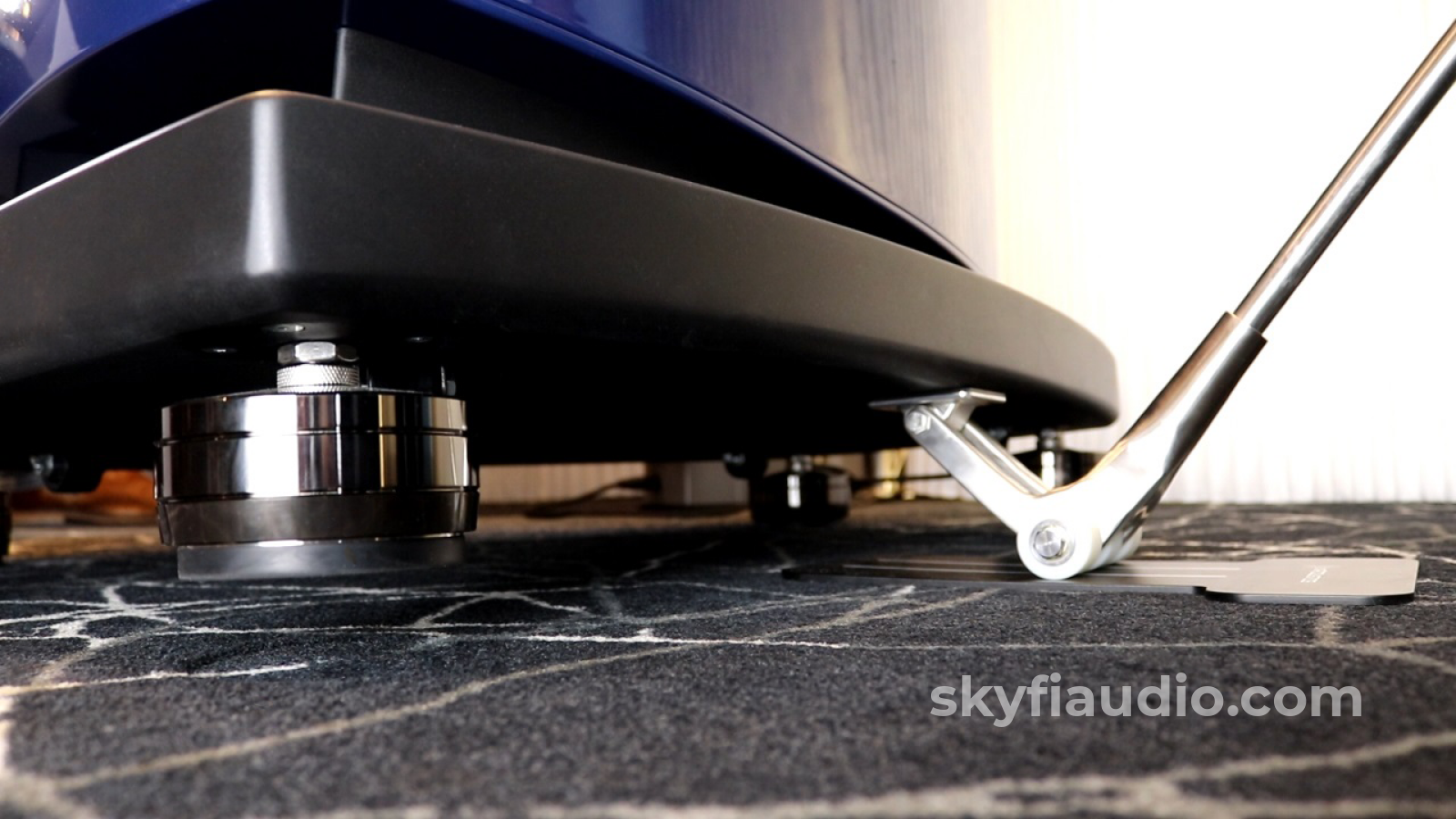

The F1 Jack is a tool designed to raise the side of a speaker to allow access underneath for the installation of the IsoAcoustics GAIA and GAIA-TITAN isolators.

The over square shape of the F1 Jack frame allows the speaker to remain in the raised position while the F1 Jack handle is positioned flat on the floor.
