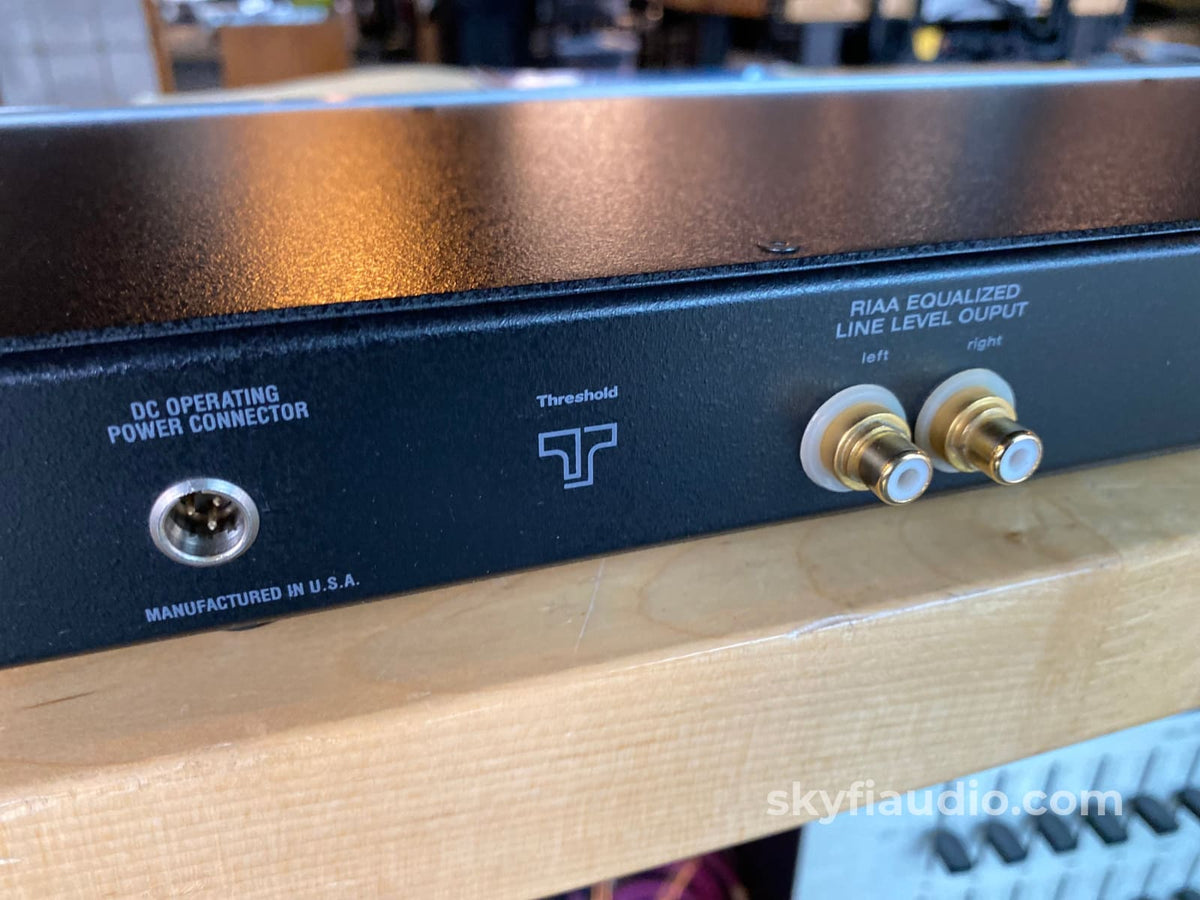

Threshold FET 10/PC MM/MC FET based Phono Stage w/External Power Supply ~ Recapped

Sale price£1,586.00
Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

Pickup currently unavailable at SkyFi 479

Threshold Fet 10/Pc Mm/Mc Based Phono Stage W/ External Power Supply ~ Recapped Preamplifier

Threshold FET 10/PC MM/MC FET based Phono Stage w/External Power Supply ~ Recapped

SkyFi 479

Pickup currently unavailable

479 South Broad Street
Glen Rock NJ 07452
United States

+12018790000

General:

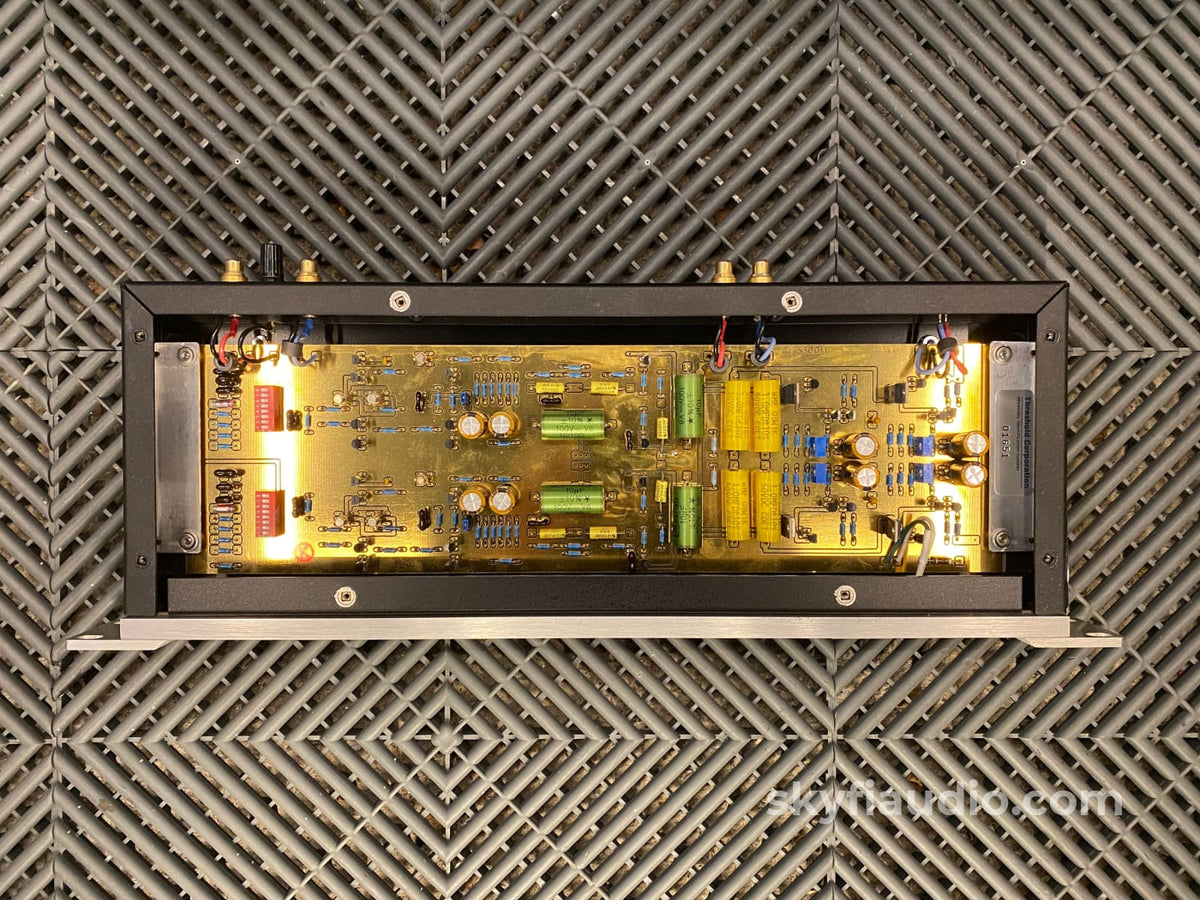

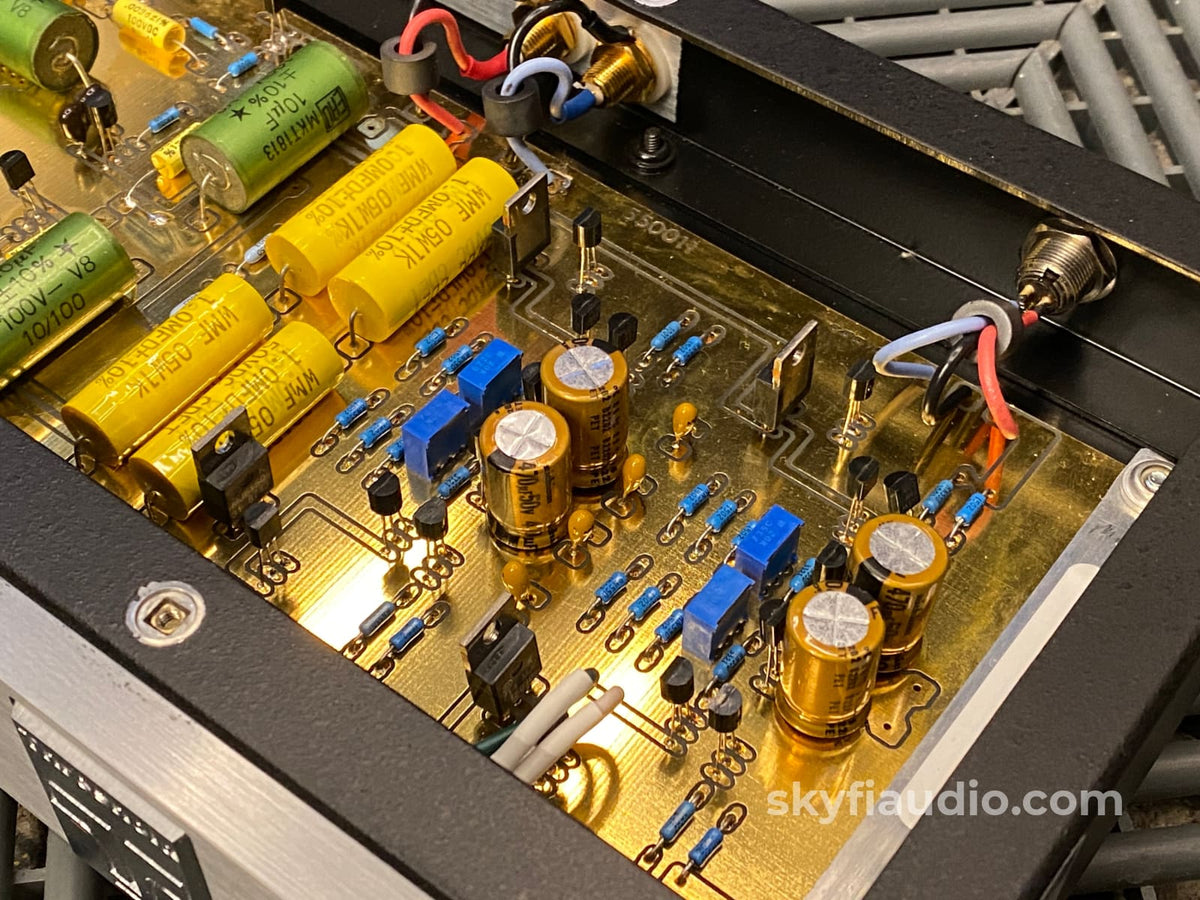

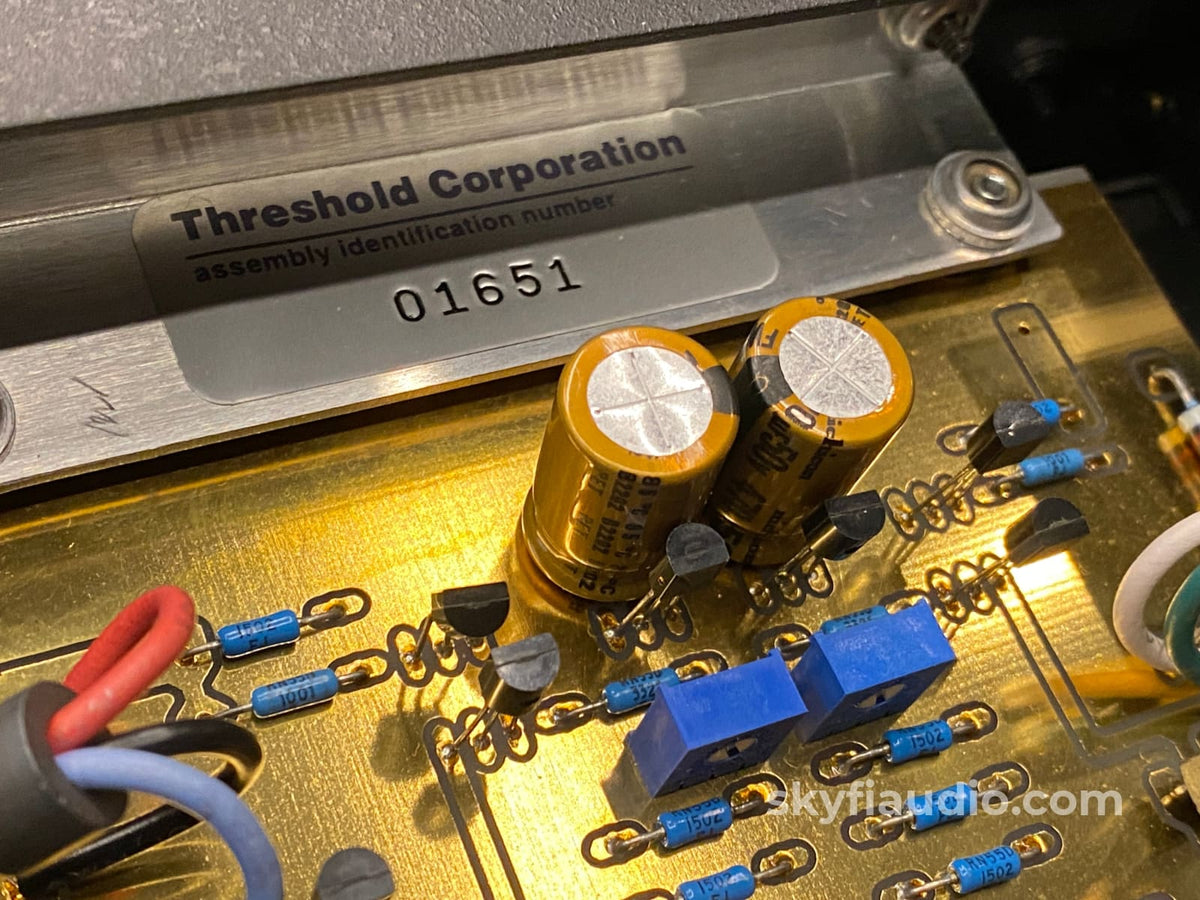

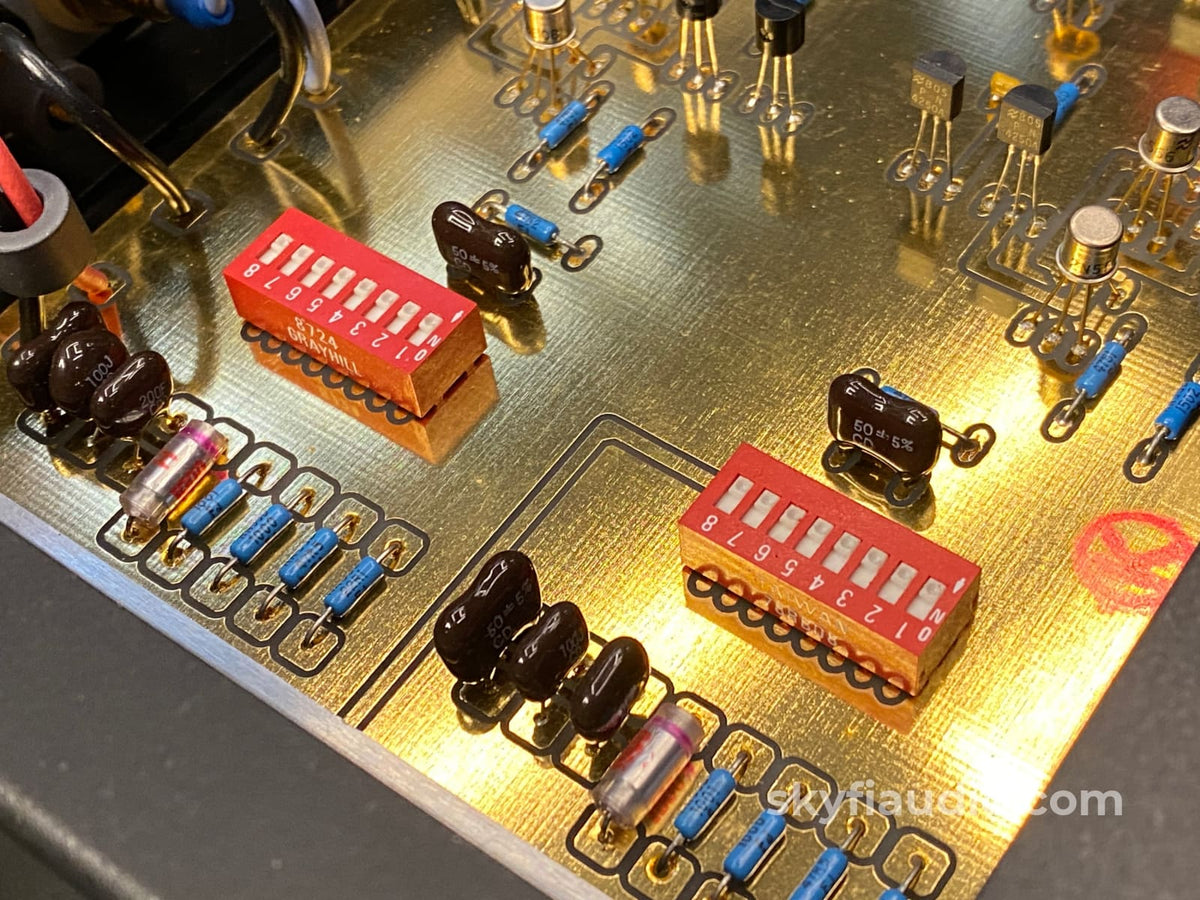

Incredibly capable and well made vintage phono preamp from Threshold. Just look at the internal pictures we provided!

This was re-capped by another shop and is workings perfectly.

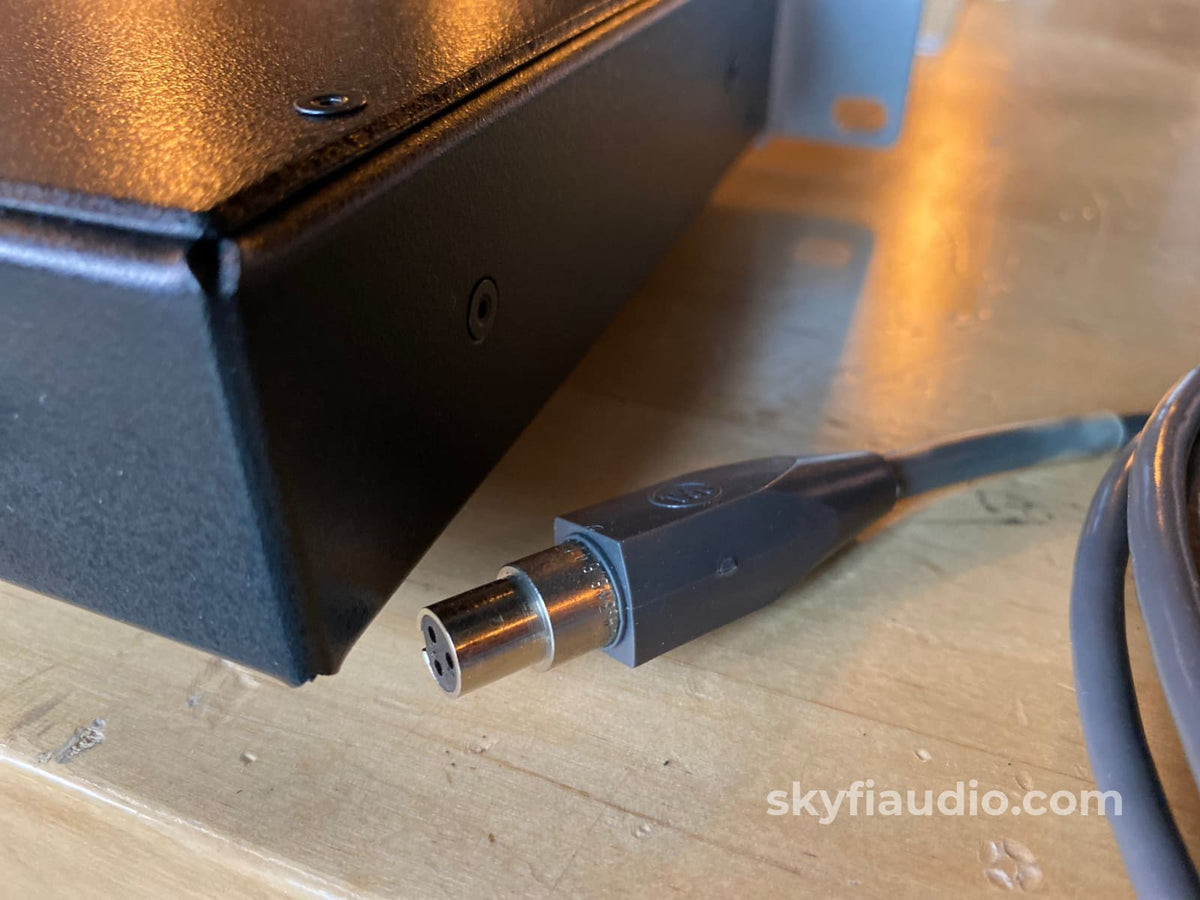

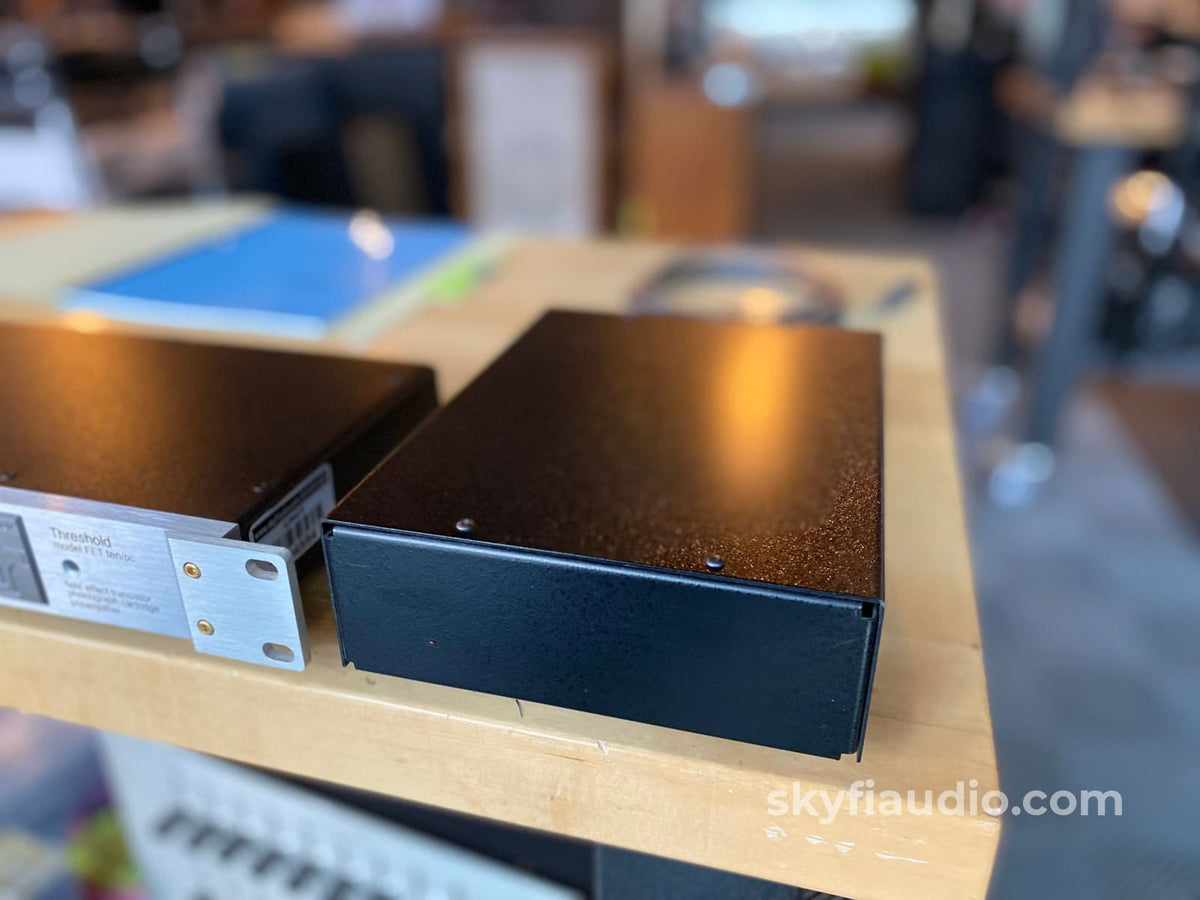

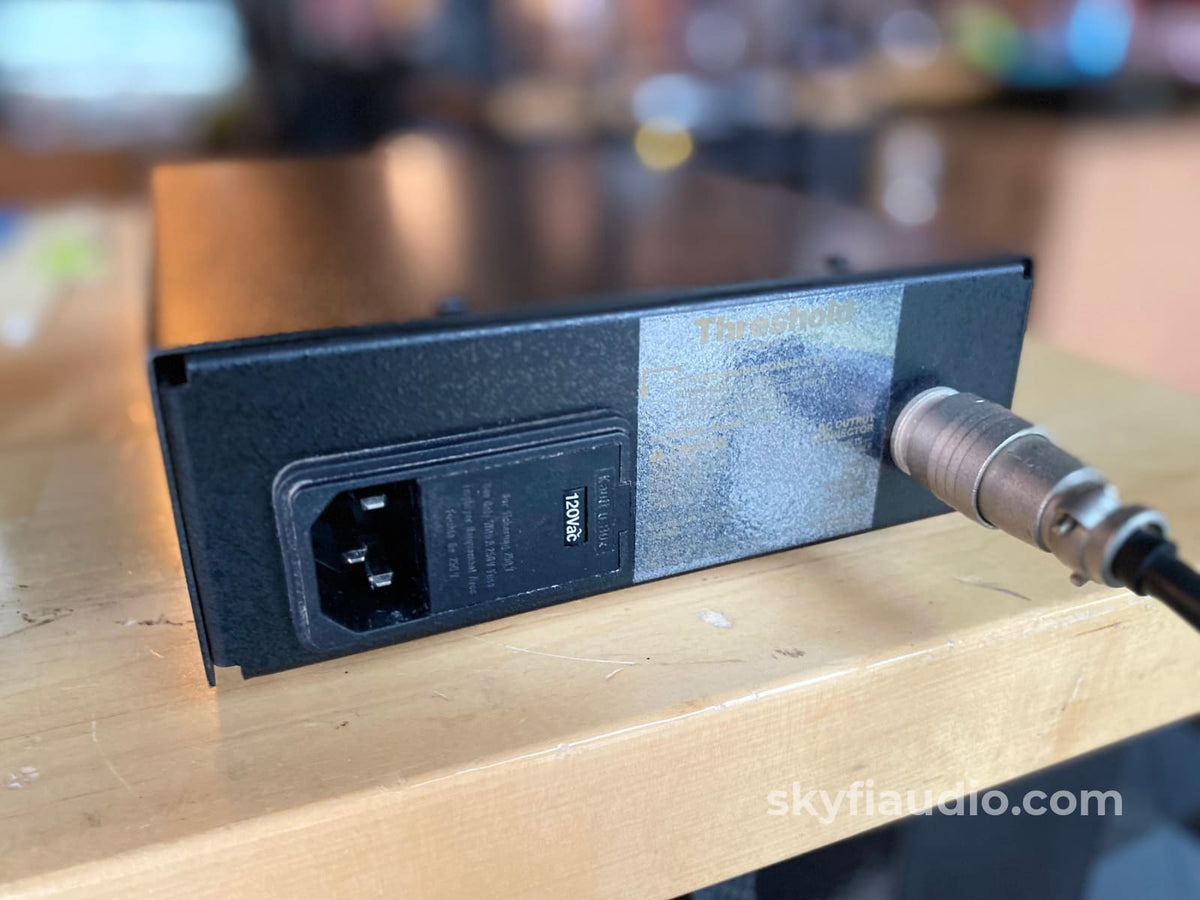

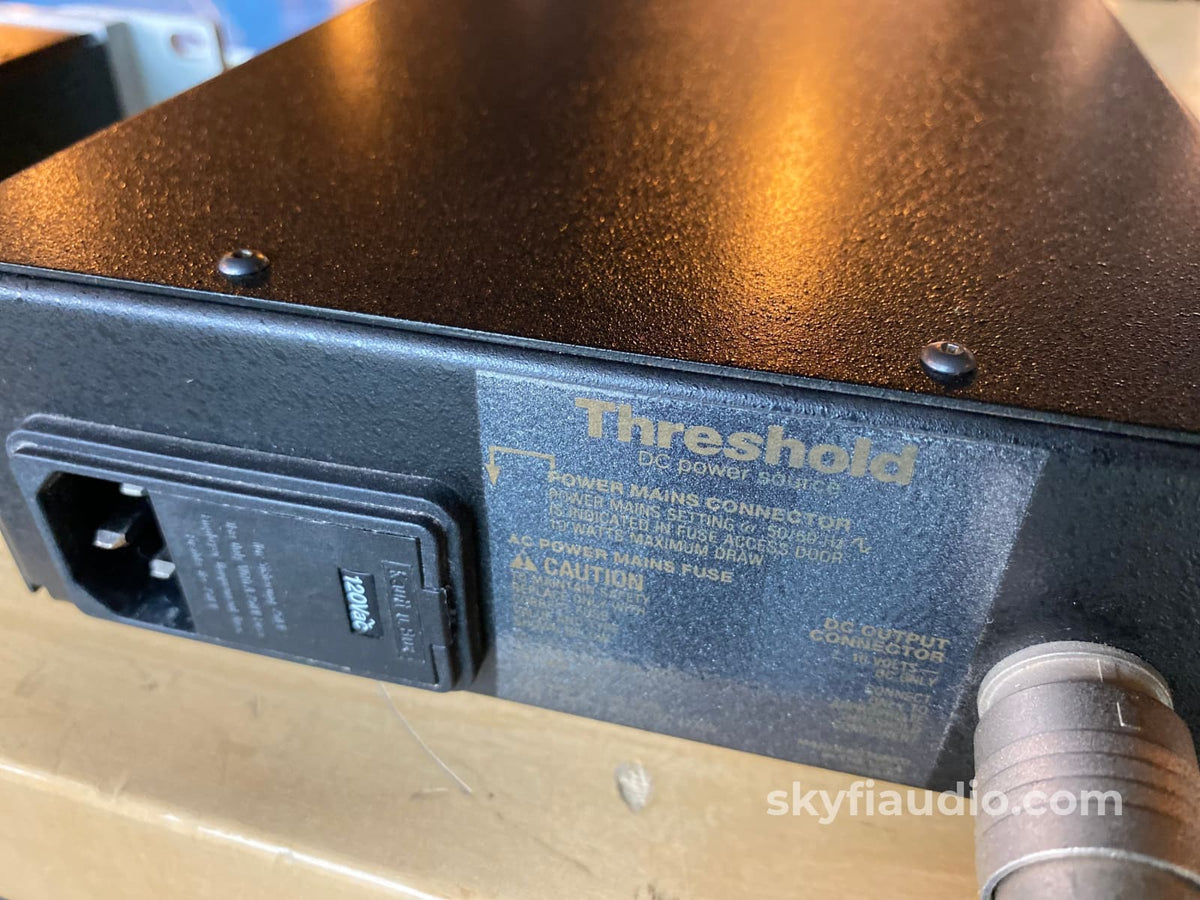

Best of all the FET 10/PC (or ten/PC) features an external power supply which is extremely beneficial in a phono preamp specifically.

Configuration Notes:

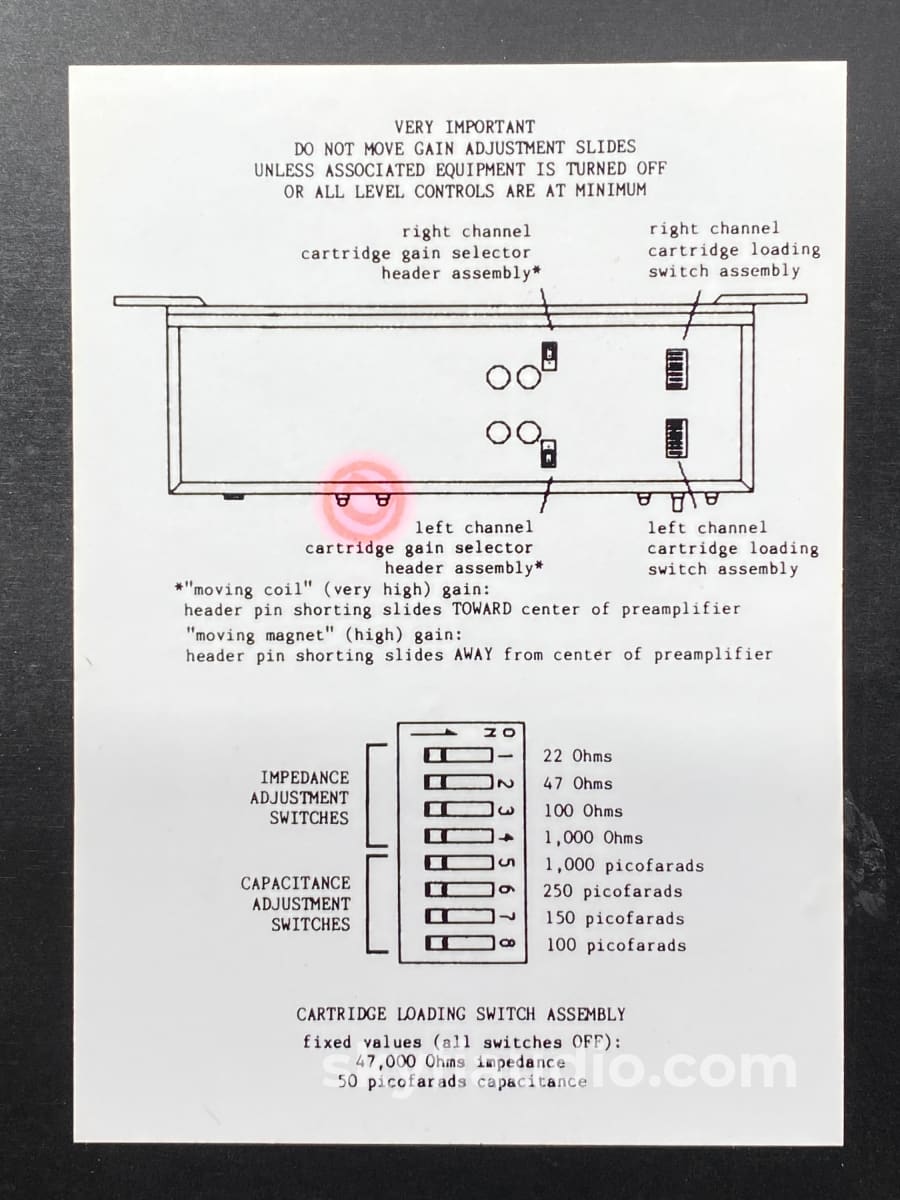

- Cartridge loading is currently configured for 47K and 50pF.
- This preamplifier has two gain settings is currently configured in low gain mode (-20dB).

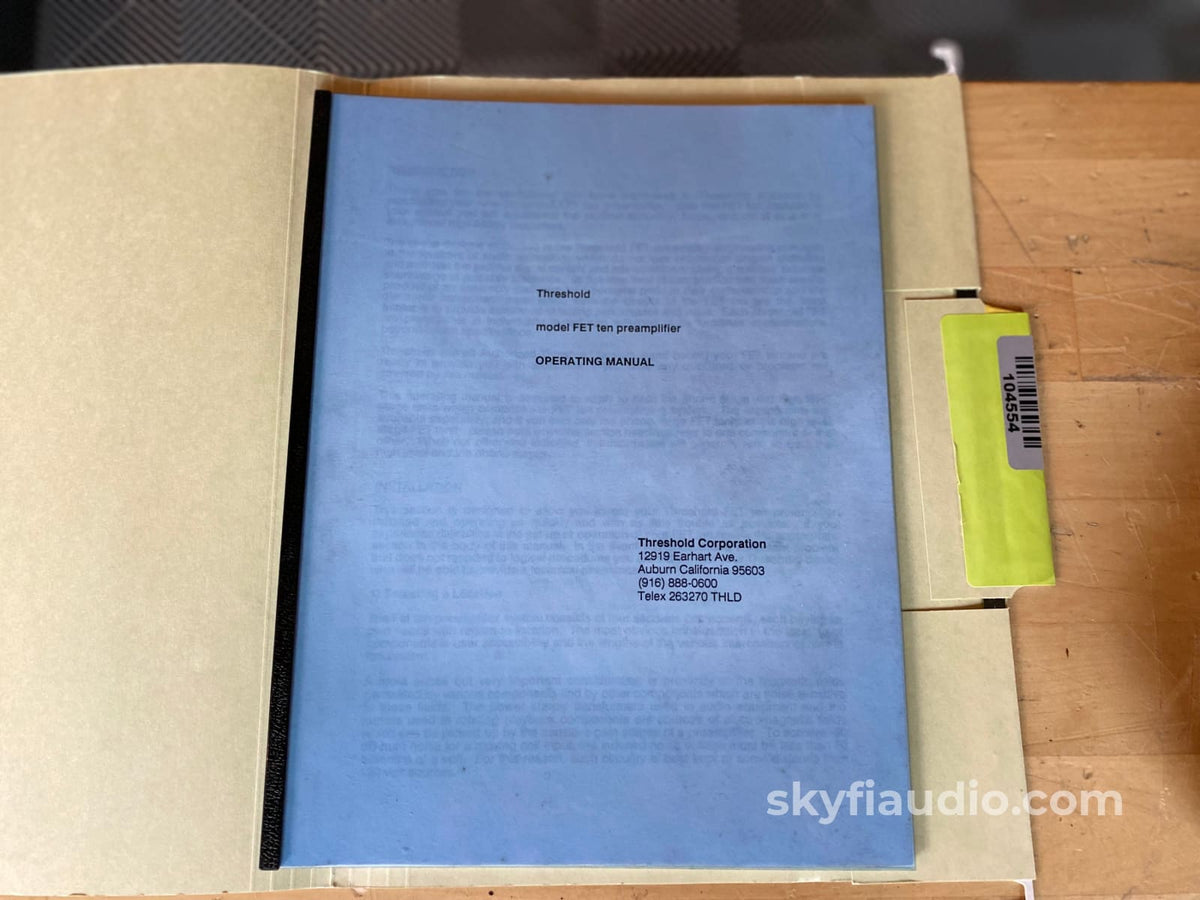

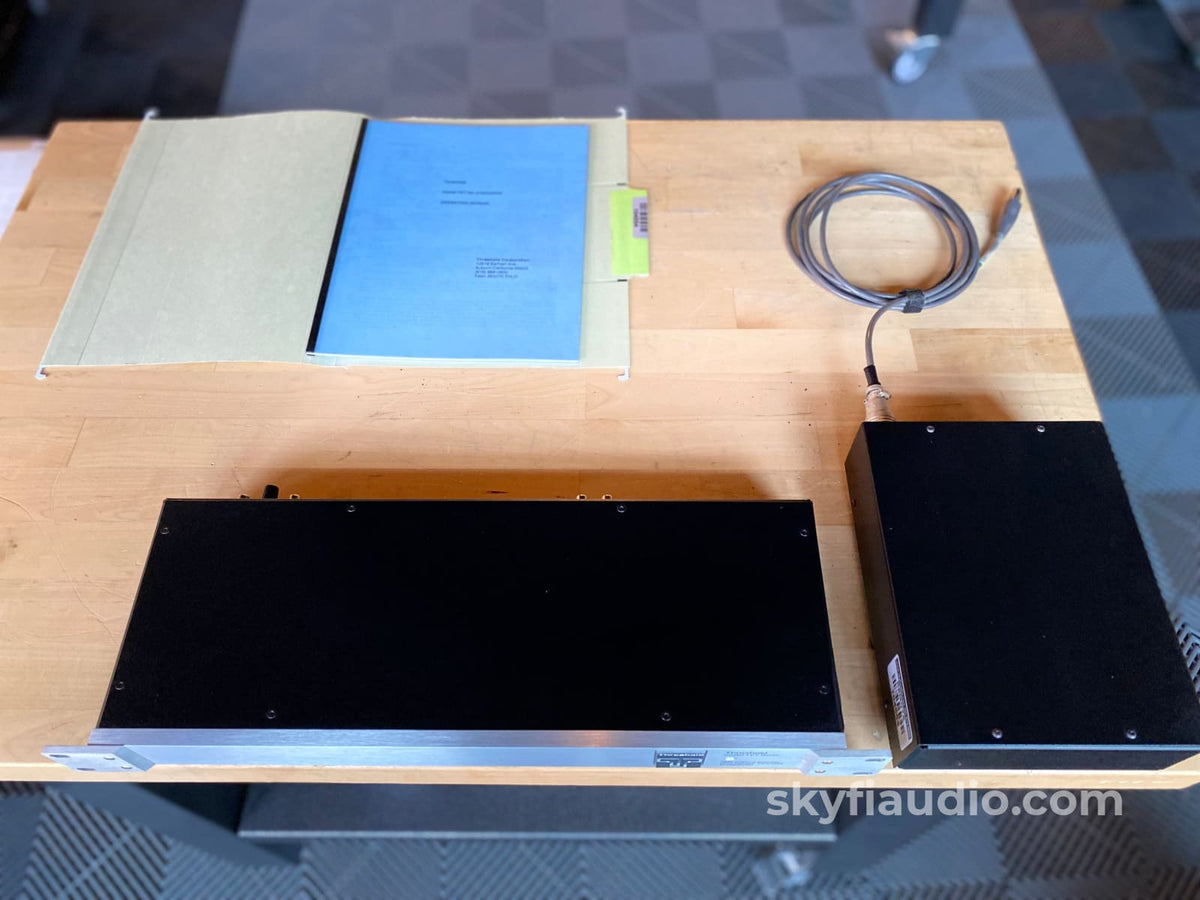

Great cosmetic condition with little signs of use. Includes original manual.

Ownership:
Unknown

General Sound:
Accurate to the recording

Cosmetic Condition:
8/10 = Very Good. Excellent front faceplate, one minor flaw on chassis side or top.. See our detailed rating description here.

Working Condition:
Working perfectly and tested in our lab and listening room.

Included:
Just the unit and power cord.

Packing:
Will be packed using our highly developed in-house process and custom packing materials.Specs:

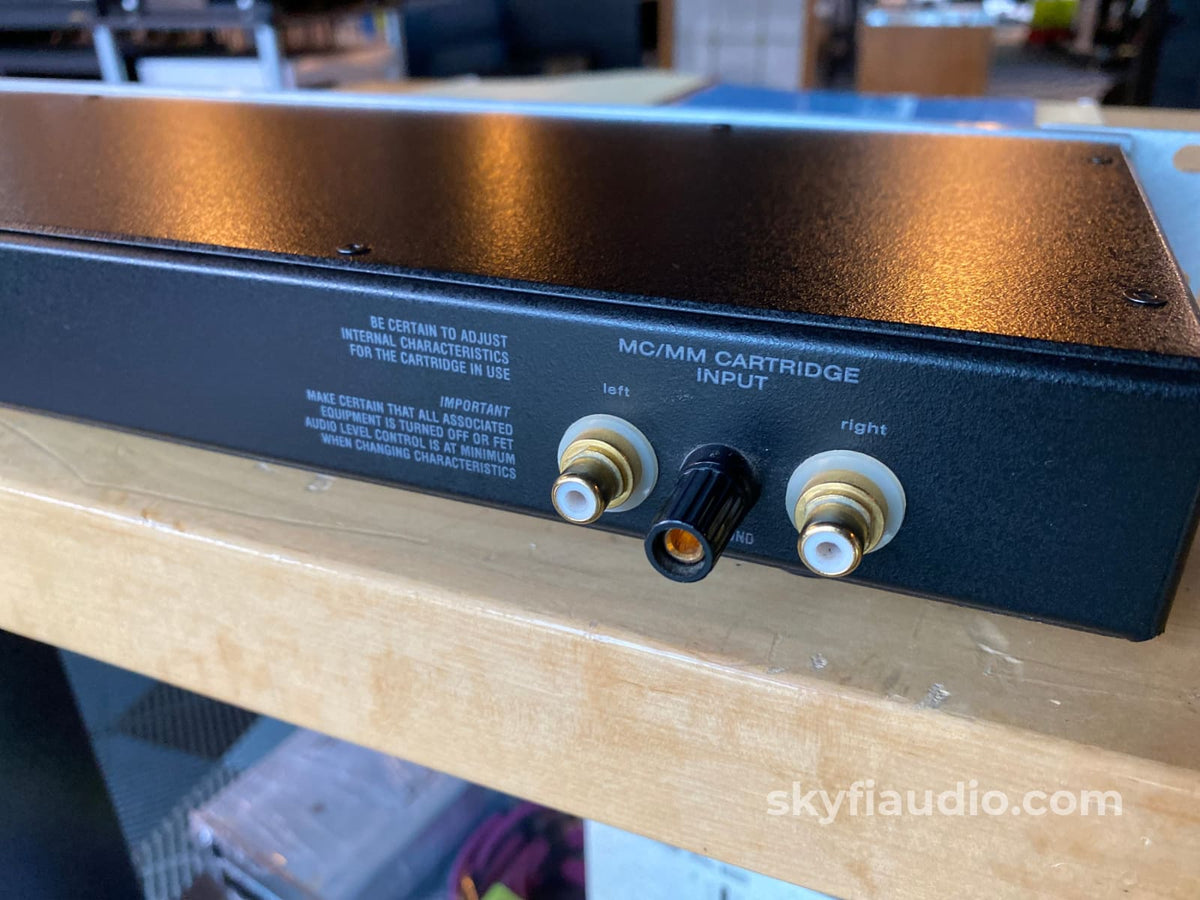

- Input MM / MC.

- Loading adjustments 47kΩ, 1kΩ, 100Ω, 47Ω, 22Ω in parallel with 50pF, 100pF, 150pF, 250pF, or 730pF.

- Output 2 pair, balanced or unbalanced.

- Phono gain 37.7dB @ 1kHz (MM), 58.5dB @ 1kHz (MC)

- Output Impedance 110Ω unbalanced, 220Ω balanced.

Testing Process:

We start with a visual inspection of all internal components to make sure that there are no signs of heat stress or damage. Capacitors are checked for telltale signs of predictive failure including bulging, shrunken wrappers, or physical leakage. We also inspect the PCB’s for discoloration from resistors or transistors that may have been running hot. On vintage units we often spot check select capacitors for value and ESR.

When we first power on a preamplifier we connect its RCA output to a Sencore PA81 Power Analyzer which simulates real world loading conditions and gives us an oscilloscope interface. The first order of business is checking that the volume control works smoothly throughout its entire range with acceptable channel balance. This is accomplished by feeding a 1KHz sine wave into one of the preamp’s line level inputs while monitoring the preamp’s output on an oscilloscope. We then switch to a 1KHz square wave to test the tone controls, loudness function, and filters where applicable. During this step we are watching for equal alteration of the test signal by both channels. This also helps us identify dirty controls that will need treatment. Once the basic line stage functions are verified, we test each input individually. This is especially important for devices that use relays to select their sources. If the preamp is equipped with a phono stage we test that as well. We use an inverse RIAA filter which allows us to feed a reference test signal into the phono input with the proper RIAA equalization and level. A square wave or sine sweep is used to verify that the device’s phono stage is faithfully reproducing the RIAA curve. If the preamp under test has balanced inputs and/or outputs these are tested as well.

We finish up our bench testing with a listening test with our bench amplifier and reference speakers. During this test we check for hum or hiss that may not have shown up in earlier testing. We also check that all of the tone controls and filters perform as expected. If the preamplifier has remote control functions these are also tested. Preamps with tube circuits or complicated power supply topologies are connected at our long term test rig for extended stress testing under real world conditions.

SKU: 104554
