Technics Professional “Flat Series” HiFi Rack System – Complete, Rare, and Serviced

Free Shipping on Most Electronics - Excludes Speakers and Items Requiring Freight - Contiguous U.S. Only

General:
Another first-ever SkyFi listing, this is an incredible and complete Technics rack system hailing from the glory days of 1970's HiFi.

The Technics professional series features some of their best components of the era, also known as the "Flat Series". This wasn't a formally named product line, rather a designation for the higher-performing gear. Especially specific preamplifiers and power amplifiers known for their ultra-performance capabilities and 19-inch rack-mountable design.

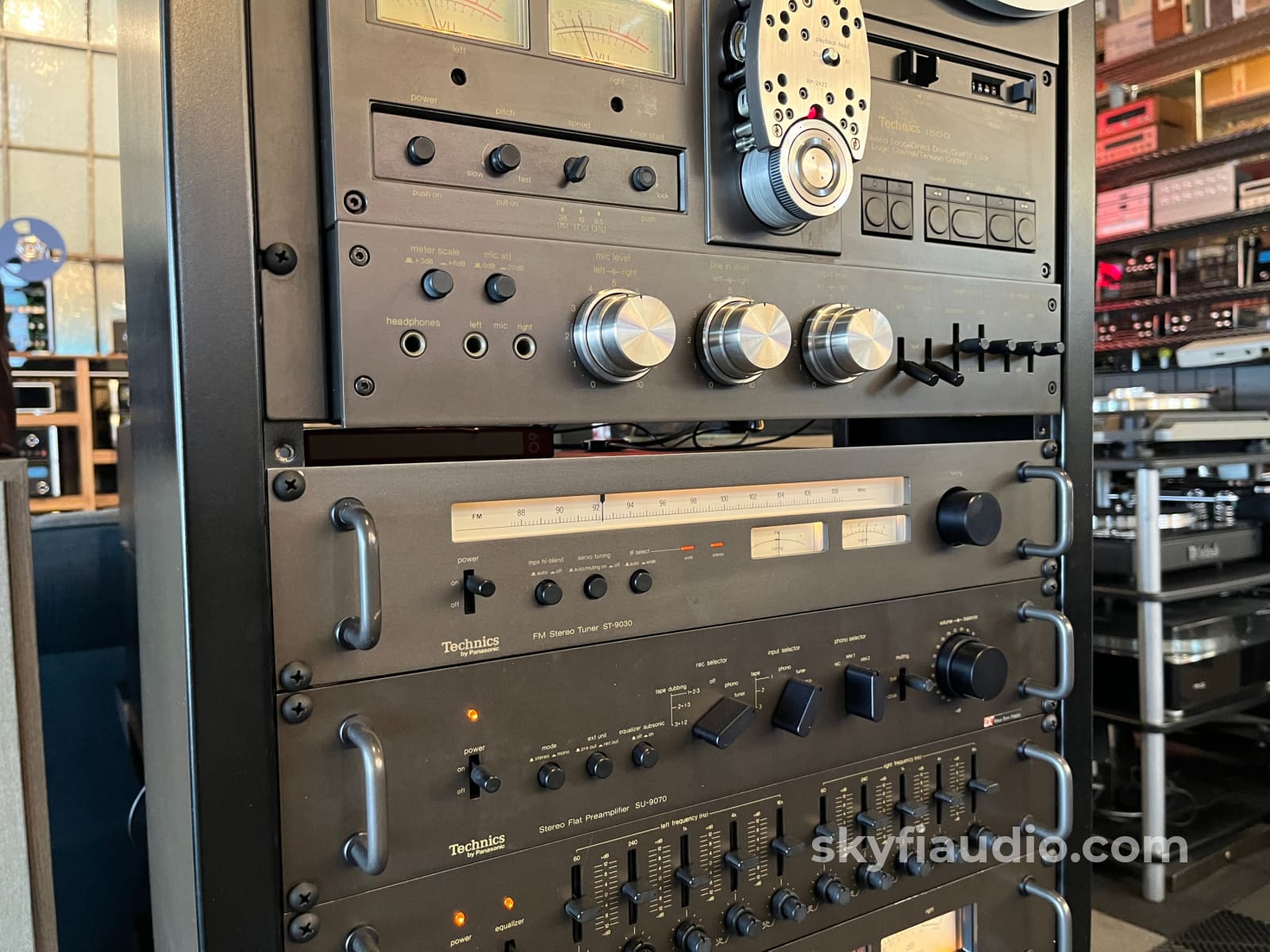

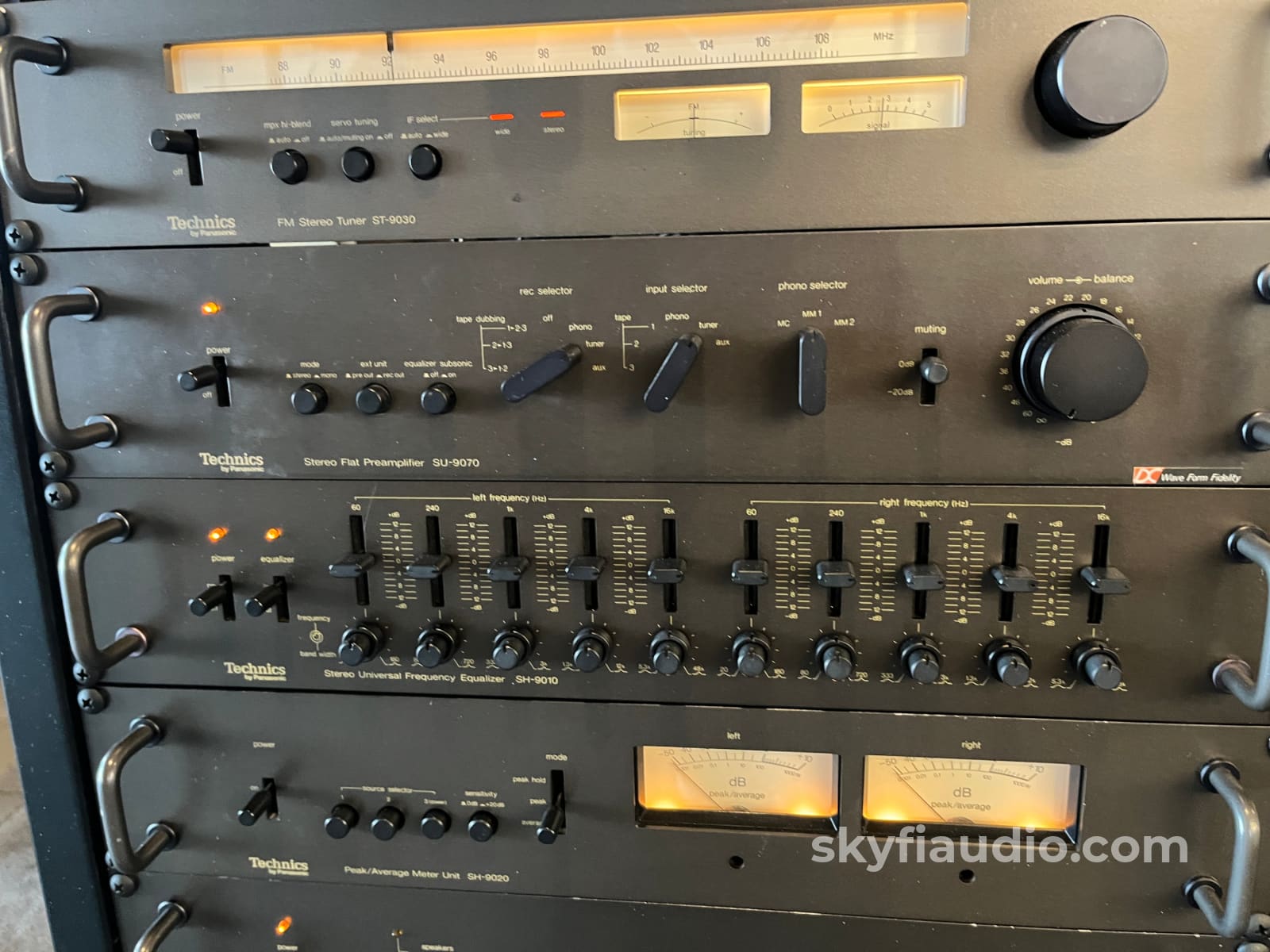

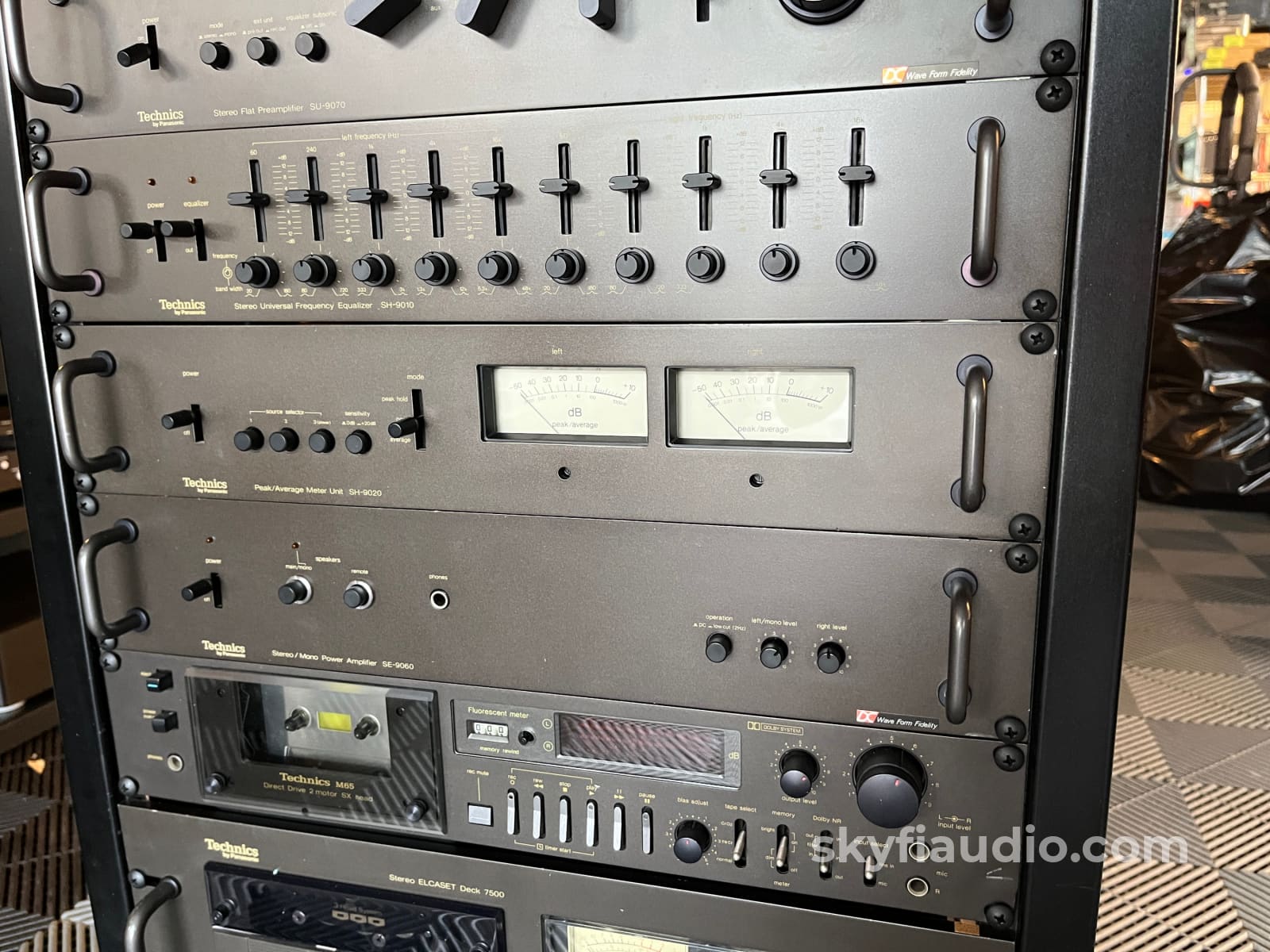

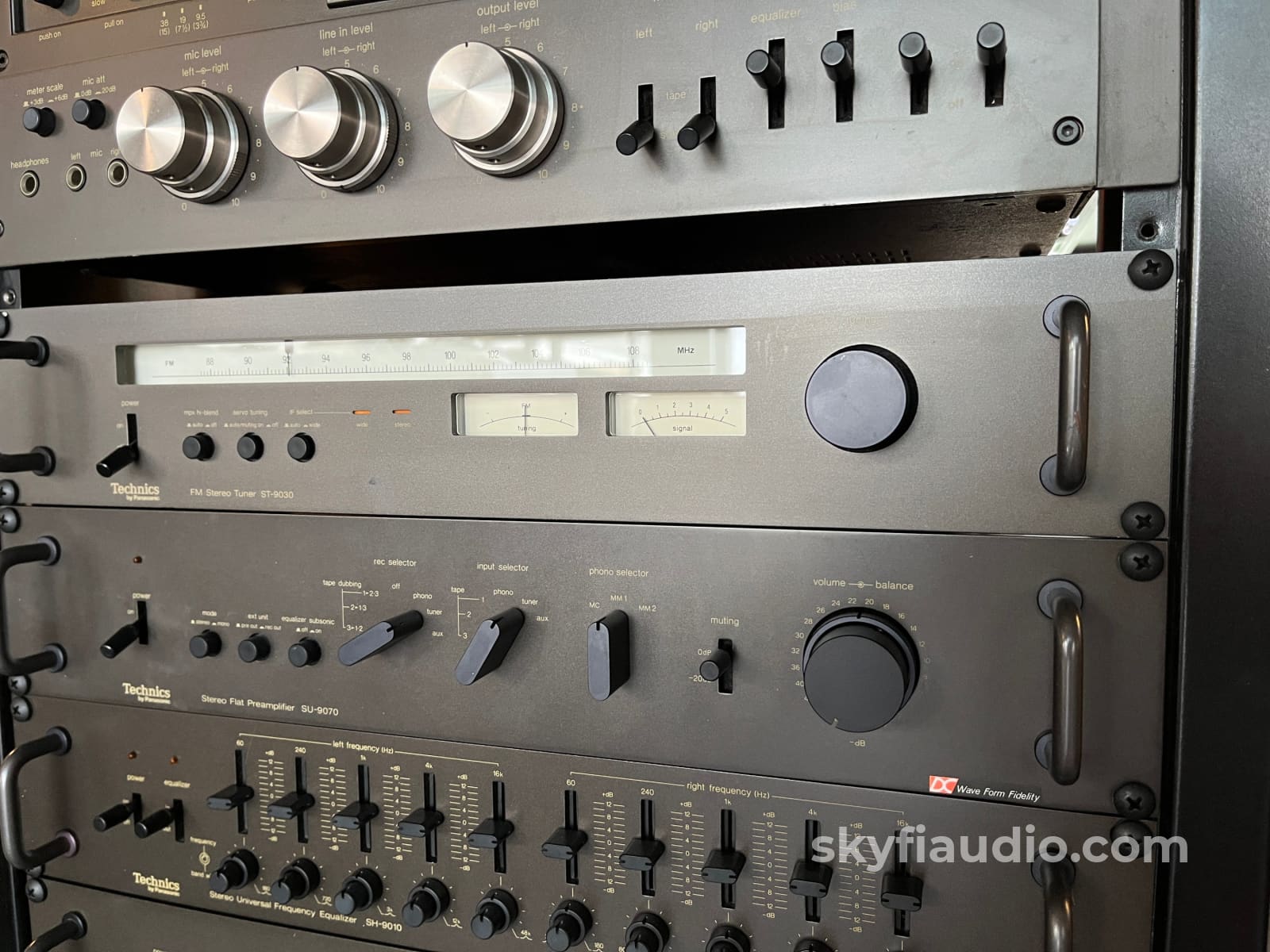

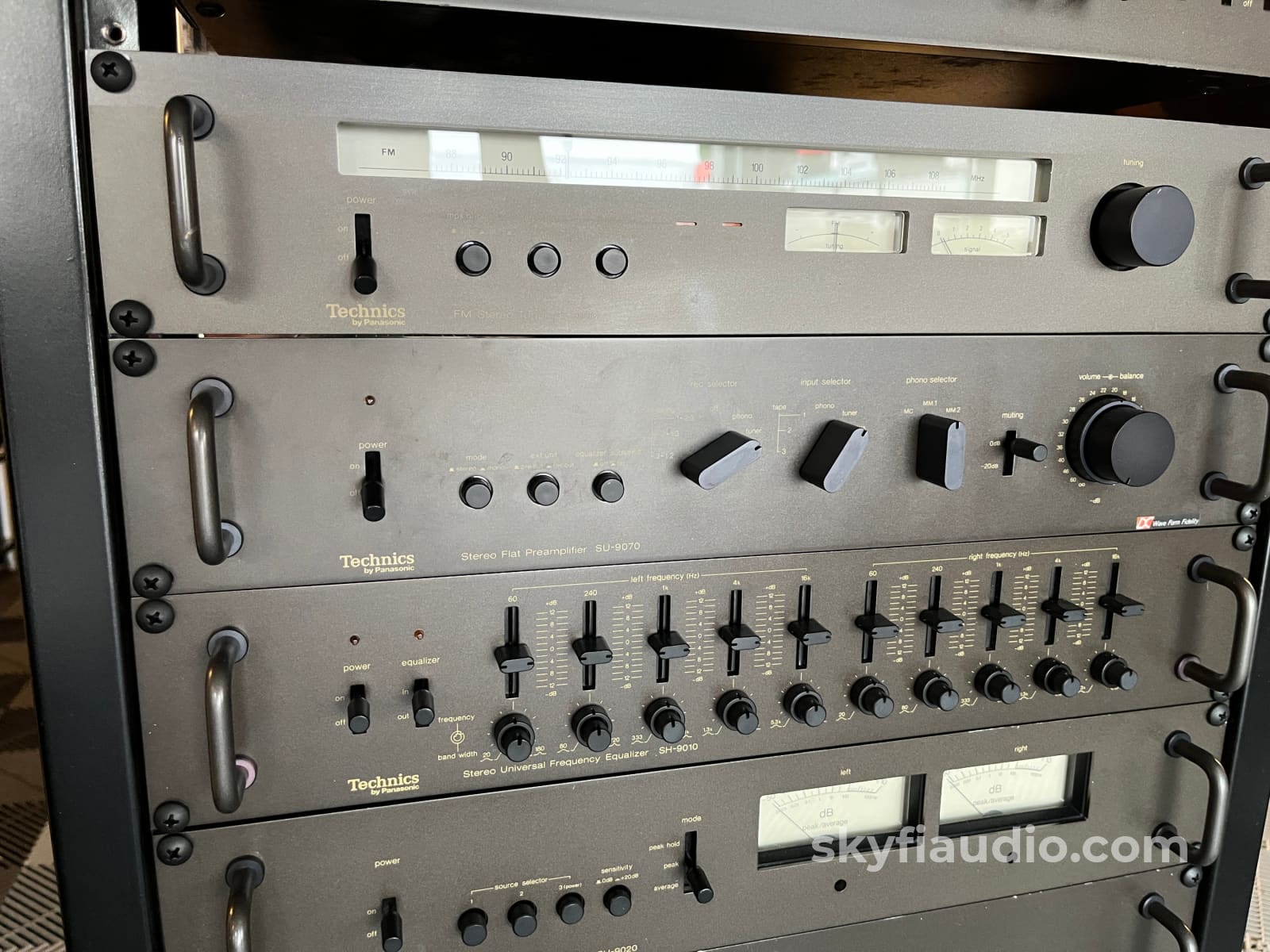

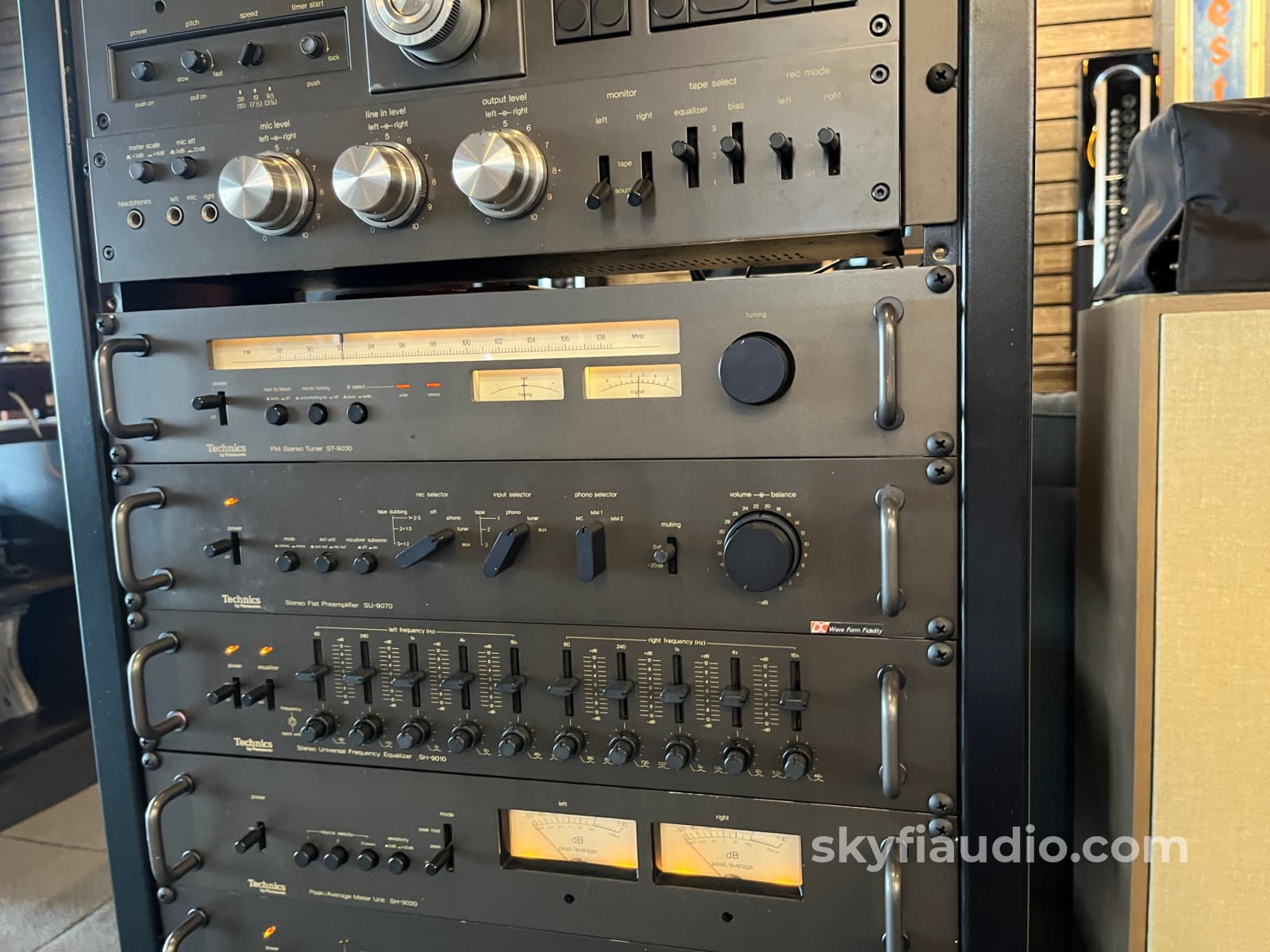

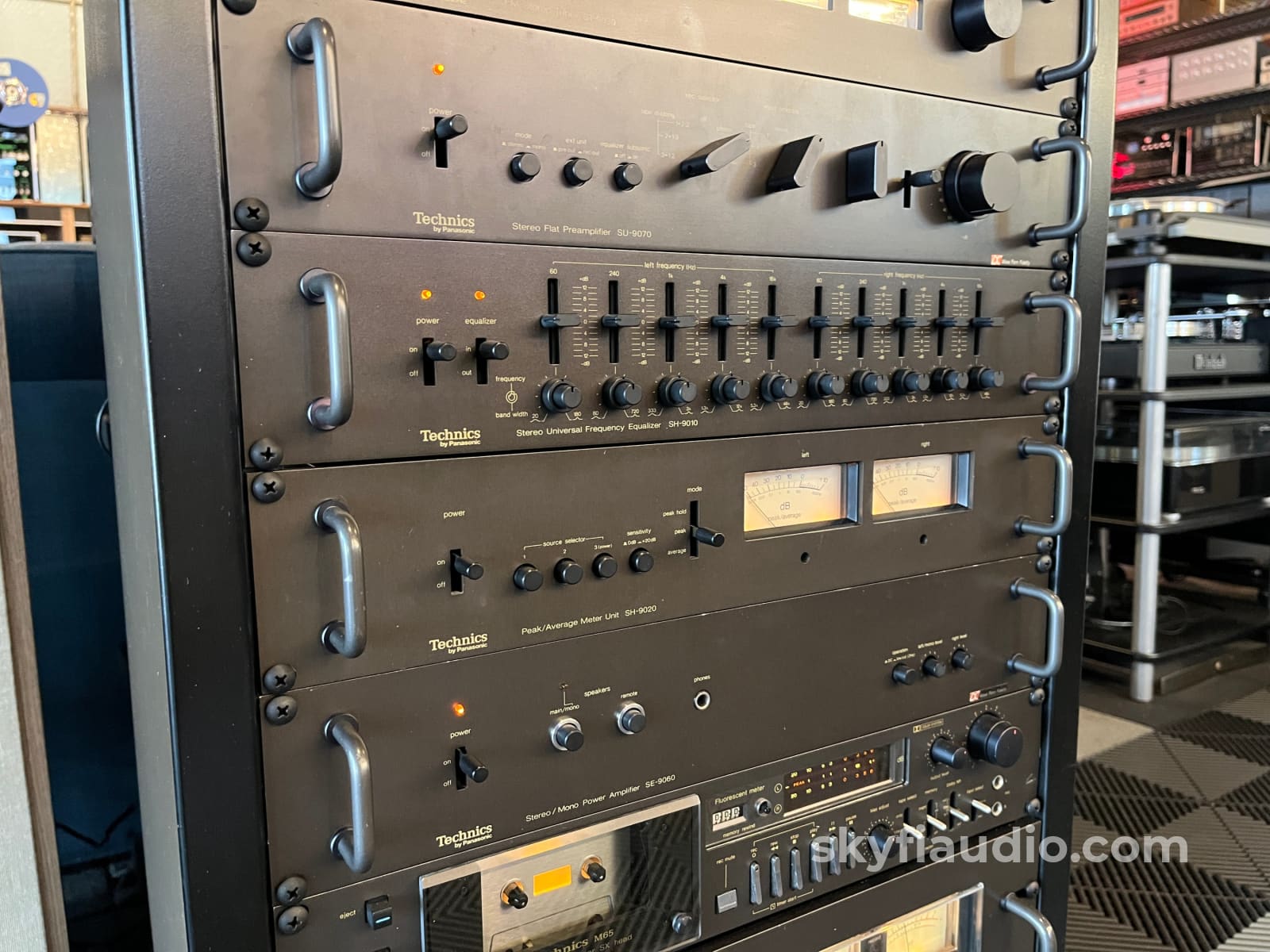

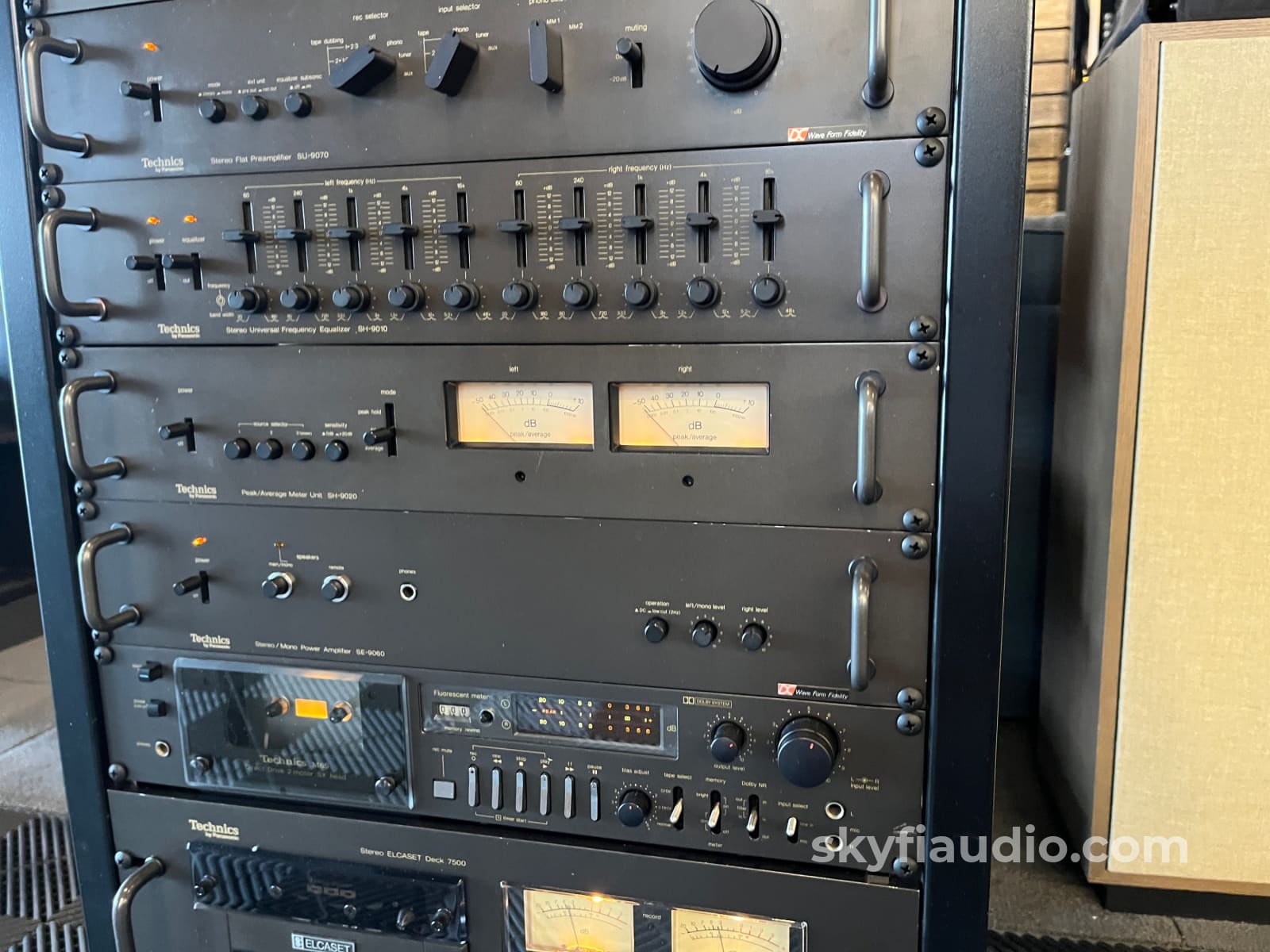

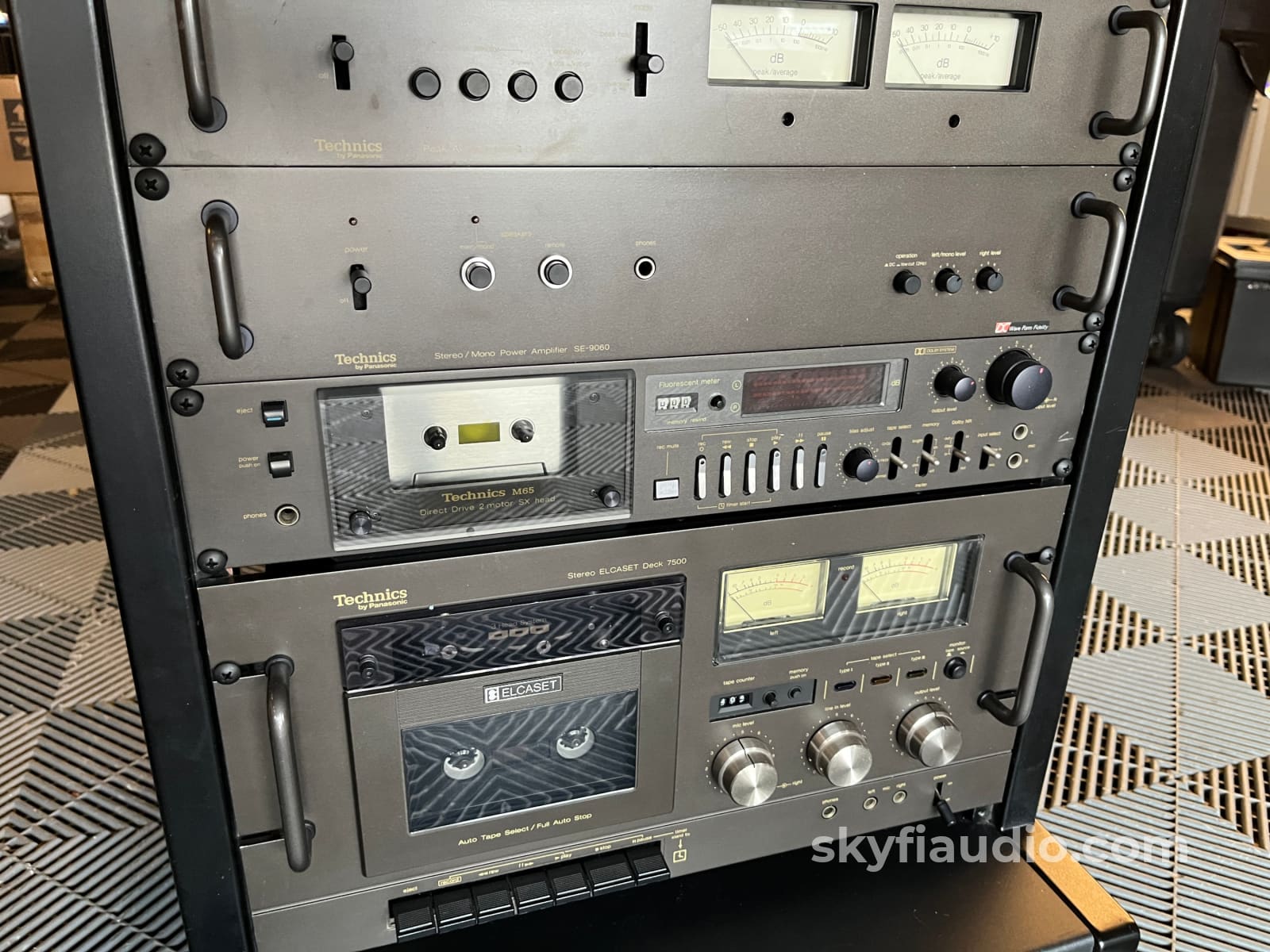

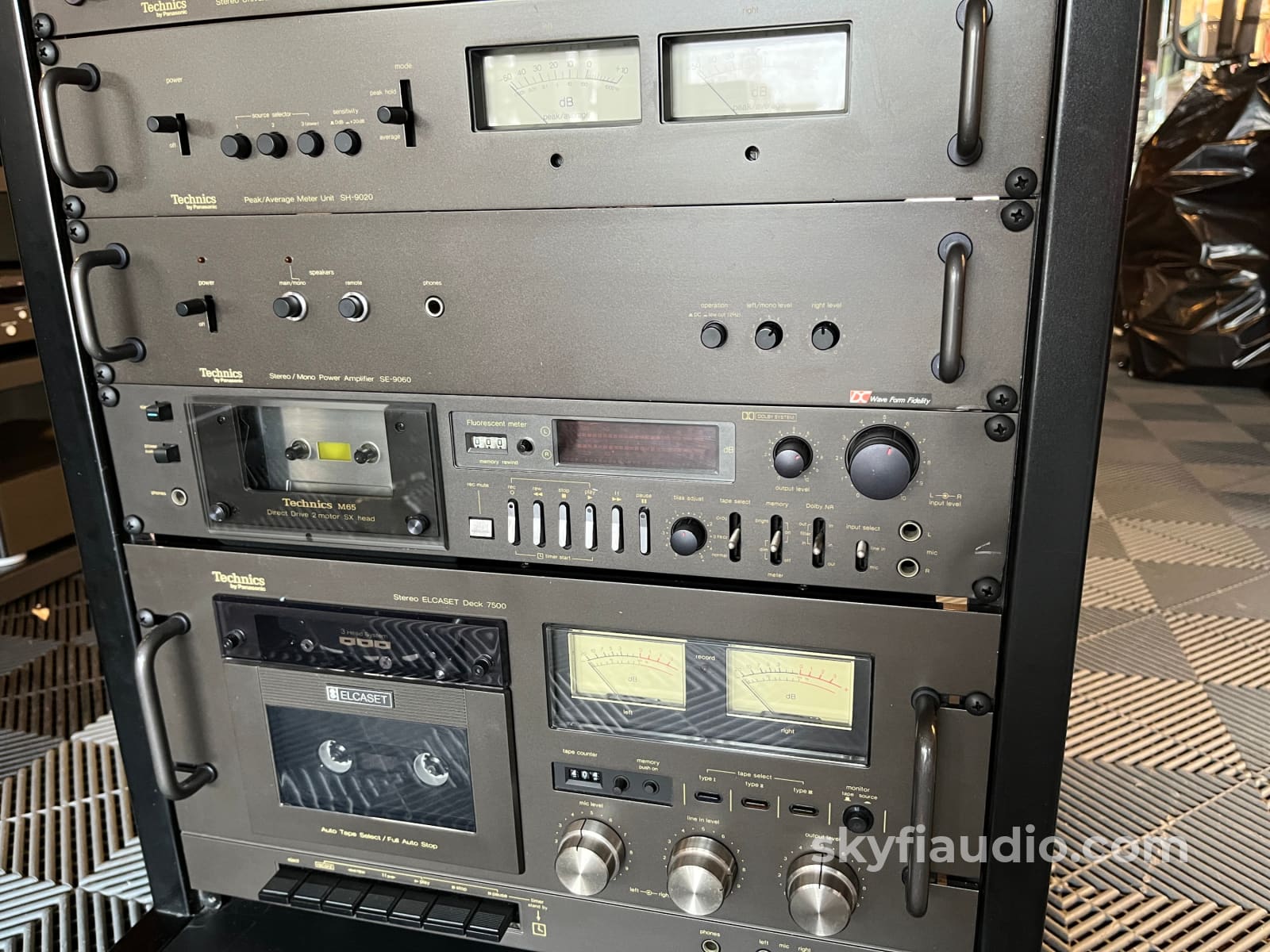

The full list of models in this system is as follows:
SU-9070 Preamplifier (1976 - 1981)
SE-9060 Amplifier (1976 - 1981)
SH-9010 Frequency Analyzer (1976 - 1981)
ST-9030 FM Tuner (1977 - 1981)
SH-9020 Peak/Average Meter Unit (1977 - 1981)
RS-M65 Direct Drive Cassette Deck (1979 - 1980)
RS-1500US Reel to Reel Tape Recorder (1977 - 1987)

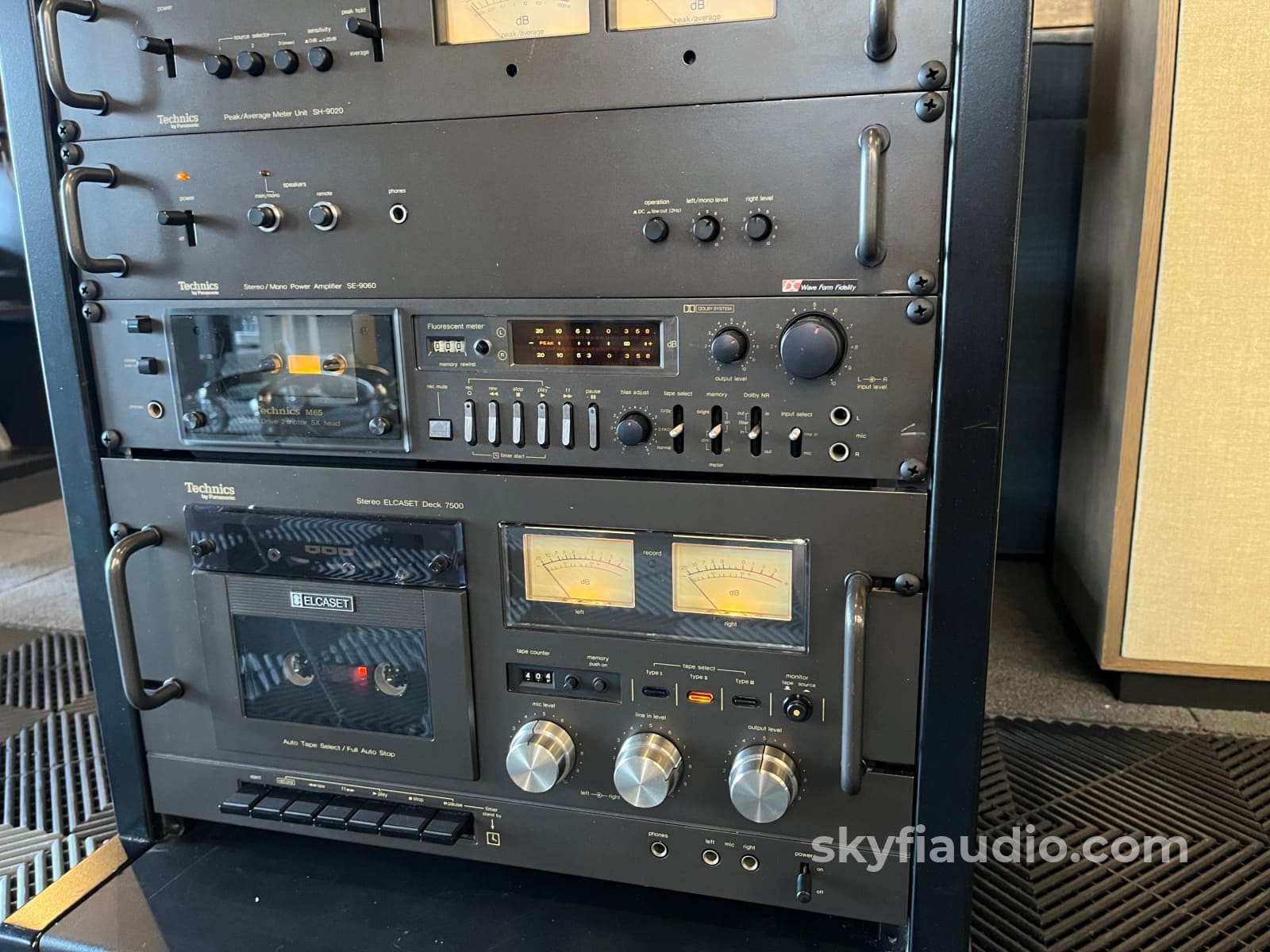

RS-7500 Front Loading Elcaset Tape Deck (1976-80)

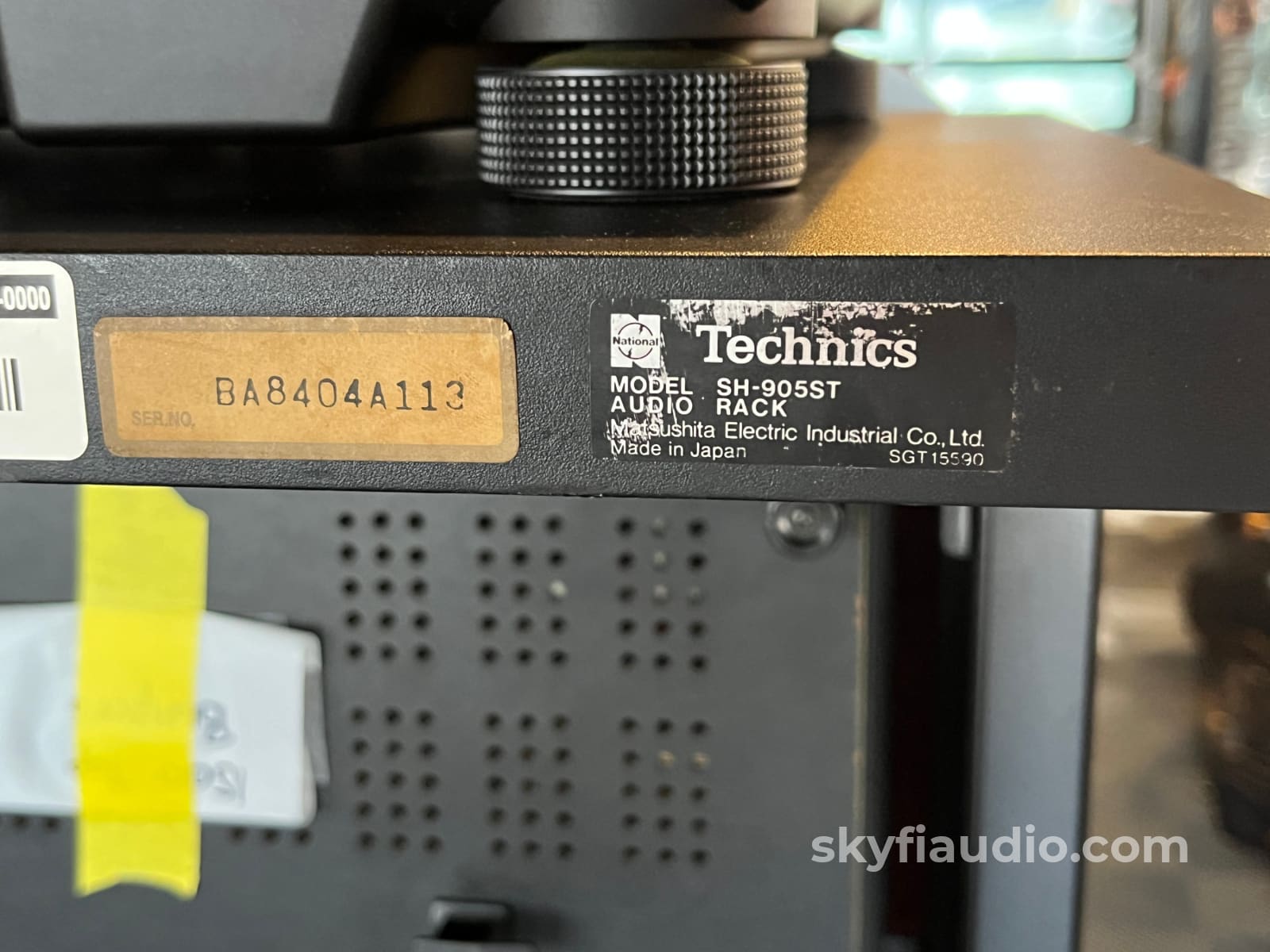

And finally, the super rare SH-905ST Technics Rack!

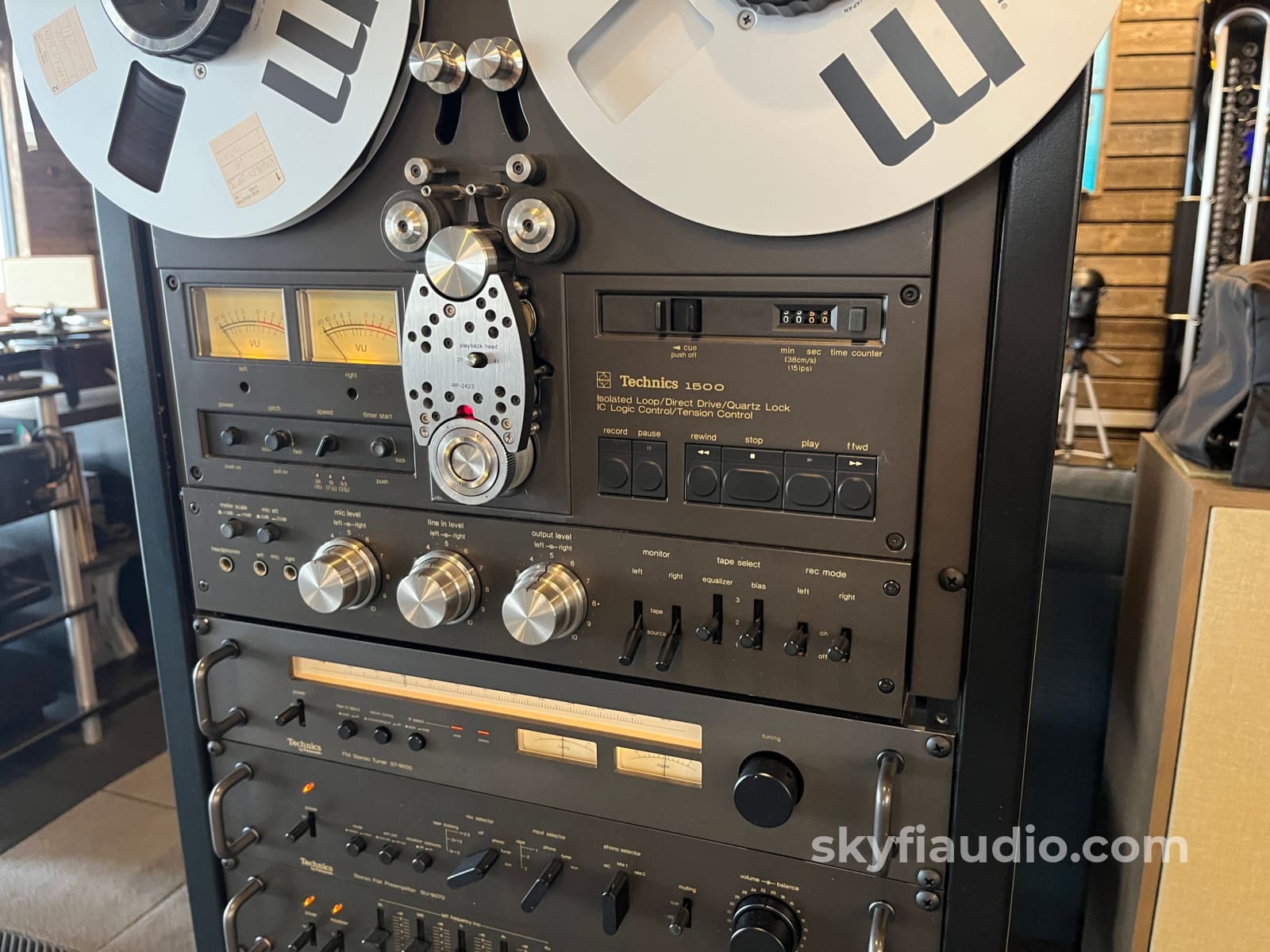

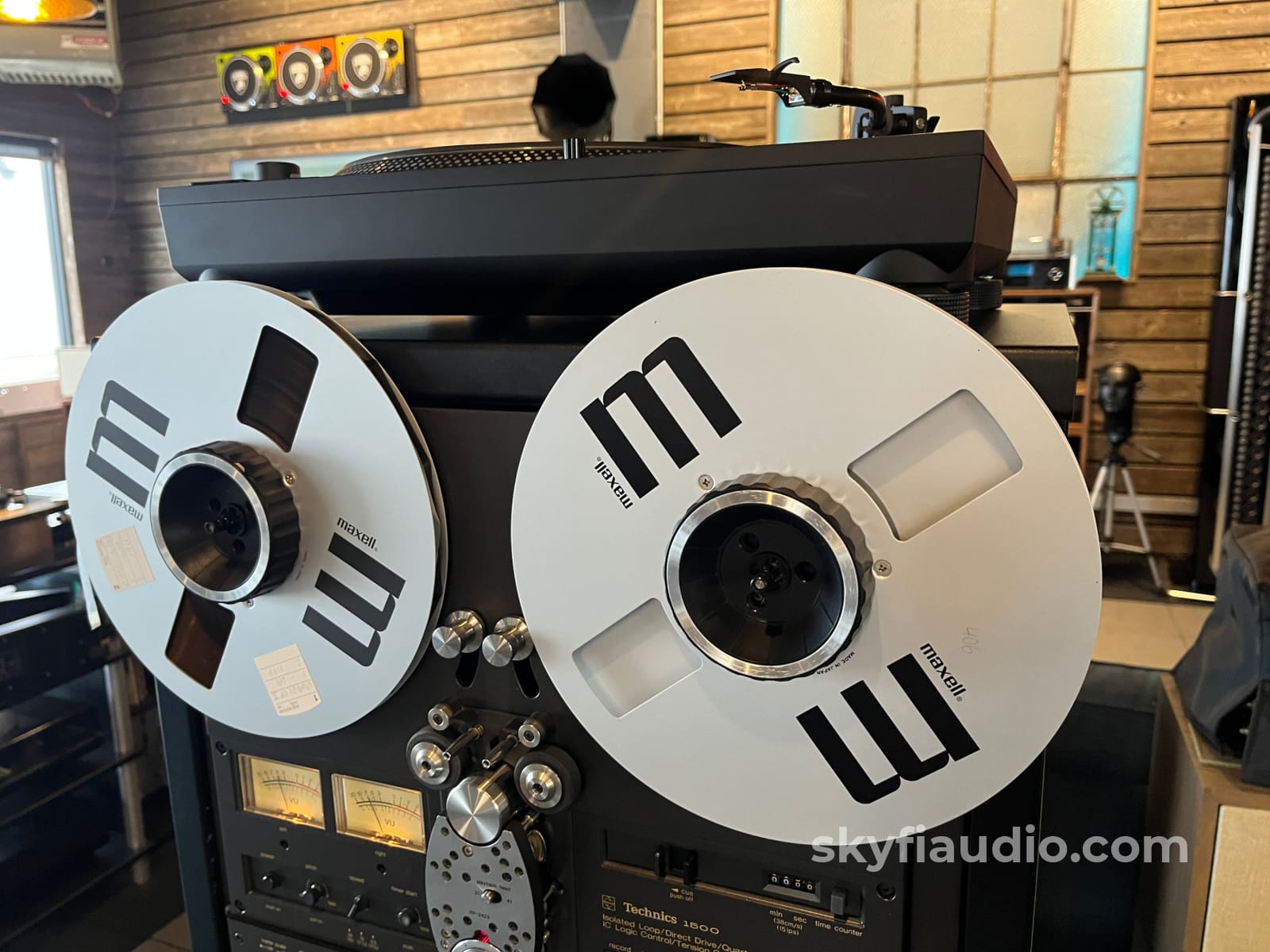

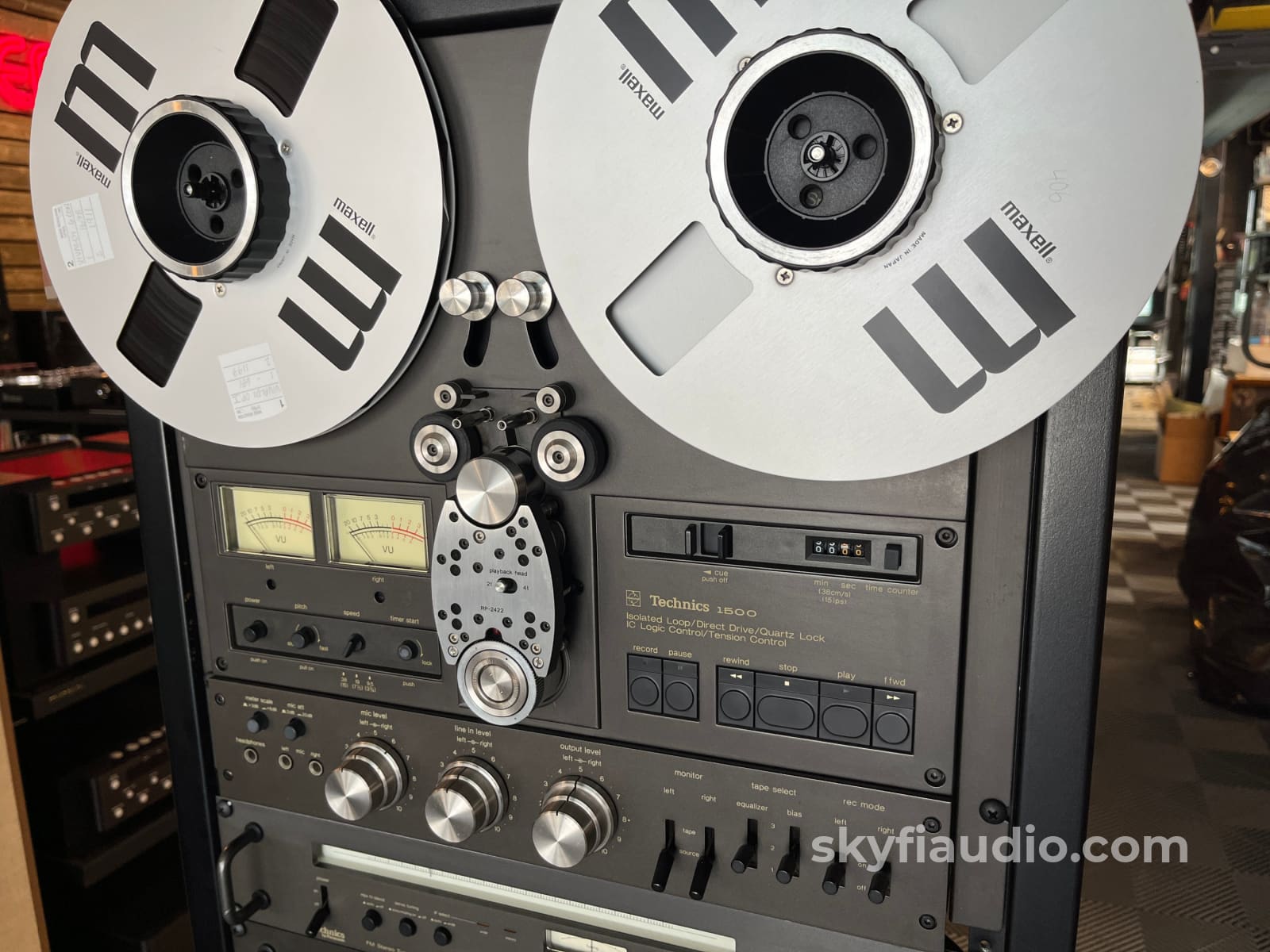

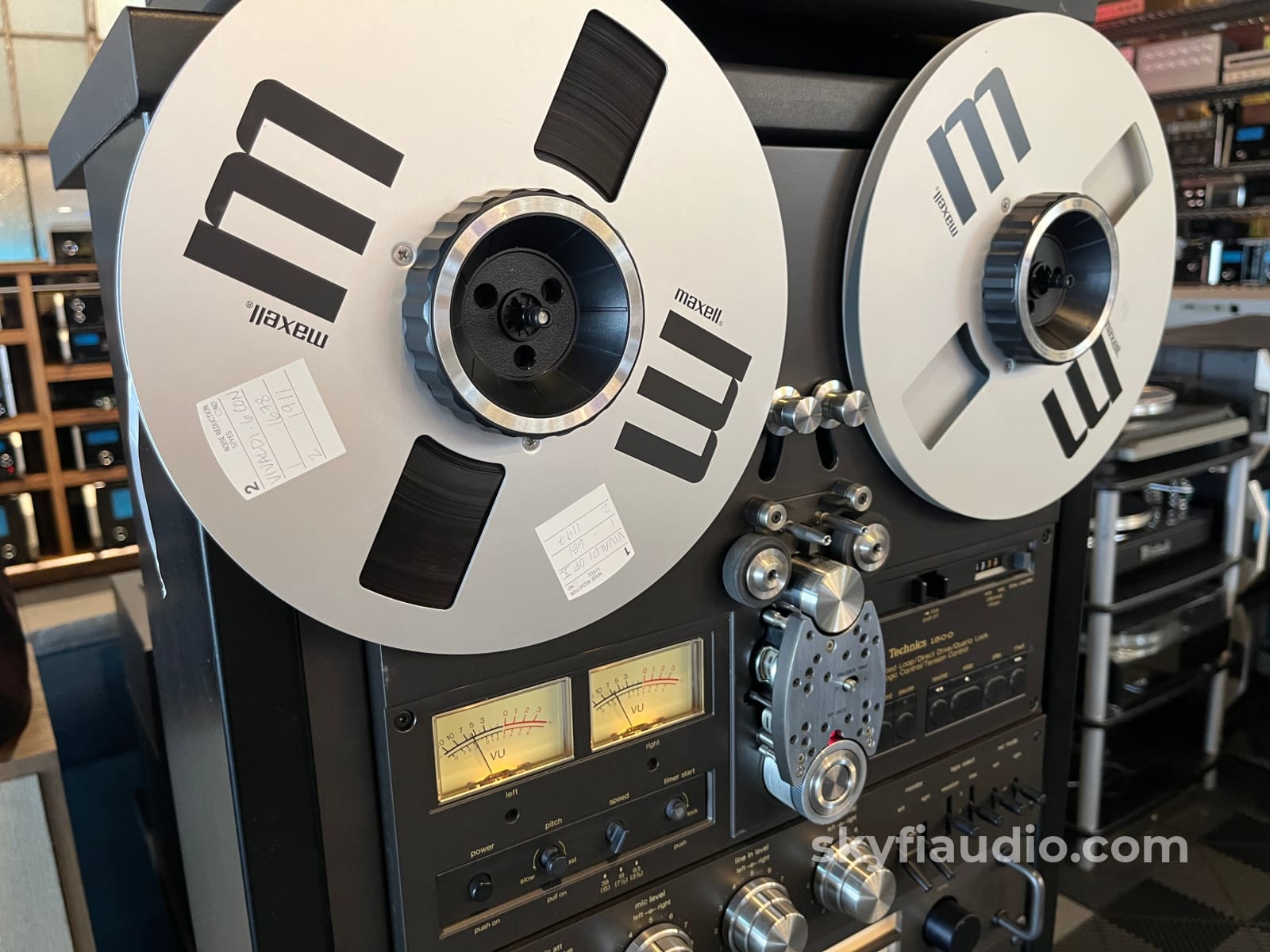

The best part of this system for us are the THREE included tape decks. The RS-1500US is one of our favorite reel to reel decks with the ability to record 1/2 track at 15 IPS, while also offering playback at both 1/4 track and 1/2 track. This is super useful for audiophiles.

Another cool addition to this system is the SH-905ST Elcaset deck. These are super rare, do not come up for sale often, and this the only model Elcasaet deck Technics ever made.

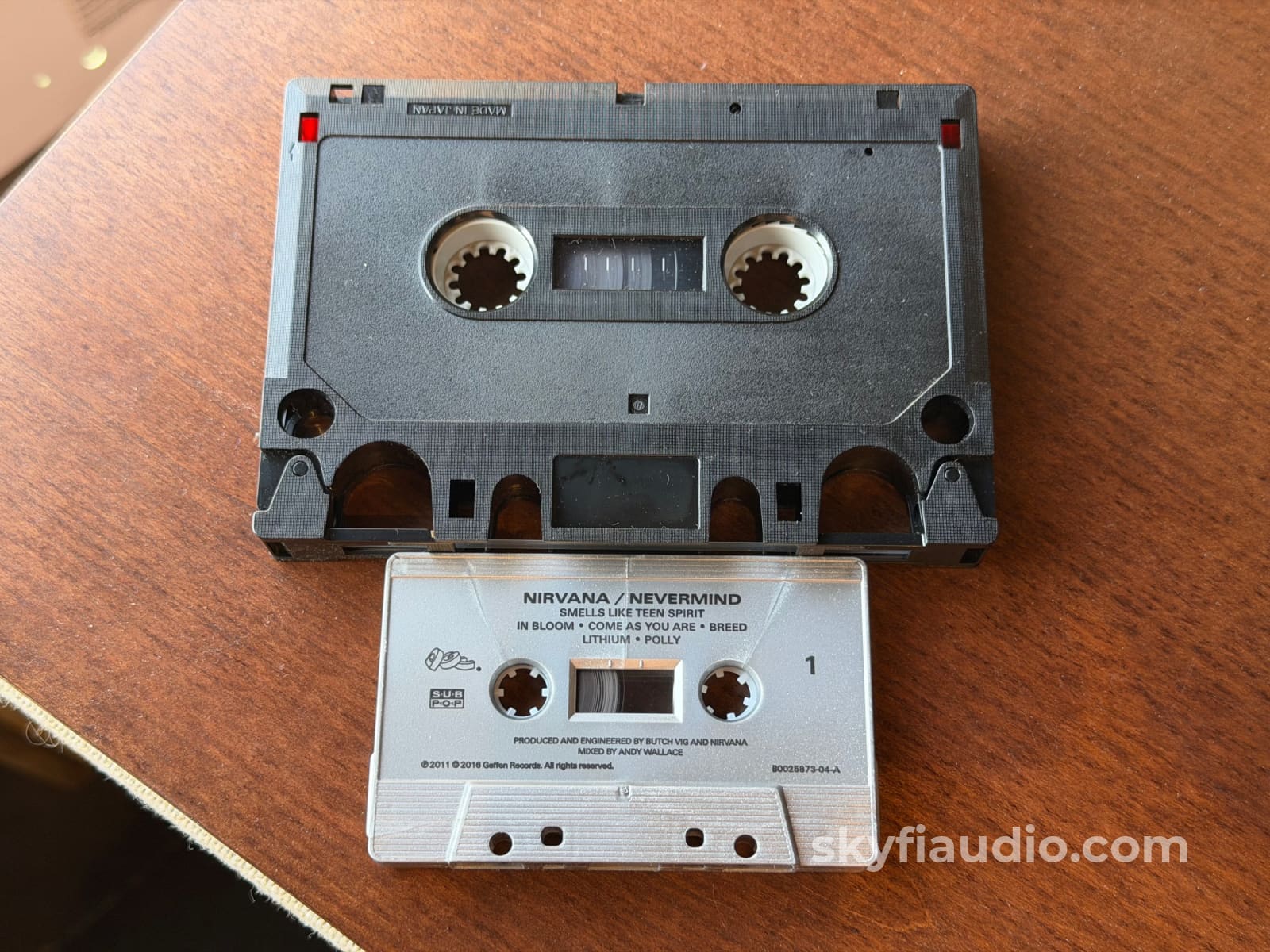

"The Elcaset system was intended to marry the performance of reel-to-reel with cassette convenience, but be more of a compromise on size between the two than the RCA cassette is. The name "Elcaset" may simply mean L-cassette, or large cassette, since the 1⁄4" tape inside is double the 1⁄8" width found in compact cassettes.

Technically sound, but a nearly complete failure in the marketplace with a very low take-up by a few audiophiles only. Elcaset was discounted in 1980" - courtesy of Wikipedia

The M65 cassette deck is also worth mentioning as it's well-built and features a direct-drive capstan.

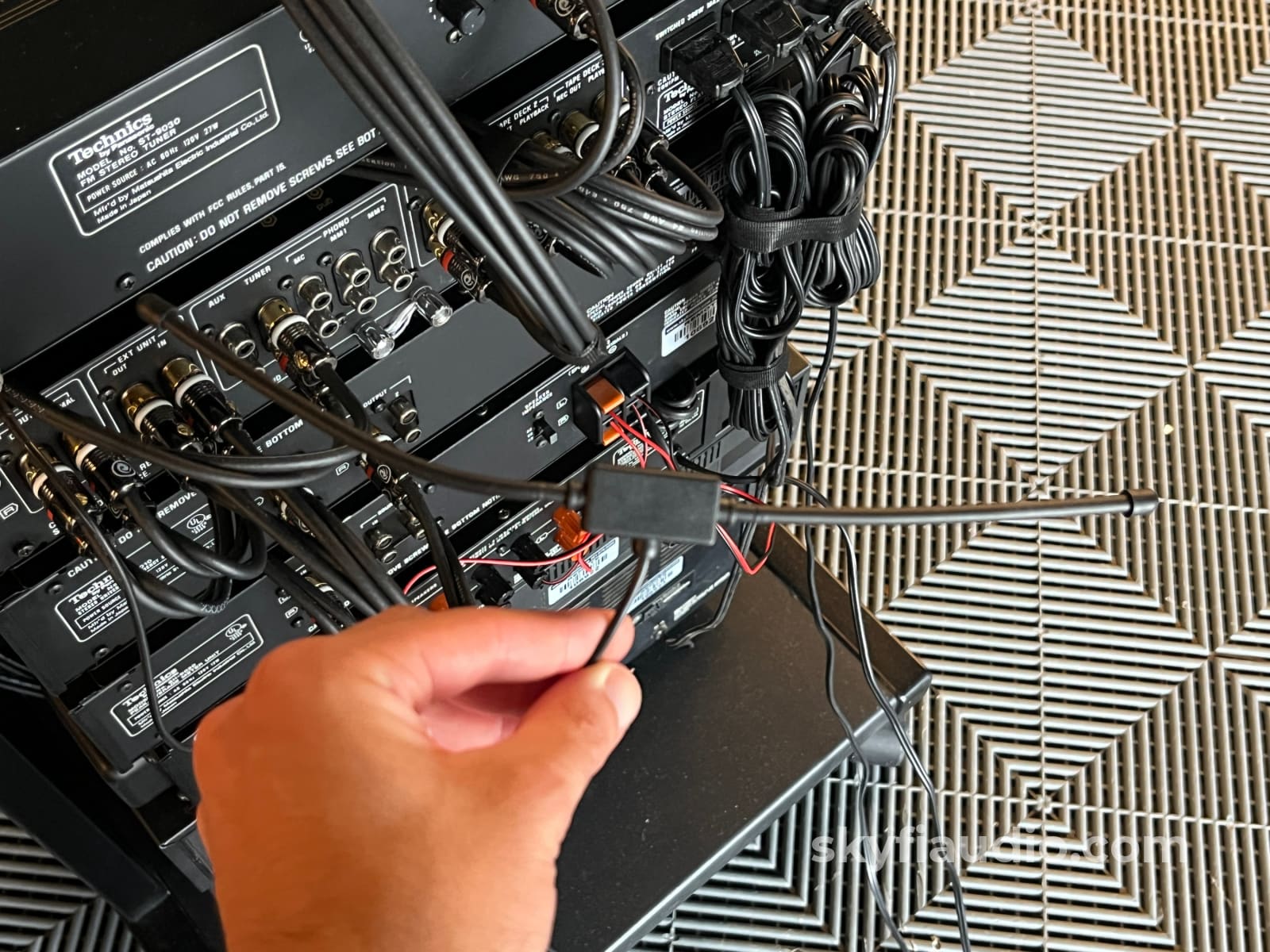

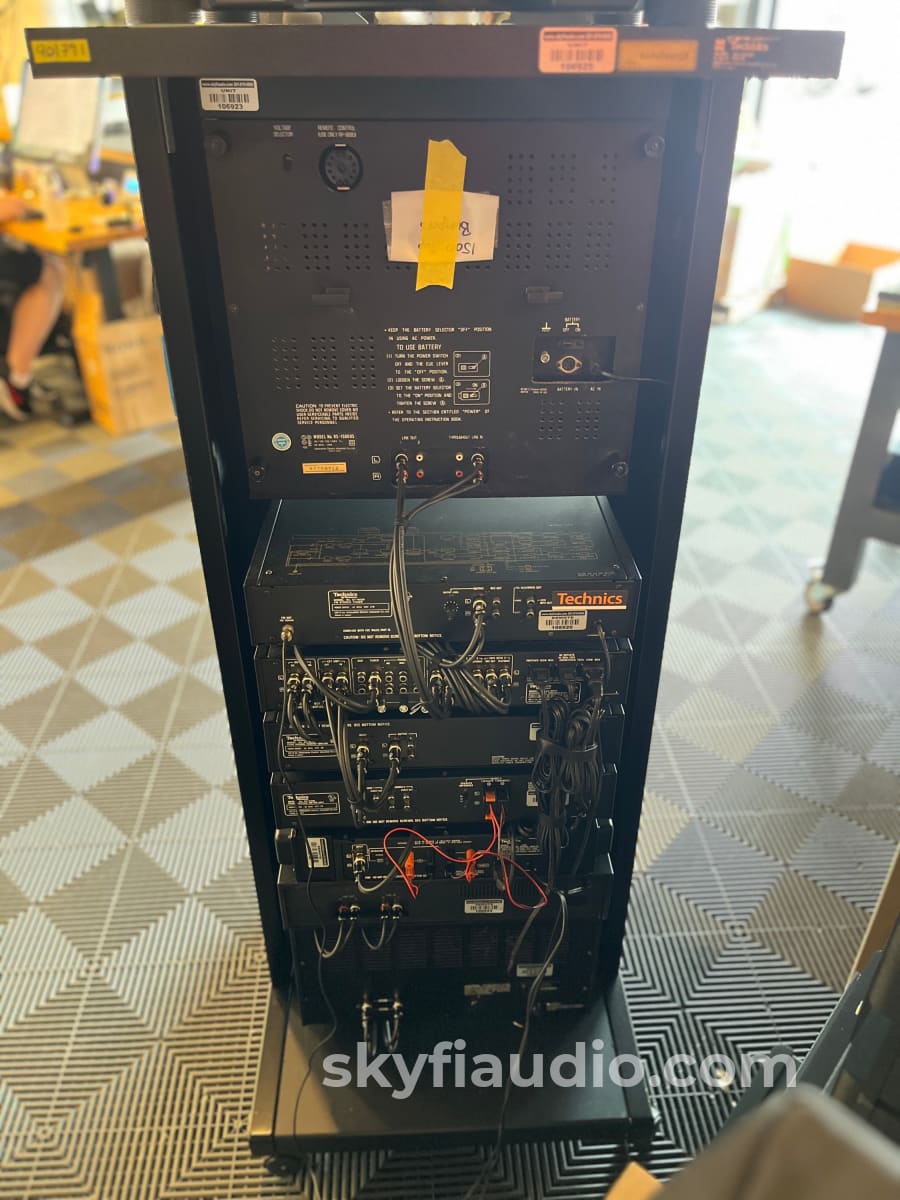

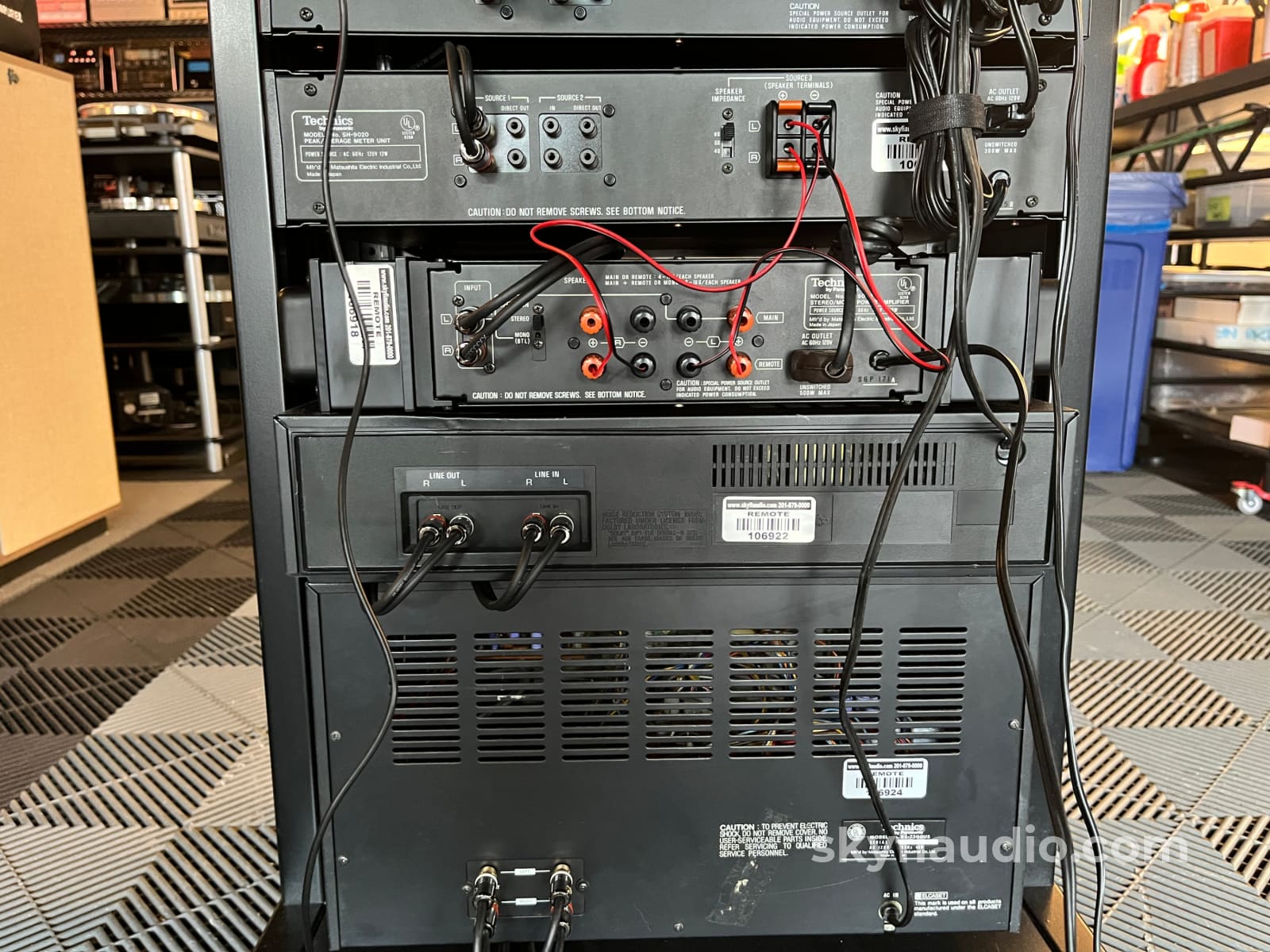

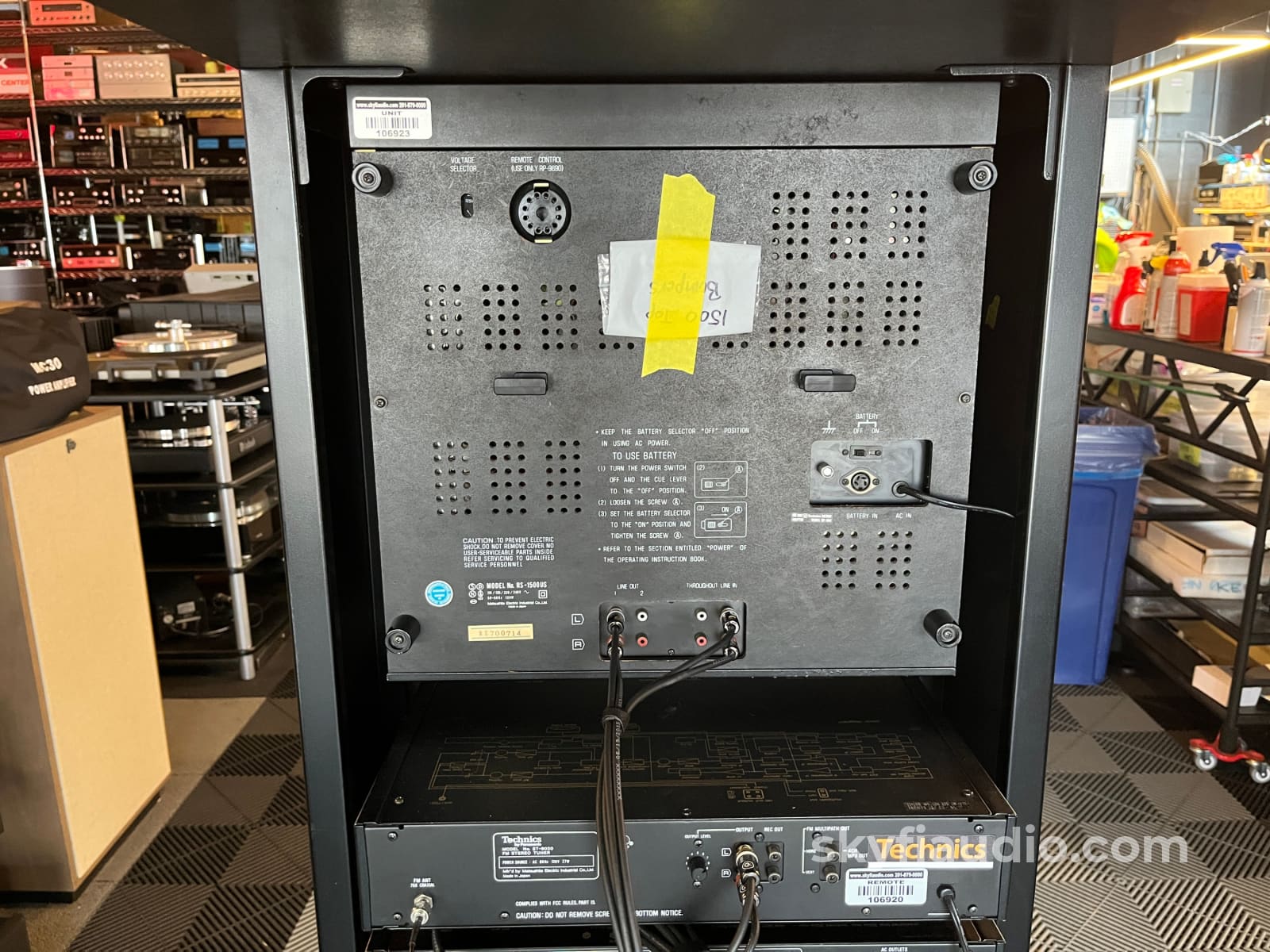

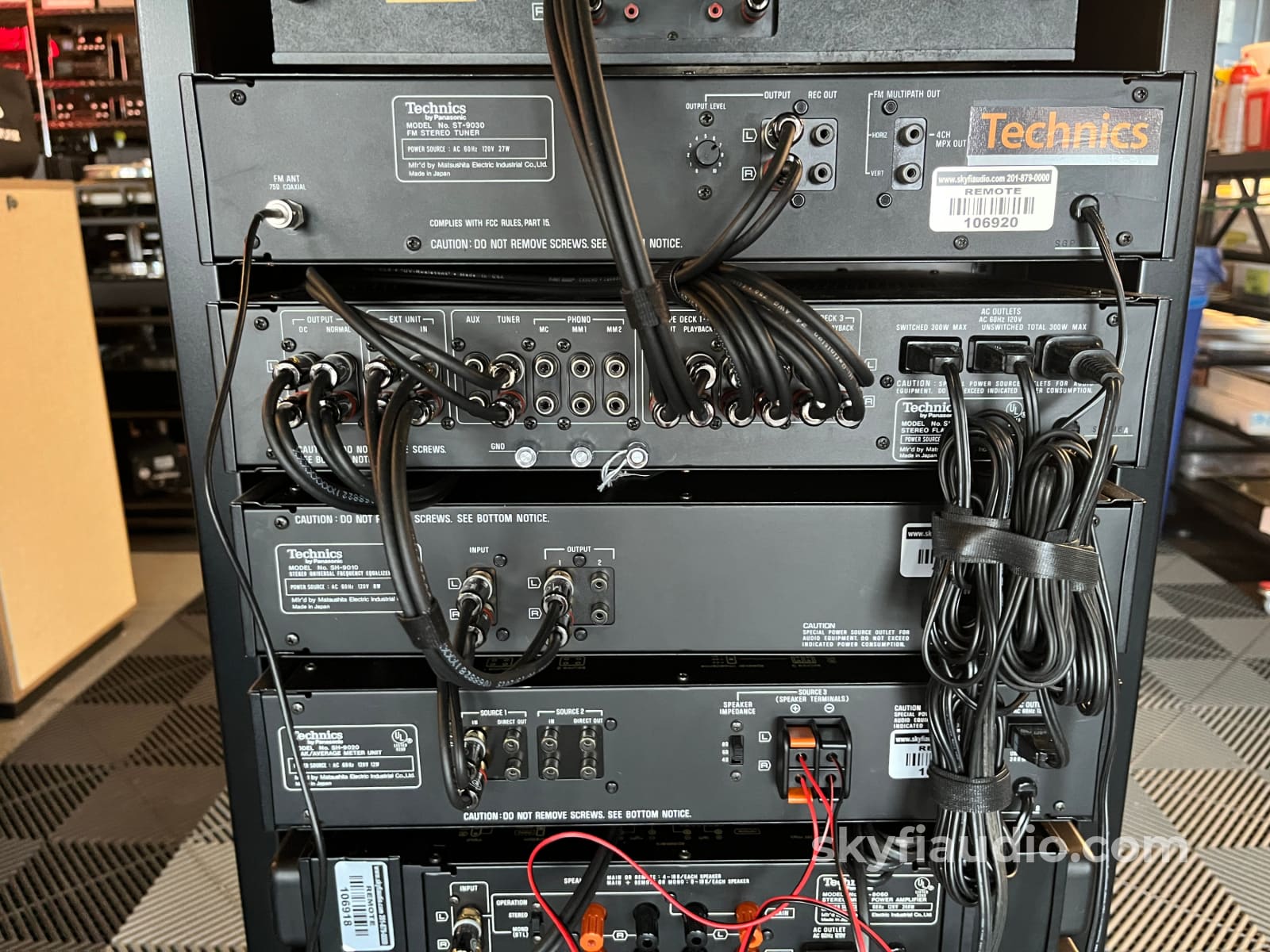

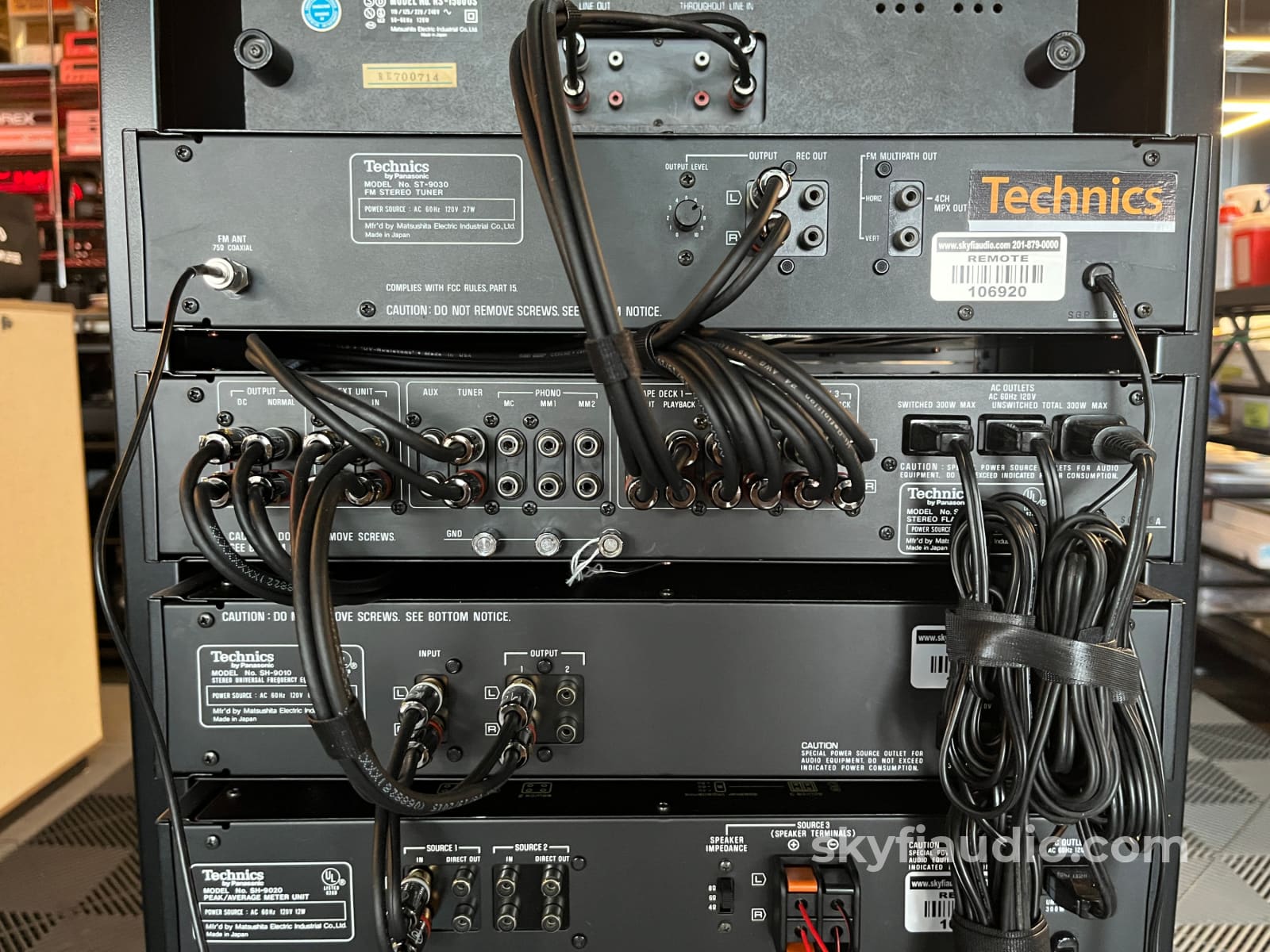

As a plus, we populated/terminated all new custom length RCA cables out back so the entire system would look as neat as possible along with high-quality connections.

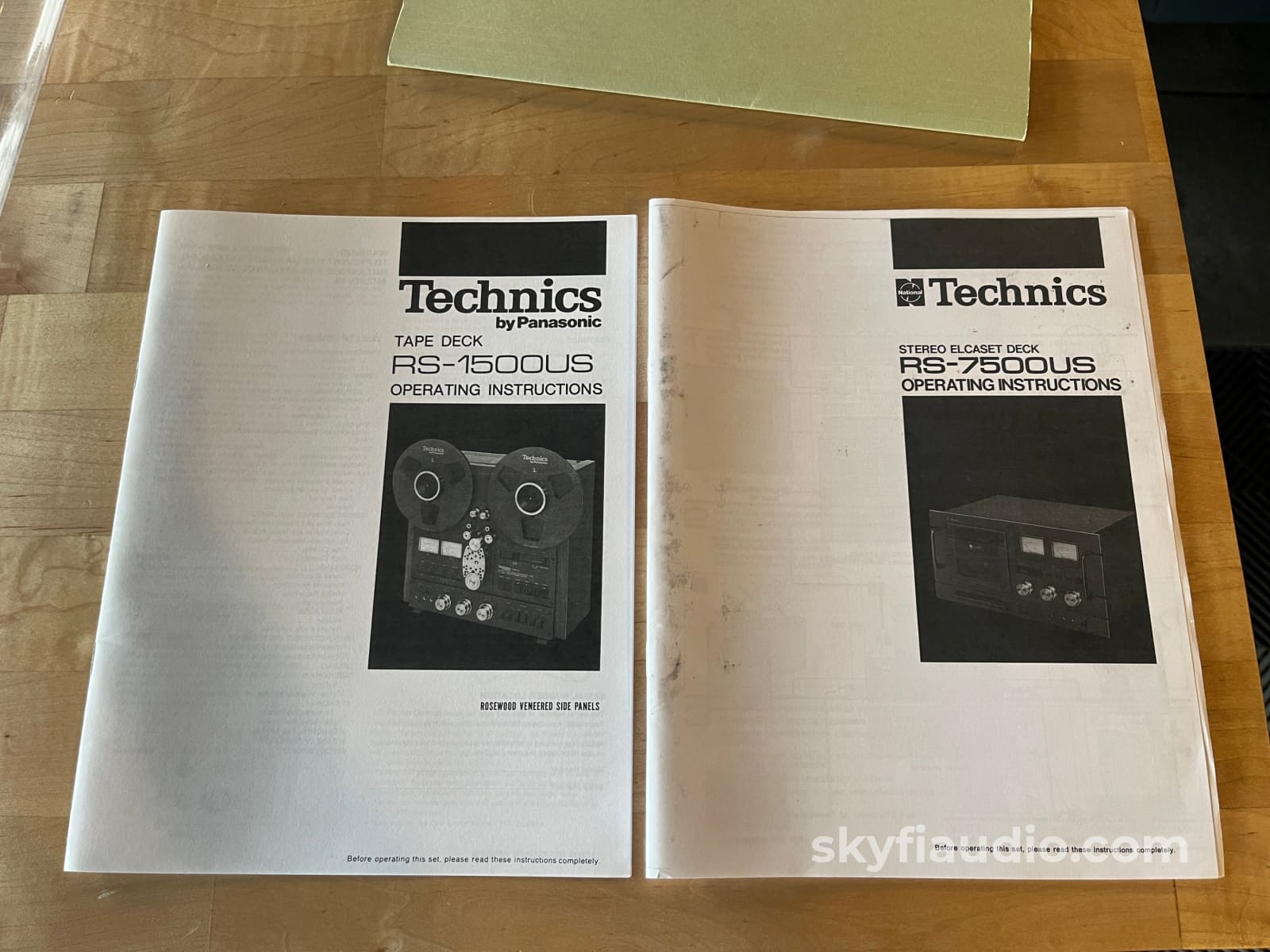

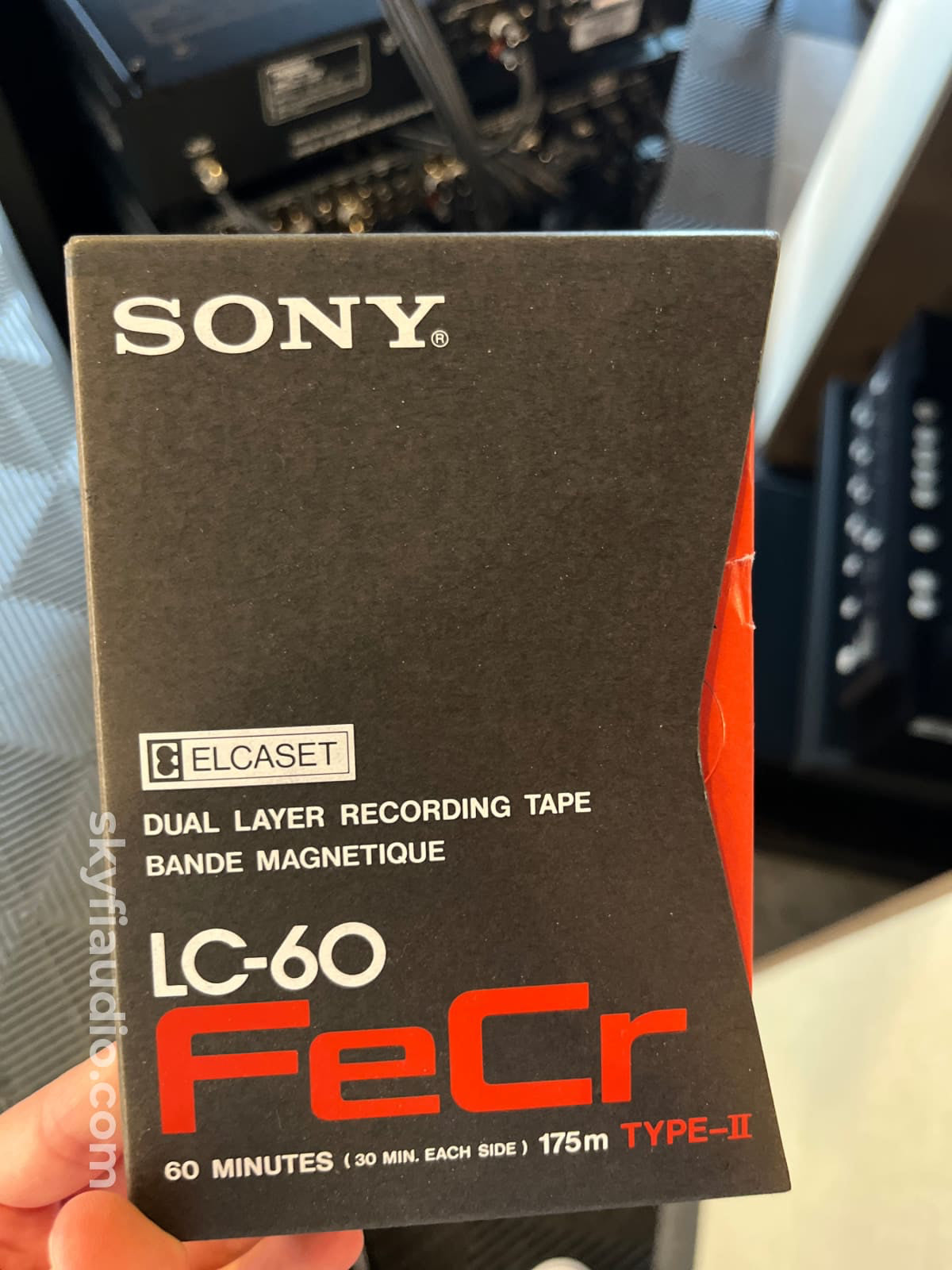

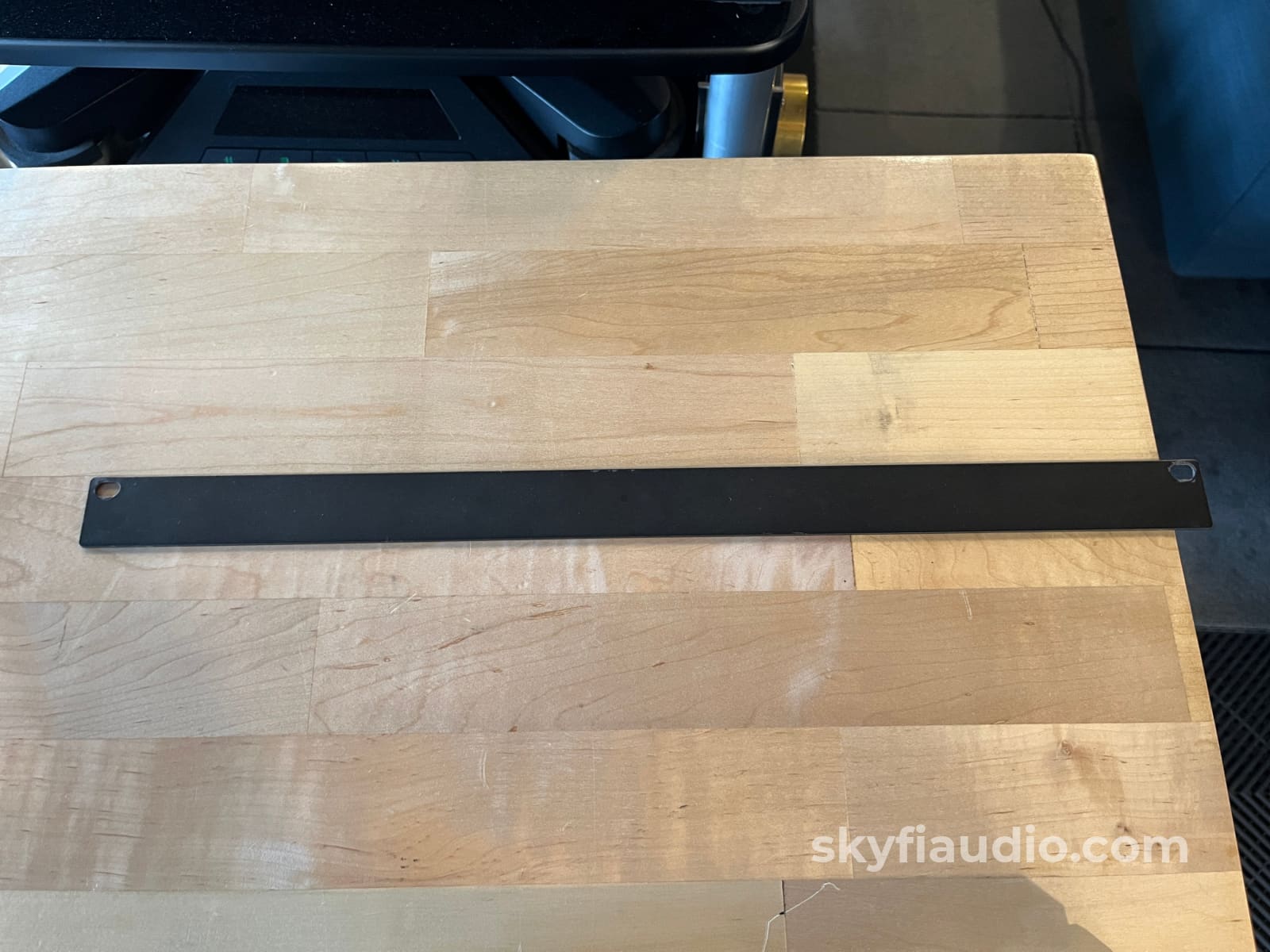

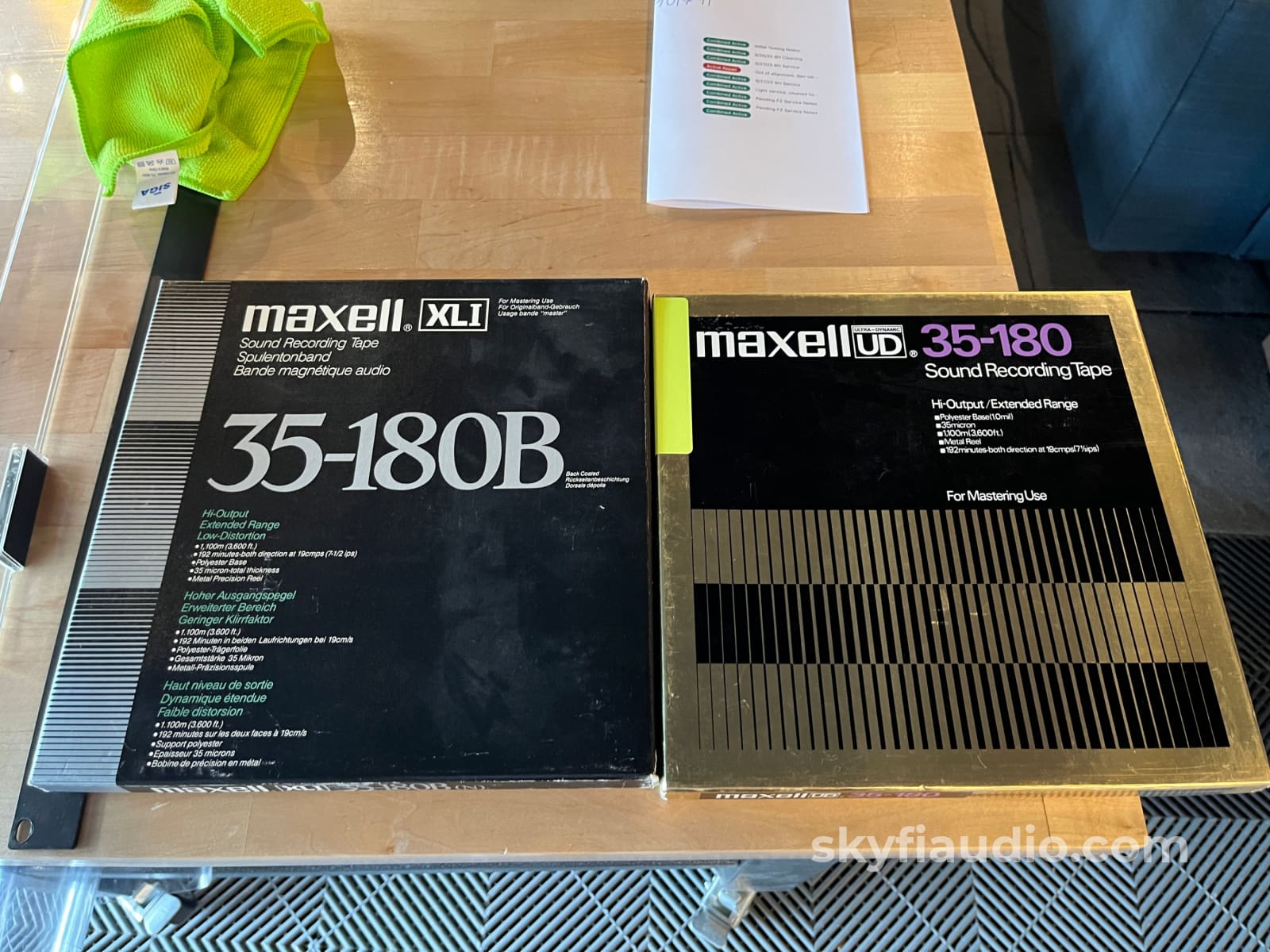

Included with this complete rack system is an FM antenna, a blank Sony Elcaset tape we purchased that was sold to us as New Old Stock (NOS) in order to test this deck, two Maxell take-up reels, a spare rack mount plate (blank), and the reprinted owners manuals for all components within the rack.

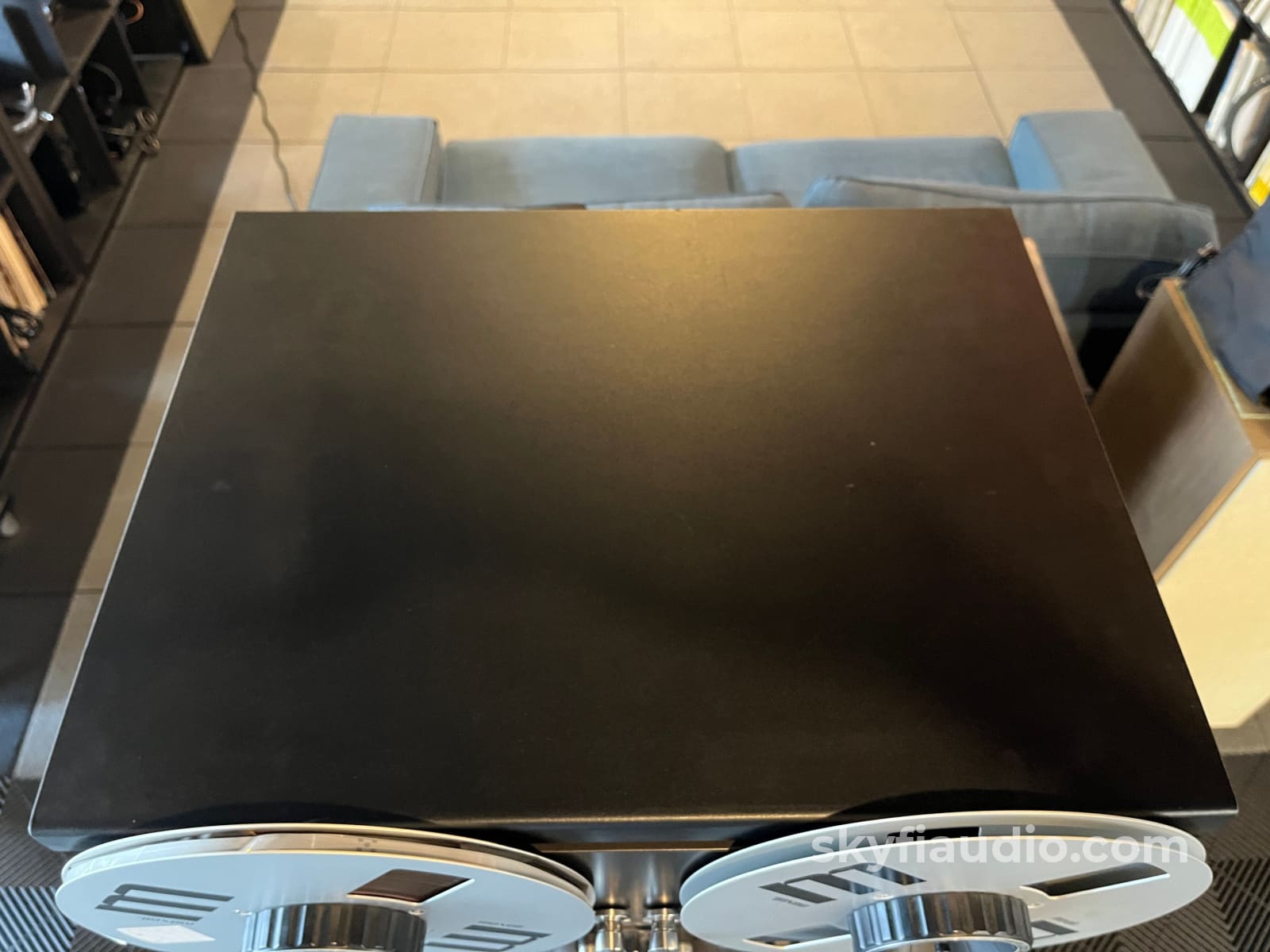

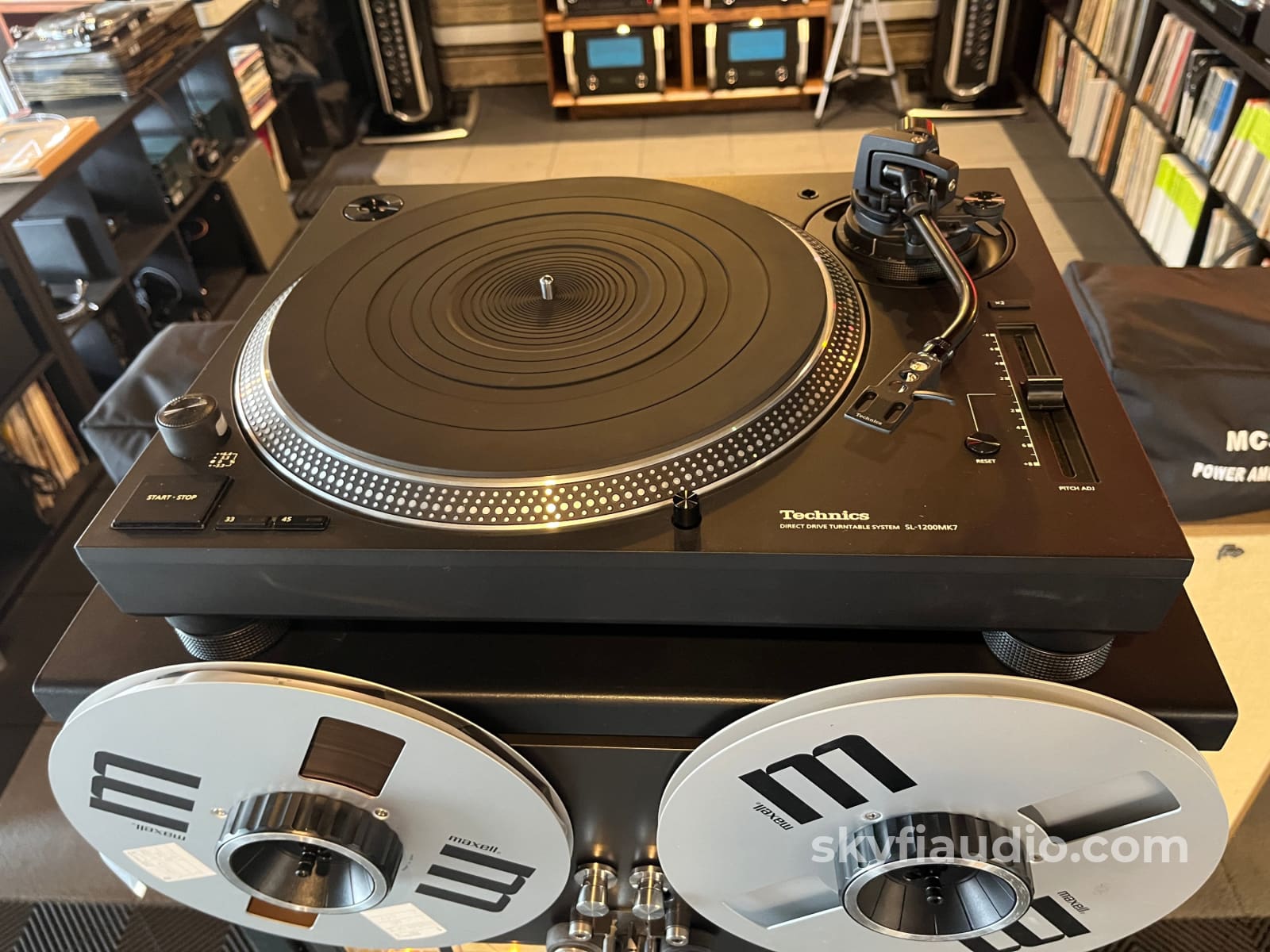

In the pictures we have a Technics SL-1200MK7 at the top which is not included in the listed price but optional to add upon completion of purchase. This 'table would be a great addition for adding vinyl playback capability to this amazing system.

SkyFi Cosmetic Notes:
Some light signs of wear on the components in the form of scratches and marks. Overall it is in fantastic condition and well preserved.

SkyFi Technical Notes:
M65: Light service, cleaned heads, confirmed no caps in need of replacement. All belts in good condition as this unit was serviced prior by others. Recording good.

SH-9020 Calibrated regulated voltages, calibrated meters in all ranges, checked 8 ohm connection with amplifier and verified relative accuracy. Lamps all work.

ST-9030: Aligned on the tuner bench. Adjusted dial tracking, distortion, and MPX.

SH-9010: Cleaned all controls and faders, re-tested, All functions work with excellent channel tracking.

SE-9060: Cleaned unit inside and out and tested to 80W into 8 ohms with no issues presenting on the tech bench or listening area.

Shipping:
This Technics rack system will ship via truck freight anywhere within the lower 48 US States for a flat $500 which includes insurance for full value. This freight charge will be automatically added during checkout.

We can safely pack and palletize this rack system to ship worldwide, just contact us for a quote. Local pickup welcome, and we can also arrange a local courier depending on distance. Please contact us for details. This item is exempt from any Free Shipping promotions.

Brand Background:
At Technics we understand that the listening experience is not purely about technology but the magical and emotional relationship between people and music. We want people to experience music as it was originally intended and enable them to feel the emotional impact that enthuses and delights them. With a combination of our love of music and the vast high-end audio experience of the Technics team, we stand committed to building a brand that provides the ultimate emotive musical experience by music lovers, for music lovers.

Ownership:
Second Owner

Connections:
RCA, Speaker Terminals,

General Sound:
Accurate to the recording

Cosmetic Condition:
8/10 = Very Good. Excellent front faceplate, one minor flaw on chassis side or top. See our detailed rating description here.

Included:
Exactly as pictured and described above.

Packing:
Will be packed using our highly developed in-house process and custom packing materials.Specs:
Technics SU-9070 Stereo Preamplifier
- Frequency response: 20 Hz – 20 kHz
- Total harmonic distortion (THD): 0.003%
- Input sensitivity: MC: 0.6 mV, MM: 2.5 mV, Line: 150 mV
- Signal-to-noise ratio: MC: 62 dB, MM: 70 dB, Line: 90 dB
- Channel separation (line): 75 dB
- Output levels: Line out 150 mV, Pre out 1 V (nominal), 20 V (max)
- Dimensions (W × H × D):  18.98" × 3.98" × 14.53" (482 × 101 × 369 mm)
- Weight:  15.7 lbs (7.1 kg)

Technics SE-9060 Stereo Power Amplifier
- Power output: 70 W per channel into 8Ω (stereo), 180 W into 8Ω (mono)
- Power output at 4Ω: ~90 W per channel
- THD: 0.02%
- Frequency response: 20 Hz – 20 kHz
- Damping factor: 100
- Input sensitivity: 1 V
- Signal-to-noise ratio: 120 dB
- Speaker impedance: 4 – 16Ω
- Dimensions (W × H × D):  18.98" × 3.98" × 14.80" (482 × 101 × 376 mm)
- Weight: 26.5 lbs (12 kg)

Technics SH-9010 Stereo Frequency Equalizer
- Input sensitivity: 1 V / 47 kΩ
- Output level: 1 V (rated), 5 V (max)
- Gain range: ±12 dB (stepless)
- Frequency bands: 60 Hz, 240 Hz, 1 kHz, 4 kHz, 16 kHz
- Bandwidth (Q): 0.7 to 7 adjustable
- Frequency response: 10 Hz – 20 kHz (±0.2 dB), up to 70 kHz (‑3 dB)
- THD: 0.02%
- S/N ratio: 87–90 dB
- Dimensions (W × H × D): 18.98" × 3.98" × 14.33" (482 × 92 × 364 mm)
- Weight: 13.2 lbs (6 kg)

Technics ST-9030 FM Stereo Tuner
- Tuning range: 88 – 108 MHz
- Sensitivity: 1.2 µV
- Signal-to-noise ratio: 75 dB
- Distortion (FM): 0.3%
- Selectivity: 90 dB
- Frequency response: 20 Hz – 18 kHz
- Output: 1.5 V
- Dimensions (W × H × D): 18.98" × 3.62" × 14.57" (482 × 92 × 370 mm)
- Weight: 16.3 lbs (7.4 kg)

Technics SH-9020 Peak/Average Meter Unit
- Meter modes: Peak, Peak Hold, Average
- Input sensitivity: 7.75 V / 47 kΩ (0 dB); also has +20 dB setting
- Frequency response: 10 Hz – 20 kHz (±1.5 dB)
- Measuring range: –10 dB to +50 dB
- Dimensions (W × H × D): 450 × 92 × 378 mm
- Weight: 5.3–5.6 kg
- Power consumption: 12–14 W

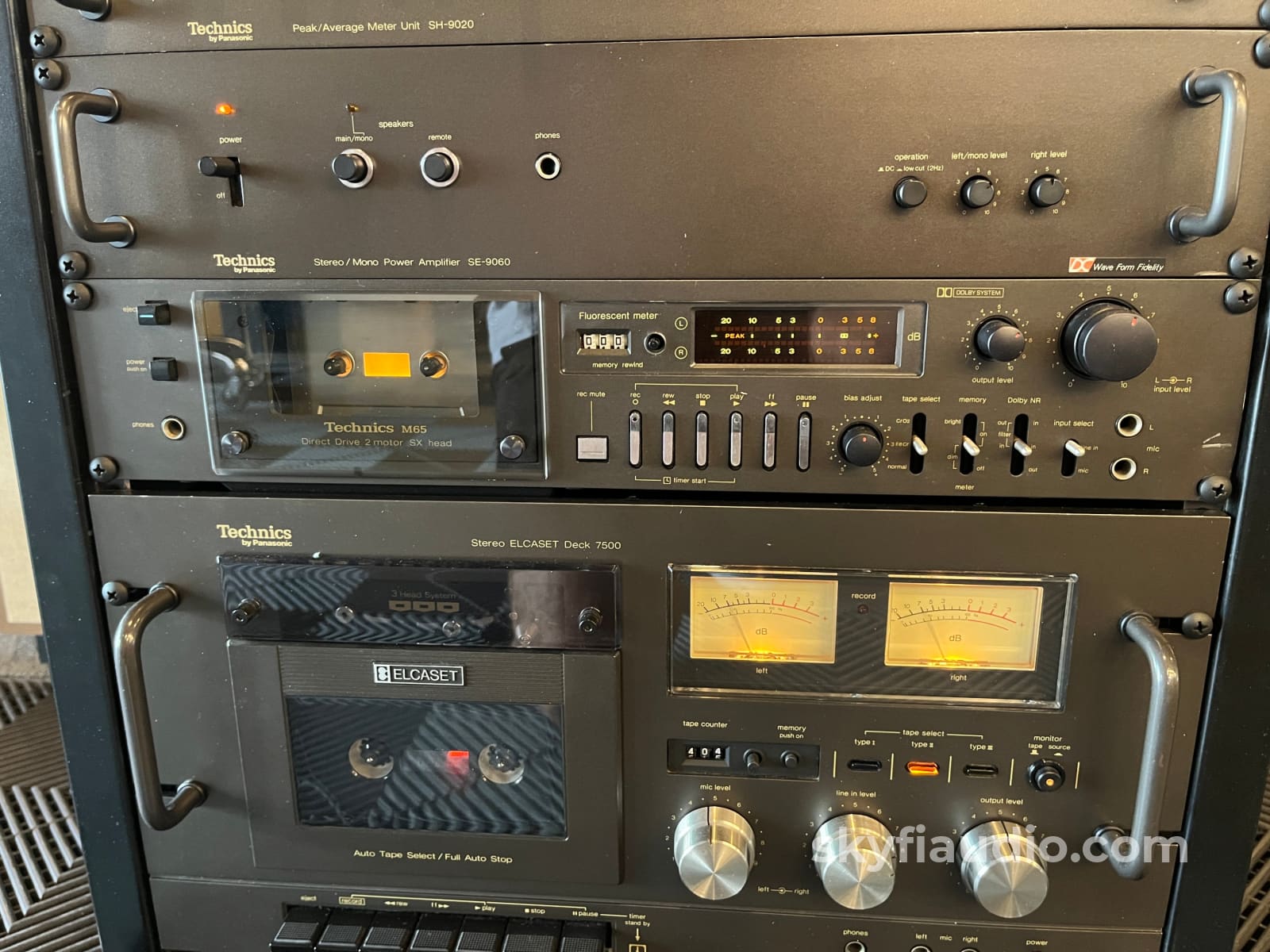

Technics RS-M65 Direct-Drive Cassette Deck
- Type: 2-head, single compact cassette
- Track system: 4-track, 2-channel stereo
- Tape speed: 4.8 cm/s
- Tape types: Type I, CrO₂, FeCr
- Noise reduction: Dolby B
- Frequency response (CrO₂): 20 Hz – 18 kHz
- S/N ratio: 69 dB (Dolby B)
- Wow & flutter: 0.035%
- Inputs: Line 60 mV, Mic 0.25 mV
- Output (line): 0.7 V
- Dimensions (W × H × D): 430 × 97 × 347 mm
- Weight: 7.1 kg

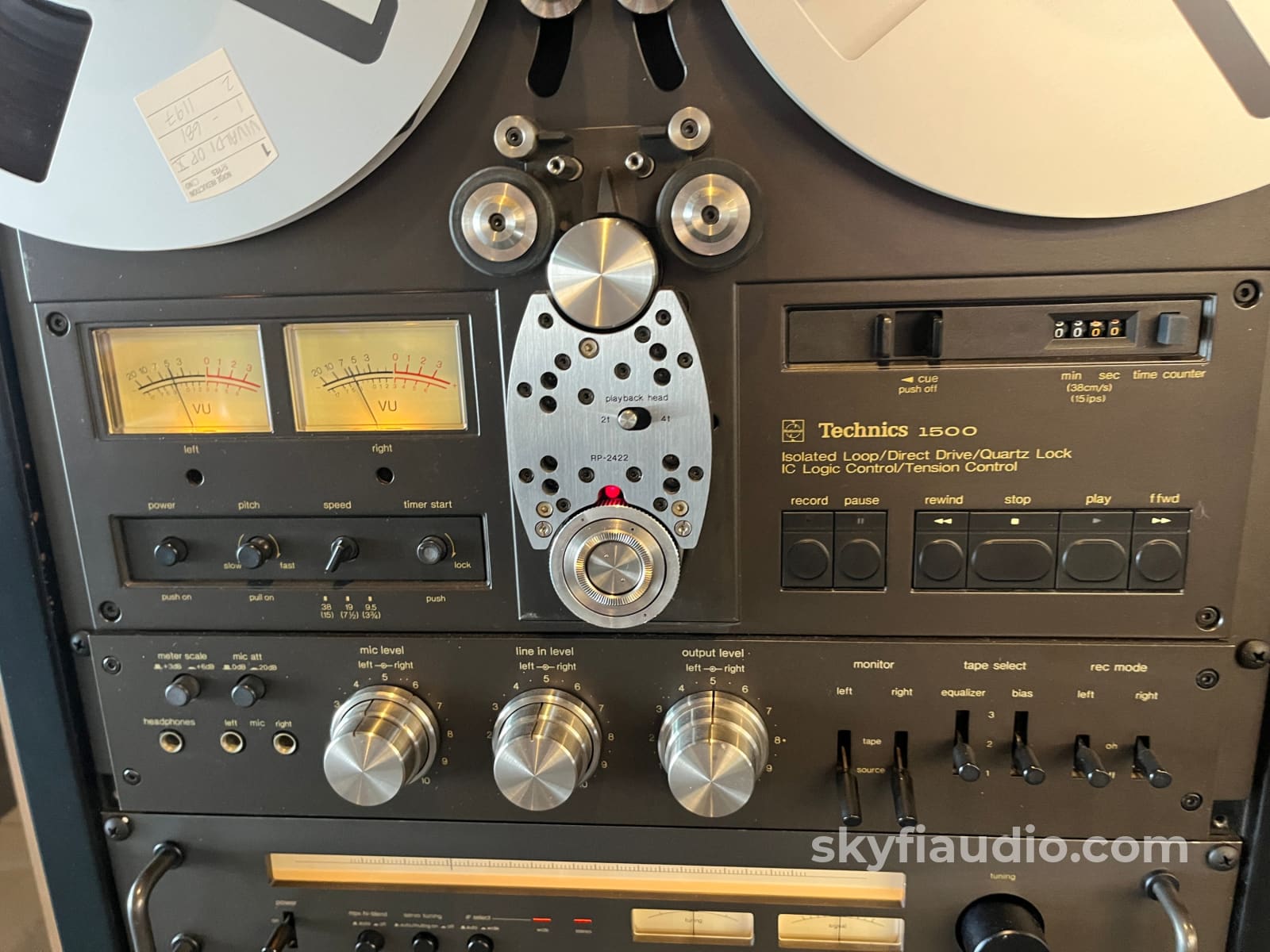

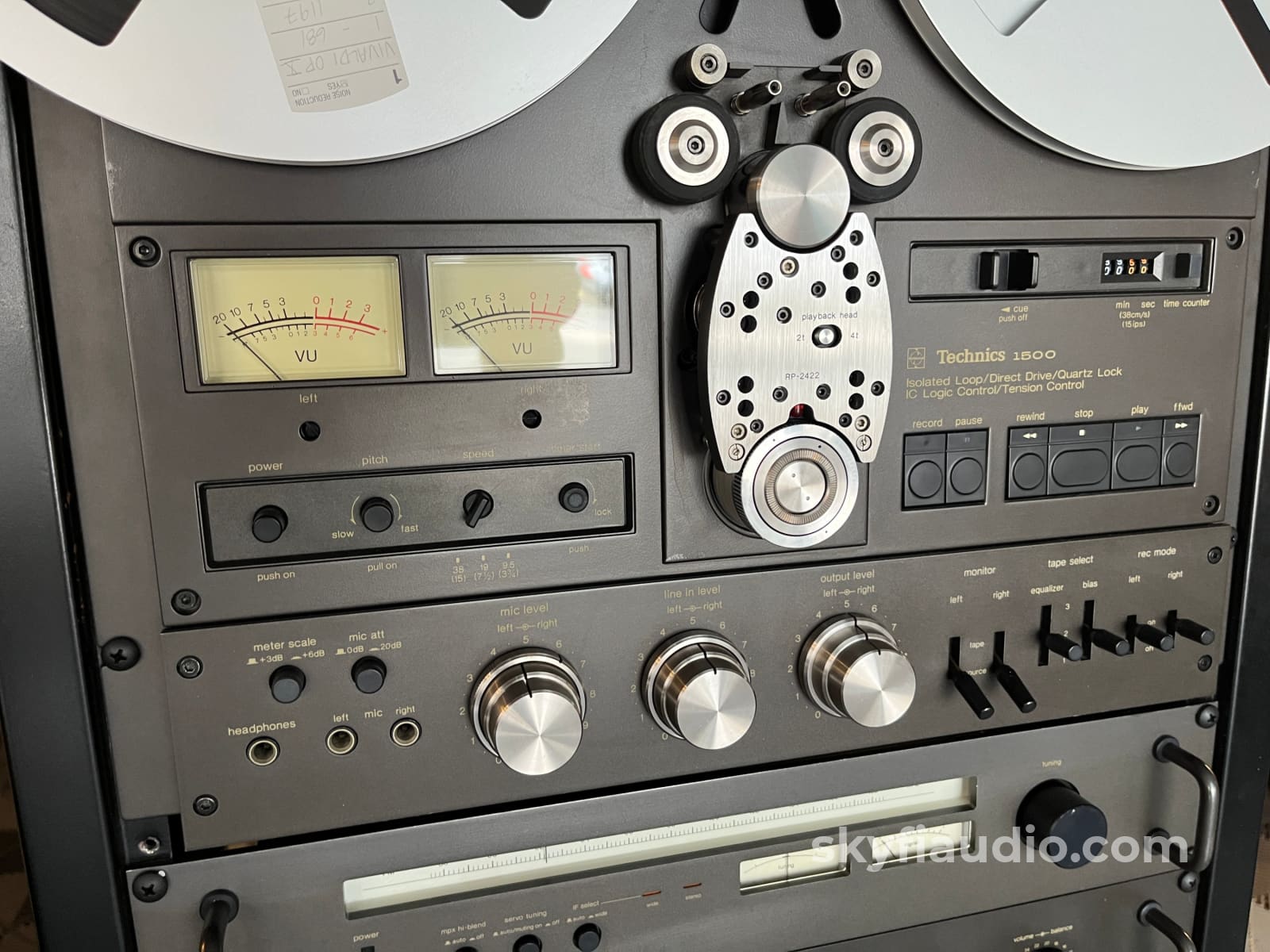

Technics RS-1500US Stereo Reel-to-Reel Recorder
- Track system: 2-track, 2-channel stereo or mono
- Reel size: Up to 10.5-inch reels
- Equalization: NAB
- Tape speeds: 3¾, 7½, 15 ips
- Wow & flutter (15 ips): 0.018%
- Frequency response (15 ips): 30 Hz – 30 kHz
- Signal-to-noise ratio: 60 dB
- THD: 0.8%
- Inputs: Line 60 mV, Mic 0.25 mV
- Output: 0.775 V
- Dimensions (W × H × D): 446 × 456 × 258 mm
- Weight: 25 kg

Technics RS-7500US Elcaset Deck
- Type: 3-head, single Elcaset
- Track system: 4-track, 2-channel stereo
- Tape speed: 9.5 cm/s
- Tape types: Type I, FeCr, CrO₂
- Frequency response (CrO₂): 20 Hz – 22 kHz
- Signal-to-noise ratio: 63 dB
- Wow & flutter: 0.06%
- THD: 0.8%
- Inputs: Line 60 mV, Mic 0.25 mV
- Output: 0.58 V
- Dimensions (W × H × D): 483 × 253 × 350 mm
- Weight: 14 kg

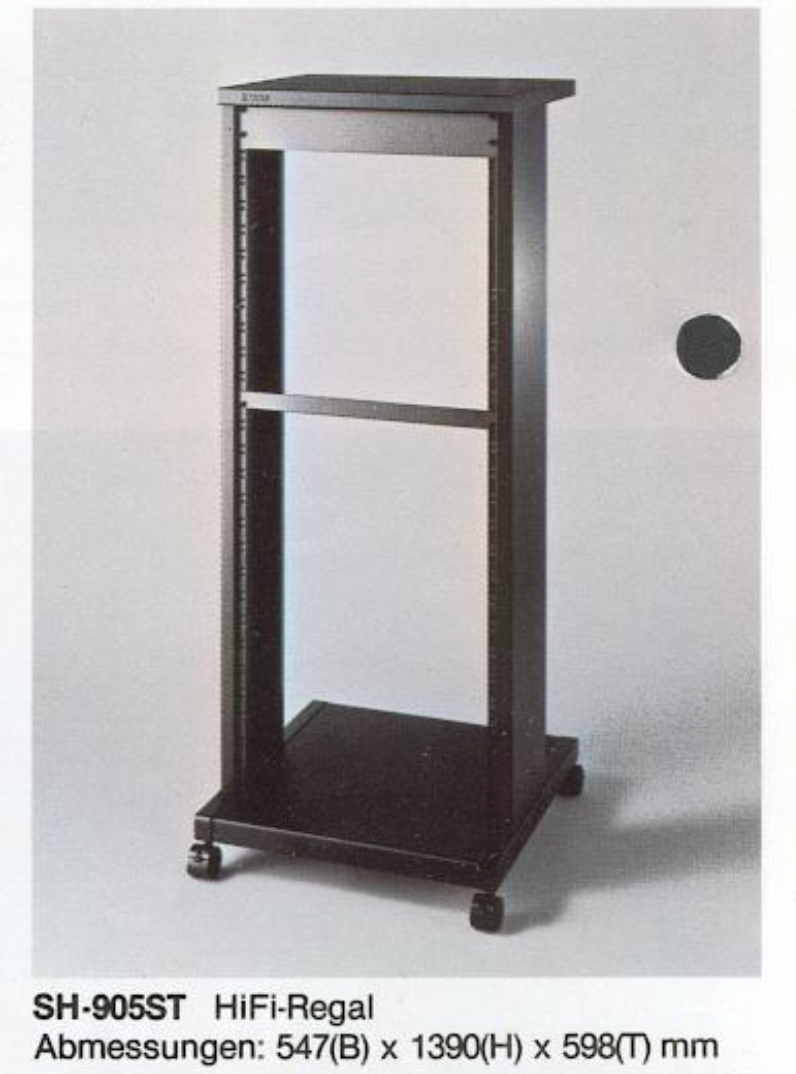

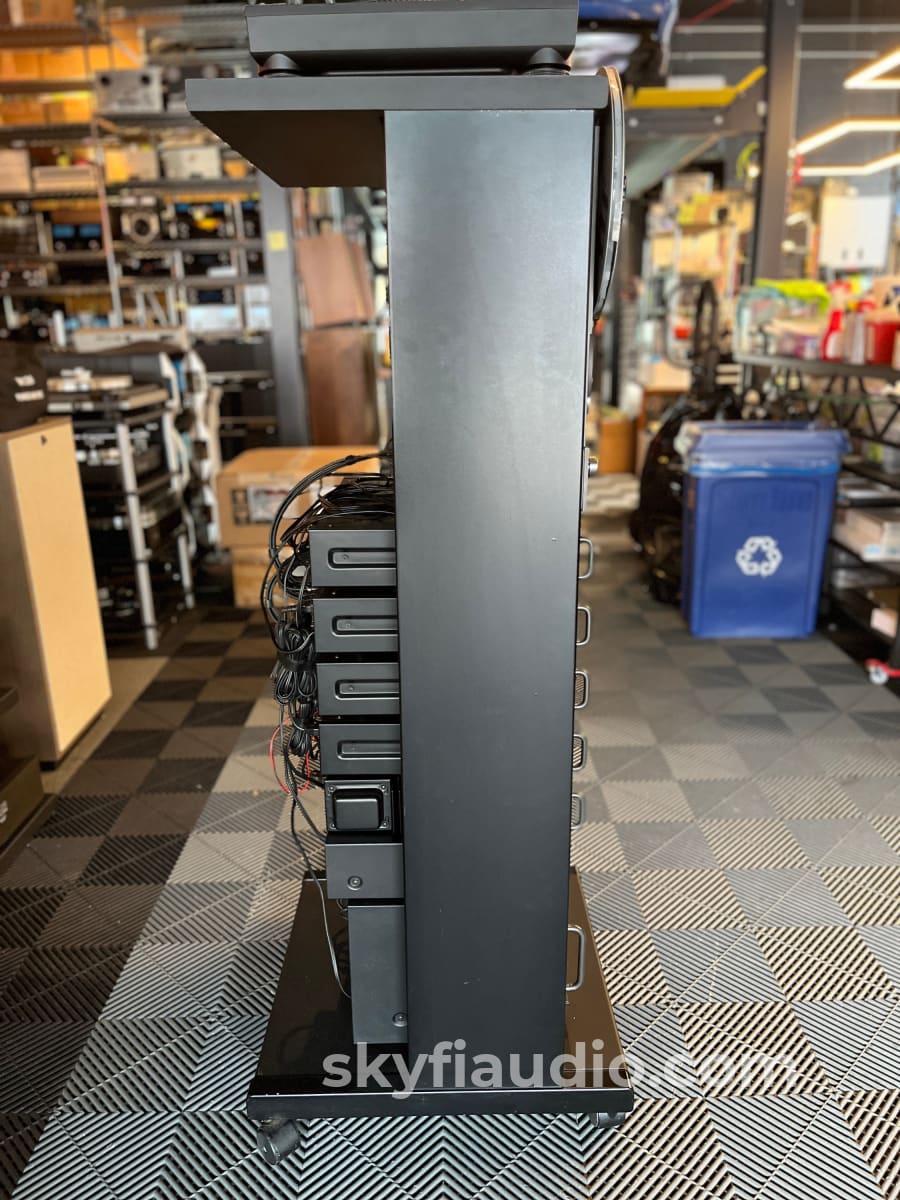

Technics SH-905ST System Rack
- Dimensions (W × H × D): 547 × 1390 × 598 mm
- Dimensions: (W x H x D): 21.54” × 54.72” × 23.54”
