TEAC X-2000R Reel to Reel Tape Deck - NOS - New Old Stock!

Free Shipping on Most Electronics - Excludes Speakers and Items Requiring Freight - Contiguous U.S. Only

General:

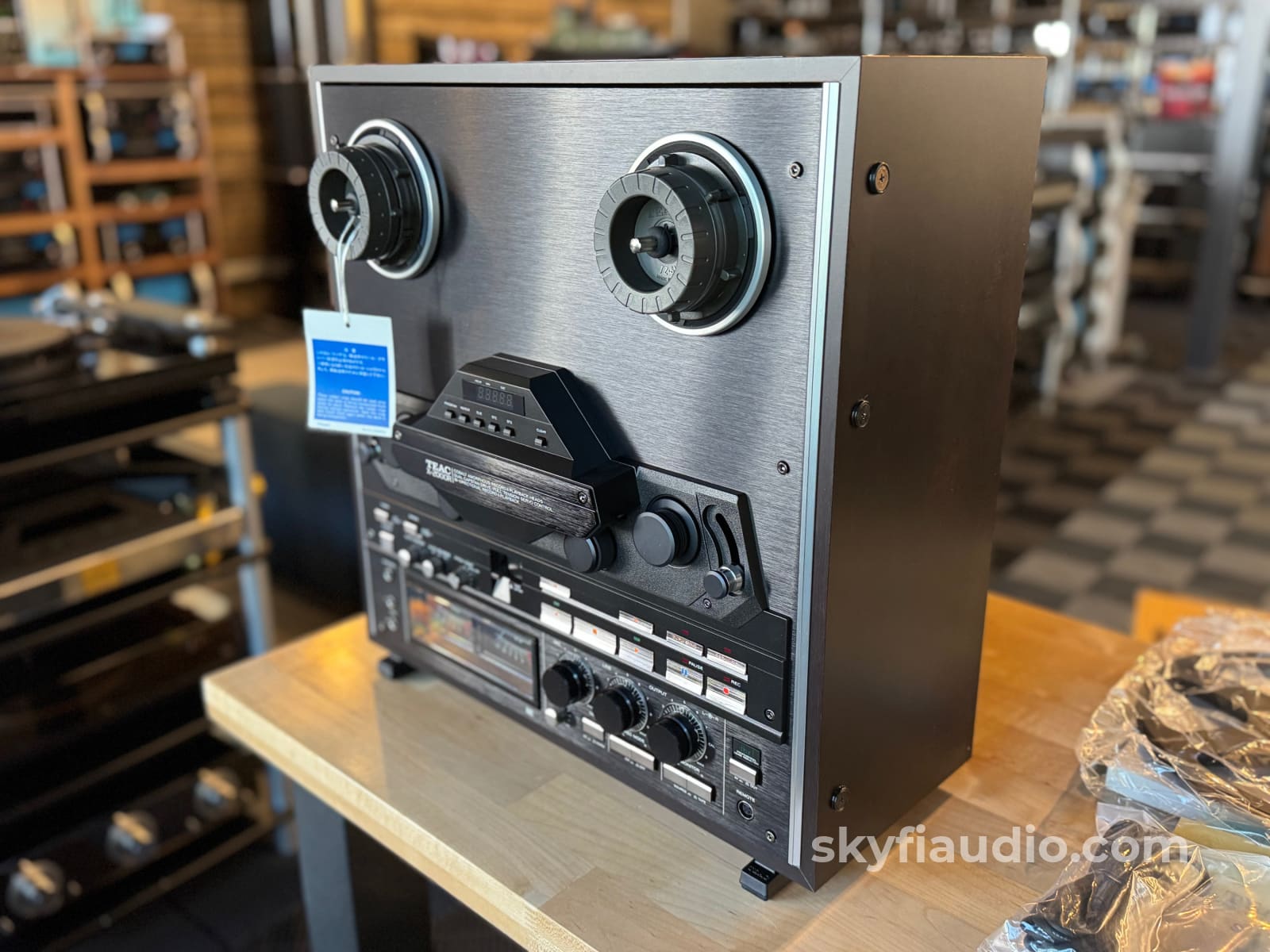

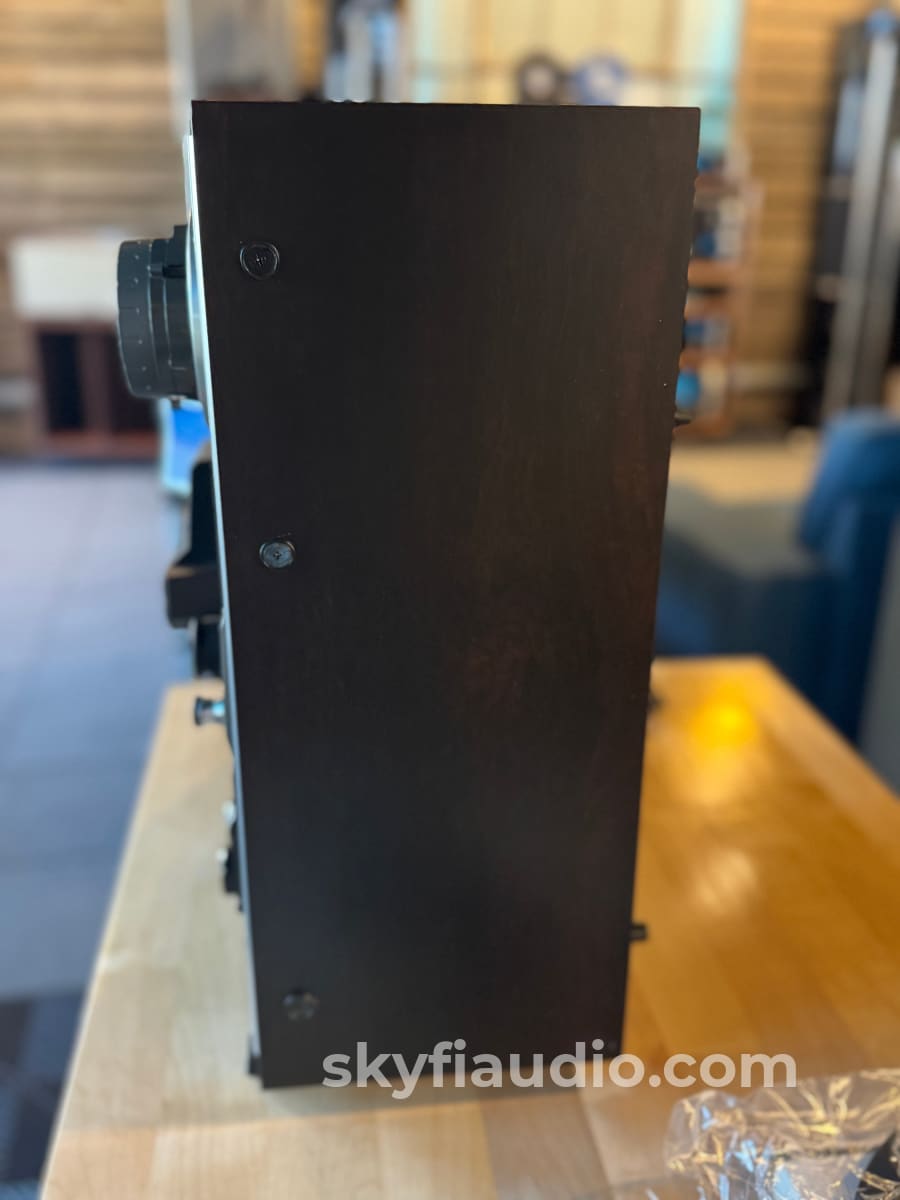

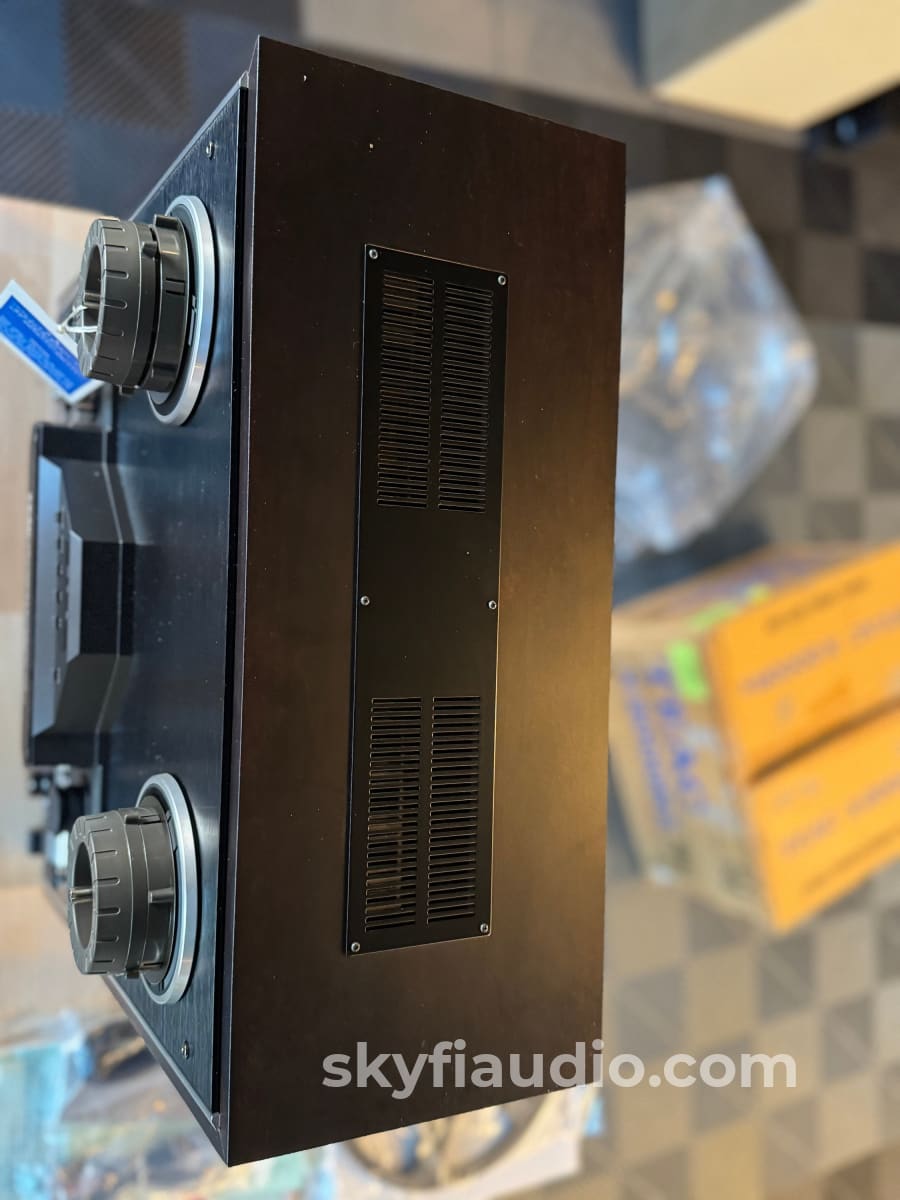

This is a new old stock Teac X-2000R reel to reel tape deck! Probably only a few left in existence in this condition!

New old stock Reel to Reel machines are what you need if you want the ultimate in performance that only fresh motors, and new new tape heads can provide.

This super cool looking deck with auto reverse capabilities for essentially endless playback.

Built in dbx Noise Reduction also ensures you're able to make the most noise-free recordings possible.

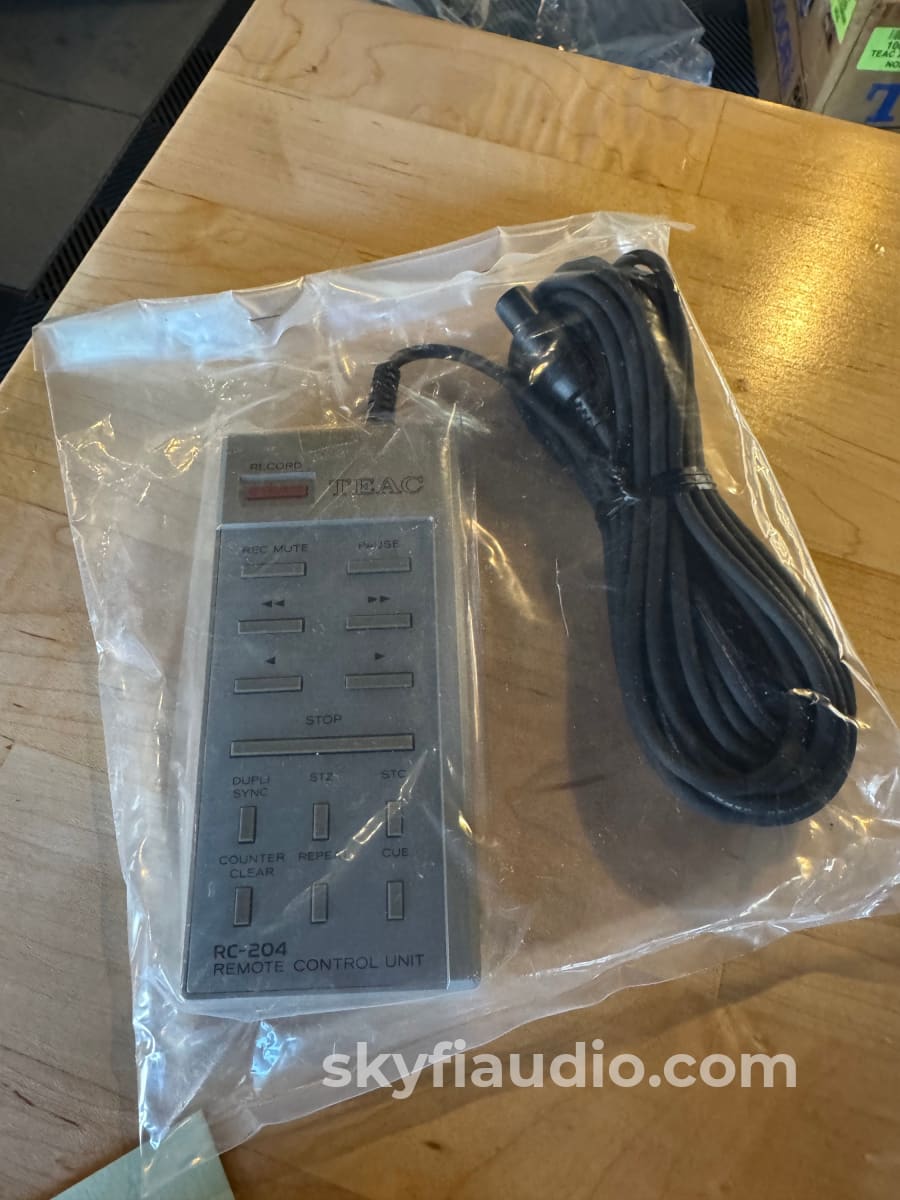

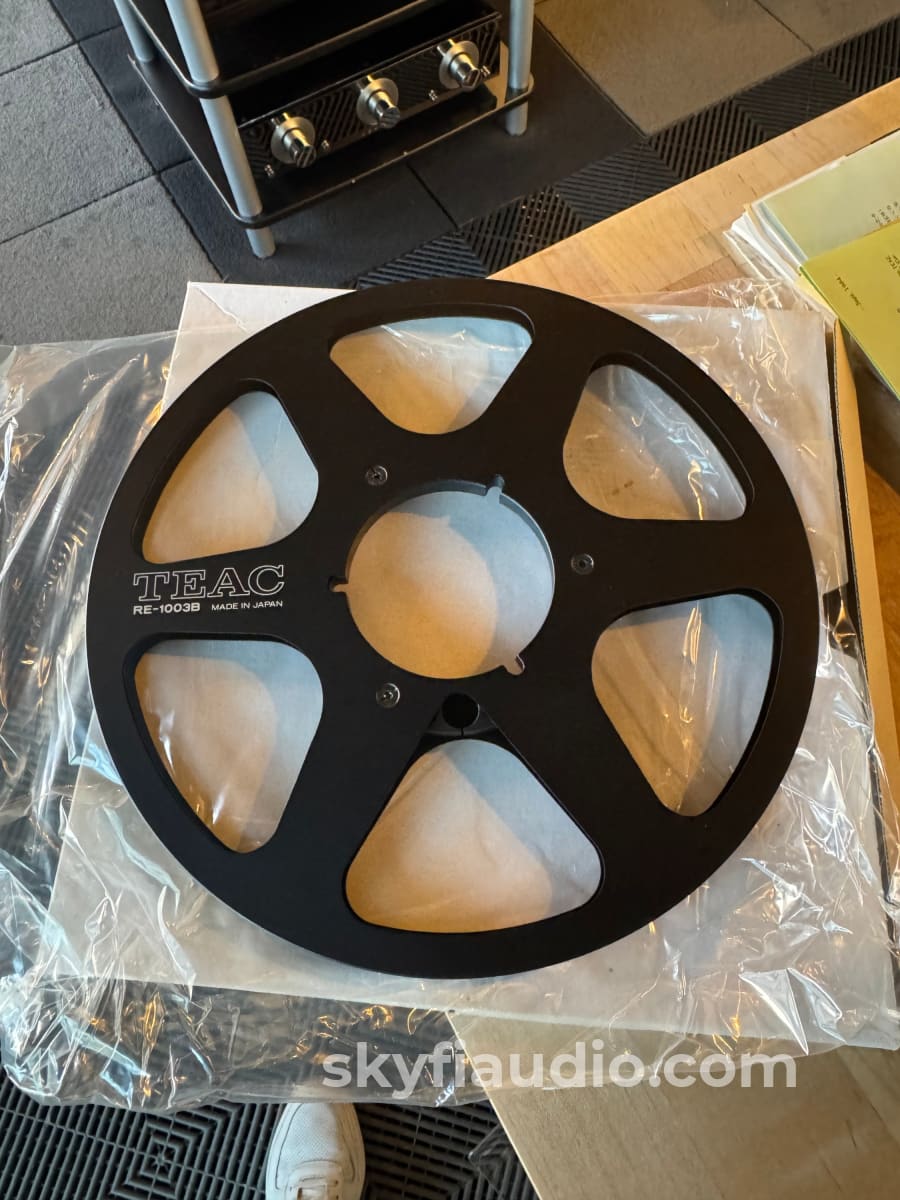

This particular example will come with its original take up reel (brand new of course) plus all of the paperwork and documentation it arrived with when originally shipped.  It also include a super rare wired remote which is the first we've ever seen.

It's also very similar to the X-2000M seen in Pulp Fiction!

Deck was acquired but the seller at a military exchange store in the 1980s.  He never got around to using the deck and had it stored in a dry, clean environment until we got it.

Newspaper clippings inside the box reflect this time line which was super interesting reading.

The machine has never been plugged in and we wanted to preserve it this way.  However if the new buyer plans on using it (rather than collecting it) we would be happy to confirm operation prior to shipping.

The Pulp Fiction Scene:
The Wallace house right after the infamous dance scene at "Jack Rabbit Slim's Restaurant" featuring Mia Wallace (Uma Thurman) and Vincent Vega (John Travolta).

Tap or click below to watch the full scene on YouTube!


More from Teac:

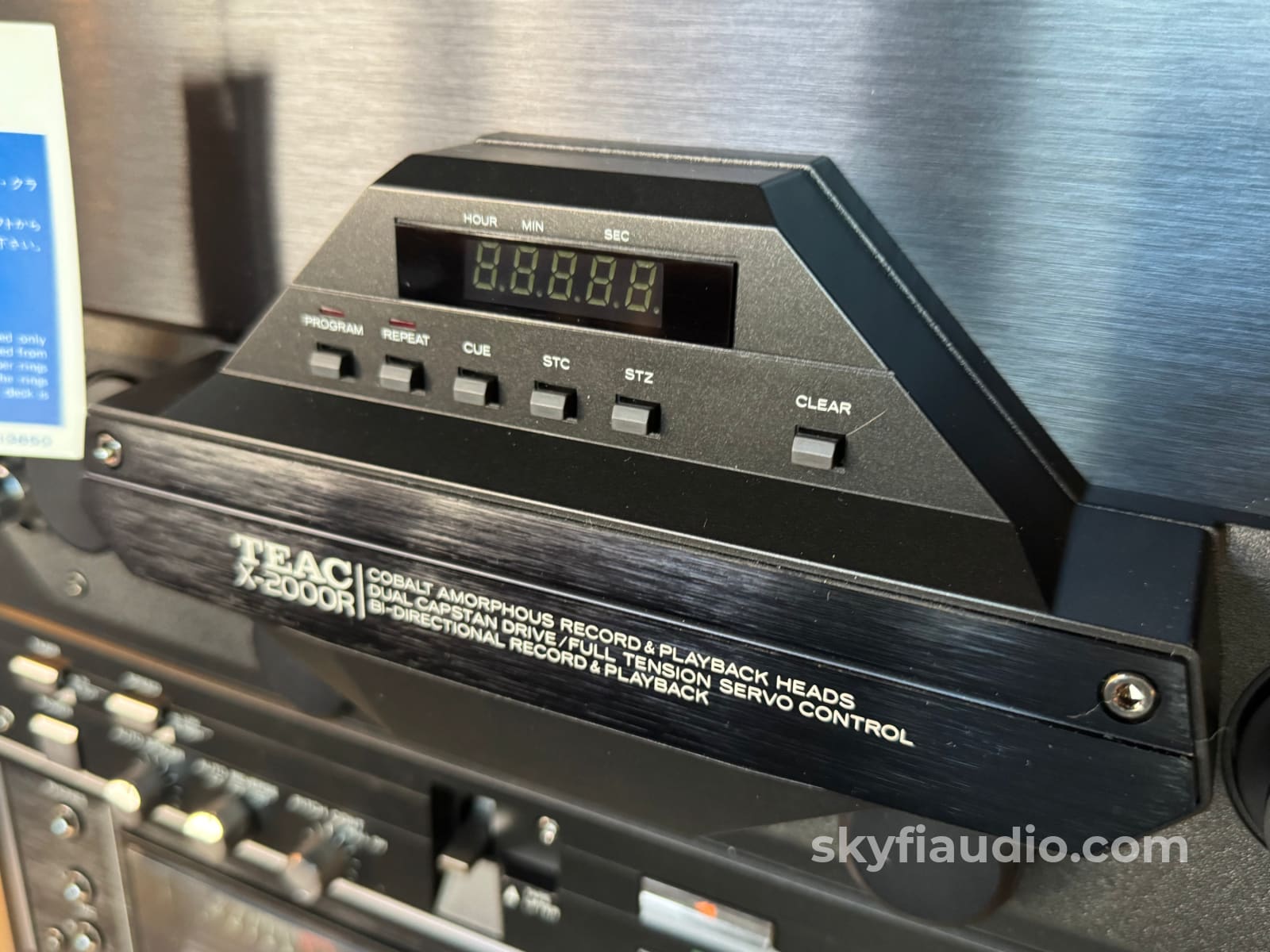

The X-2000R incorporates a variety of functions and features including dbx noise reduction, an auto-locator function which is convenient in replay and editing and block-repeat.

To maintain very stable tape motion with optimum tape tension, it uses a full tension servo control system in which a photo-interrupter senses the position of the tension arm so that the servo mechanism can adjust the torque of the reel motor.

This mechanism eliminates the need for manual switching when using different types of reels.

In the design of the electronic circuits the same concepts were applied, especially for the

SkyFi Cosmetic Notes:

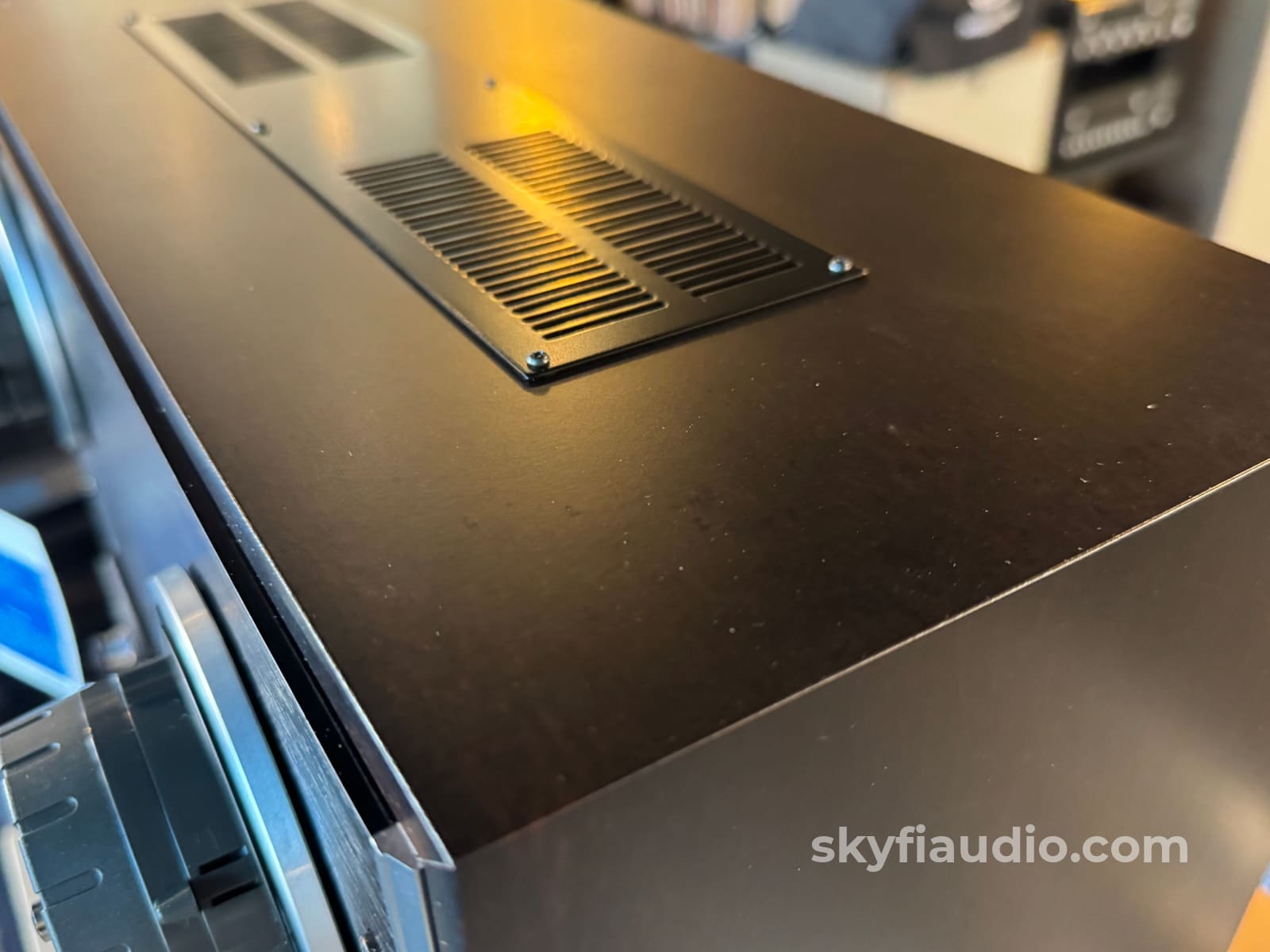

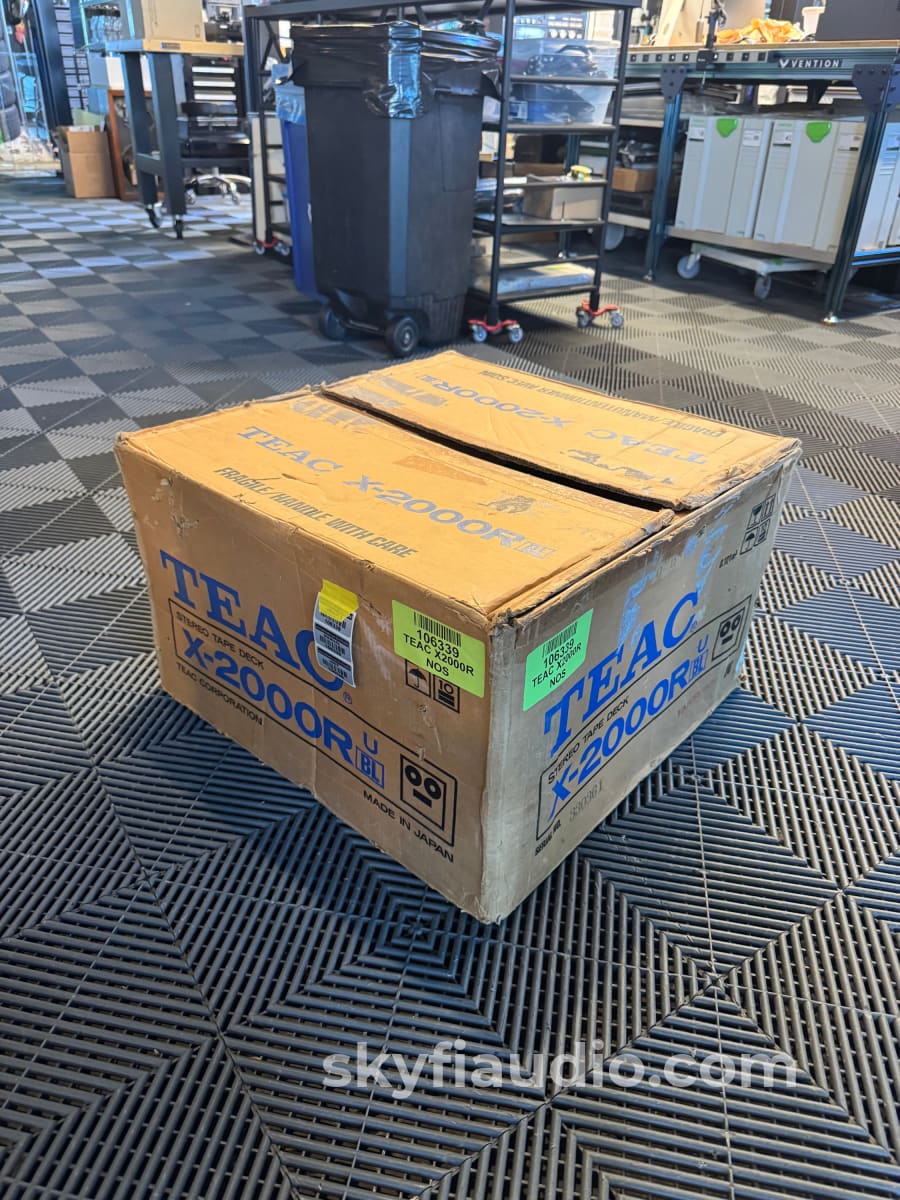

Other than the box showing its age, there is absolutely no signs of wear on this machine.

Ownership:
Brand New

Connections:

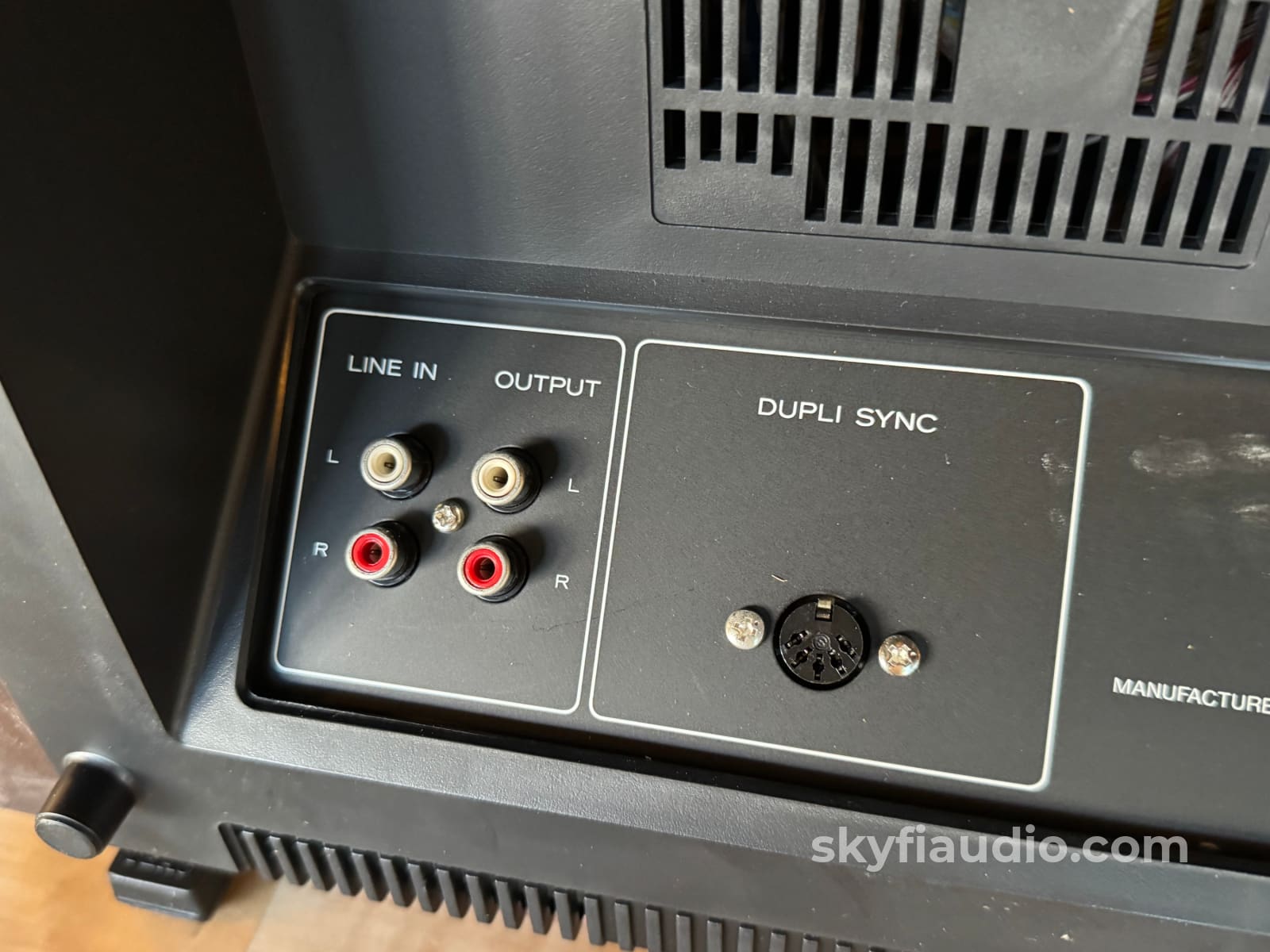

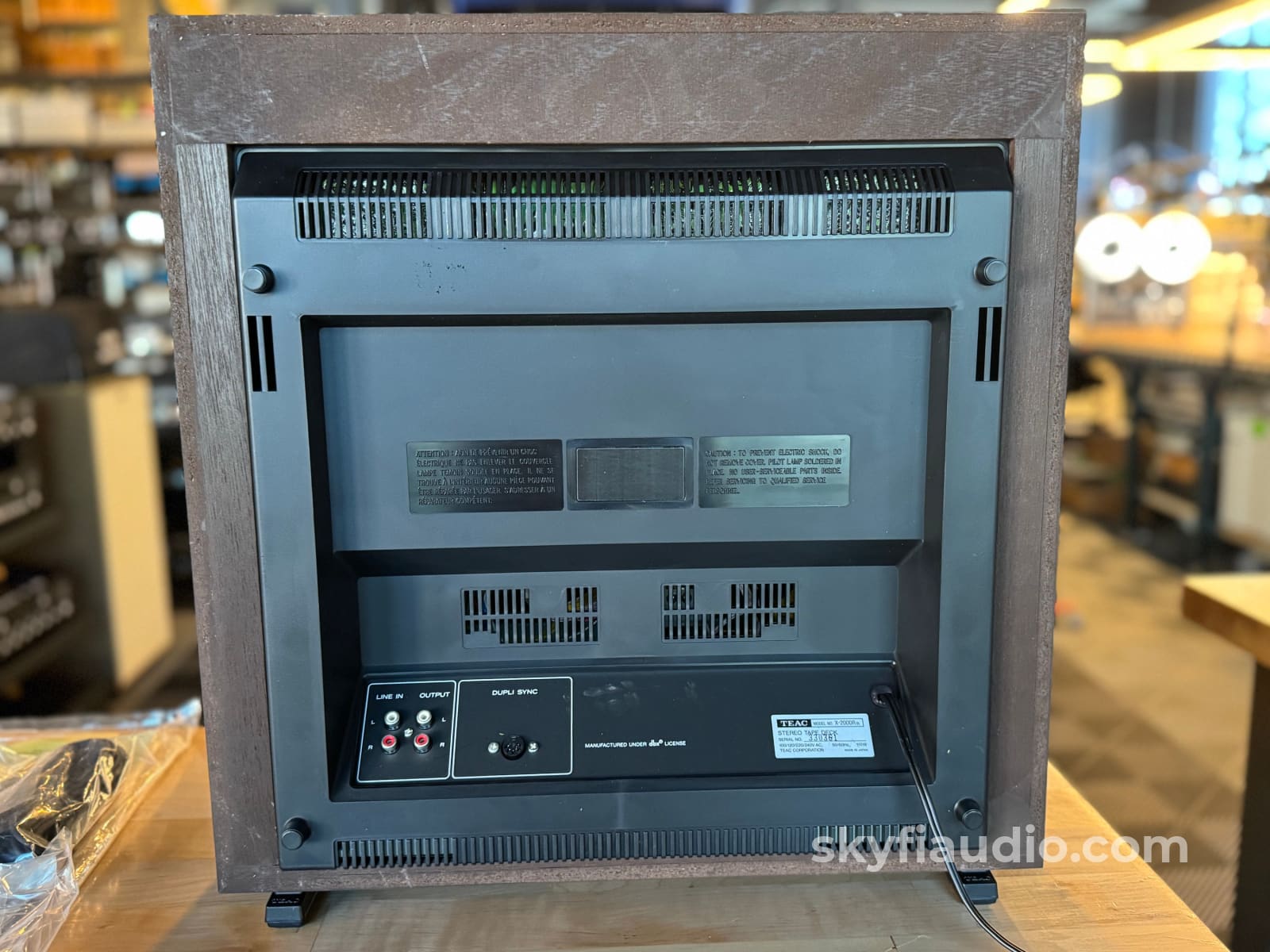

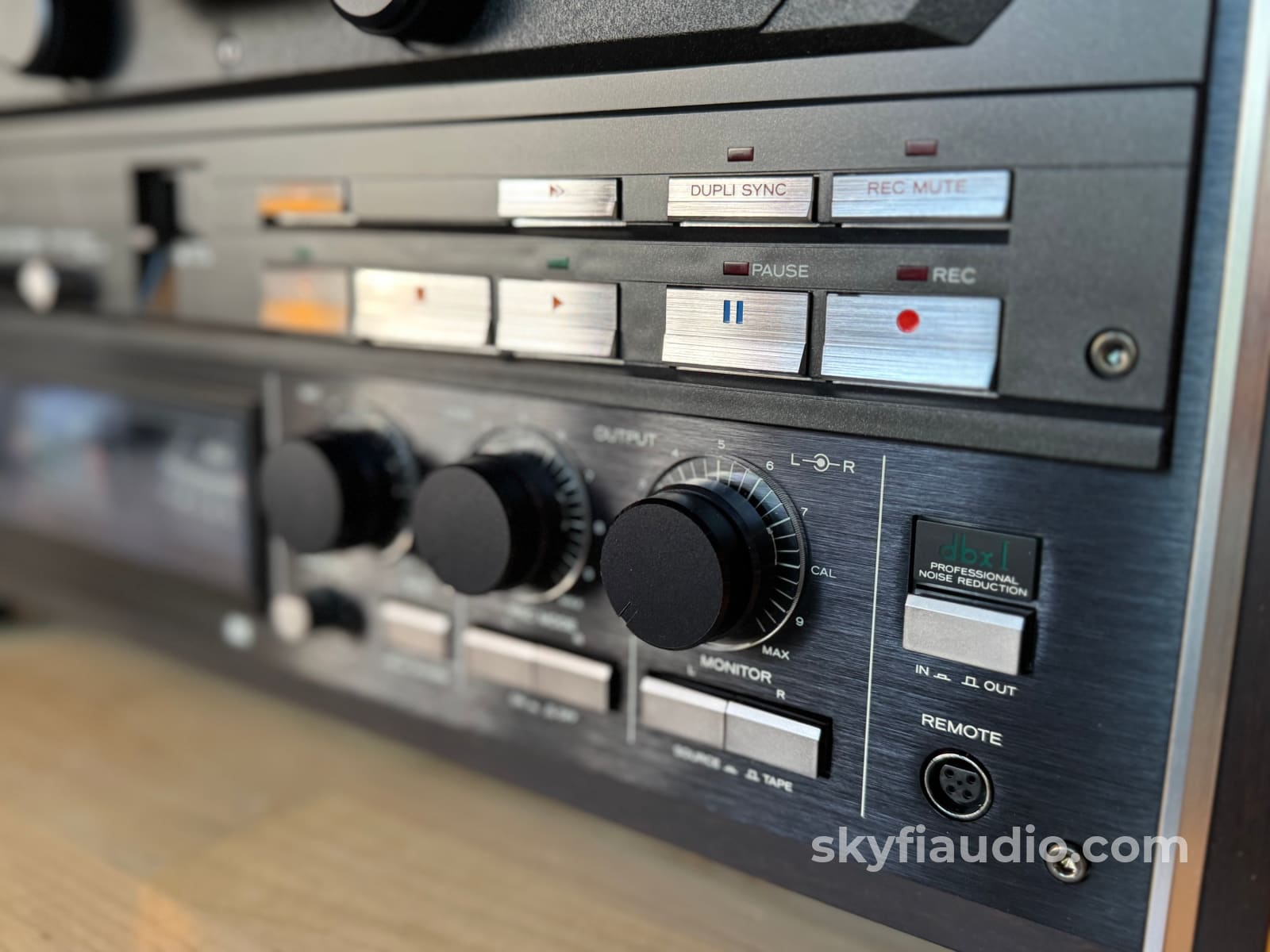

RCA Input and Outputs. Dupli Synk Connection.

General Sound:
Smooth, uncolored, undistorted natural and clean

Cosmetic Condition:
10/10 = Mint. Looks like new, likely used once (if that!). See our detailed rating description here.

Working Condition:
Working perfectly and tested in our lab.

Included:
Everything like when it arrived new

Packing:
Original Manufacturers Packing

Specs:
Track system: auto reverse, 4-track, 2-channel, stereo/monaural system

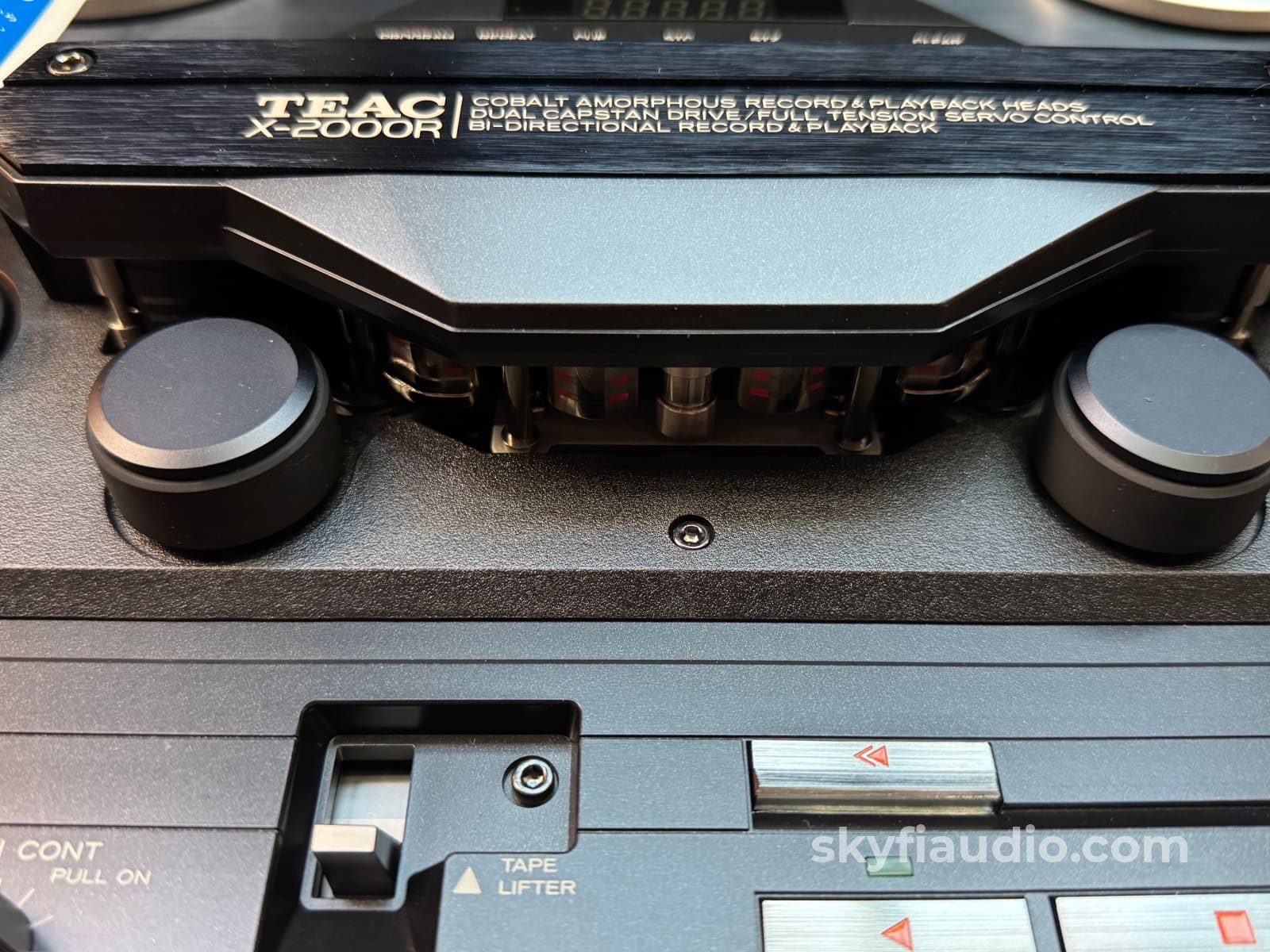

Heads: 2 x playback, 2 x record, 2 x erase
Motor: 2 x reel, 1 x capstan
Reel size: up to 10.5 inch reel
Tape speeds: 3-3⁄4 and 7-1⁄2 ips
Wow and flutter: 0.03% (measured at 7-1⁄2 ips)
Frequency response: 30Hz to 40kHz (7-1⁄2 ips)
Signal to Noise Ratio: 63 dB
Total harmonic distortion: 0.8%
Input: 60mV (line), 0.25mV (mic)
Output: 0.45V (line)

Dimensions:
17.01 x 17.95 x 10.55"

Weight:
46 lbs.

Approximate Age:
1984

Link to Manual:
Click Here

Recommended Cables:
Kimber Kable - RCA Interconnects - Better

Kimber Kable - RCA Interconnects - Best

Testing Process:
First steps are performed to determine if the unit is a candidate for our full restoration process, or if it's just in need of a light service.

We perform a basic functionality test to ensure proper playback, fast forward, and rewind. We look for smooth operation of the motors, transport engagement, and associated rolling parts.

We then do an internal physical inspection to ensure the belts and rubber consumable parts are up to spec.

Internal components are checked to make sure there are no signs of heat stress or damage, particularly in the power supply section. Capacitors are checked for telltale signs of predictive failure including bulging, shrunken wrappers, or physical leakage. We also inspect the PCBs for discoloration from resistors or transistors that may have been running hot. On vintage units we often spot check select capacitors for value and ESR.

A light service will involve replacement of belts and rollers, external cleaning of heads, mechanism and boards, and basic record and playback tests.

A full restoration will often include disassembly of the drive system and replacement of all consumable and wearable parts including pinch rollers, belts, brakes, and bearings. We then clean, lubricate, and re-assemble the drive and perform basic mechanical alignment to ensure proper tape path and head alignment.

Final calibration will involve adjustment of the playback, erase, and record heads, along with optimization of the bias for a specific tape type. We do this with the aid of a Sound Technology 1510A tape deck analyzer plus a Nakamichi T-100 Audio Analyzer with reference calibration tapes.

Final listening tests are performed while monitoring with our reference Grado HP-1 headphones and a variety of factory and custom reference recordings We find that there is no better system for critical listening on tapes than with headphones, especially when comparing a live feed to a recorded feed.
