Naim Audio DAC, Digital to Analog Converter, 24bit/768kHz Resolution

Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

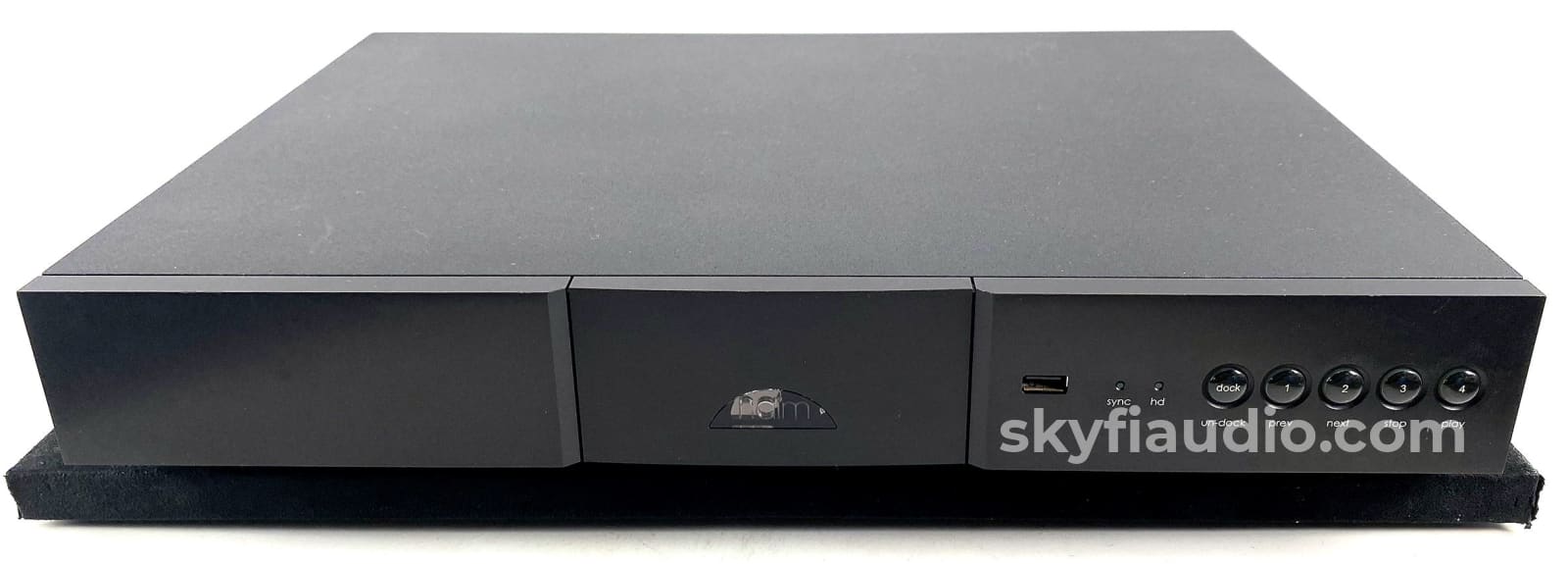

Great performing DAC (Burr-Brown) from Naim featuring a plethora of digital inputs including front mounted USB which is super convenient for connecting a phone.

Both RCA and DIN outputs makes it easy to connect to other brands.

Tested and working properly here on our bench and listening room.

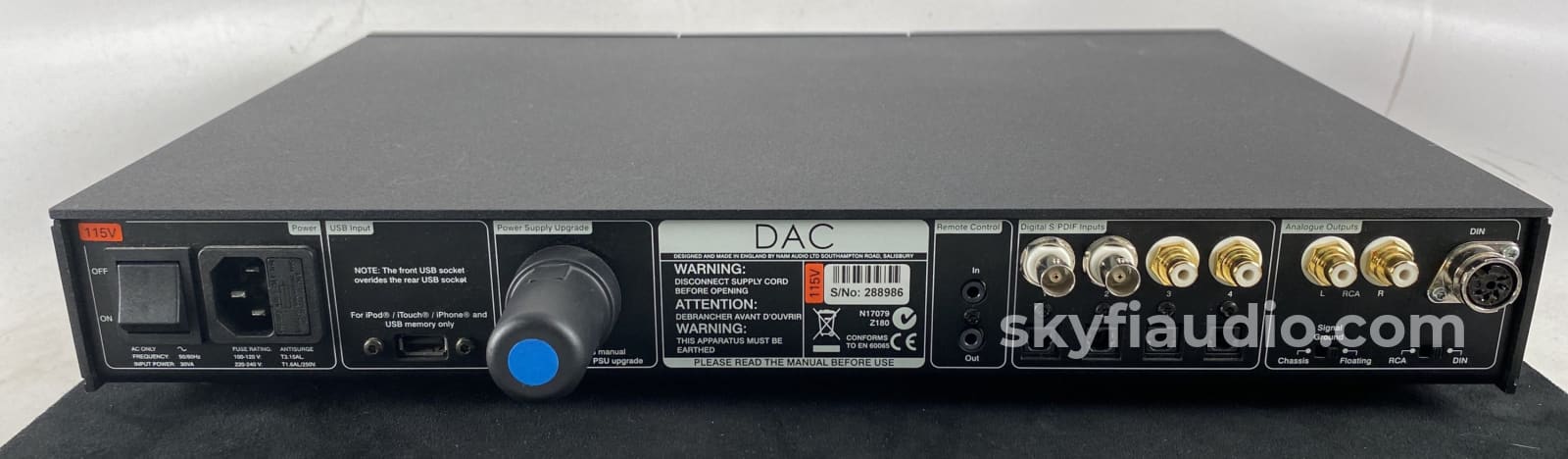

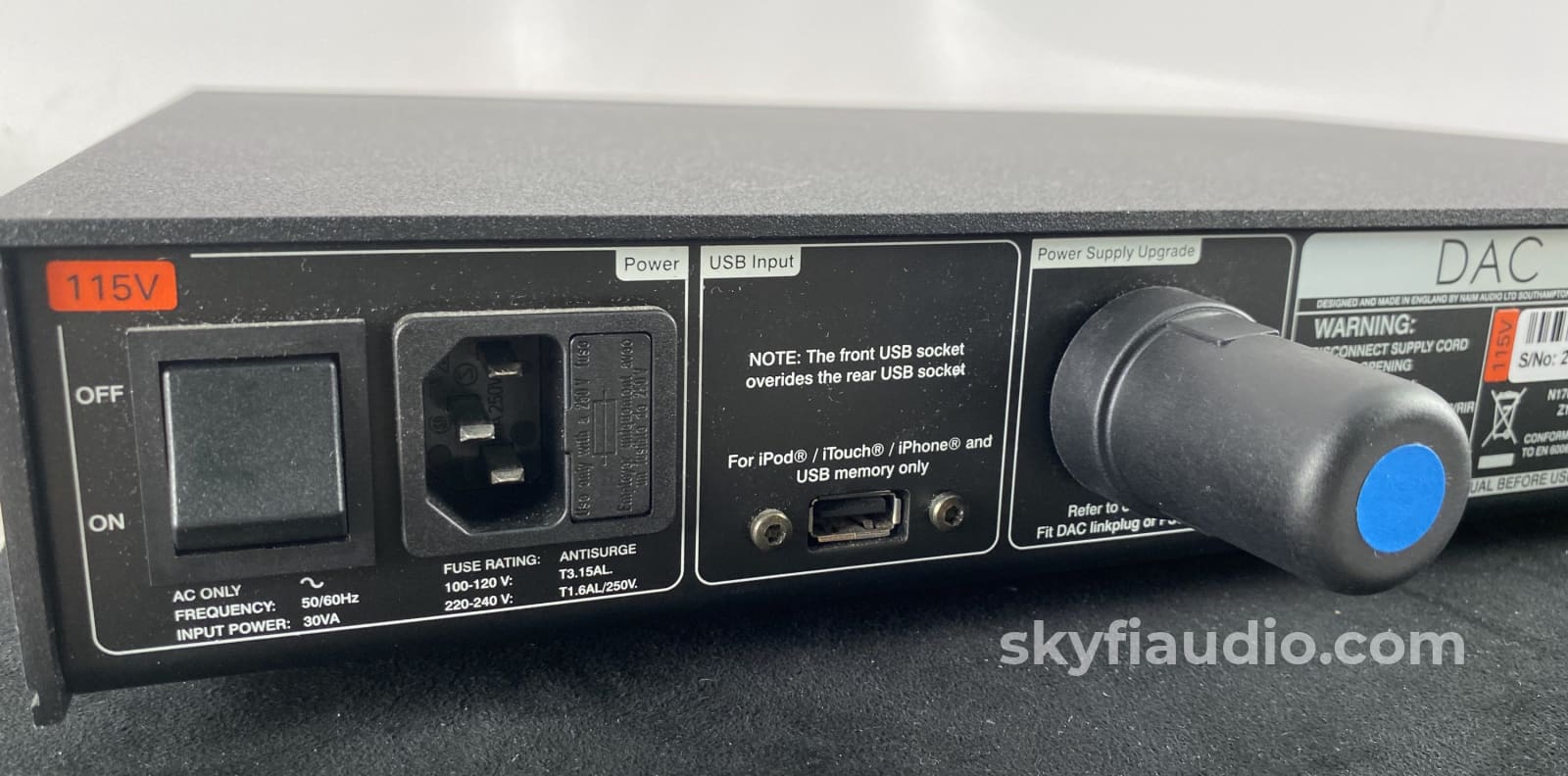

The pictured rear panel Naim DAC specific linkplug is included with your purchase along with a power cord.

If you need BNC to RCA adapters for the digital inputs simply note that in your order notes.

For Naim specific cable questions to connect this to your existing or future Naim system, please email or call us to discuss options.

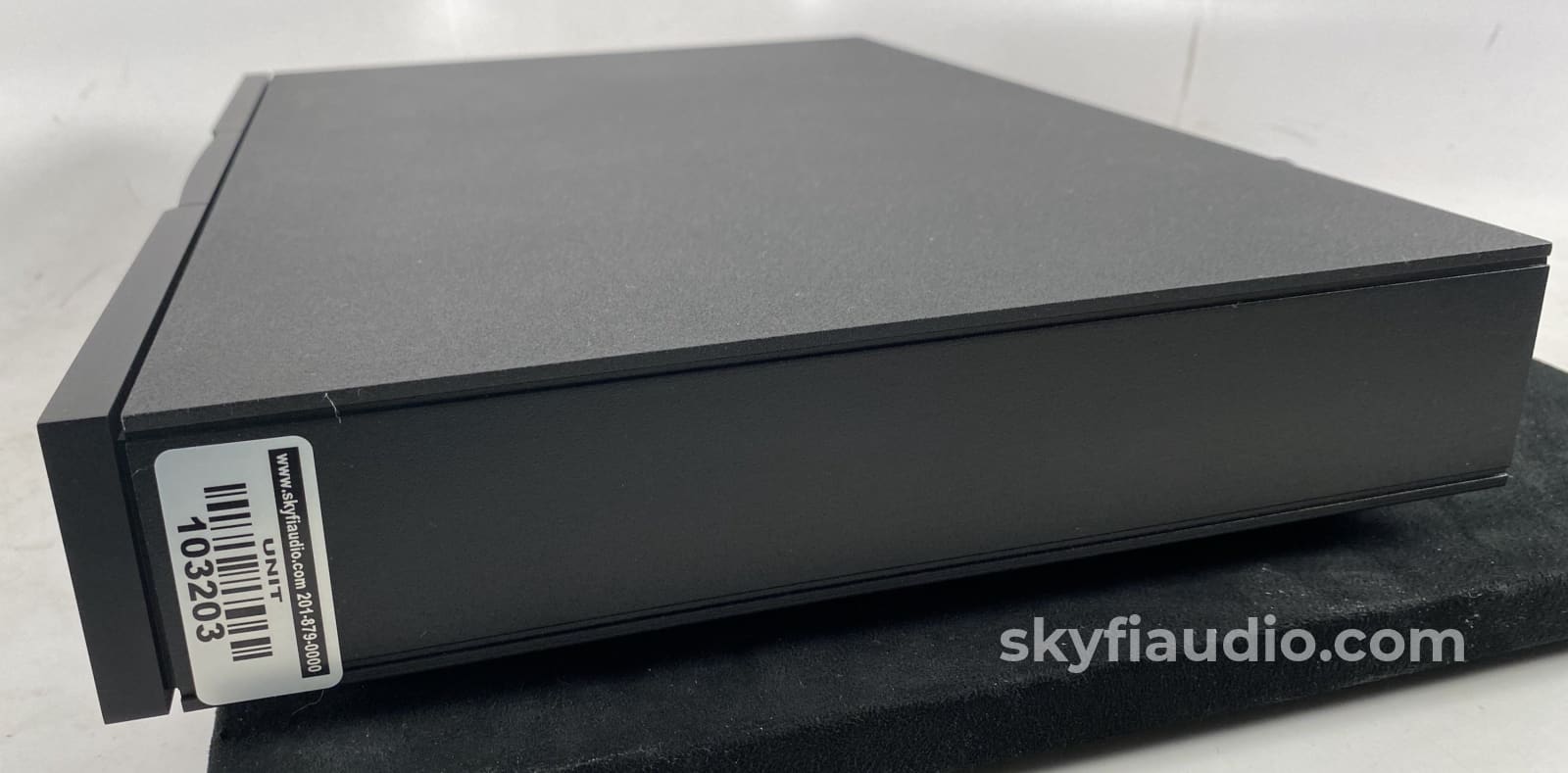

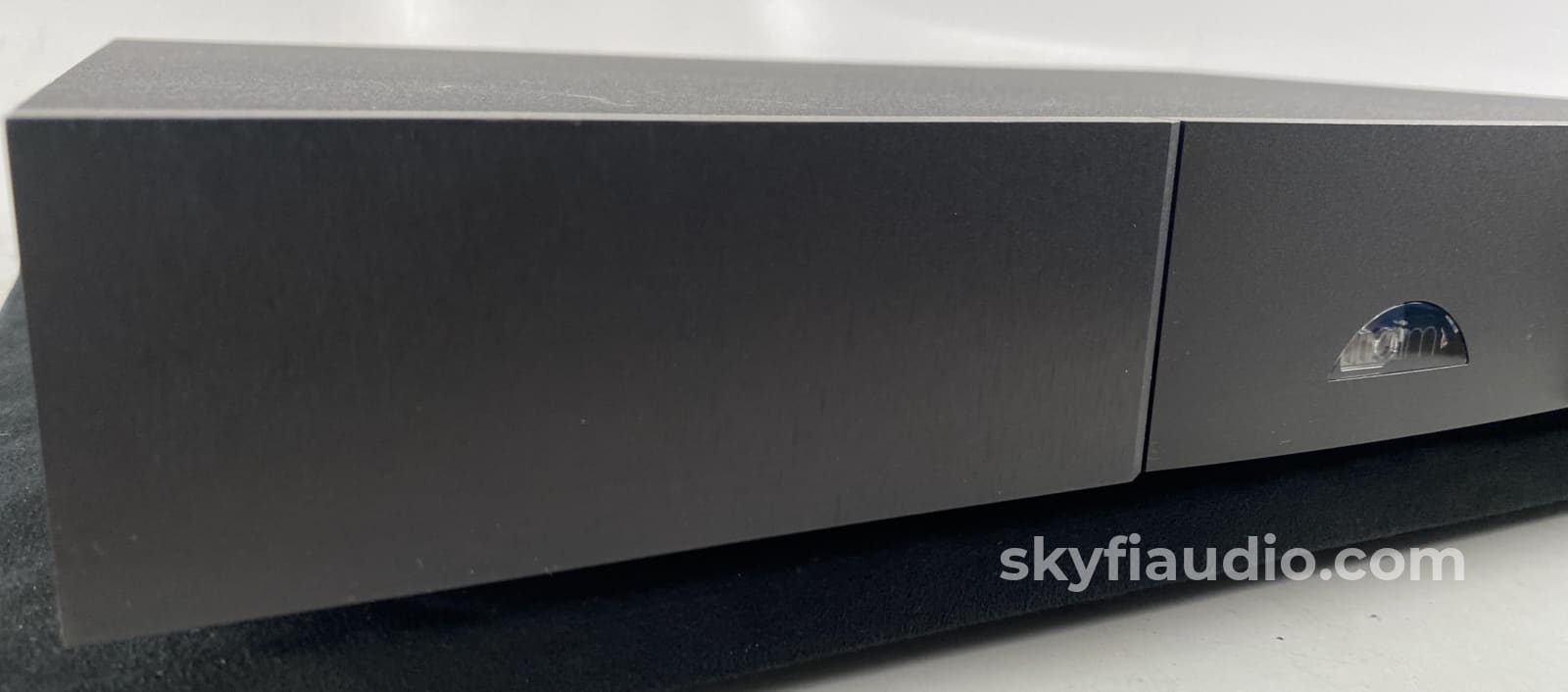

Cosmetic Notes: Some light wear along top edge of face barely visible.

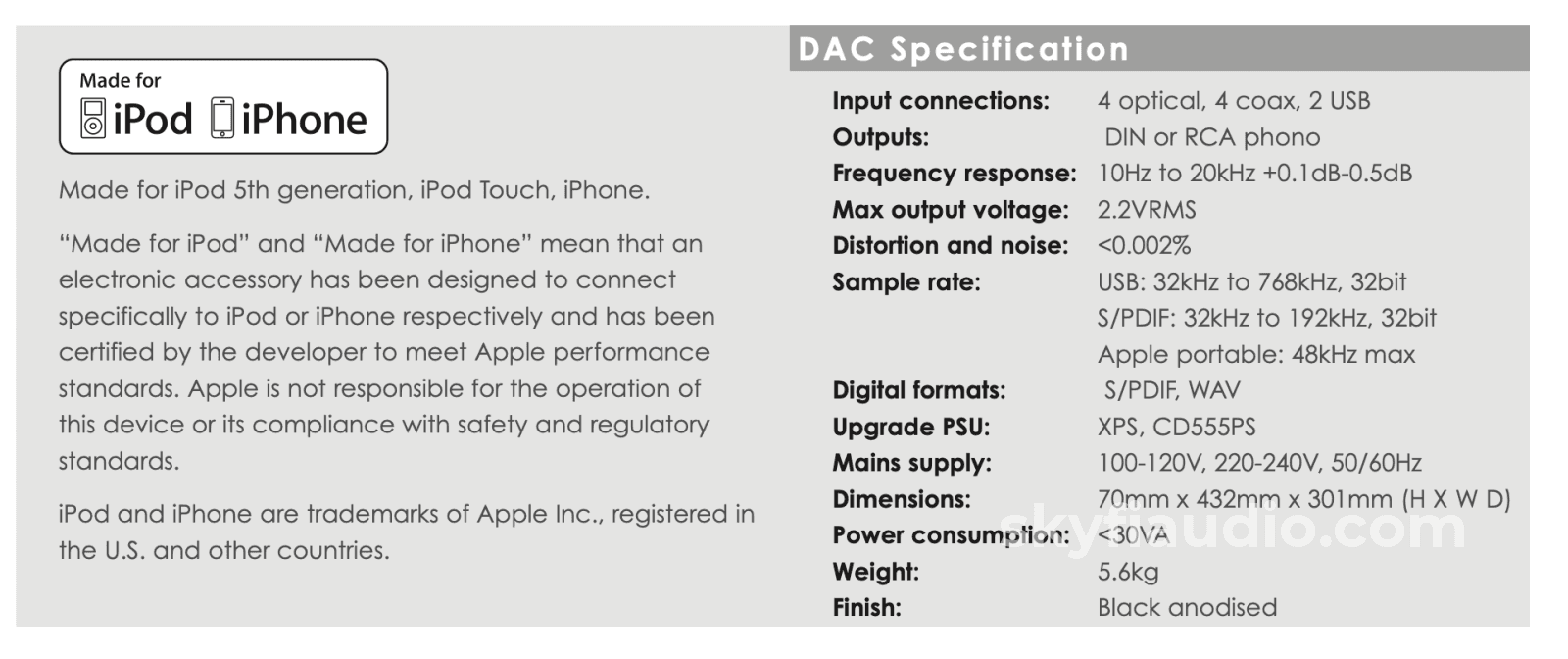

Please see our last photo or the linked manual below for full specifications:

Naim Audio DAC, Digital to Analog Converter - Manual

More from Naim:

Capable of partnering and upgrading a wide range of Naim Audio products, the DAC has more in common with our CD players than with any conventional DAC. Its Burr-Brown converter chips, for instance, are also found in our flagship CD555 CD player.

The DAC overcomes the jitter inherent in standard digital connections by reading data independent of its timing signal. Its digital filtering, based on a 40bit floating-point SHARC DSP chip running unique Naim Audio code, sets new standards in its class.

Our DAC is now DSD compatible and able to play 64 (2.8MHz sample rate) and 128 (5.6MHz sample rate) files; the upgrade required significant optimisation of the core DSP code which has also improved its sound quality.

If the DAC’s music performance is extreme, its flexibility is just as remarkable. With eight S/PDIF and two USB inputs, it’s adaptable to any system configuration and can grow to meet any need.

Features:
• Eight S/PDIF inputs for digital sources like games consoles, set top boxes and hard disk servers
• Two USB inputs (one front, one rear)
• 40bit SHARC DSP chip handling filtering and oversampling
• Plays audio files at up to 24bit/768kHz resolution

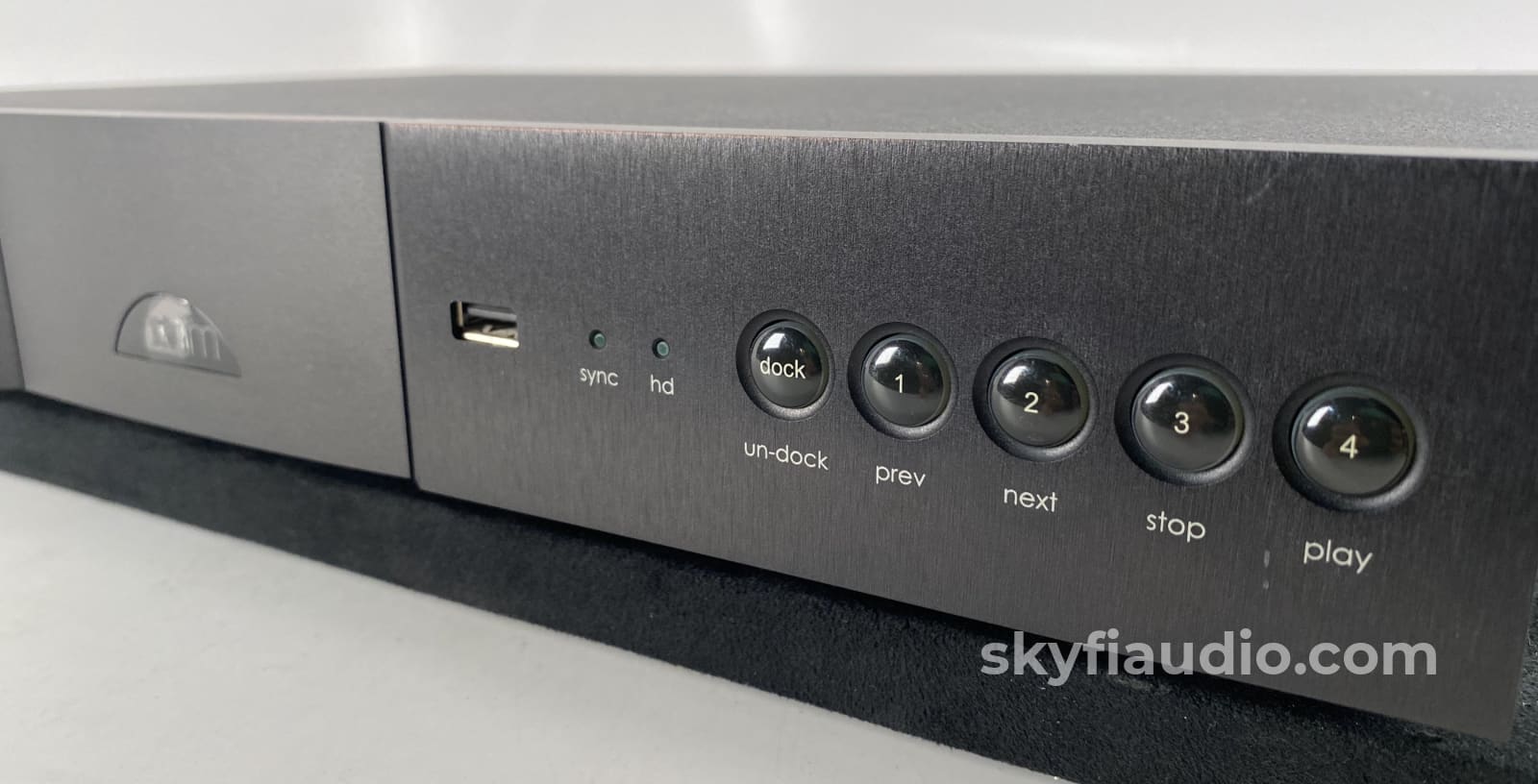

• Front-panel input controls adapt to become playback controls when iOS or USB devices are connected
(Use to upgrade the onboard DAC of the CD5 XS and CDX2 CD players and the HDX hard disk player/server)

Technology & Craft
The Naim Audio DAC is the end result of several years of research. It introduced several original digital music technologies that have since gone on to help inform the development of an entire range of streaming products.

The DAC overcomes the jitter issues of S/PDIF by reading the music into a "rotating" data RAM buffer independently of its timing signal and reading it out again clocked by one of ten extremely low noise, fixed frequency crystal sine-wave oscillators. The data entering the downstream digital filtering and DAC chips is then completely isolated from the incoming S/PDIF jitter. The Naim Audio DAC also suppresses RF noise from S/PDIF through electrical isolation of its DSP front end from the digital to analogue converter and analogue circuits. Each element is also run from separate power supplies.

The Naim Audio DAC's digital filtering is handled by a powerful SHARC DSP chip running unique Naim Audio authored code to create an ultra-high precision 40-bit floating point filter. The filter over-samples by 16 times on 44.1kHz data and provides stop-band attenuation of 180dB on all data. Following the digital filter are the two mono Burr-Brown digital to analogue converter chips, as used in the CD555 CD player. Finally the Naim Audio DAC features a very high performance, low noise, and low distortion fully discrete analogue output stage.
