McIntosh MR85 AM/FM Tuner in Custom Walnut Wood Case

Sale price£0.00
Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

Pickup currently unavailable at SkyFi 479

Mcintosh Mr85 Am/Fm Tuner In Custom Walnut Wood Case

McIntosh MR85 AM/FM Tuner in Custom Walnut Wood Case

SkyFi 479

Pickup currently unavailable

479 South Broad Street
Glen Rock NJ 07452
United States

+12018790000

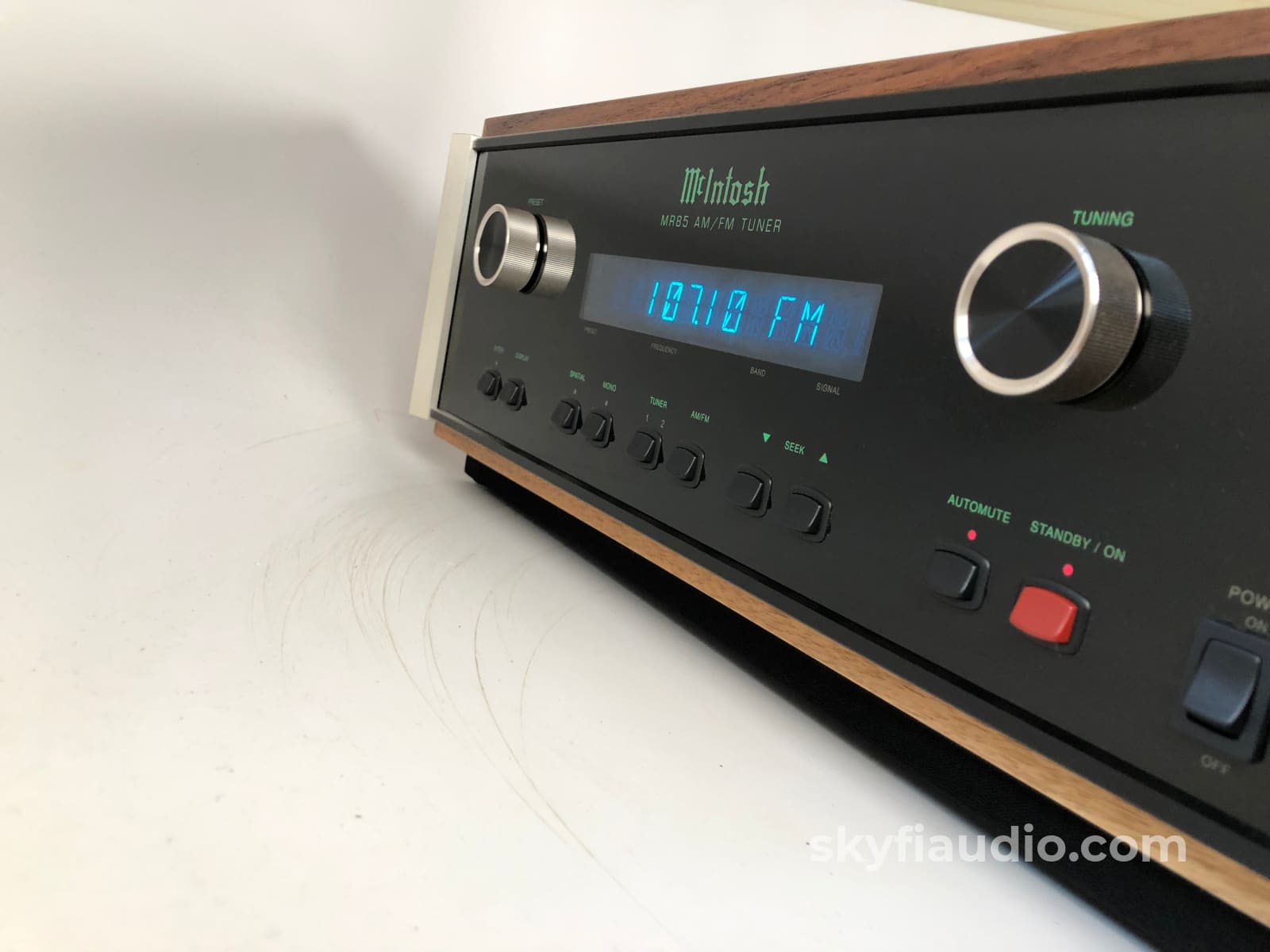

An excellent modern tuner from McIntosh that perfectly matches your other Mc gear, new or vintage. Superb sensitivity and noise rejection for bringing in even the most distant stations. Will require a good quality antenna for optimum performance, or just a simple whip antenna to do a good job bringing in your nearby stations.

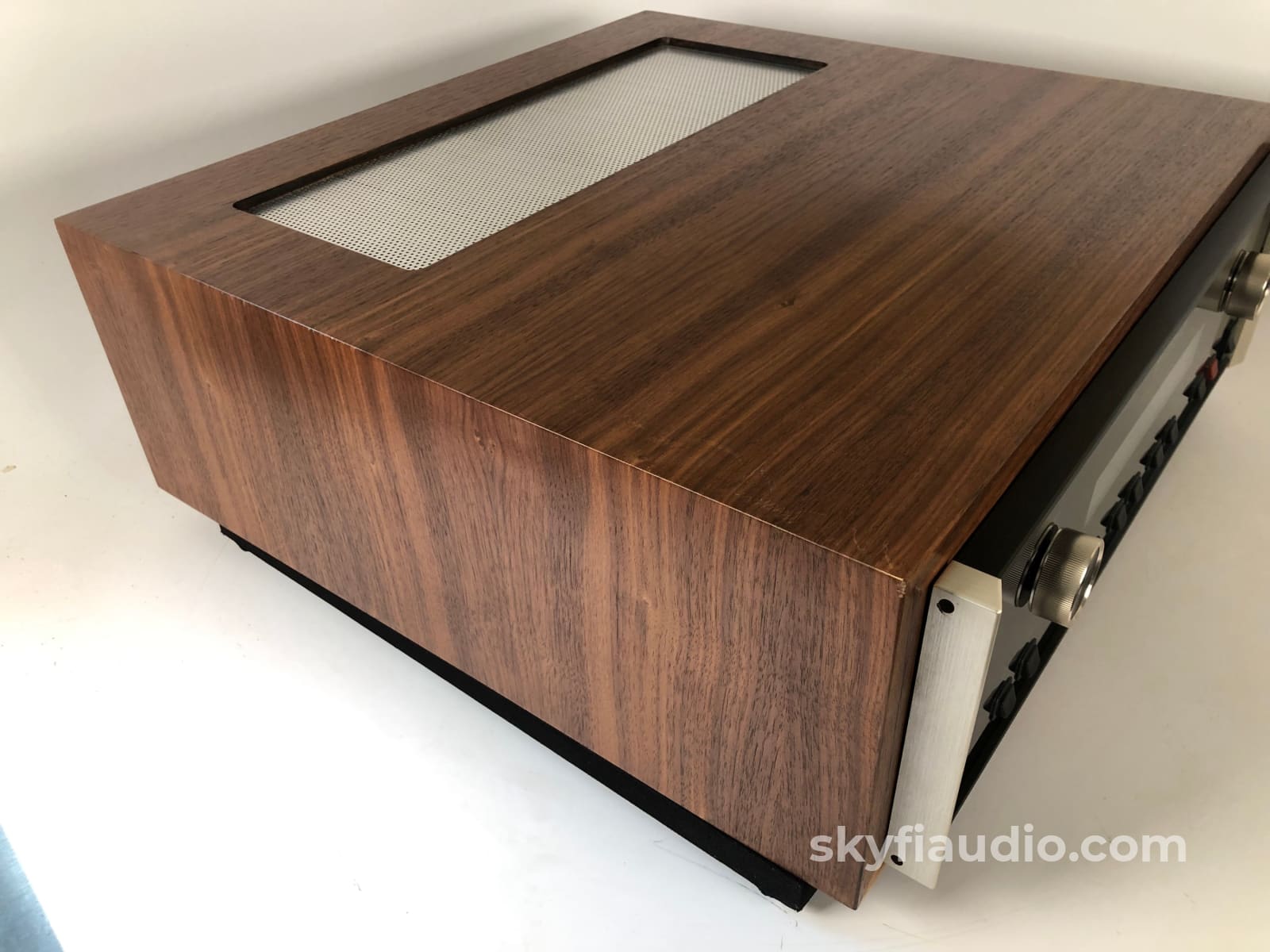

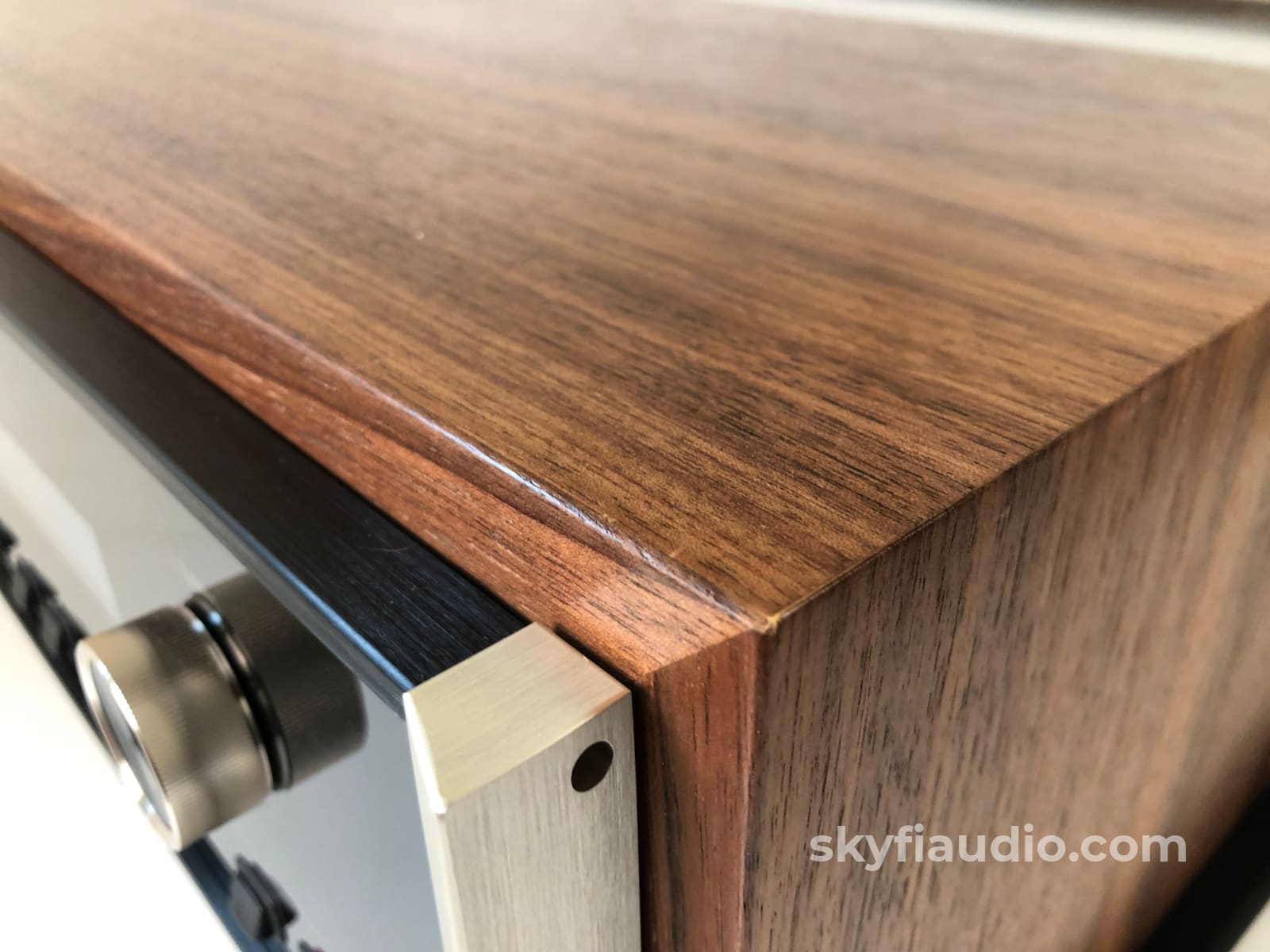

The solid MDF and Walnut veneer cabinet was handmade to fit perfectly with this piece, and features a bronze metal vent on the top. It is of the highest quality, much better than the cabinets that were sold by McIntosh in the 70's and 80's. This cabinet by itself cost $400 to make.

This tuner is in near-mint condition with no signs of use or wear.  The glass is perfect and the cabinet does not have any deep scratches or dents.

Thoroughly tested in our lab utilizing our professional Sencore SG80 FM Generator, which allows us to generate a reference FM signal of any frequency and amplitude, and then measure the results of the MR85 tuner output on our Sencore PR81 or oscilloscope.

This unit passed with flying colors and produced a natural and warm sounding output.

Click here for a PDF copy of the MR85 Owner's Manual

Performance Features:
Flywheel Manual Tuning
A newly designed, optically encoded weighted flywheel system makes 􏰃dialing in􏰀 stations an easy job. Reminiscent of the dial-cord flywheel tuning method found in classic McIntosh Tuners.
Custom Preset Naming
All 9 AM and 9 FM station presets for each tuner module may be custom labeled with any desired name up to 8 characters. For example, FM Preset Number 3 (92.50MHz) can be renamed 􏰁JAZZ 7􏰂, or 􏰁WXYZ􏰂.
Optional Second Tuner Module
A second fully independent McIntosh TM1 Tuner Module may be added to the MR85 by your dealer. This is ideal for applications where two tuners may be used at the same time, such as Multizone Systems or listening to one station while recording another station. The TM1 is the most economical way to add a second high performance McIntosh Tuner to a system.

FM Tuner Specifications
Useable Sensitivity
14dBF which is 1.4uV across 75 ohms

50dB Quieting Sensitivity
Mono: 19dBF which is 2.4uV across 75ohms
Stereo: 35dBF which is 15uV across 75 ohms

Signal To Noise Ratio
Mono: 75dB
Stereo: 70dB

Frequency Response
Mono: +0,-1dB from 20 to 15,000Hz
Stereo: +0,-1dB from 20 to 15,000Hz

Harmonic Distortion
Mono:
0.3% at 100Hz
0.3% at 1,000Hz
0.3% at 10,000Hz

Stereo:
0.45% at 100Hz
0.45% at 1,000Hz
0.65% at 10,000Hz

Intermodulation Distortion
Mono 0.25%
Stereo 0.45%

Capture Ratio
1.2dB

Alternate Channel Selectivity
75dB

Spurious Response
100dB

Image Response
75dB

RF Intermodulation
65dB

Stereo Separation
45dB at 100Hz
45dB at 1,000Hz
35dB at 10,000Hz

SCA Rejection
65dB

AM Tuner Specifications
Sensitivity
20uV External Antenna Input

Signal To Noise Ratio
48dB at 30% modulation
58dB at 100% modulation

Harmonic Distortion
0.5% maximum at 50% modulation

Frequency Response
50Hz to 6kHz NRSC

Adjacent Channel Selectivity
45dB minimum IHF

Image Rejection
65dB minimum from 540 to 1600kHz

IF Rejection
80dB minimum

Dimensions
17-1/2􏰂 (44.5cm) W, 5-3/8􏰂 (13.7cm) H, 17-1/2􏰂 (44.5cm) D, (including clearance for connectors)

Weight
25.5 pounds (11.6 Kg) net
43 pounds (19.5 Kg) in shipping carton

Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.

Item

Included

Original Box

No

Manual

Online

Remote

No

Cables

Yes - Power

Physical Condition

8

Working Condition

10

SKU: 100525
