McIntosh MPC1500 Power Controller And Conditioner

Sale price£0.00

Click here to schedule an appointment to visit our store or call 201-879-0000.

Please note this item must be purchased in store and we will not ship under any circumstances. Click here for more information about this policy.

Please support your local McIntosh Dealer.

General:

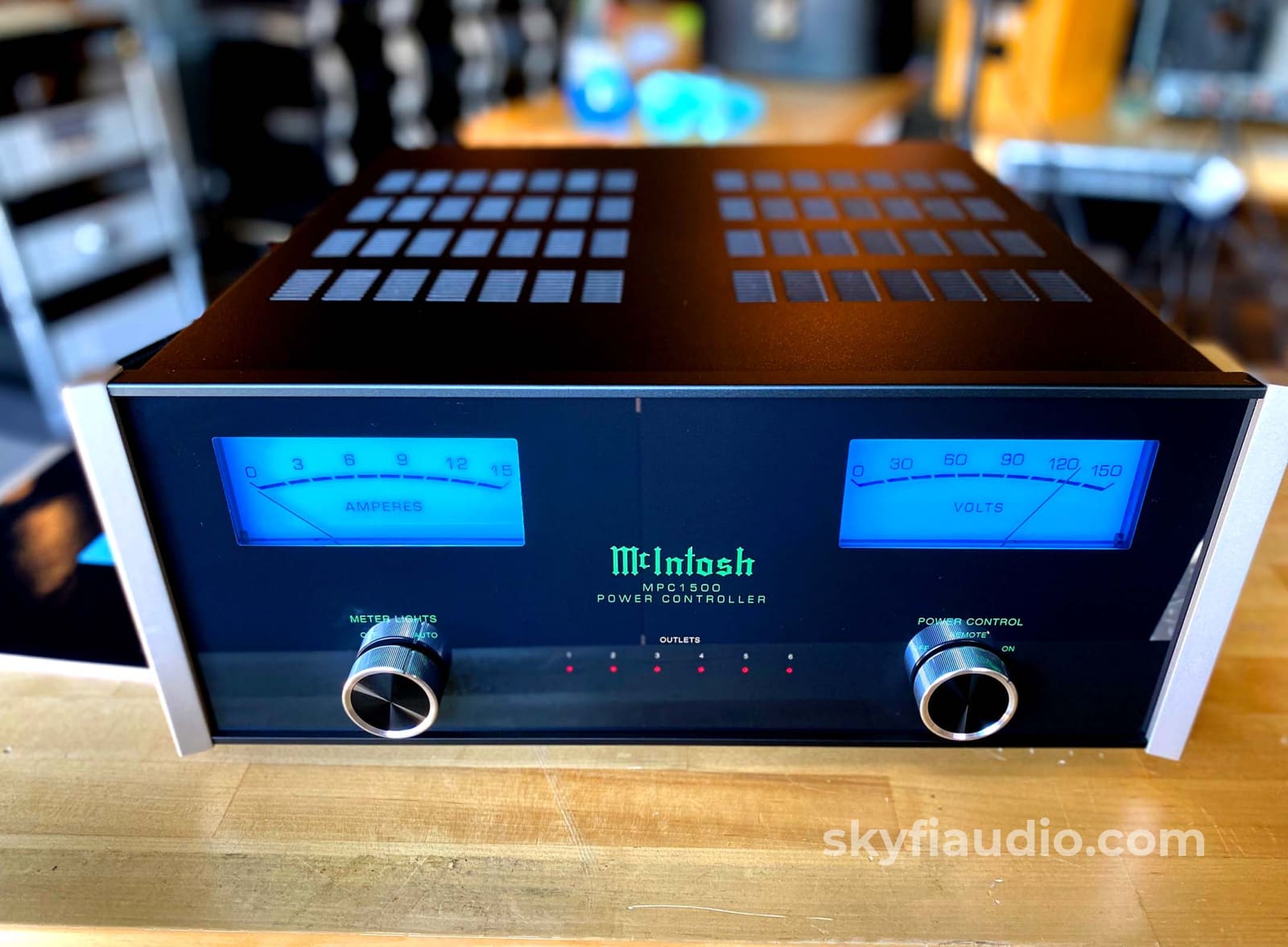

Our favorite feature? The repurposed blue eye VU meters into two displays that show live power voltage and current.

Included with your in store purchase is the MPC1500 plus a single power input cable.

Click below to add our recommended matching cables from Kimber Kable, all brand new as SkyFi is an official Kimber dealer.

Kimber Kable - Power Cords - Better

Kimber Kable - 14AWG (Gauge) Power Cords Best (Sources/Preamp)

Kimber Kable - 10AWG (Gauge) Power Cords Best (Amps)

More from McIntosh:

Performance Features Include:
• Toroidal Isolation Power Transformer
The very large Toroidal Isolation Power Transformer used in the MPC1500 occupies over three quarters of the internal space in the chassis. It ensures stable noise free operation for the audio/video components connected to the MPC1500. It also isolates them from potential interference produced from common house- hold appliances that utilize motors, compressors and electronic control devices.

• Stable Voltage
The MPC1500’s Large Isolation Power Transformer minimizes variations in the voltage available to the connected components as they draw more current, up to the Amp rating on the Rear Panel.

• Lono Technology
The LONO (TM) (Low Noise) Transformer Technology from Plitron used in the MPC1500, eliminates audible noise emanating from the Transformer and thus will not distract from musical enjoyment, even with varying AC Line conditions.

• Superior Line Surge Protection
The McIntosh MPC1500 utilizes the finest, most sophisticated surge suppression technology available. Unlike most of the AC Line Surge protection devices available, the MPC1500 doesn’t rely on commonly used inexpensive MOV devices. The MOV’s can fail after just one surge thus no longer providing protection and they can allow as much as 3 times the line voltage through to the connected components allowing substantial damage to occur. The MPC1500 incorporates Torus (TM) Surge Suppression Circuitry, which activates around 2V above peak nominal voltage providing constant long term protection.

• Illuminated Voltage and Current Meters
The Illuminated Voltage and Current Meters indicate at all times the voltage available to your McIntosh Components and the actual current consumed by them.

• Power Control
The Power Control Input connection provides convenient Turn-On/Off of the McIntosh MPC1500 with your McIntosh System.

The McIntosh MPC1500 Power Controller

Today’s AC power lines are littered with the byproduct from countless noise inducing devices. The MPC1500 Power Controller can shield your home audio components from this noise as well as protect it from power surges. With the MPC1500, you can provide clean, consistent power to your home audio system, enabling it to deliver its best possible sonic performance.

At the heart of the MPC1500 is a large but quiet toroidal isolation transformer that has been specially wound to act as a low pass filter to remove unwanted noise from the AC line. The MPC1500 also employs a quick-acting surge suppression module that activates when the voltage reaches approximately 2V above nominal operating levels. This excess voltage is slowly and harmlessly released to the circuit’s neutral wire rather than the ground wire, where it could still find its way to your audio components and cause damage. Unlike surge protection devices that use other suppression methods or “power conditioners,” the MPC1500’s suppression module is not sacrificial and will not need replacing after a surge event.

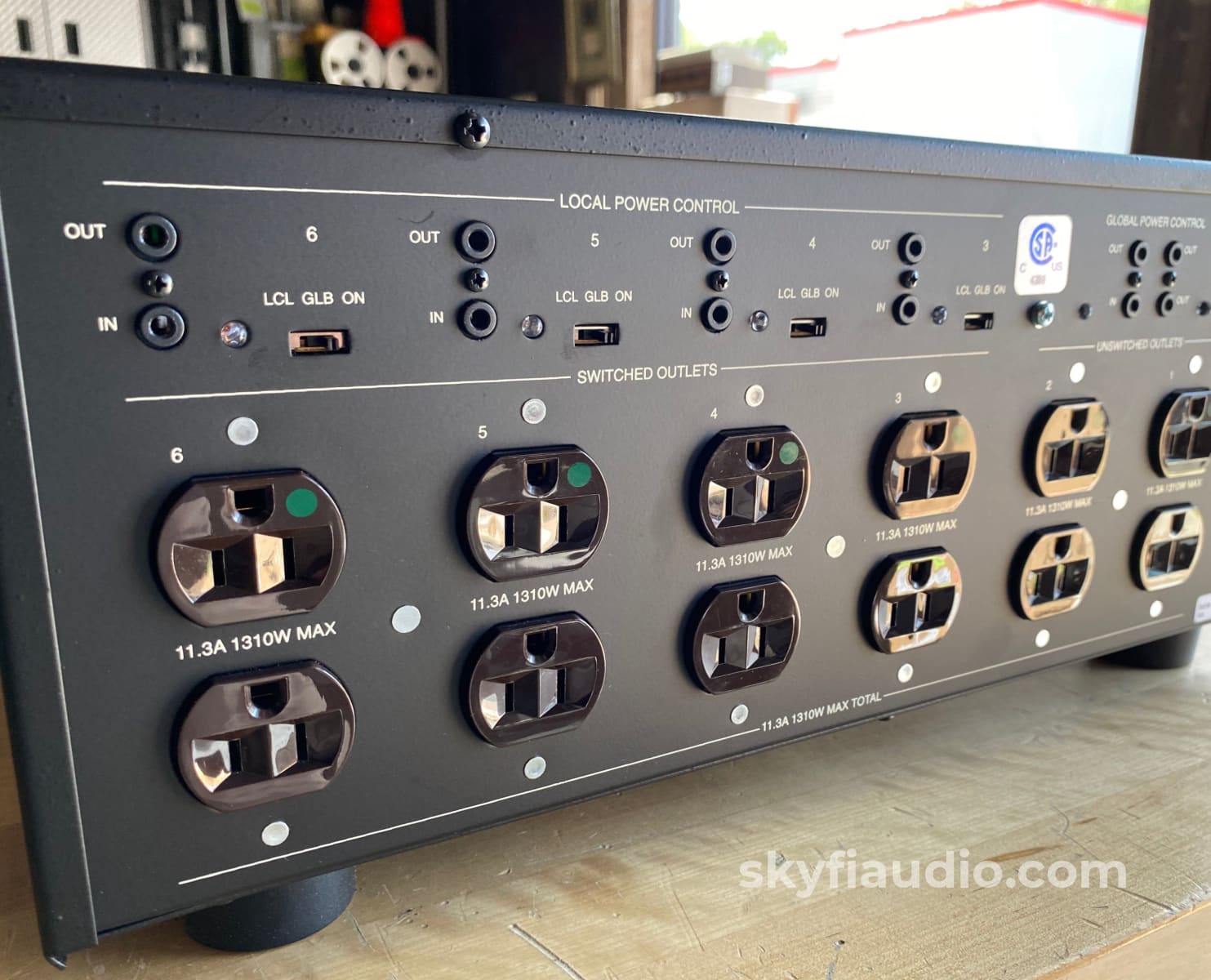

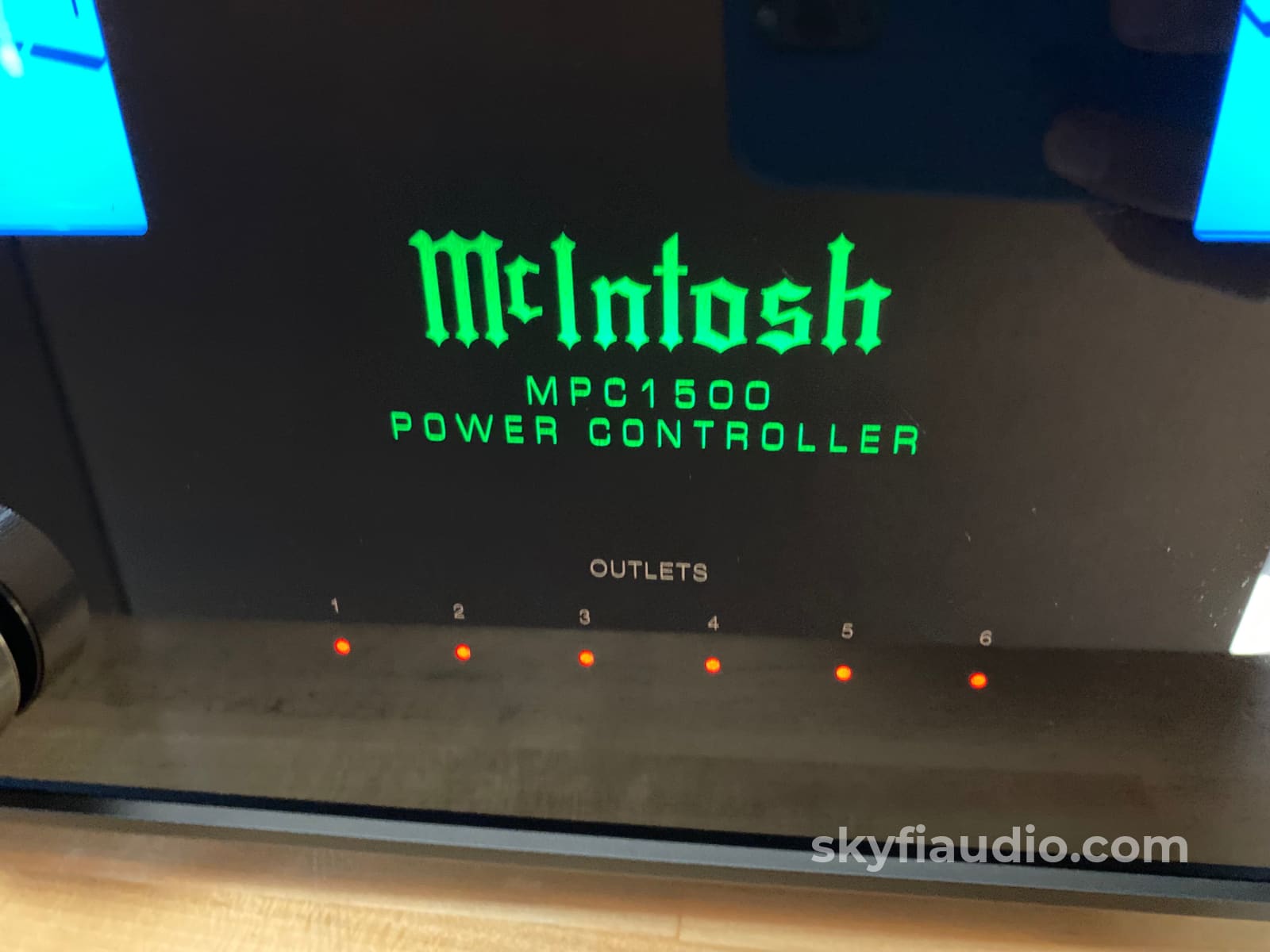

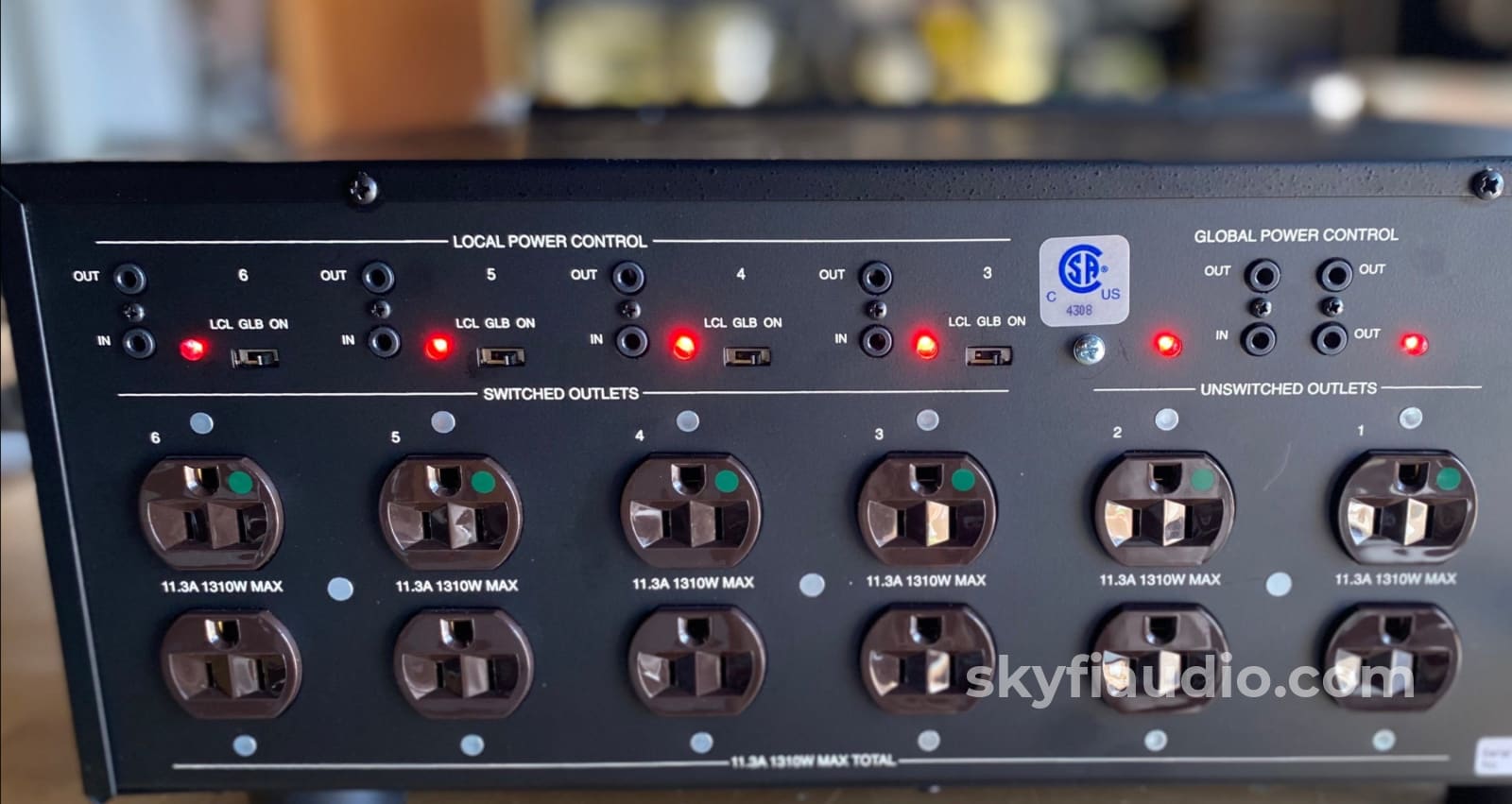

The MPC1500 comes with either 6 medical grade Type B1 (a.k.a. NEMA 5-15R) duplex receptacles, or 6 high quality Type F1 (a.k.a. CEE 7/3 or “Schuko”) single receptacles. Only the appropriate version is available in each individual country to ensure compatibility with local power systems. Two of the receptacles are always active when the MPC1500 is plugged in. Control of the other 4 receptacles can be configured to your preferences via the rear panel Power Control switches. LED indicators on both the front and back show the current in-use state of each receptacle.

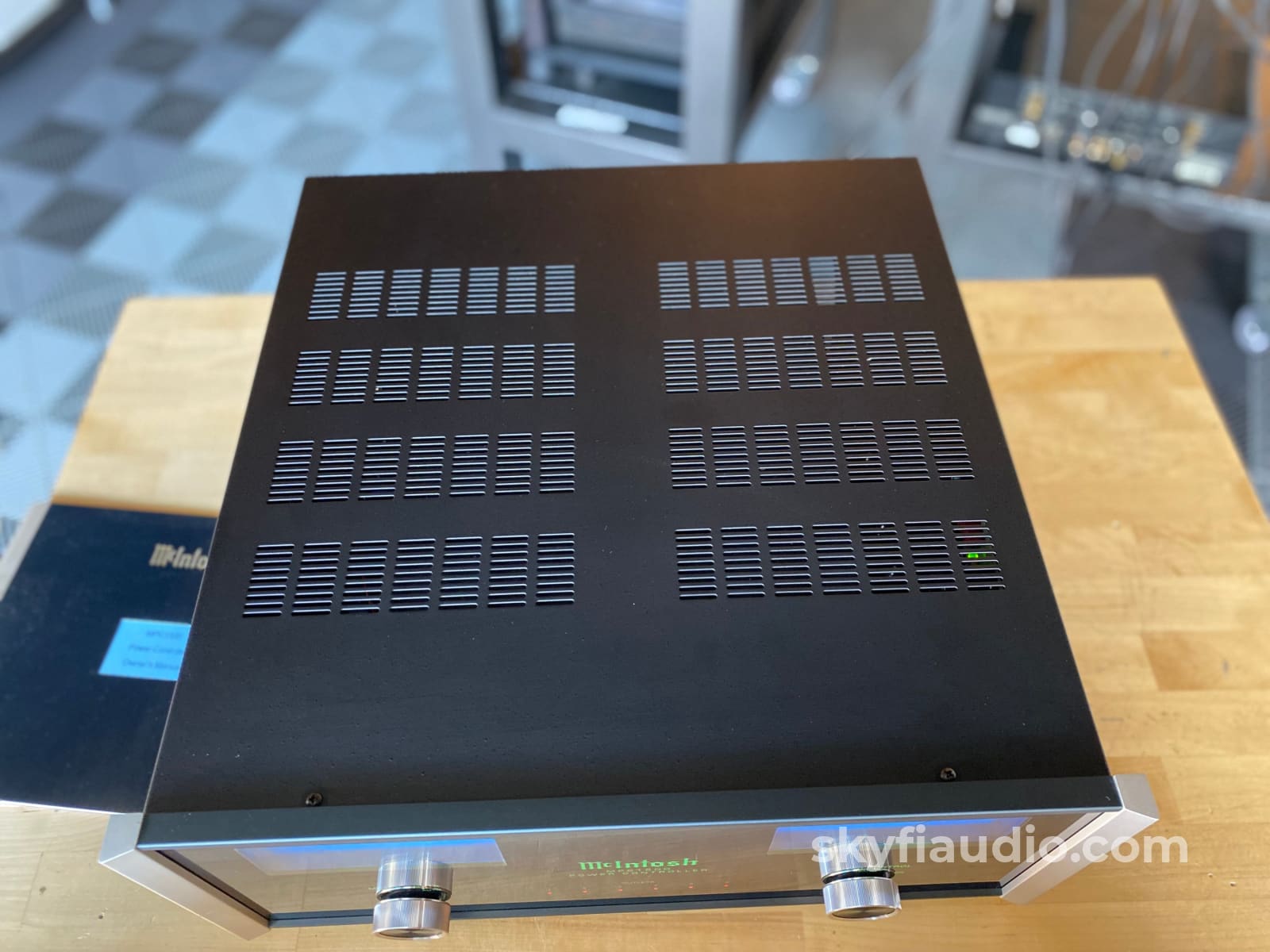

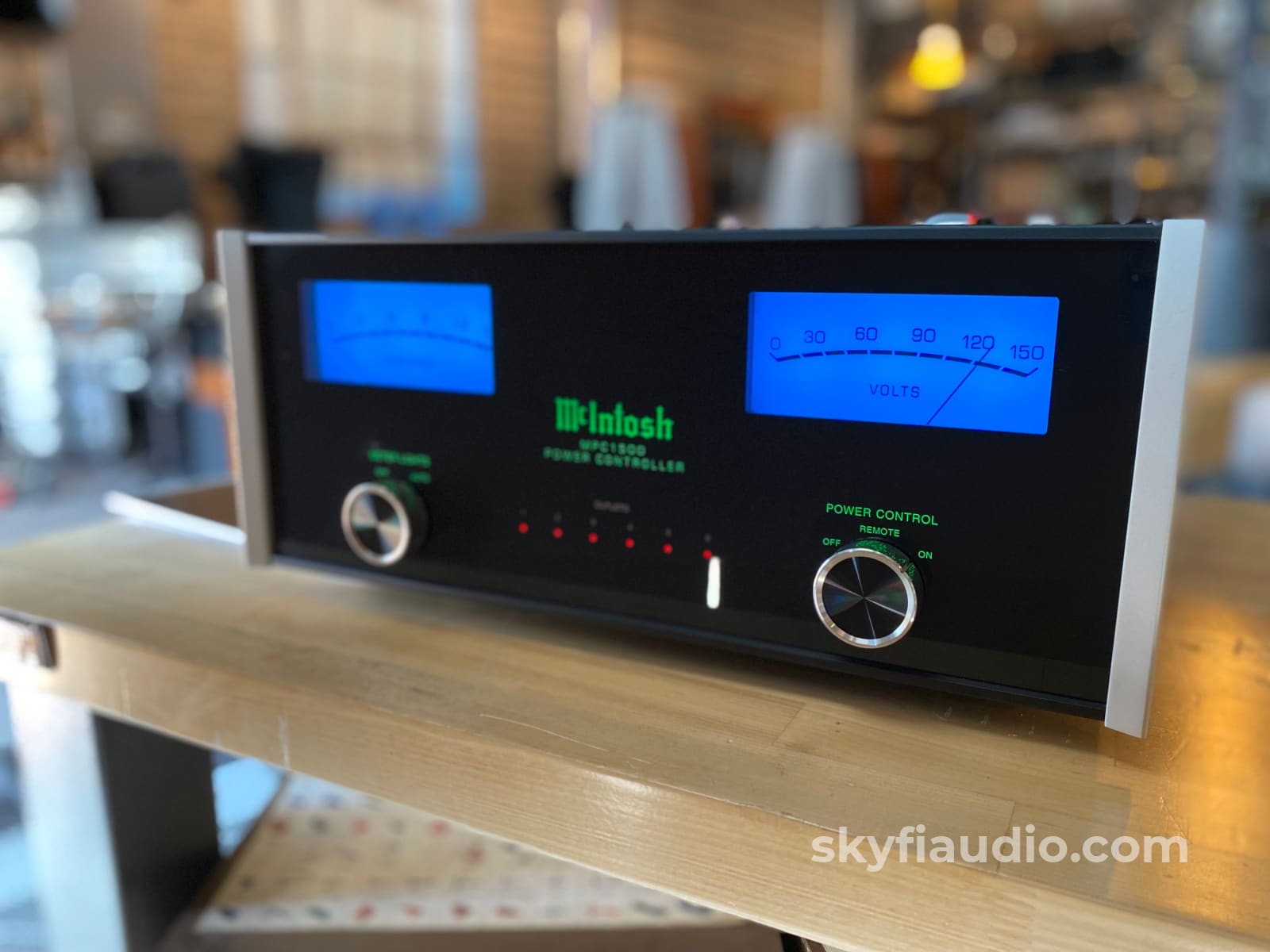

Our blue Watt meters have been repurposed to show the real time incoming voltage and the actual current draw of the connected devices. The meters will be scaled to the correct amperage and voltage based on the local country (e.g. the voltage meter will be scaled to 250 for countries that use the Type F receptacle). Regardless if the unit has Type B or Type F receptacles, all versions of the MPC1500 feature the timeless McIntosh black glass front panel with blue meters, an illuminated logo, control knobs, and aluminum end caps.

Specifications
AC Power Line Protection:
Specially wound toroidal isolation transformer

Surge Suppression Type:
Quick-acting surge suppression module

Number of Receptacles:
6 medical grade duplex receptacles With Type F receptacles:

Always ON Receptacles:
2

Programmable Receptacles:
4

Overall Dimensions (W x H x D):
17-1/2” (44.45cm) W
7-5/8” (19.37cm) H
22” (55.88cm) D

Weight:
87 lbs (39.46kg) net
105 lbs (47.63kg) in McIntosh shipping carton

Item

Included

Original Box

Not Included

Manual

Online Only

Remote

Not Applicable

Cables

Yes - One Power Input Cord

Physical Condition

7 / 10

Working Condition

10 / 10
