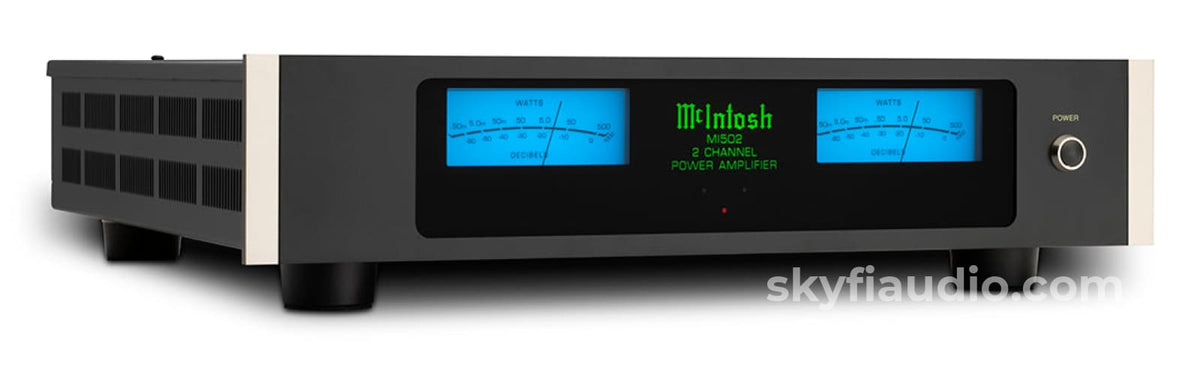

McIntosh MI502 Digital Amplifier - NEW
Click here to schedule an appointment to visit our store.
Please note this item must be purchased in store and we will not ship under any circumstances. Click here for more information about this policy.
Please support your local McIntosh Dealer.
Standout Features:
• Versatile audio amplifier for custom install applications
• 500 Watts into 8 Ohms
• 800 Watts into 4 Ohms
• 2U rack mountable
• Signal sensing
• Power Guard® and Sentry Monitor™
General:
The MI502 2-Channel Digital Amplifier is a flexible component and welcome addition to a custom installed home audio or home theater system. It delivers world renowned McIntosh sound quality at a rate of 500 Watts into 8 Ohm speakers or 800 Watts into 4 Ohm speakers. It uses highly high-tech closed loop digital switching amplifiers and resilient power supplies that produce performance levels seldom heard in custom install audio.

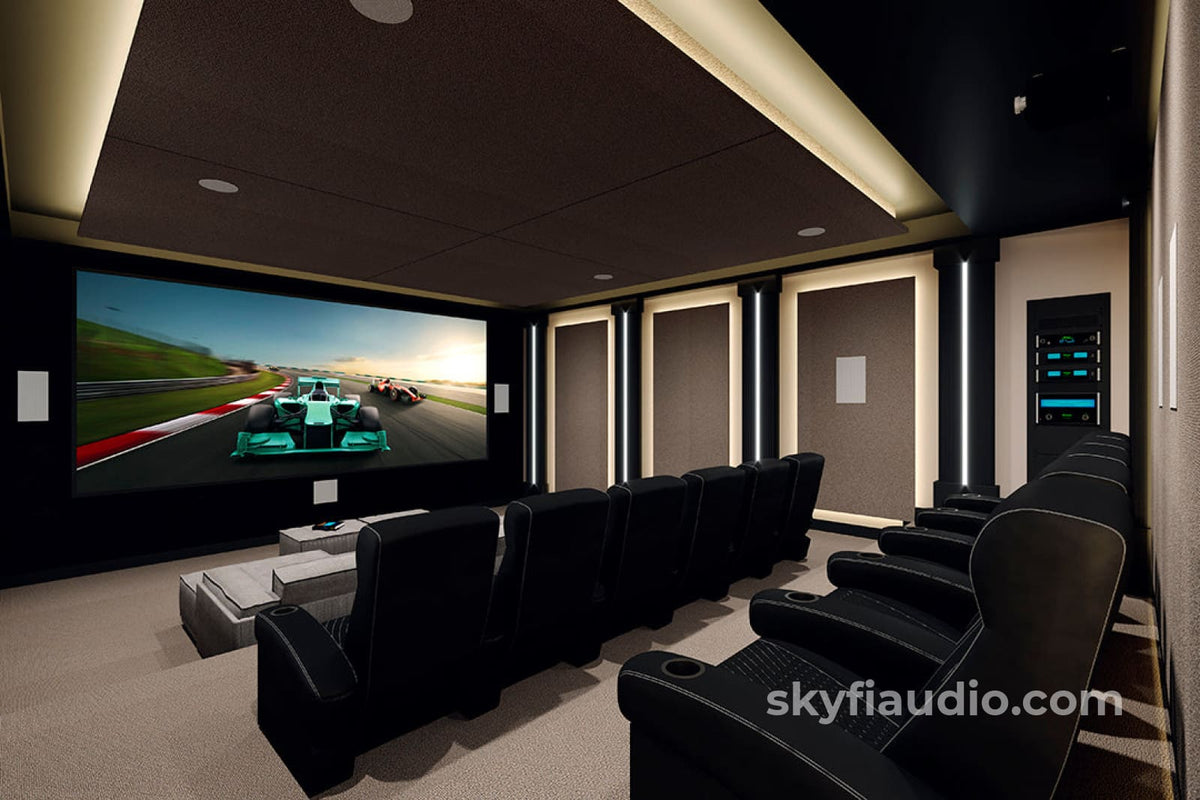

The applications are nearly limitless for how to use the versatile MI502 in your home entertainment system. It can be used to power the front left and right speakers in a home theater; to drive two in-wall subwoofers; a pair of MI502s could drive the three front channels of your in-home cinema plus one subwoofer; or to power a pair of outdoor speakers for when the party makes it way outside. Additionally, a stack of multiple MI502s could be used to power the distributed audio speakers installed throughout your home.

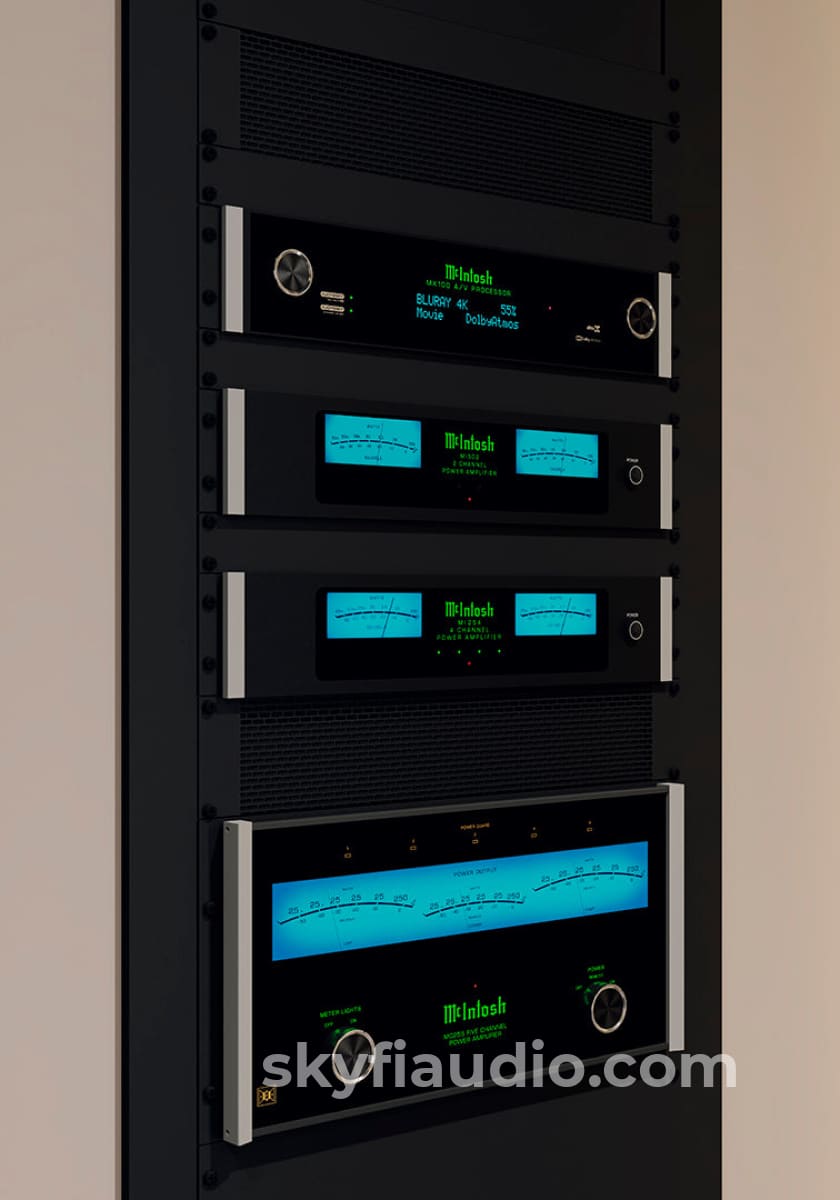

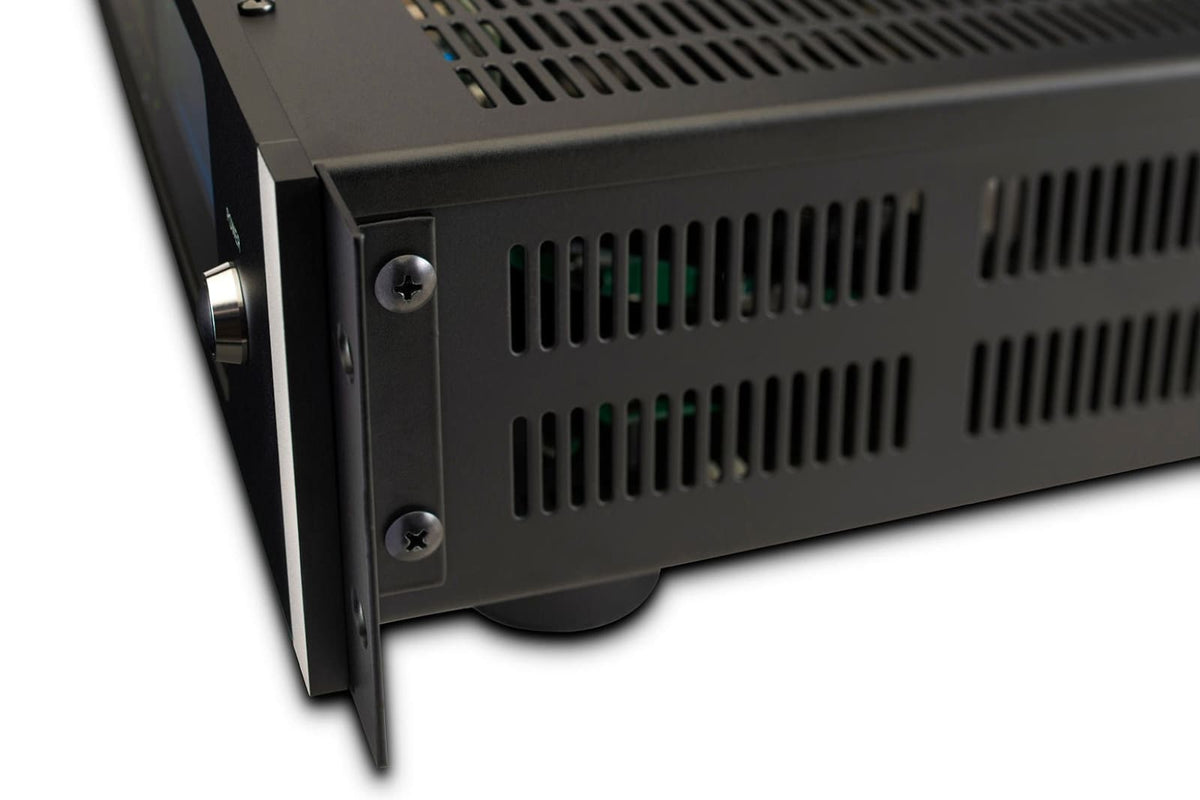

The MI502 is rack mountable and has a mounting height of 2U making it easy to install in an equipment rack via the included mounting brackets (the mounting brackets are removable for non-rack installations). As a highly efficient Class D amplifier, it does not require noisy cooling fans to maintain nominal operating temperature so the only thing you'll hear coming from it is amazing sounding audio that will impress yourself and your guests.

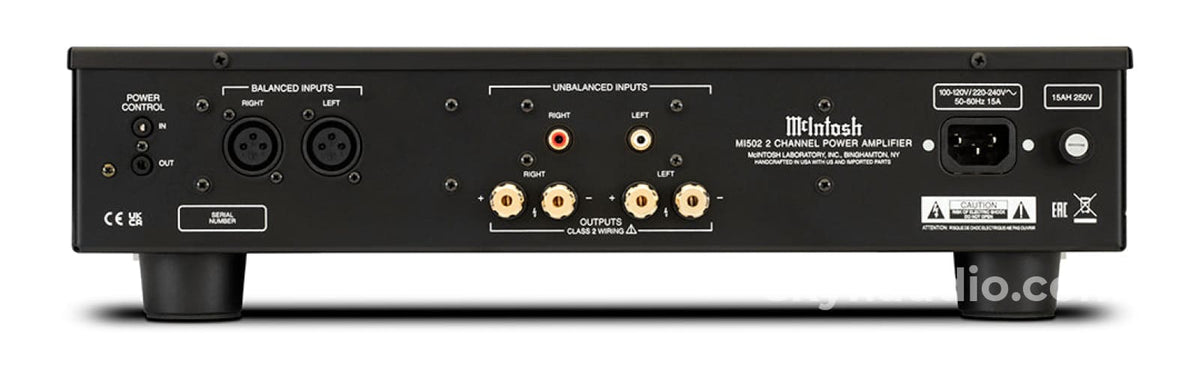

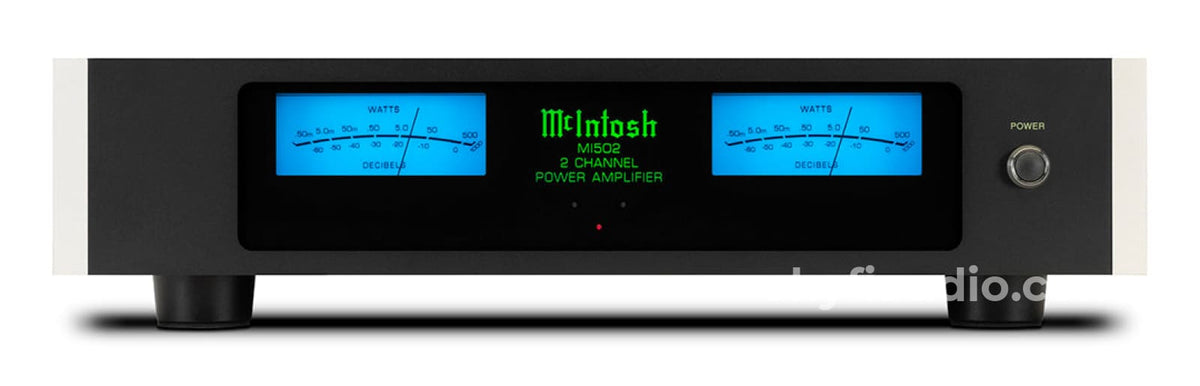

On the front panel are two blue McIntosh Watt Meters that display the power output of each channel, while multi-color LED indicators display the status of each channel. The back panel includes a pair of balanced and unbalanced inputs to connect the MI502 to your preamplifier. A pair of our standard 5-way speaker binding posts are included to connect your speakers.
Other features that come with the MI502 are:
• Power Guard® signal overload technology that prevents overdriving the speakers
• Sentry Monitor™ short-circuit protection circuit that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal
• Power Control 12 Volt triggering capabilities
• Eco-friendly on/off signal sensing that turns the unit off if no input signal has been detected for a set amount of time or automatically turns the amp on when it senses a signal

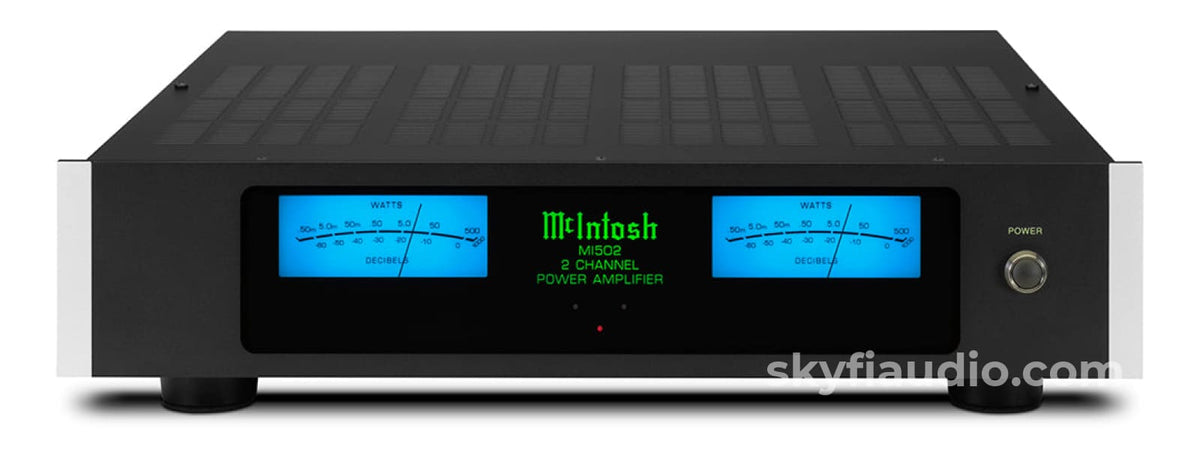

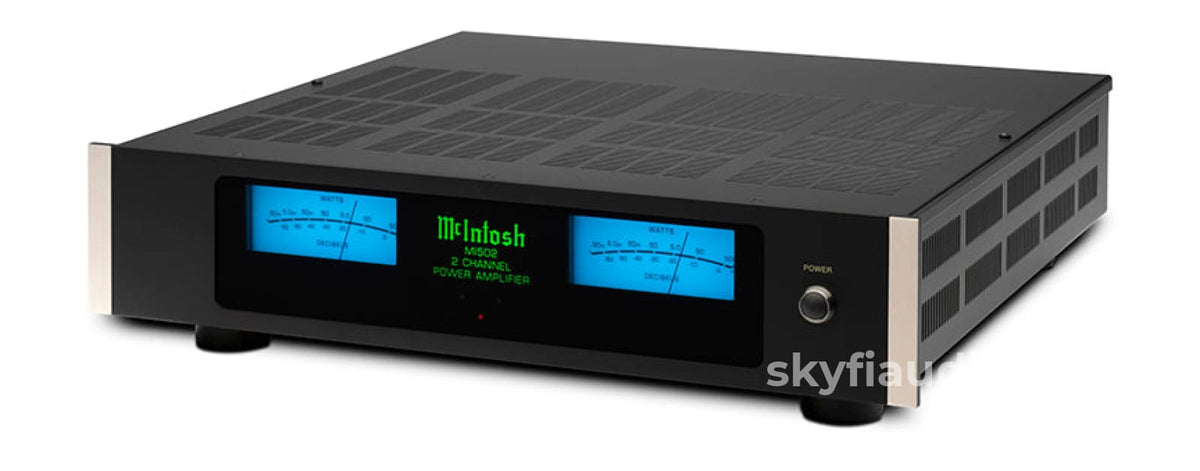

The MI502 includes many McIntosh design cues including a black glass front panel, our coveted blue Watt meters, an illuminated McIntosh logo, and a familiar form factor highlighted by silver trim.
Brand Background:
Founded in 1949, McIntosh is known for offering distinguished home audio systems that deliver the ultimate experience in music and film. Offering products for two-channel stereo sound systems and multi-channel home theaters with surround sound, McIntosh continues to define the ultimate home audio entertainment experience for discriminating listeners around the world. Our iconic blue Watt output meter is globally recognized as a symbol of quality home audio. With a McIntosh home stereo system or home theater, listeners have the ability to create their own luxury audio experience – and truly live their music.
McIntosh products are designed and handcrafted at our Binghamton, NY factory by our dedicated employees who share a passion for music and the McIntosh heritage. Since our inception, McIntosh has been powering some of the most important moments in music history and pop culture. From President Lyndon Johnson’s inauguration speech to Woodstock to the famous Grateful Dead “Wall of Sound,” McIntosh has not only witnessed history, we have shaped it.
Included:
MI502, Owner's Manual, Power Cord, Two (2) Side Rack Mounted Brackets and Screw Fasteners.
Packing:
Factory Sealed McIntosh Carton
Dimensions:
17-1/2" (44.45cm) (19" (48.3cm with mounting ears)) x 4-5/16" (11cm) (including feet) x 21" (53.3cm) (including front panel and cables)
Weight:
21.5 lbs (9.8 kg)
Reviews:
Click Here
Link to Manual:
Click Here
Recommended Cables:
McIntosh Balanced Audio Cables (XLR)
Kimber Kable - Ascent 10 Gauge Power Cord - Better
Kimber Kable - Palladian 10 Gauge Power Cord - Best
Specs:
ELECTRONIC SPECIFICATIONS
Power Output per Channel
500 Watts into 8 Ohms
800 Watts into 4 Ohms
Number of Channels
2
Total Harmonic Distortion
0.05%
S/N below rated output
98dB
Dynamic Headroom
8 Ohms: 2.7dB
4 Ohms: 3.7dB
Damping Factor
8 Ohms: >85
4 Ohms: >45
Rated Power Band
20Hz to 20kHz
Frequency Response
+0, -0.9dB from 20Hz to 20,000Hz
GENERAL SPECIFICATIONS
Circuit Configuration
Closed loop digital switching
Circuit Design
Digital
Mono Bridge
N/A
Mono Parallel
N/A
Output Type
Direct Coupled
Meters
Yes
Meter Light Switch
No
Balanced Input
1
Front Panel
Glass with removable rack mounting ears
Illumination
Direct LED
Chassis Style
Black painted steel
