B&W (Bowers & Wilkins) 802 Series 80 Vintage Speakers - Working Perfectly

Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

Survivor pair of legendary 802 speakers in series 80 version which many prefer because of the sealed cabinets.

In a gorgeous teak finish which has a great patina and vintage look. Classic kevlar midrange look.

Includes a complete set of brown grills which are presentable but not perfect. We prefer the look and sound of these without the grills anyway.

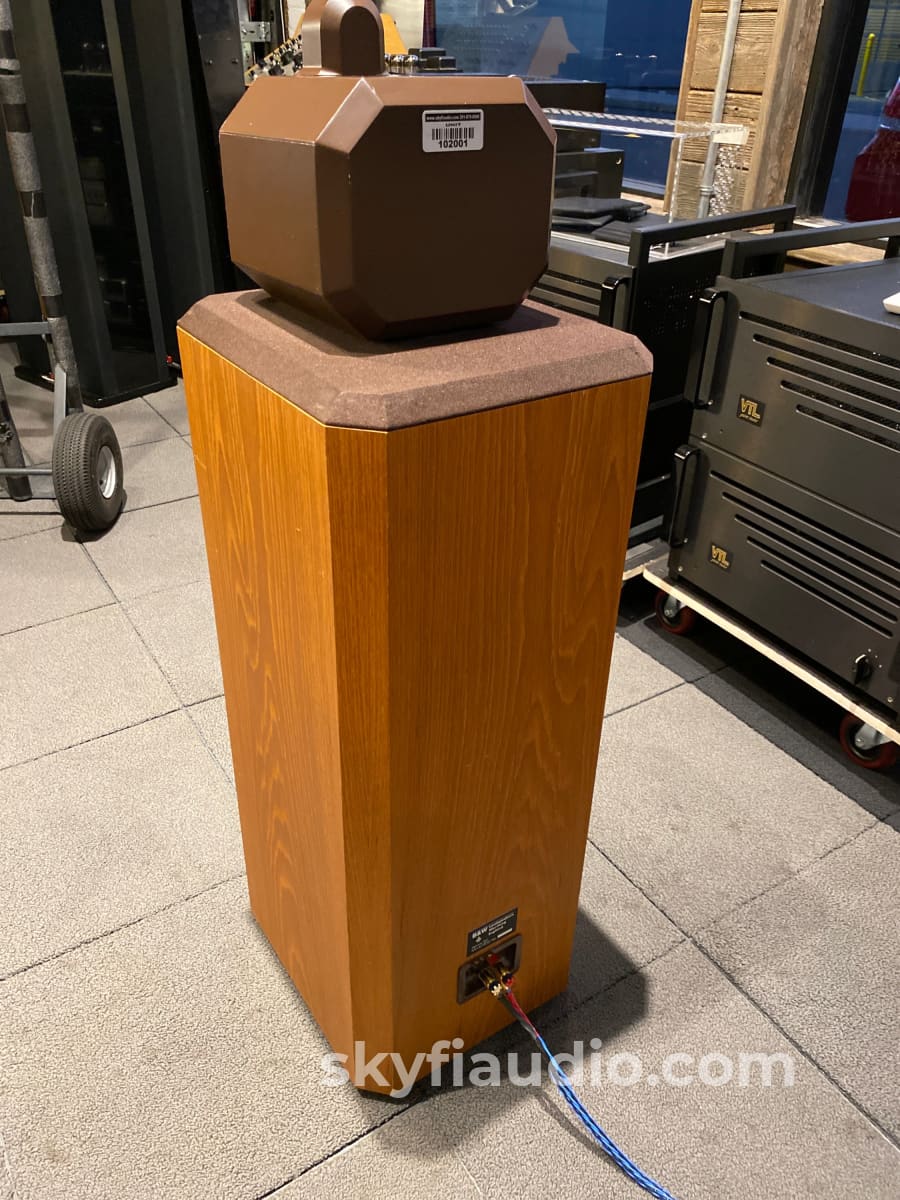

Working 100% as they should. Tested in our lab and listening room as you see pictured with a modest tube amplifier.

Please note these speakers are listed as Local Pickup Only.

Specifications

Frequency Response:
55Hz to 20 kHz +- 2dB

Low Frequency System:
Closed box acoustic suspension with system resonance of 49Hz

Dispersion:
Vertical:
± 1dB over 10 degrees of center window
Horizontal:
+0, -3dB over 60 degrees of center window, 20Hz to 13kHz

Drive Units:
Vertical in-line configuration corrected for minimum inter-unit time delay
Computer matched in pairs ensuring accuracy typically better than 0.25dB

Bass Drivers (2):
Diaphragm:
6.5” Thermos plastic cone with PVA compound coating
Ultra long throw suspension

Voice Coil:
38mm D high temperature Nomex

Magnet System:
2.25kg, ceramic

Midrange Driver:
Diaphragm:
4” D aromatic polyamide fiber matrix cone, critically formed and PVA impregnated following a laser interferometry computer-linked pattern

Voice Coil:
25mm phenolic bonded and aluminum lined

Magnet System:
Ceramic

High-Frequency Driver:
Diaphragm: 1” multi filament polyester weave dome, mechanically dampened

Voice Coil:
1” high temperatures epoxy impregnated

Magnet System:
High energy nickel cobalt, center pole

Impedance:
8 ohms nominal throughout entire operating range

Sensitivity:
1W into 8 ohm load for a spl of 85dB at 1m, sinewave input at 300Hz

Power Limit:
Minimum 80W into 8 ohms
No upper limit because of overload protection device

Dimensions:
Height 41" x Width 11 ¾” x Depth 14 ½”

Weight:
72 lbs

Power Limit:
Minimum 100W into 8 ohms - a peak of 500
No upper limit because of overload protection device

Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.
