There seems to be a massive shortage of tube integrated amps in the market so we were thrilled to take this piece in.

Not only is it a tube integrated, but it's made by one of our favorite companies right here in the USA, Audio Research.

Their current offering will set you back the price of a modest new car. But this VSi60 from not all that long ago has most of the performance capabilities at a reasonable price.

Best of all it arrived in pristine condition and includes the original manual and remote control. All of the tubes measured strong, controls are noise-free, and cosmetics are nearly perfect.

Audio Research VSi60 Integrated Tube Amplifier - Owner's Manual

Click below to add our recommended matching cables from Kimber Kable, all brand new as SkyFi is an official Kimber dealer.

Kimber Kable - RCA Interconnects

Kimber Kable - Speaker Cables

Kimber Kable - Power Cords

More from Audio Research:

The VSi60 clearly proves that you do not have to spend a fortune to enjoy truly great sound at home. Built by hand in Plymouth, Minnesota, to the same exacting standards as our renowned Reference series, the VSi60 offers remarkable sound quality and value.

Its rated output of 50 watts per channel does not convey the VSi60's ability to drive power-hungry, low-impedance loudspeakers. We designed the VSi60 with the finest full-range speakers, not compact monitors. Dynamics are lifelike with a sense of ease normally associated with larger amplifiers. Yes, its resolving power is surprising, allowing you to hear details that were previously hidden in your recordings, but that resolution is in service of the music — grainless, tonally accurate and refined.

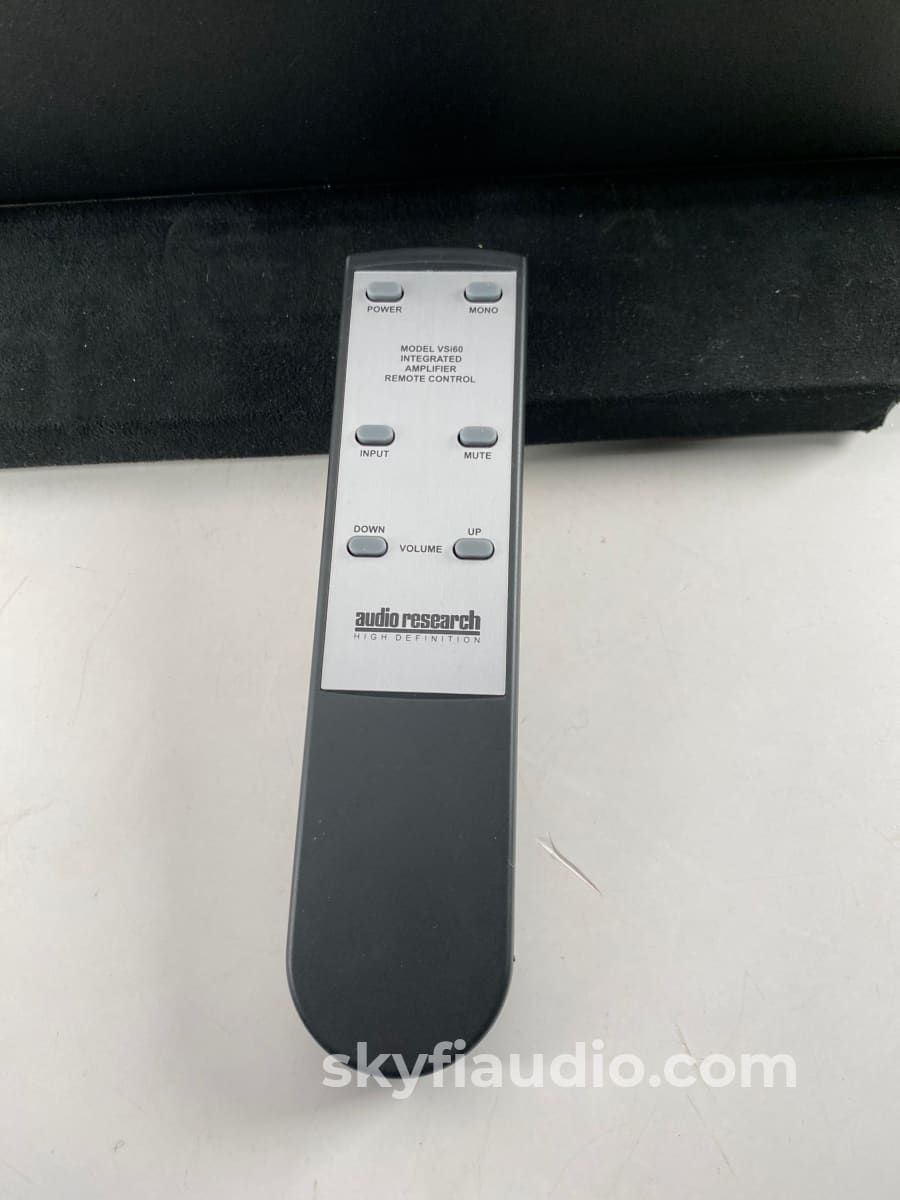

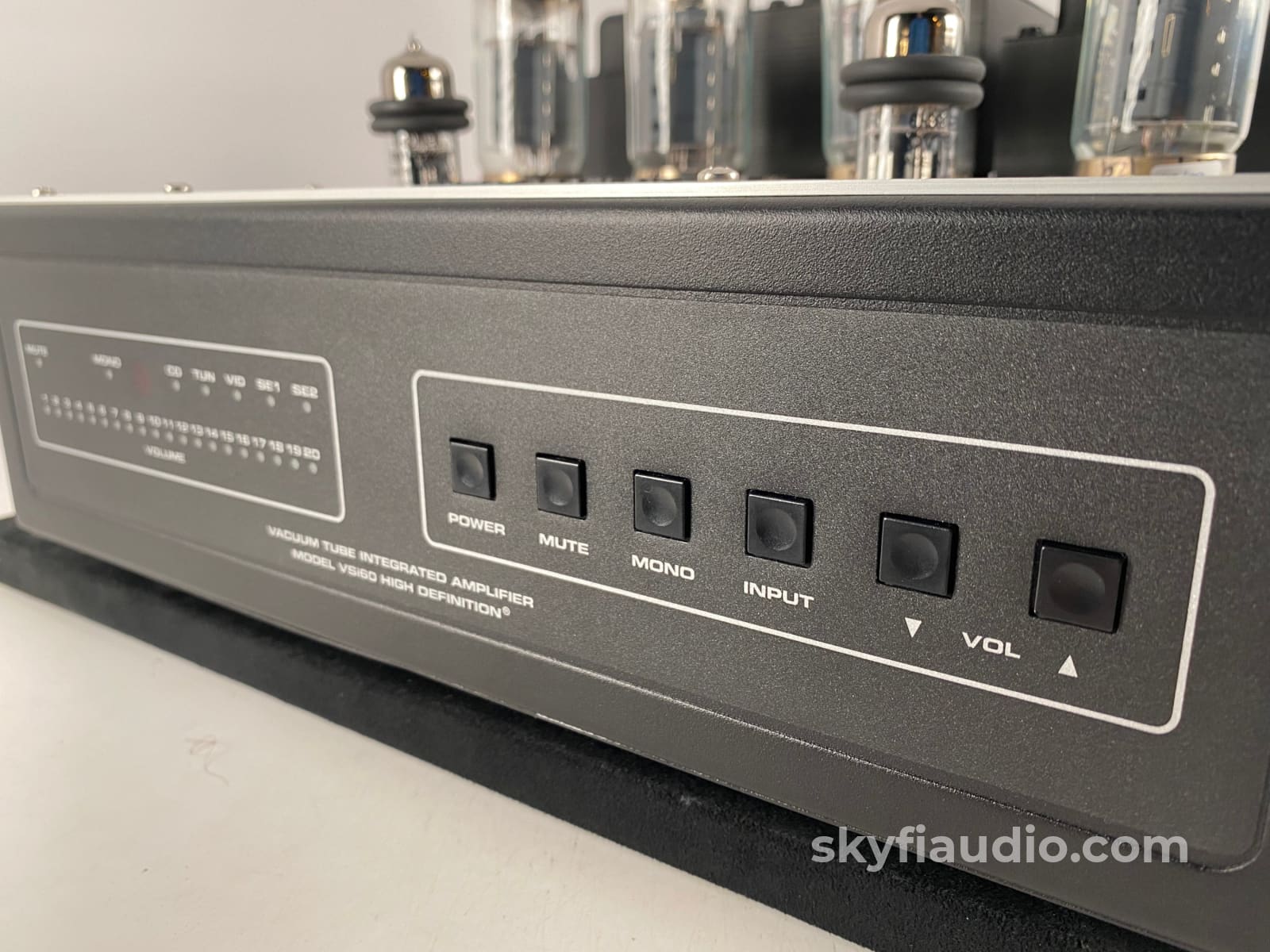

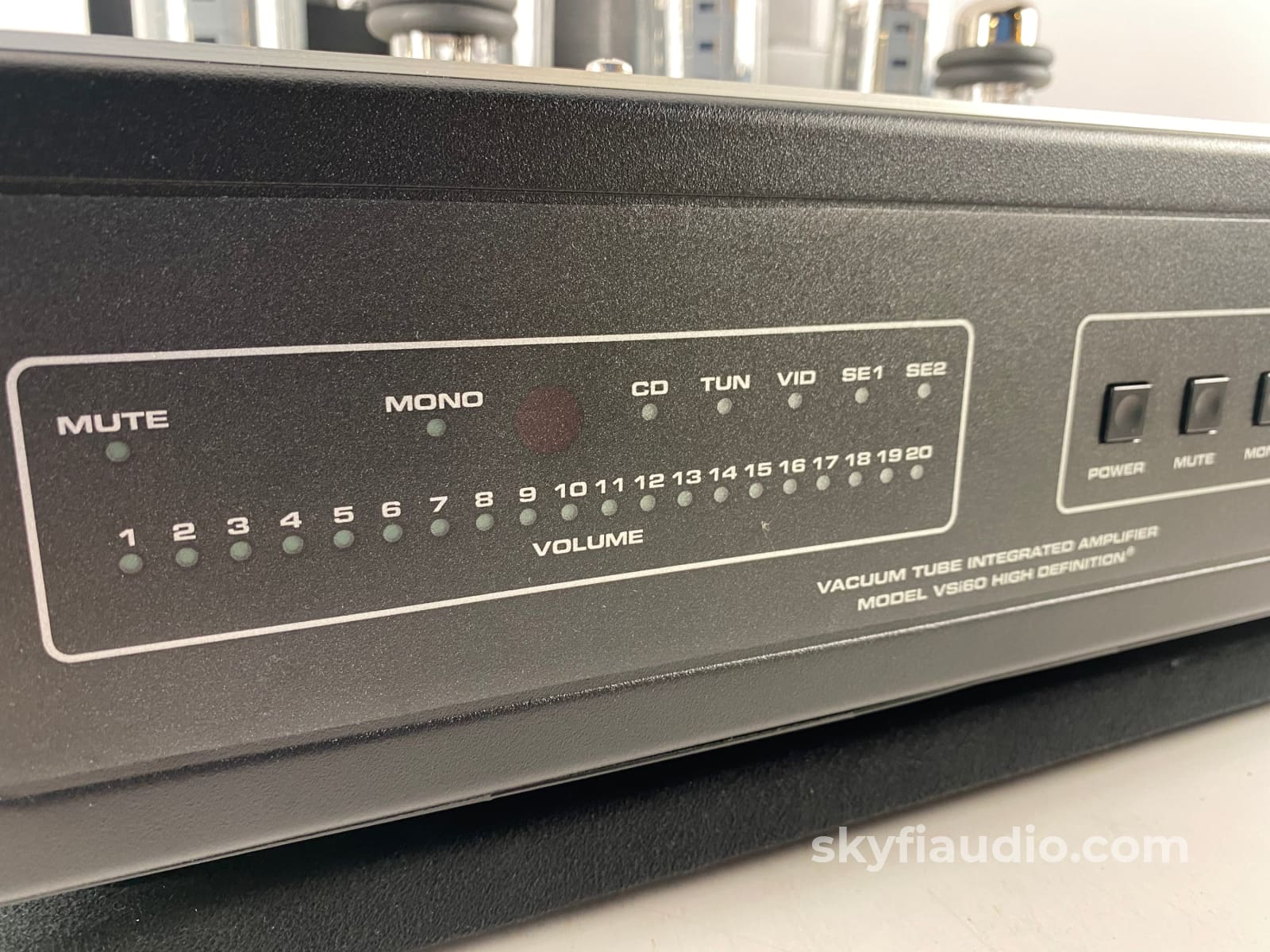

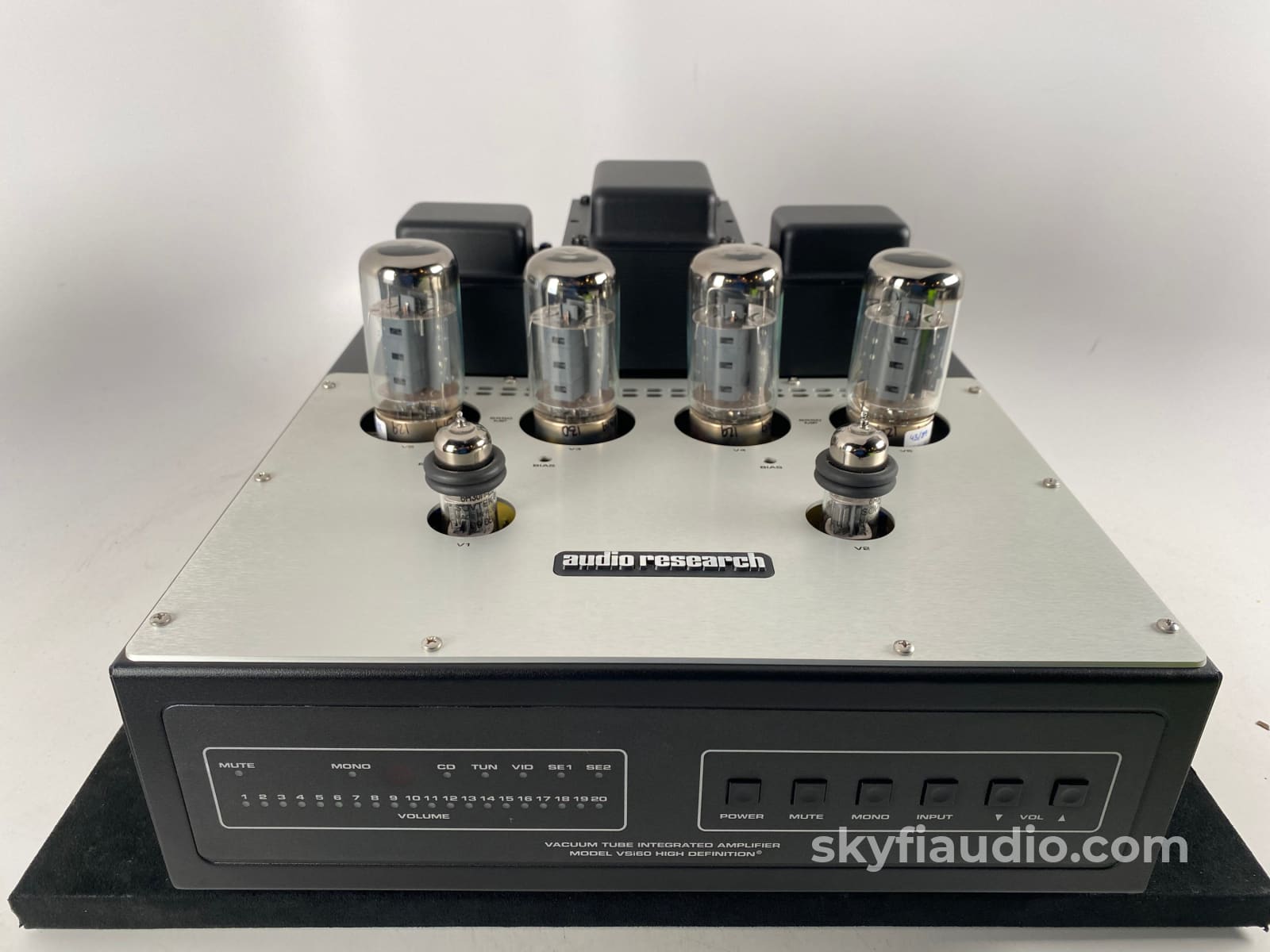

Physically, the VSi60 is 14" W x 8" H x 16" D, with a milled, anodized natural top plate with an inset Audio Research logo. On the front there are function and volume LEDs on the left, and soft touch buttons on the right mimicking the layout of our SP17 preamp. The display is available with either a black or a silver finish. The supplied remote controls all functions including power, muting, stereo/mono, input select, and volume up/down.

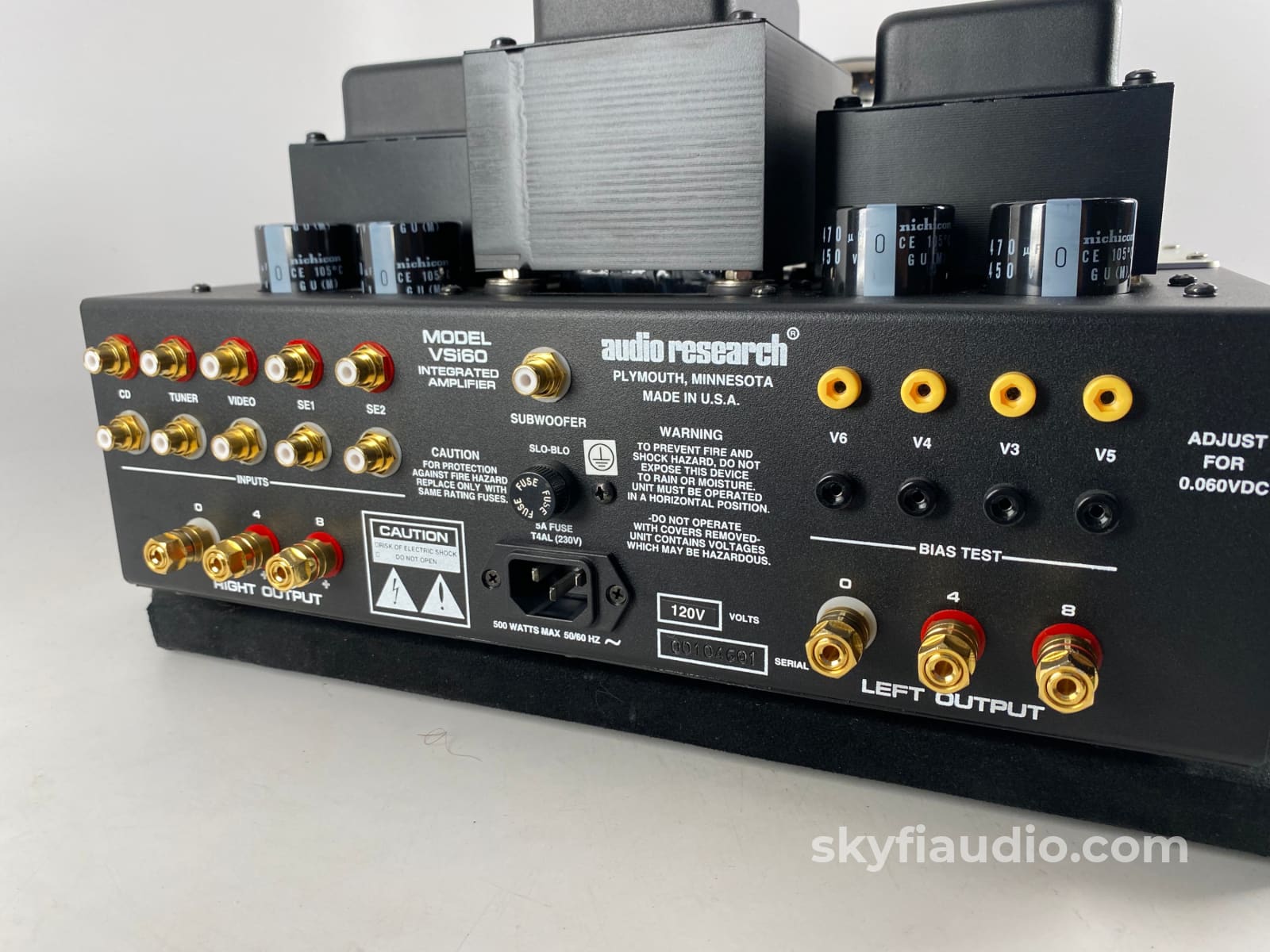

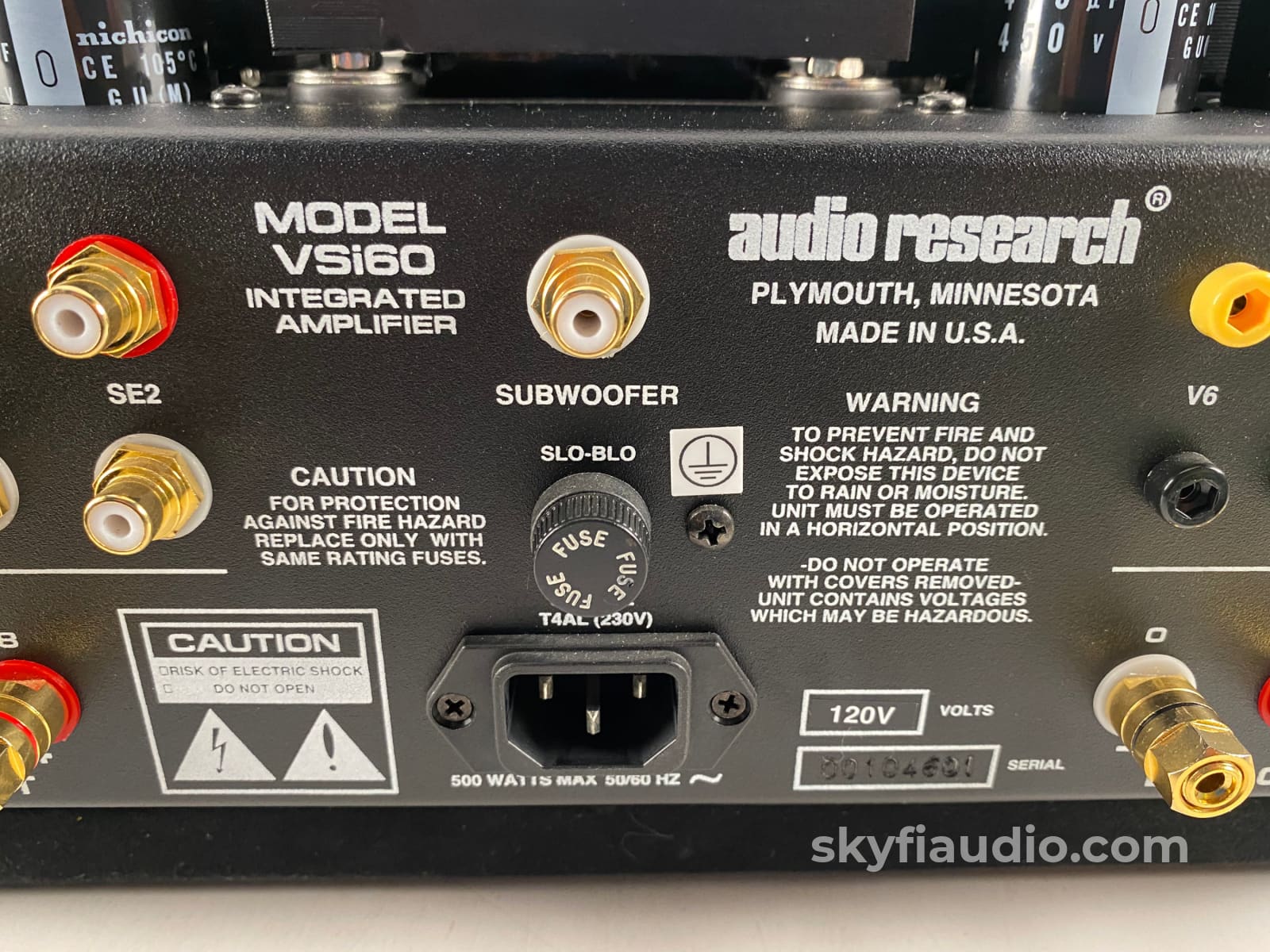

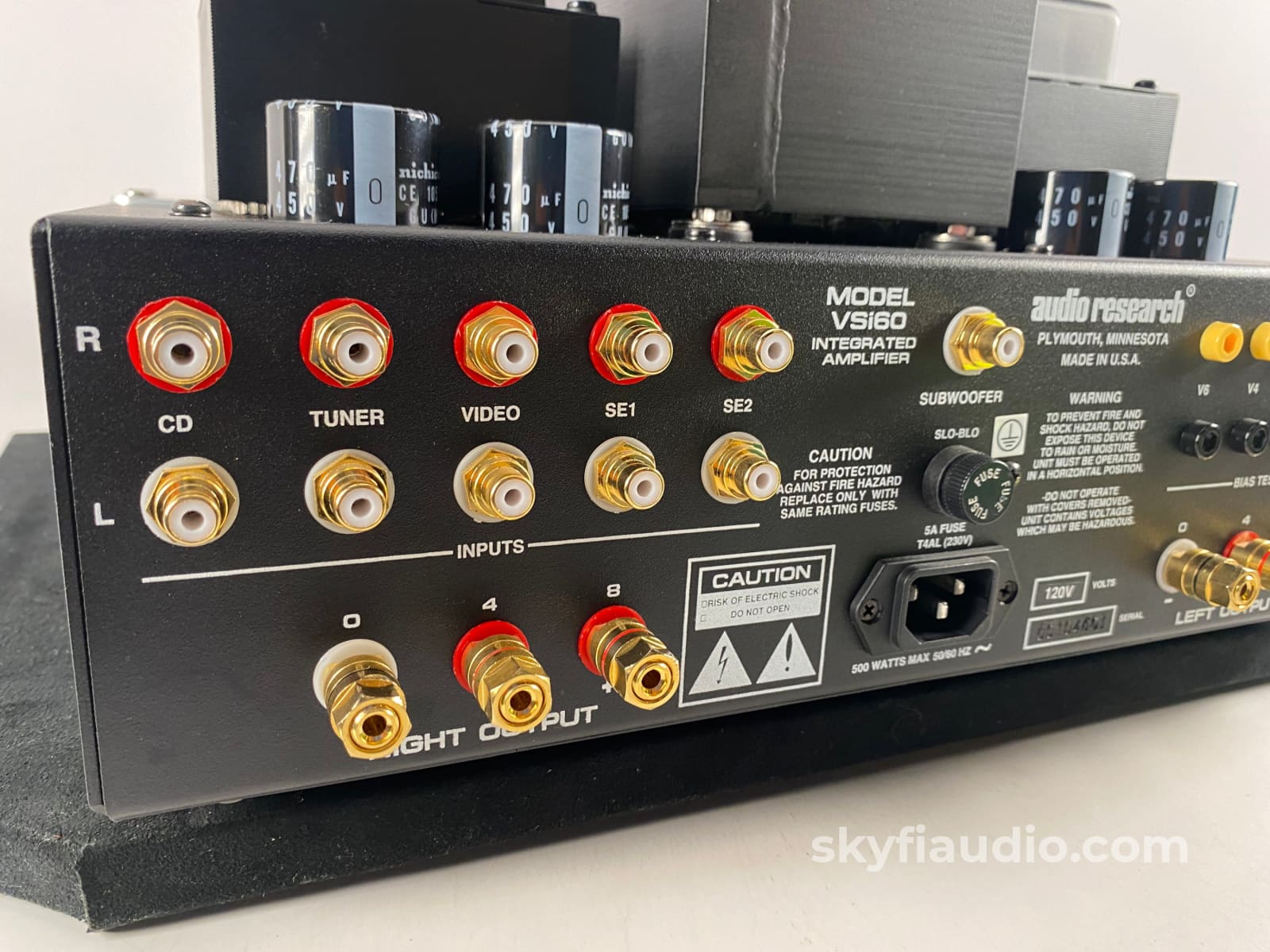

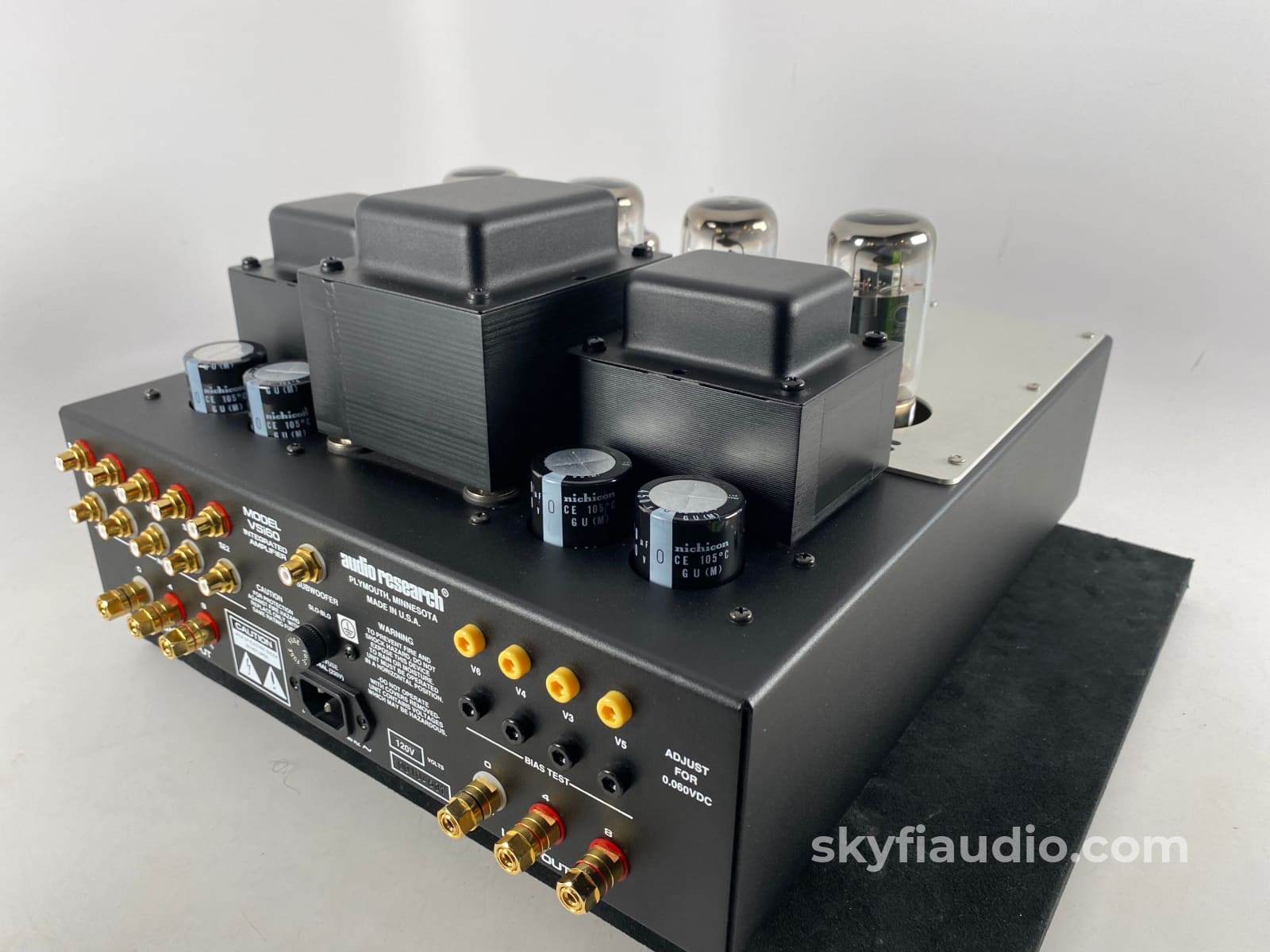

The rear of the chassis has five pairs of single-ended inputs labeled CD, Tuner, Video, SE1 and SE2; a (full-range) mono subwoofer output; voltmeter test points for setting bias; 0-4-8 ohm, gold plated brass five-way binding posts, and a very high quality detachable line cord. An optional perforated cage-type top cover, specific to the VS60/VSi60, is available at extra cost.

The control section of the VSi60 is passive, utilizing microprocessor-controlled relays. The high performance input relay paths are especially short, the same as those in Reference preamplifiers. The microprocessor control remembers the last input selected and the stereo/mono setting when the unit is powered down. Upon turn-on there is an automatic 30-second warm-up mute, with the volume control reset to zero to avoid possible unwanted surprises. The active circuitry is essentially that of the VS60, but with more gain for greater sensitivity. The preamplifier and amplifier sections cannot be separated.

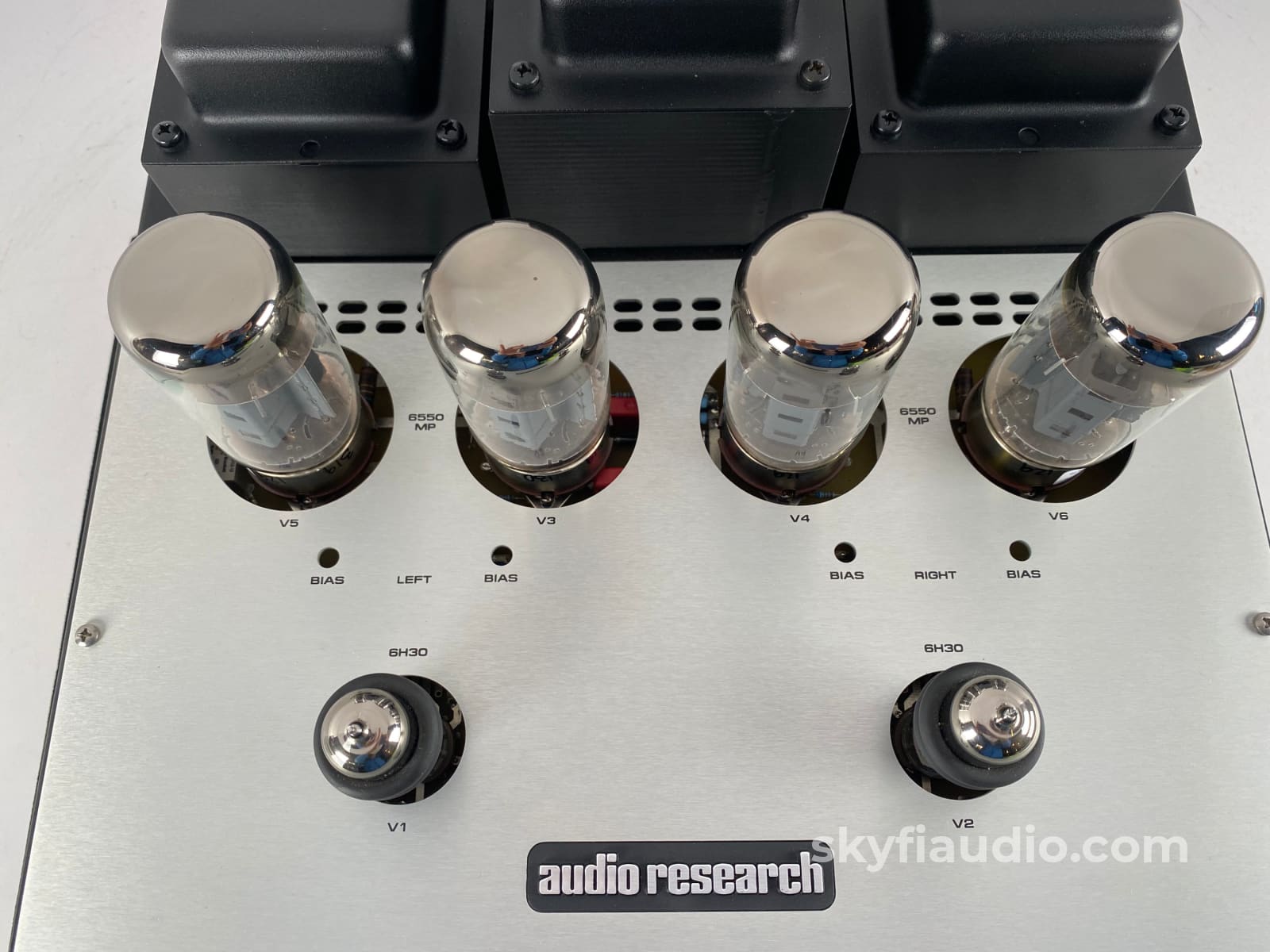

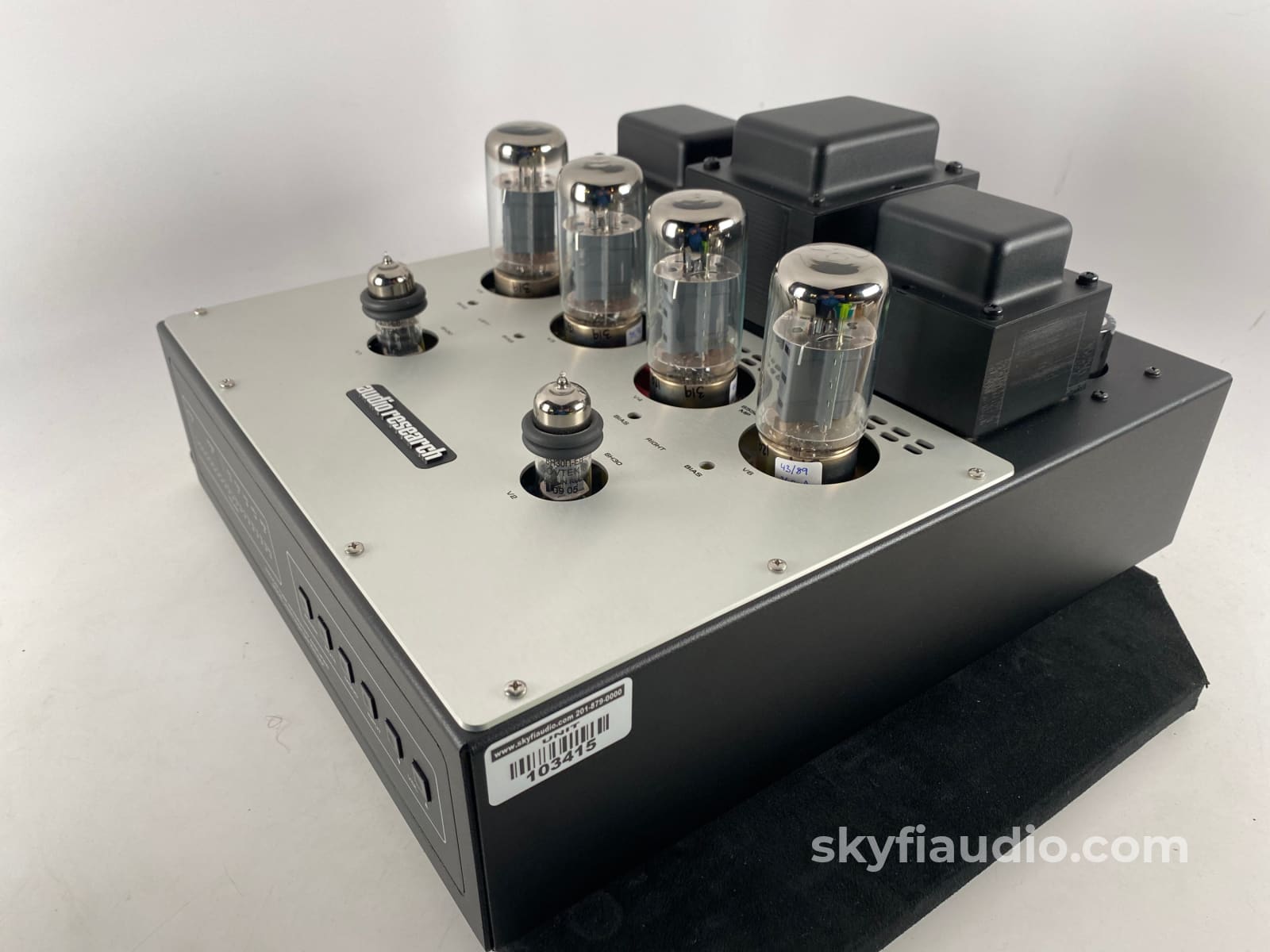

The VSi60 has a new JFET input stage for low noise, with 6H30 driver tubes. The Svetlana 6550C output tube is used, the same as our other vacuum tube amplifiers. Build quality is typical Audio Research, utilizing thick traces on heavy, plated-through circuit boards, the finest audiophile-grade parts, proprietary litz internal wires, and the VSi60 is completely hand-soldered, assembled, tested and packed by craftspeople in our own facility. No production shortcuts have been taken. We are very proud of the VSi60 because we feel it provides the finest performance available anywhere near its price. Please contact your nearest Audio Research dealer to audition this affordable new integrated vacuum-tube amplifier.

Technical Specifications:

Tube integrated stereo amplifier

INTRODUCED
2008

OPTIONS
Perforated cage-type top cover $300.

MSRP (US NEW RETAIL)
$3,995. Increased to $4,495 on November 22, 2010.

POWER OUTPUT
50 watts per channel continuous from 20Hz to 20kHz.
1kHz total harmonic distortion typically 1.5% at 50 watts, .05% at 0.1 watt.
Approximate actual power available at “clipping” 52 watts (1kHz).

POWER BANDWIDTH
(-3dB points) 12Hz to 70 kHz

FREQUENCY RESPONSE
(-3dB points at 1 watt) 1.0Hz to 80 kHz

INPUT SENSITIVITY
0.47V RMS Single-ended for rated output.
(32.5dB gain into 8 ohms.)

INPUT IMPEDANCE
50K ohms Single-ended

OUTPUT TAPS
8 ohms, 4 ohms

OUTPUT REGULATION
Approximately 2 dB 8 ohm load to open circuit

OVERALL NEGATIVE FEEDBACK
7dB

DAMPING FACTOR
Approximately 4

SLEW RATE
12V/µs

RISE TIME
4 µs

HUM & NOISE
Less than 0.1mV RMS - 106dB below rated output (IHF weighted, Vol down).

POWER SUPPLY ENERGY STORAGE
Approximately 166 joules

POWER REQUIREMENTS
100-125VAC 60 Hz (200-250VAC 50Hz) 300 watts at rated output, 500 watts maximum, 200 watts at "idle".
1.0 watt power off.

TUBE COMPLEMENT
(2 matched pairs) 6550C power output, (2) 6H30 driver

OTHER
Inputs:
CD, Tuner, Video, SE1, SE2 (Single Ended RCA connectors).

Maximum input:
3.5V RMS (any input).

Output polarity:
Non-Inverting (any input).

Push buttons: Volume up, volume down. (103 steps, 20 LED indicators), Input, Mono, Mute, Power. All functions on IR remote control.

Mono subwoofer output:
1V RMS at rated power.

Power supplies:
Electronically regulated Low and High voltage supplies for input stages.
Automatic 30 second warm-up/brown-out mute.

DIMENSIONS
14" (35.6 cm) W x 8" (20.3 cm) H x 16" (40.6 cm) D.
Rear connectors extend .88" beyond chassis

WEIGHT
34.8 lbs. (15.8 kg) Net
38.3 lbs. (17.4 kg) Shipping

Item	Included
Original Box	No
Manual	Yes and Online
Remote	Yes
Cables	Yes - Power
Physical Condition	8
Working Condition	10
