Bang & Olufsen B&O Beogram RX2 Turntable - W/ New Cartridge + Cover

Free Shipping on Most Electronics - Excludes Speakers and Items Requiring Freight - Contiguous U.S. Only

General:
Bang & Olufsen of Denmark are renowned for some of the most iconic designs in hi-fi, and this turntable is a perfect example.

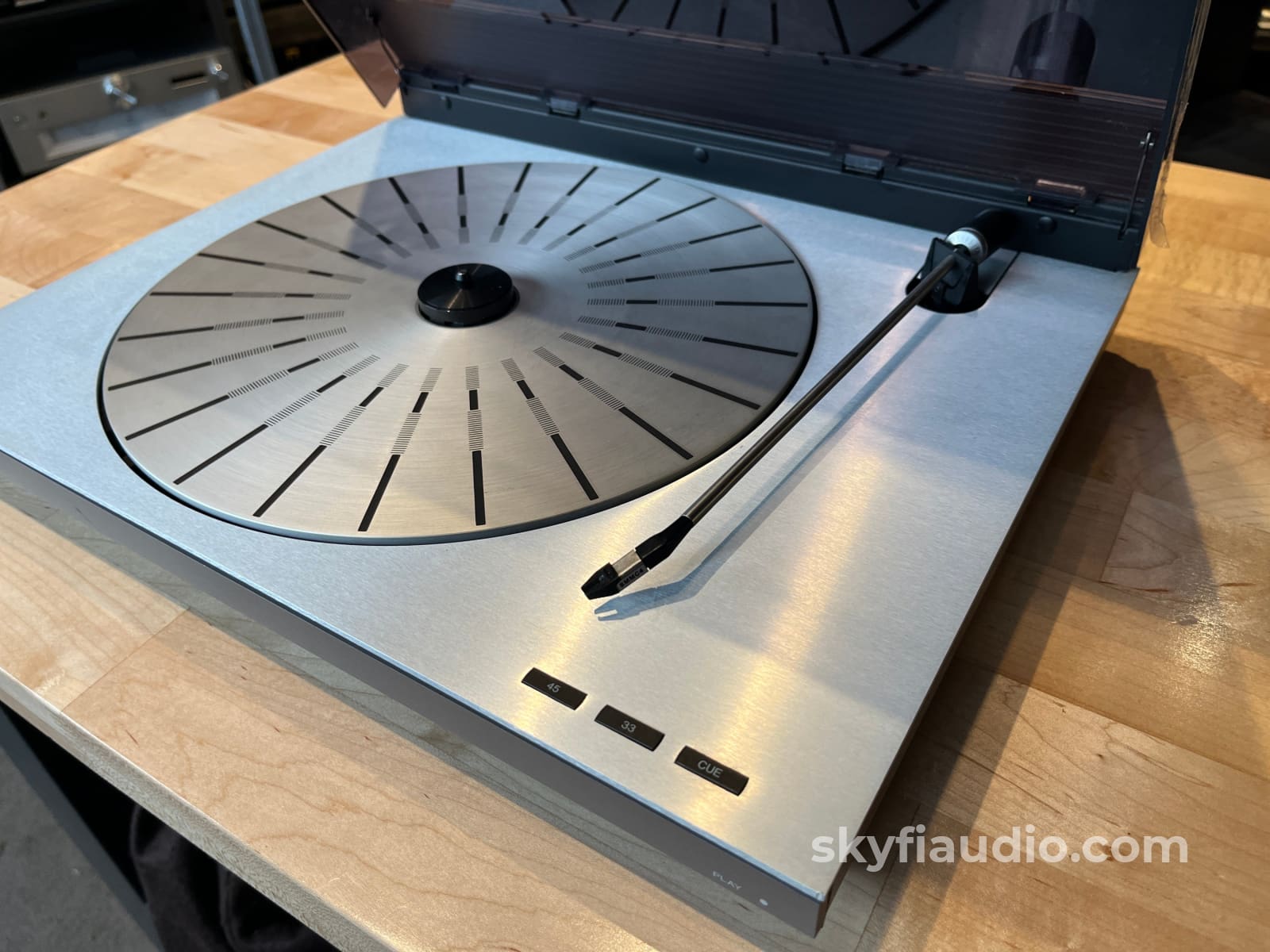

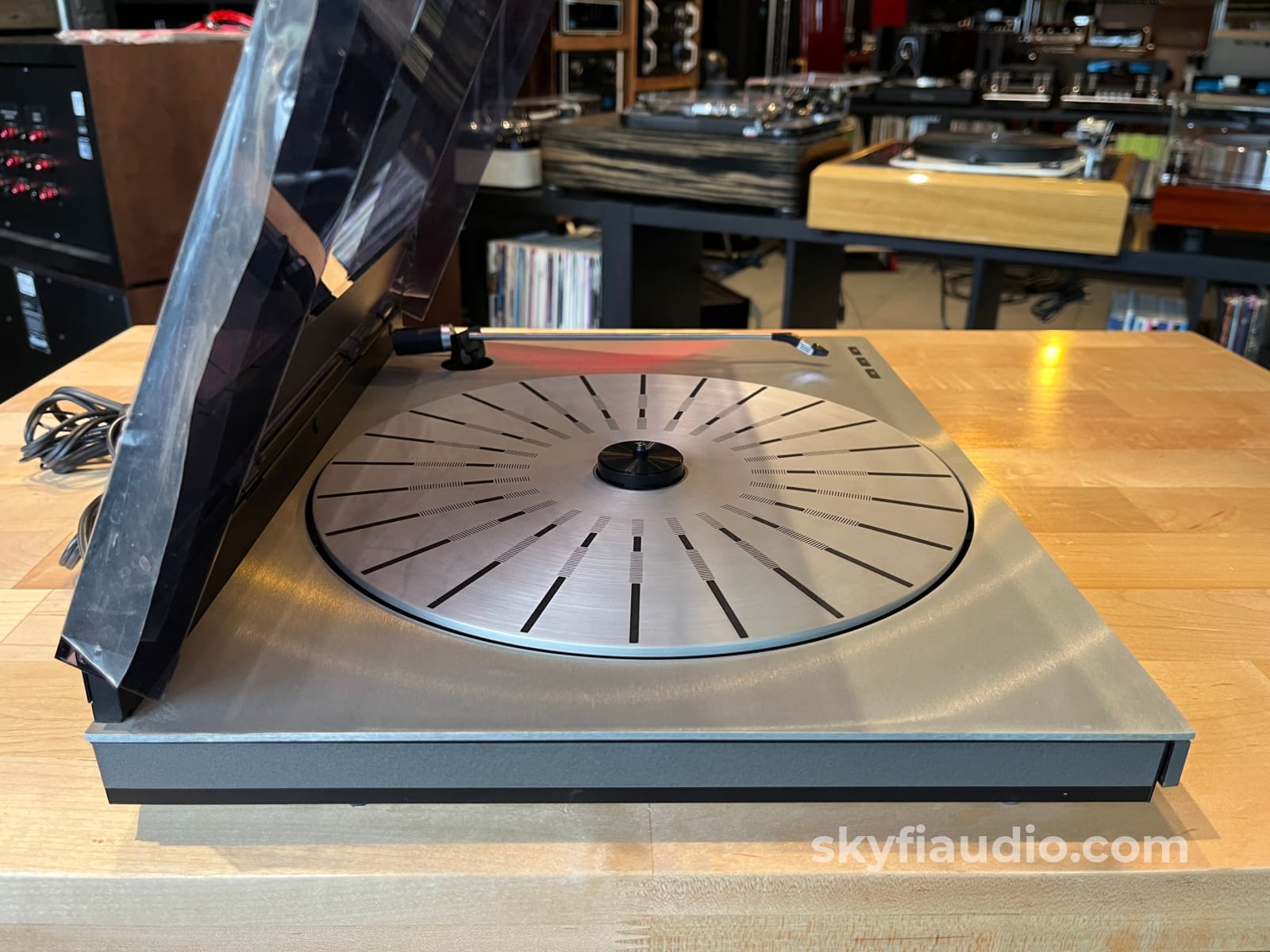

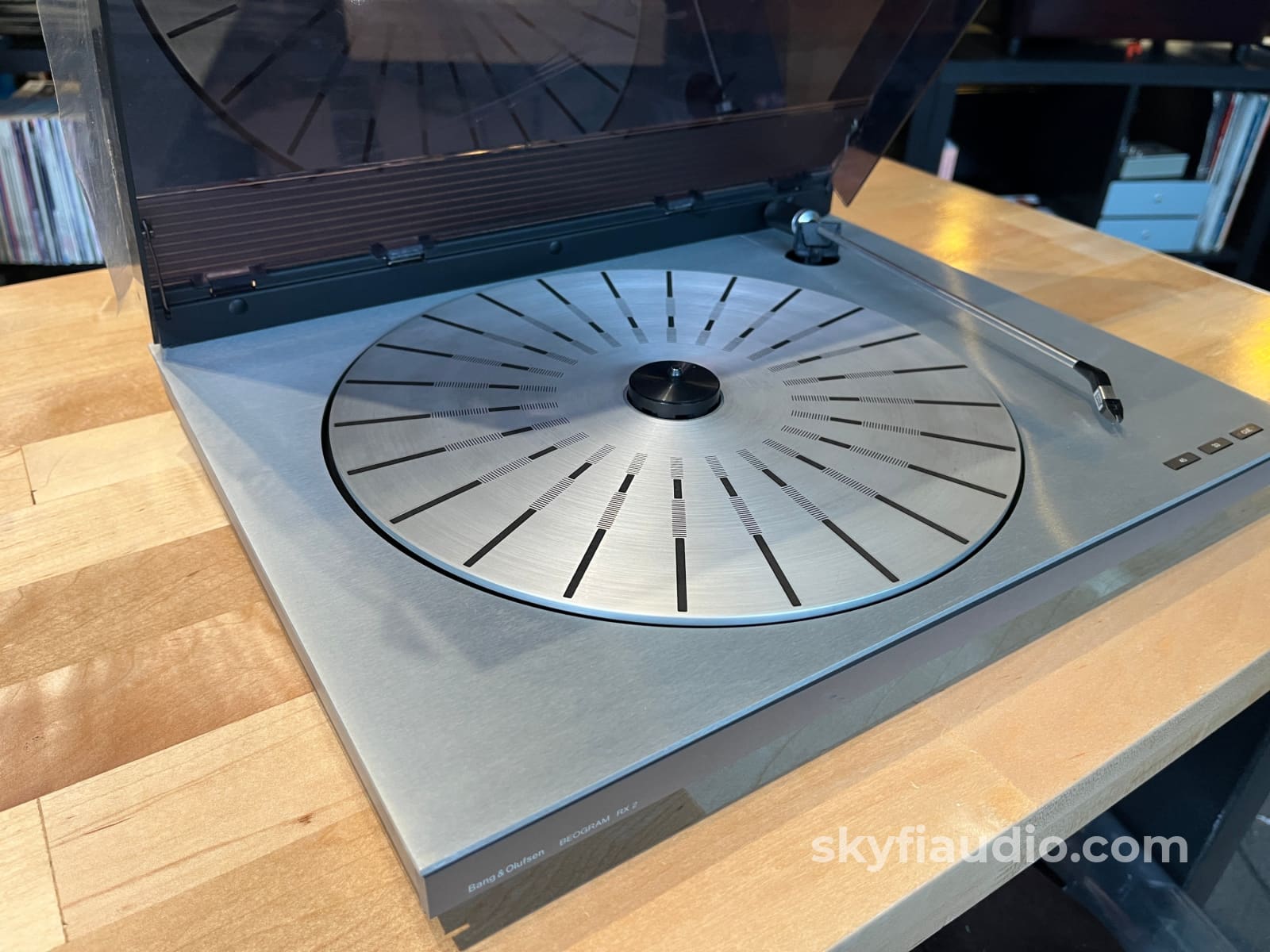

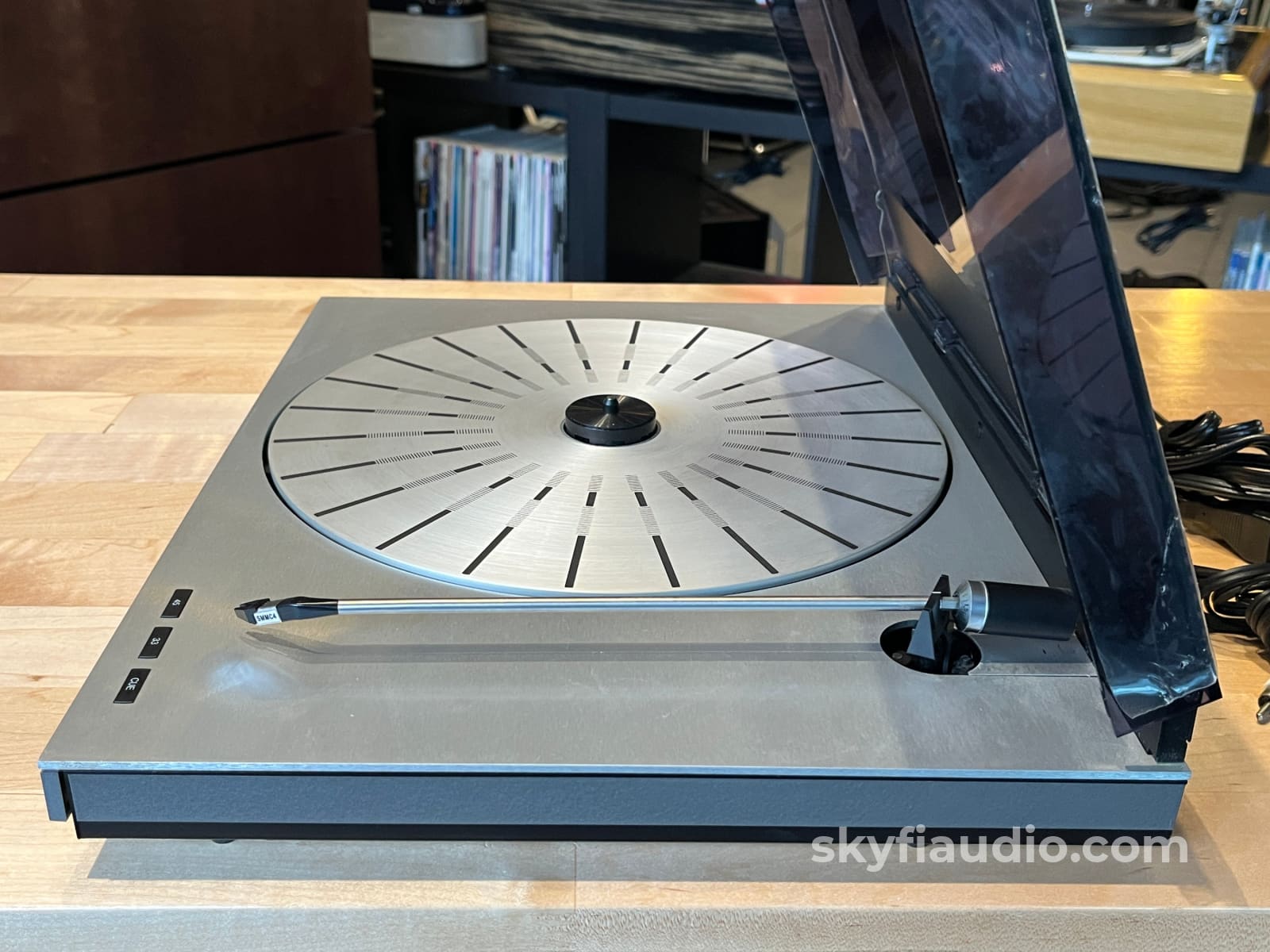

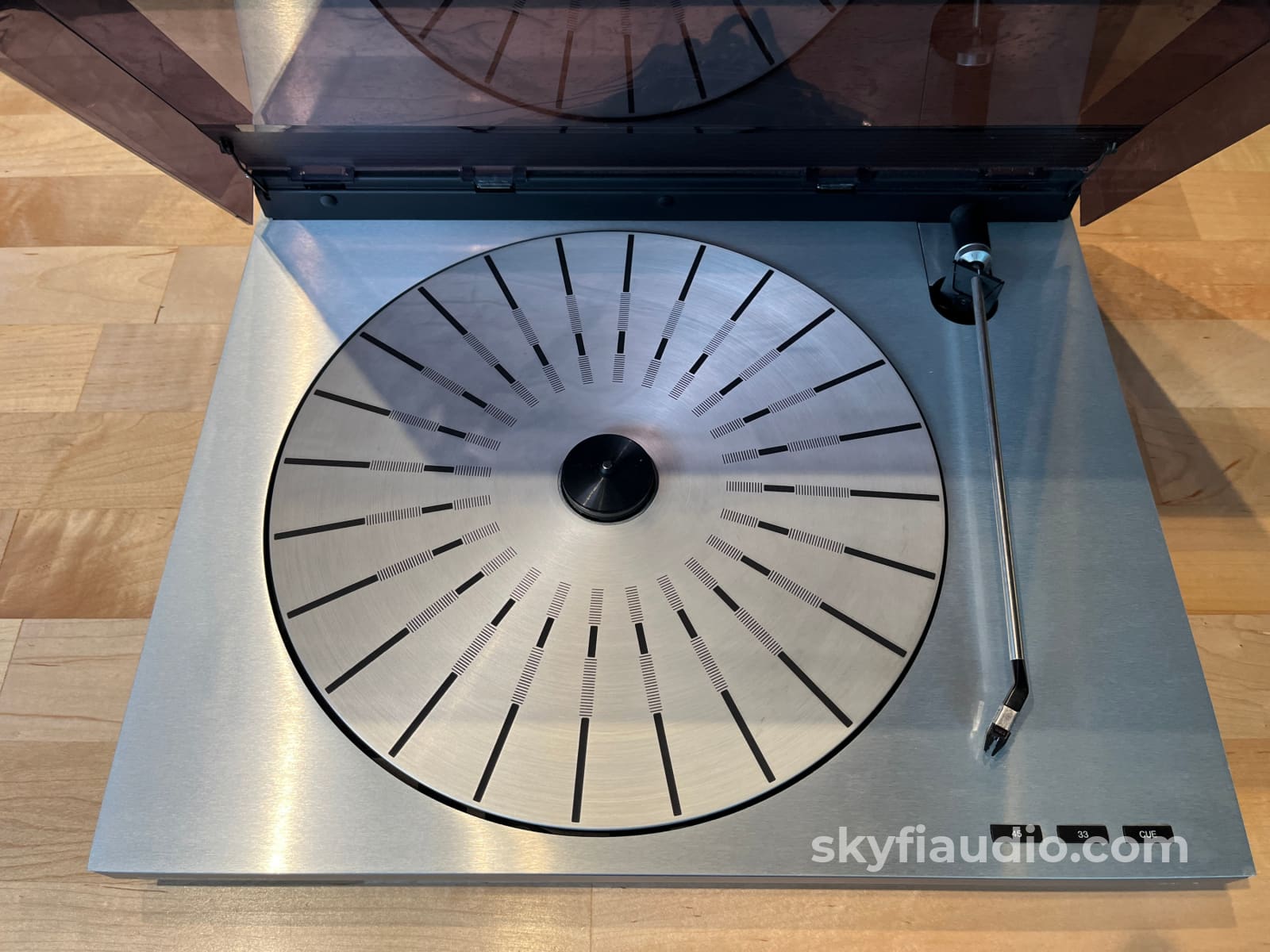

The Beogram RX2 is a fully automatic turntable that lifts and cues records at the touch of a button, eliminating the need to handle the tonearm. It also automatically detects both 33 and 45 RPM records.

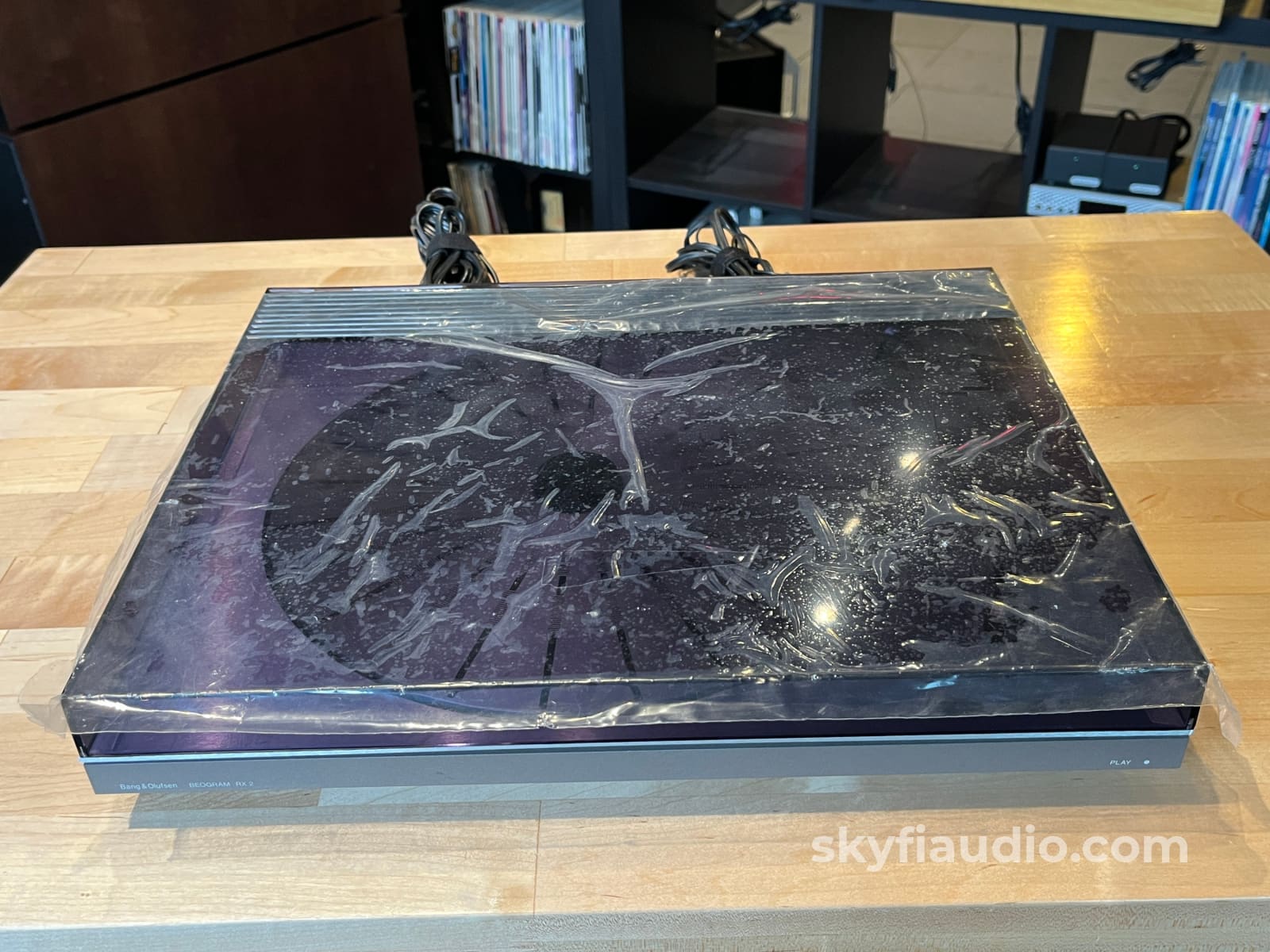

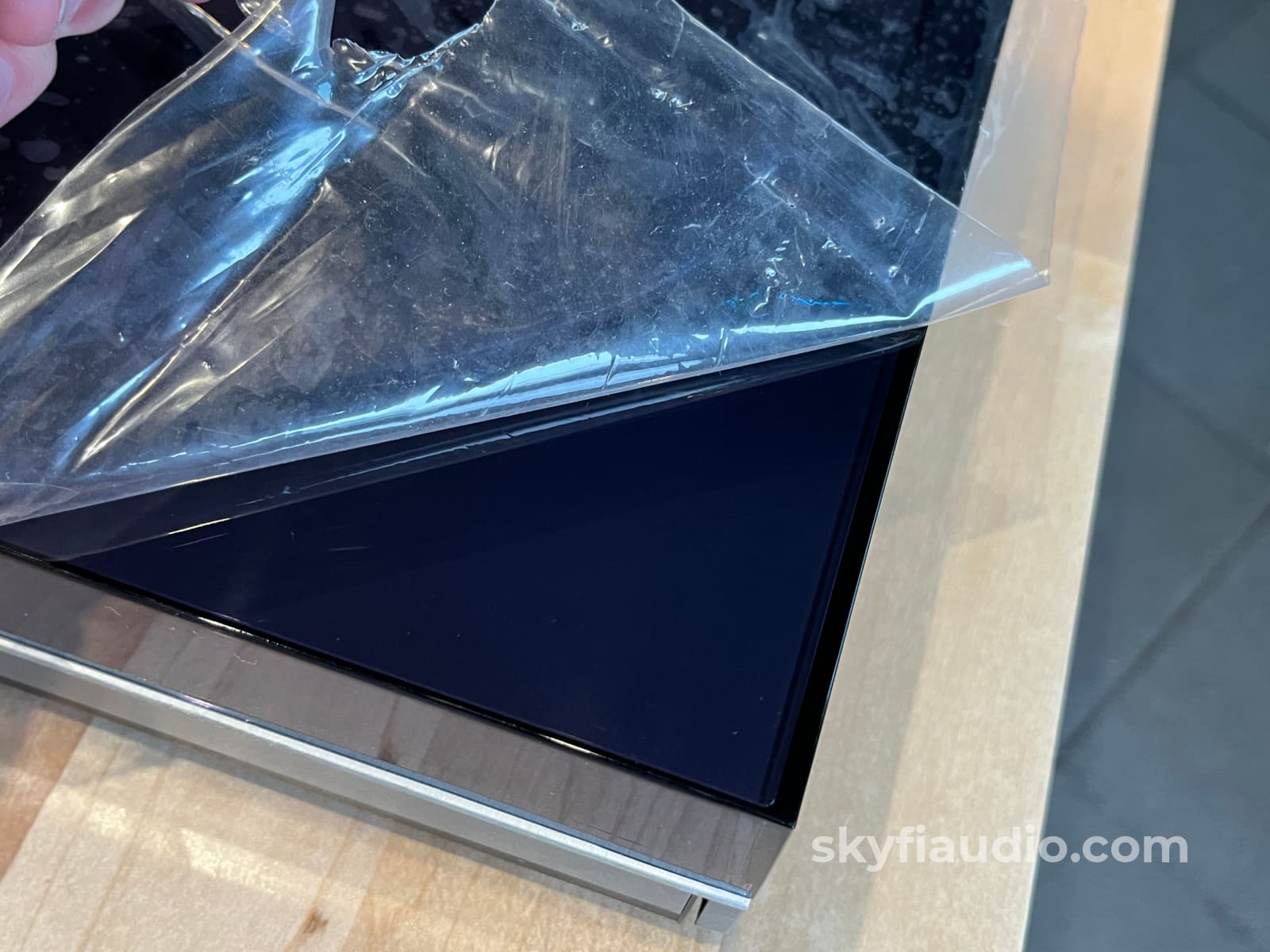

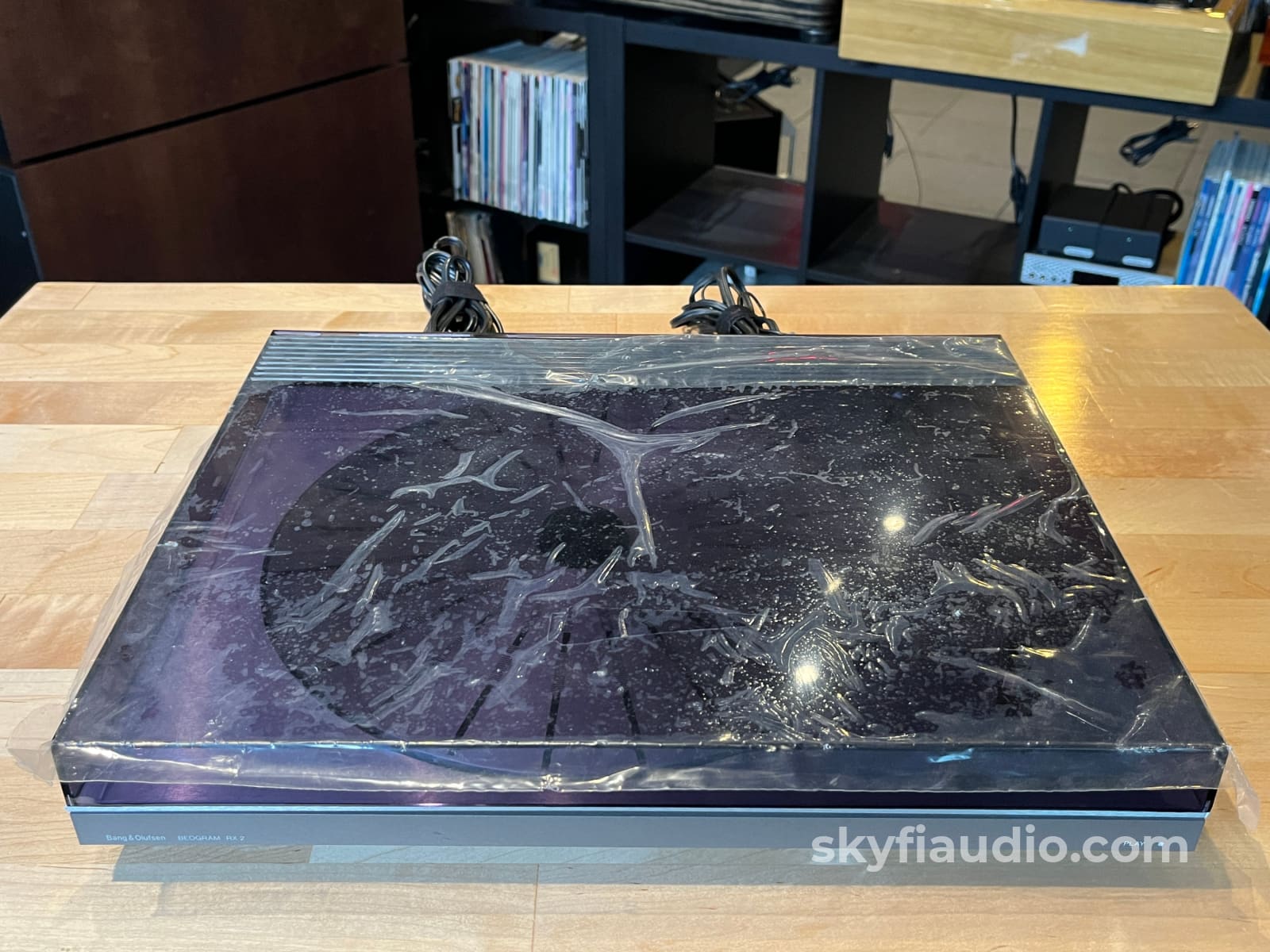

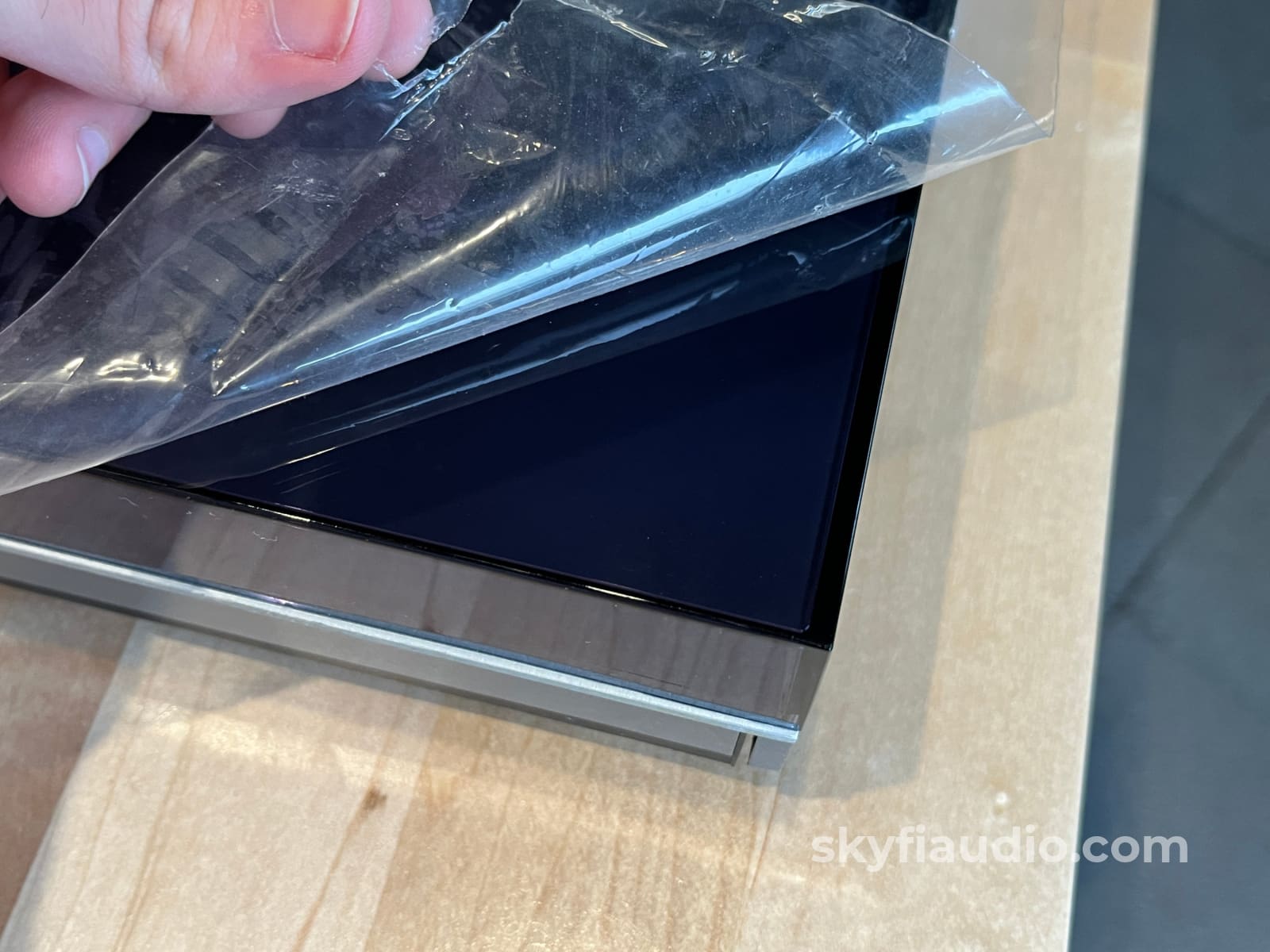

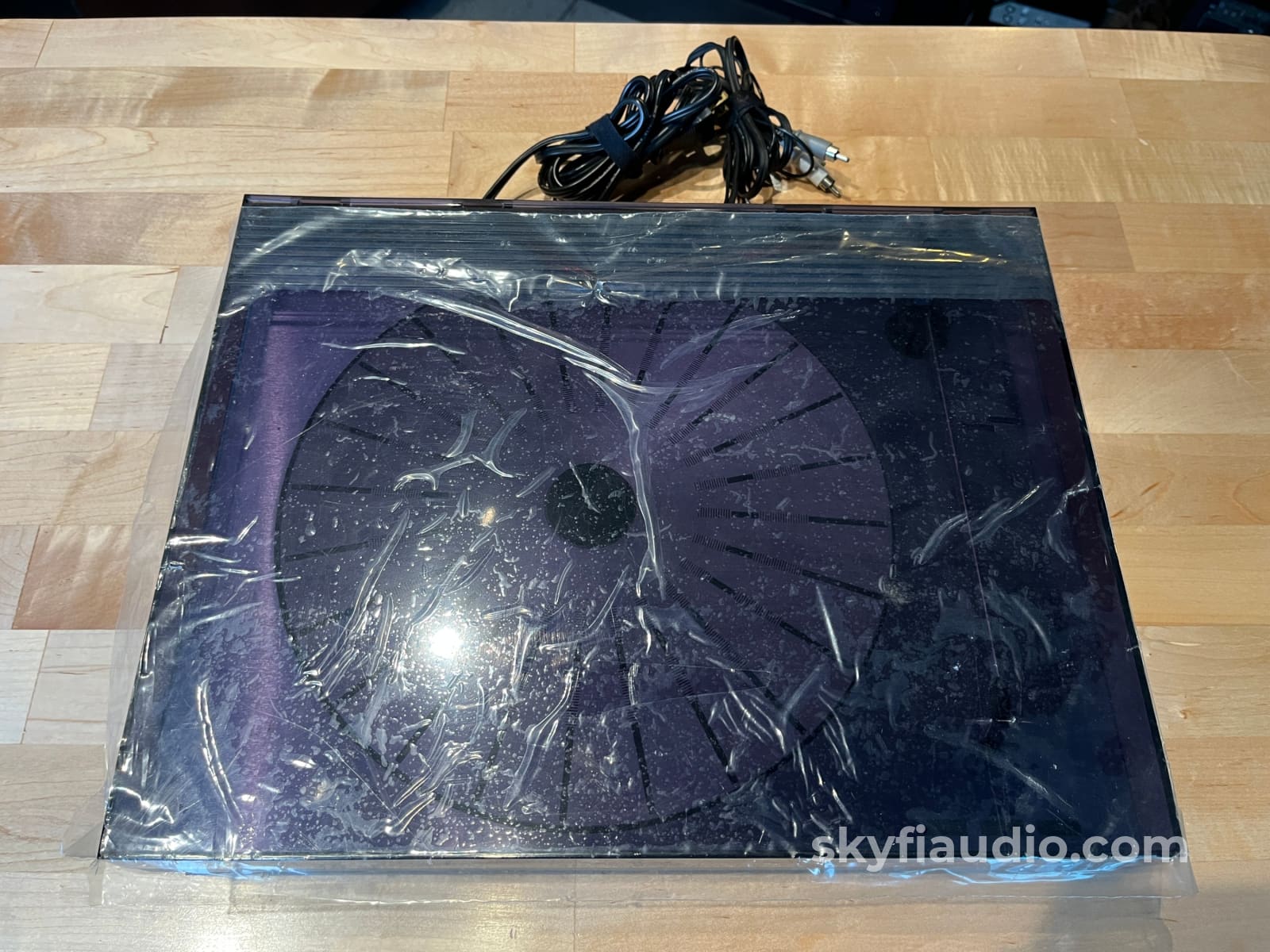

This particular RX2 is especially noteworthy for two reasons. First, it features a brand-new hinged dust cover with the protective plastic still intact. As a result, there are no visible scratches on this part, and that truly makes it stands out. Note* The cover still has its protective plastic on and can be peeled off easily.

Second, it is fitted with a brand-new Soundsmith SMMC2 phono cartridge. The MMC series—“Moving Micro Cross” cartridges originally developed by Bang & Olufsen—are increasingly rare and highly sought after. Their scarcity and rising value make this RX2 an especially desirable example.

Unlike some B&O turntables this RX2 has standard RCA phono outputs so it makes connecting this turntable to your existing system very easy.

SkyFi Cosmetic Notes:
Some marks on the corners of the turntable, Overall condition is excellent especially the dust cover.

Brand Background:
Bang & Olufsen (B&O) is a Danish high-end consumer electronics company that designs and manufactures audio products, television sets, and telephones. It was founded in 1925 by Peter Bang and Svend Olufsen, who designed a radio to work with alternating current, a product of significance at a time when most radios were still running on batteries.

Ownership:
Single Owner

Connections:

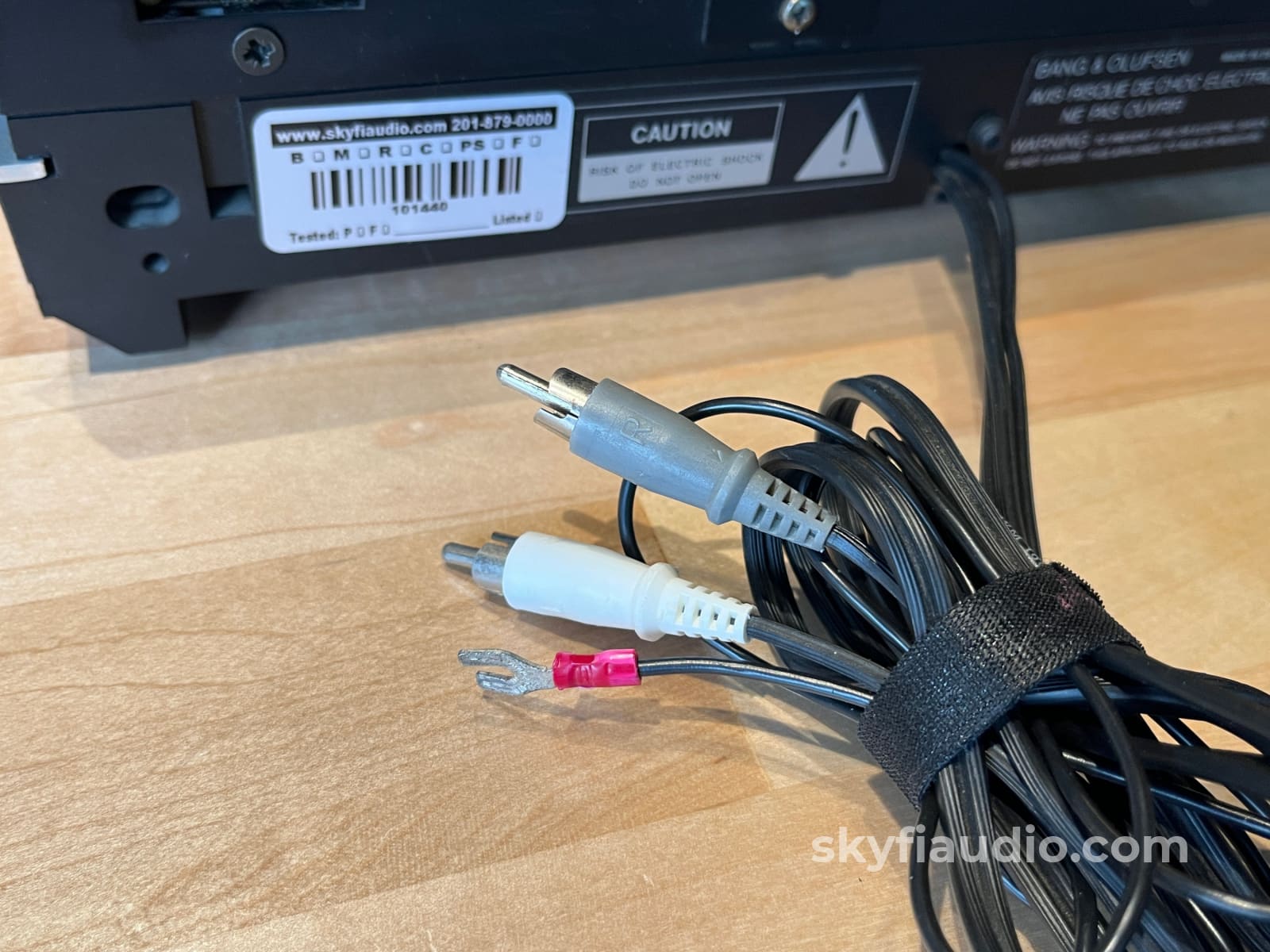

RCA output with Ground, Captive Power cord

General Sound:
Smooth, uncolored, undistorted natural and clean

Working Condition:
Working perfectly and calibrated on our custom turntable calibration stand.

Included:
Just the unit and power cord.

Packing:
Will be packed using our highly developed in-house process and custom packing materials.Specs:
- Type: Fully Automatic, Belt-Drive Turntable.

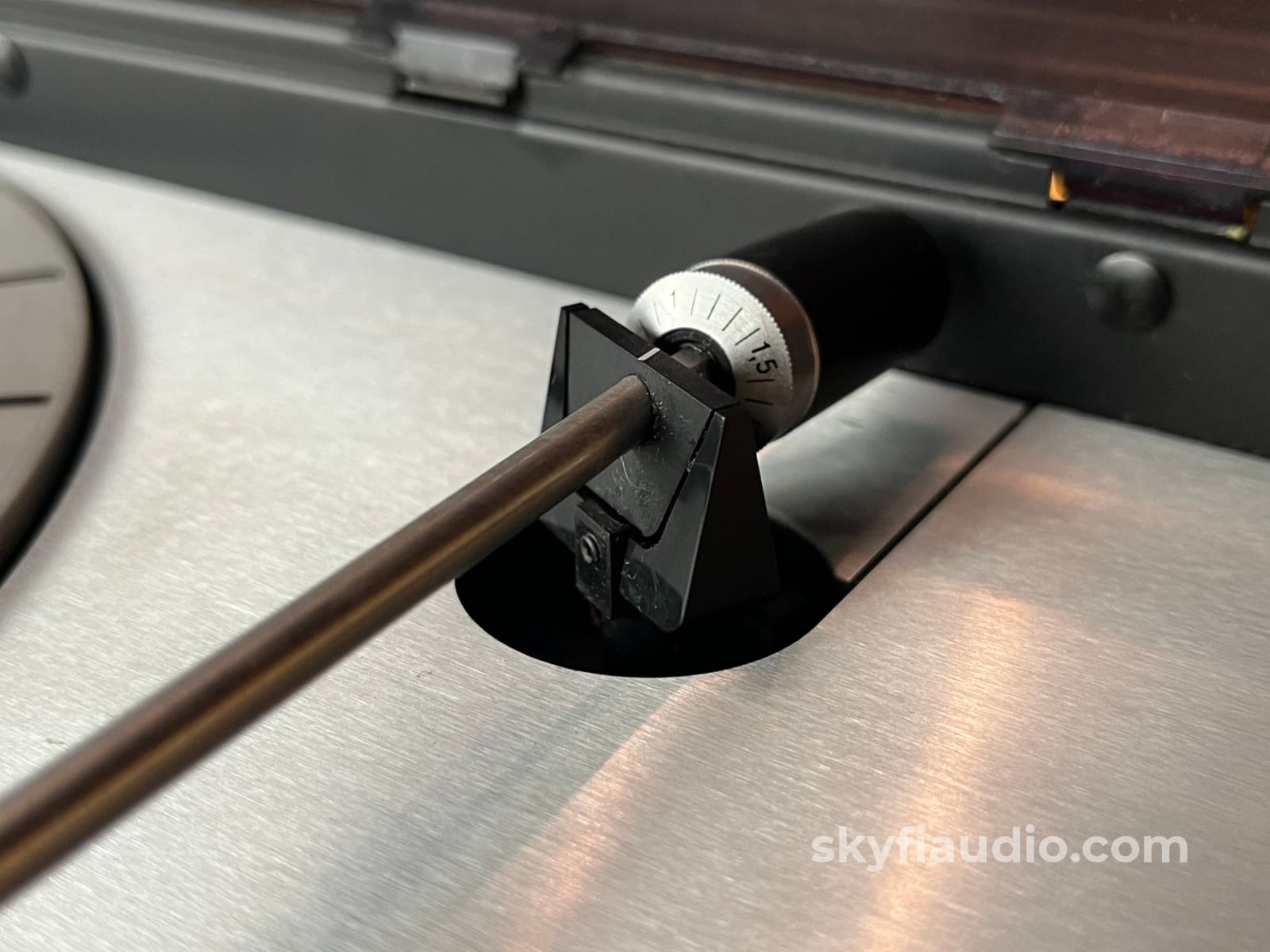

- Tonearm: Tangential-tracking.
- Cartridge: Uses B&O MMC cartridges (e.g., MMC 4, 5).
- Speeds: 33 & 45 RPM.
- Wow & Flutter: < 0.07% (DIN).
- Rumble: Weighted > 75 dB, Unweighted > 55 dB (DIN).
- Speed Deviation: < +/- 0.2%.
- Power: ~10W, various voltages (220-240V or 110-120V).

Dimensions:
Approx. 42 x 8 x 32.5 cm (16.5" x 3.1" x 12.8")

Weight:
12 lbs.

Approximate Age:
1985

Link to Manual:
Click Here

Recommended Cables:
Kimber Kable - Phono Interconnects

Kimber Kable - Flagship Phono Interconnects

Testing Process:
First we try to identify any mechanical issues, particularly in the tonearm bearings. We check for freedom of movement or any resistance on both the horizontal and vertical range. There is a quick test for this which involves placing the table on its front edge and allowing the arm to swing freely like a pendulum. We then make any adjustments necessary to achieve minimal resistance and sometimes adjust the bearing pressure. On gimbal tonearms we inspect the cone tip with a magnifier.

We then assess the platter speed using one of several methods, the most accurate being playing a test tone on a test record and measuring the frequency output with a frequency counter or oscilloscope. We also utilize test equipment to measure the wow and flutter to ensure it is within spec. We do this for all speeds available for that particular model (33 RPM, 45 RPM, 78 RPM).

Adjustments are then made to achieve proper speed which will vary depending on the turntable's drive design. Some require an adjustment of an internal or external potentiometer, some will require a pulley or motor adjustment. We also inspect the platter bearing to ensure it is properly lubricated, keeping in mind that some bearings don't require lubrication at all

We then inspect the power supply and address any issues with overworked capacitors, particularly on Linn and later Thorens machines which tend to need attention.

On fully mechanical vintage tables like the Thorens TD-124 and Garrard 301/401 we will go thought the entire mechanism. Then replace any worn parts and lubricate all components necessary to ensure smooth operation, speed change, and low mechanical noise.

When fitting a new phono cartridge we will go through our detailed calibration process which can involve as many as 12 steps depending on the tonearm design. We perform this work on our custom turntable calibration rig which was developed in-house.

Some of these steps include:
• Pivot to Spindle Adjustment
• Tracking Force
• Anti-Skate
• Tonearm Height
• Lifter Height
• VTA (Vertical Tracking Angle)
• Azimuth
• Stylus Distance and Overhang

We then do a critical listening test using our test records and our test system to ensure proper sonics.
