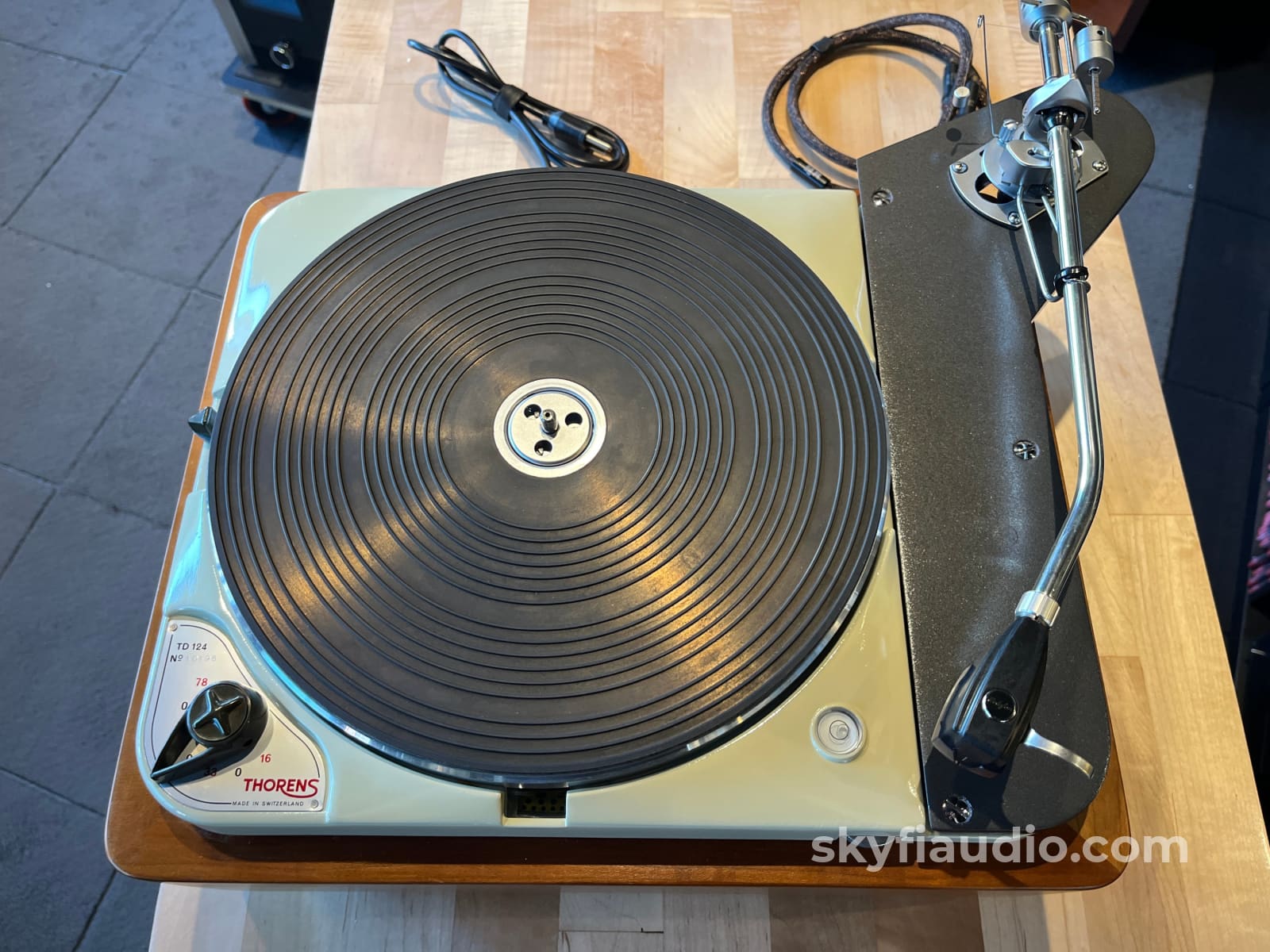

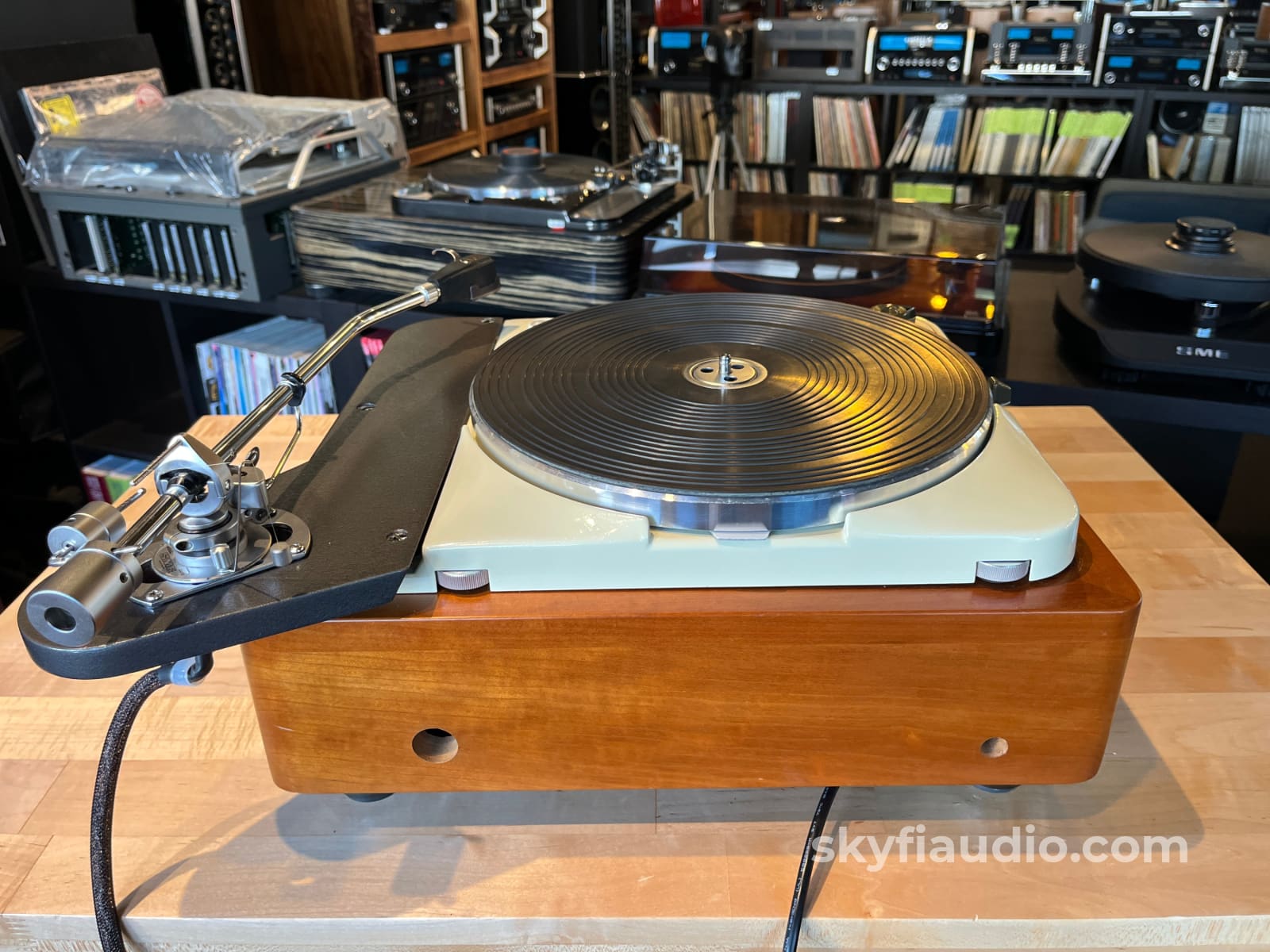

Thorens TD-124 Turntable W/ SME Arm and NEW Ortofon GTX E SPU Cartridge - Custom Solid Wood Plinth

Free Shipping (Contiguous U.S. Only)

General:

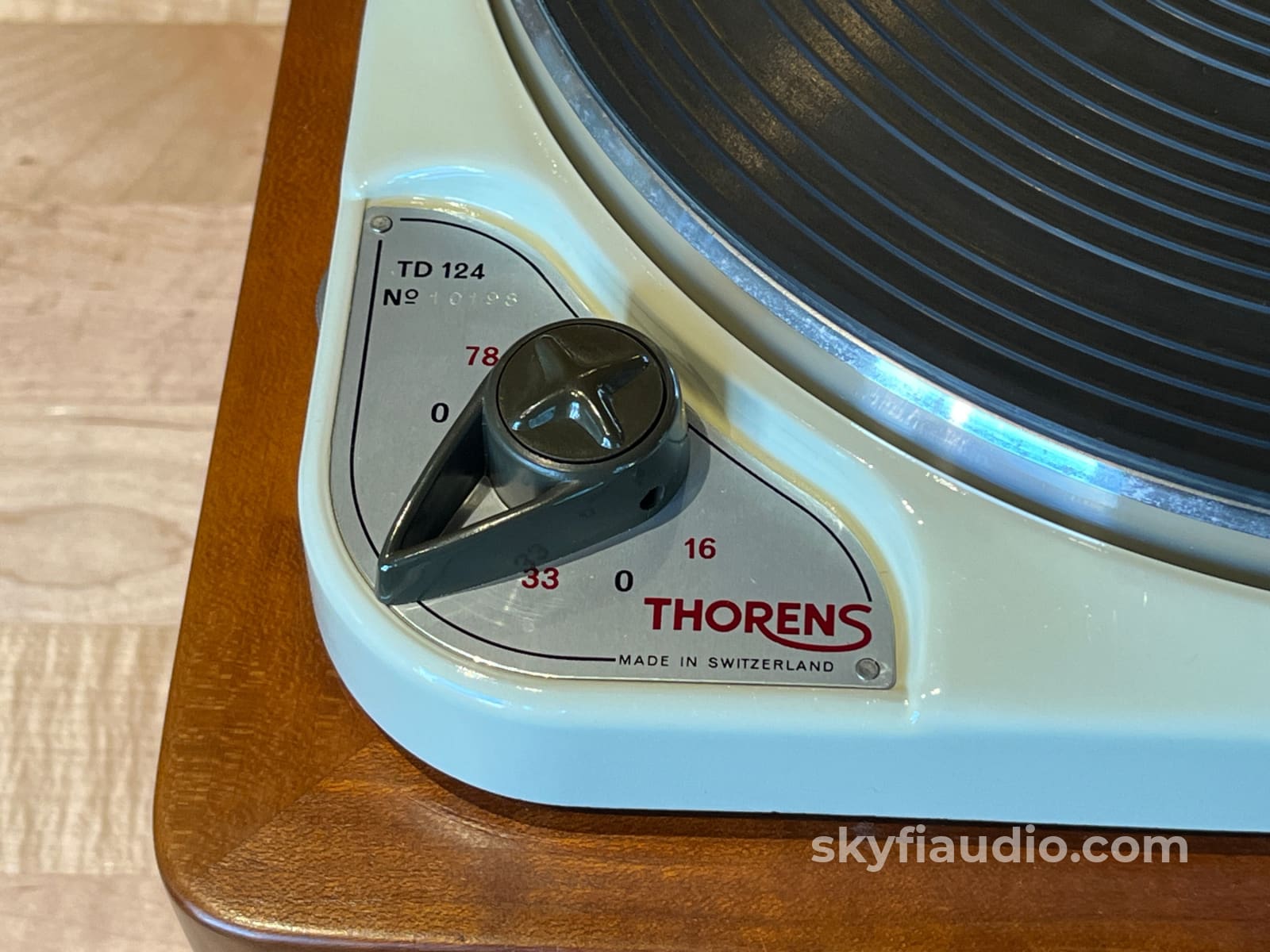

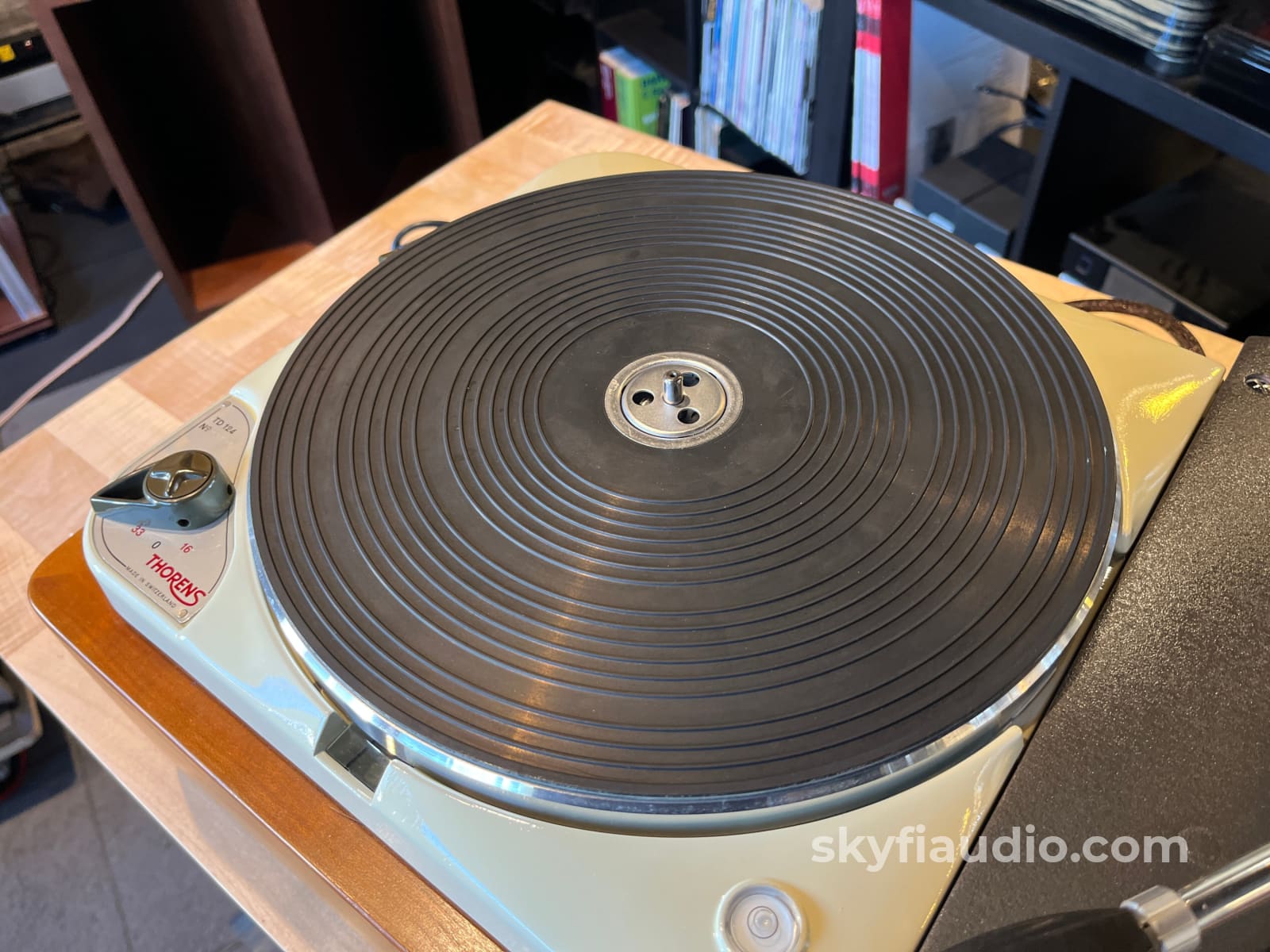

The Thorens TD-124 is widely regarded as one of the finest vintage turntable drives ever built. Precision-crafted in Switzerland, it was state-of-the-art when introduced and was designed and marketed for professional broadcast and studio use. It remains one of the most sought-after idler-drive turntables ever made.

This particular TD-124 was professionally rebuilt by James Campell, one of the most respected names in TD-124 restoration. That level of restoration is especially important on a turntable of this age, ensuring the performance and reliability these tables are known for. It now runs beautifully, reaches speed quickly, and starts and stops like new.

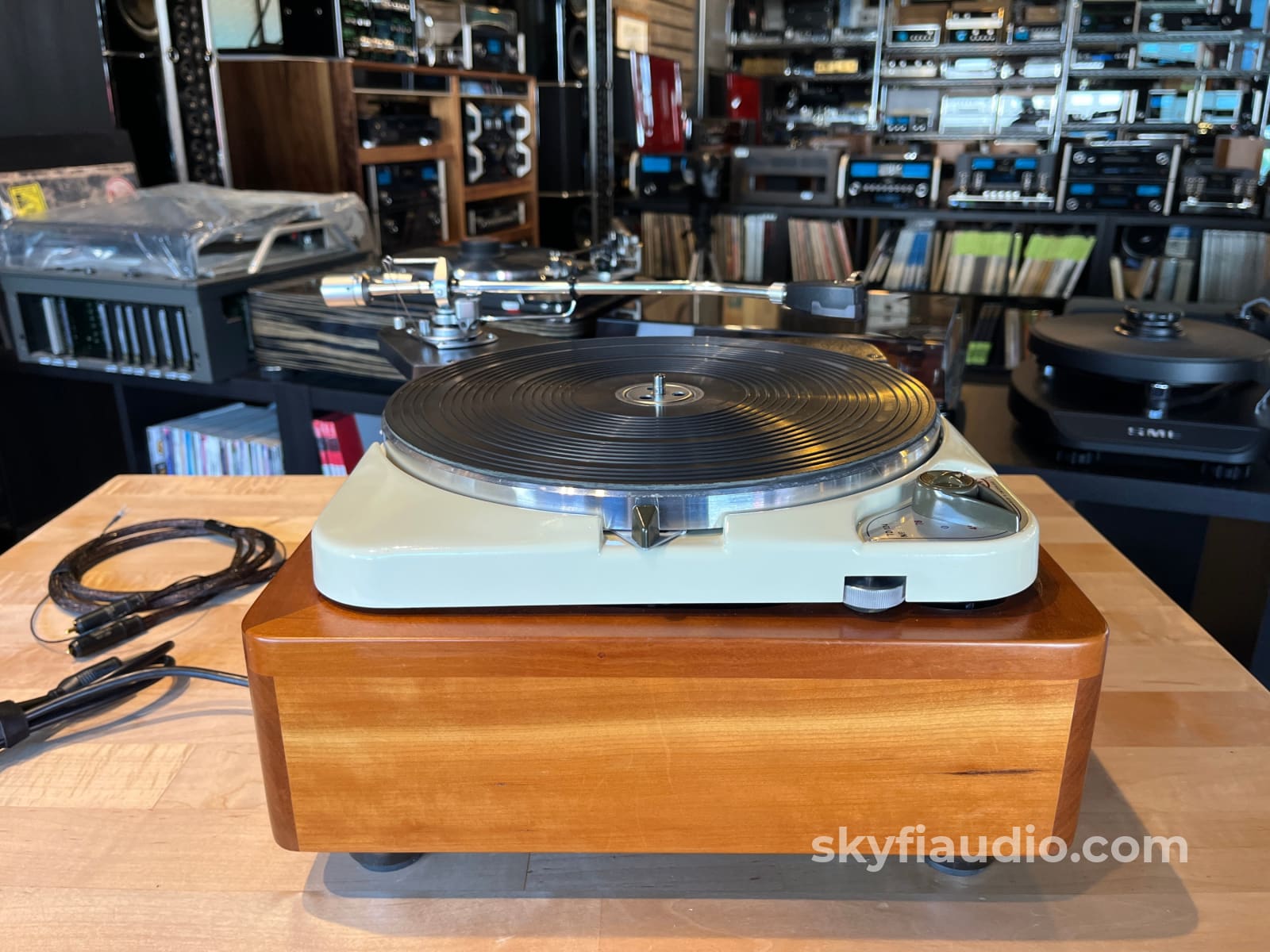

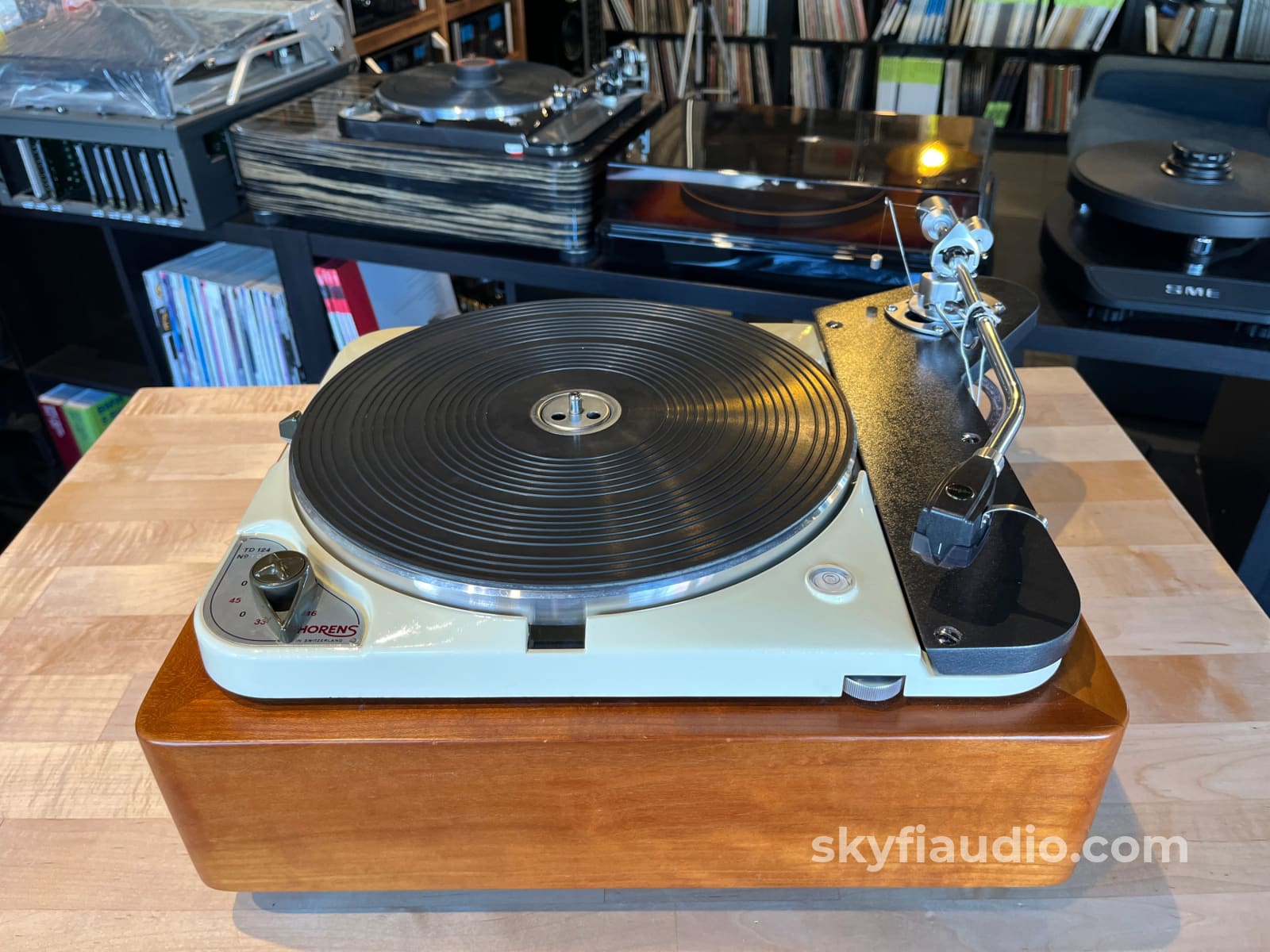

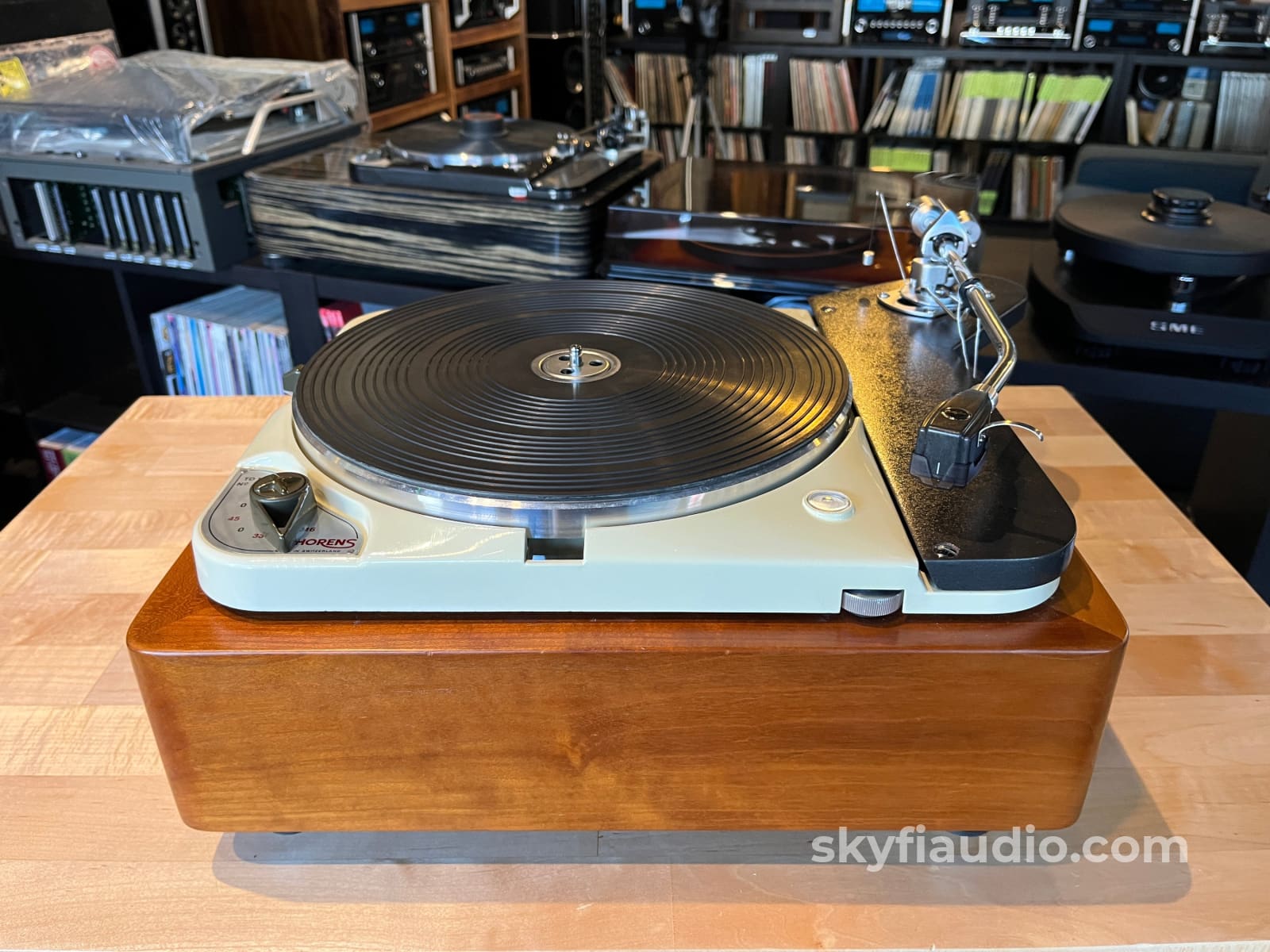

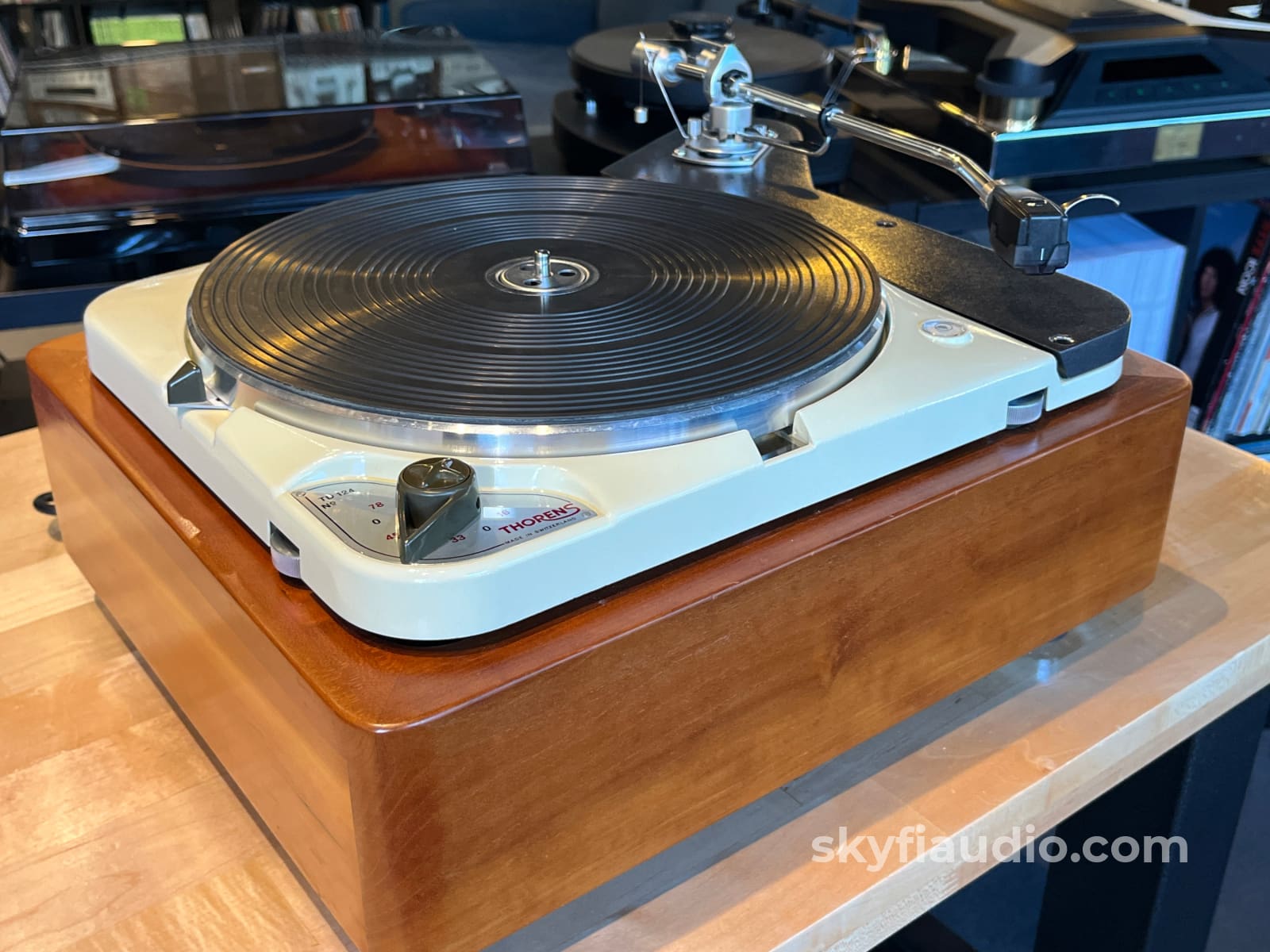

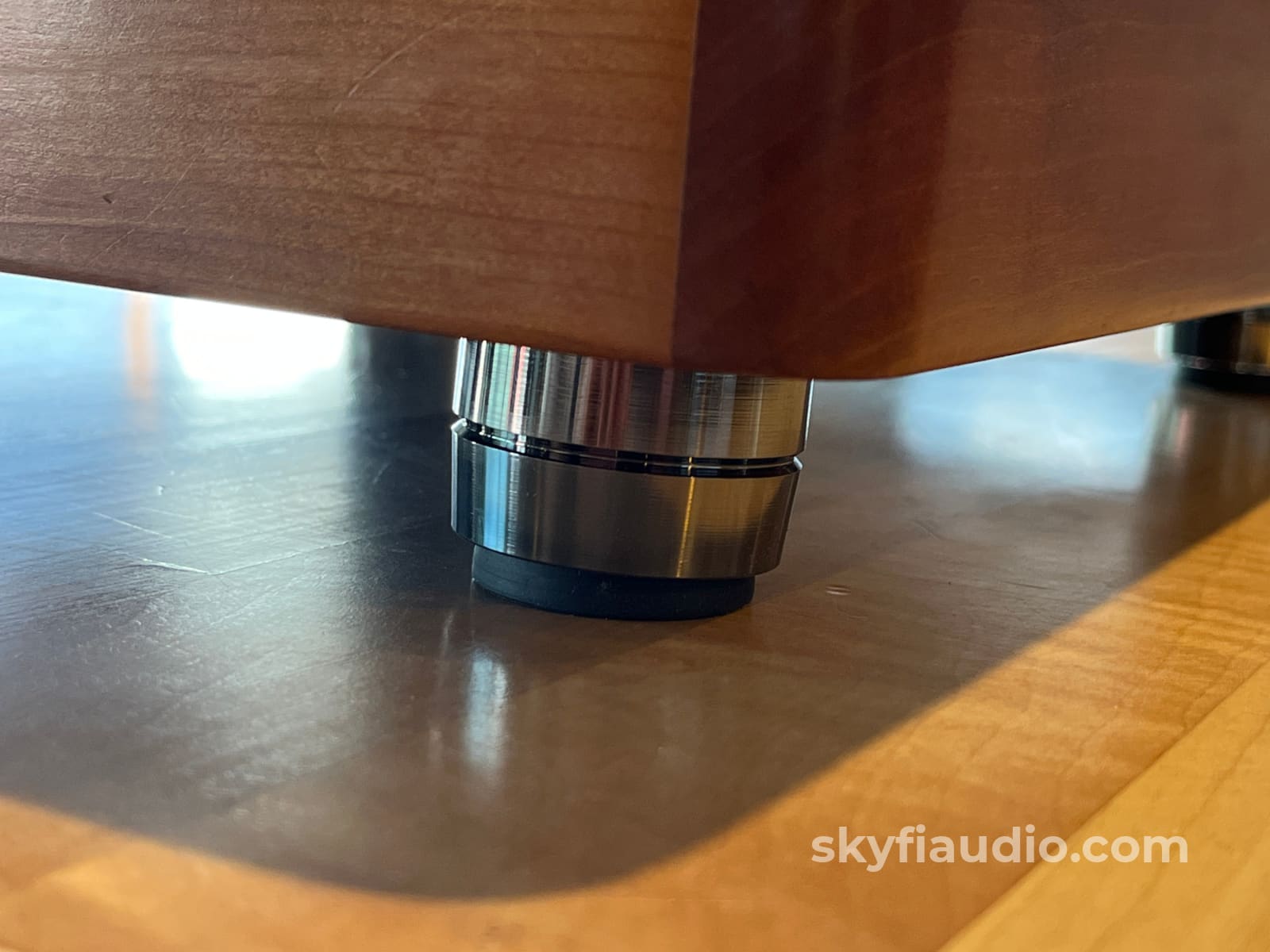

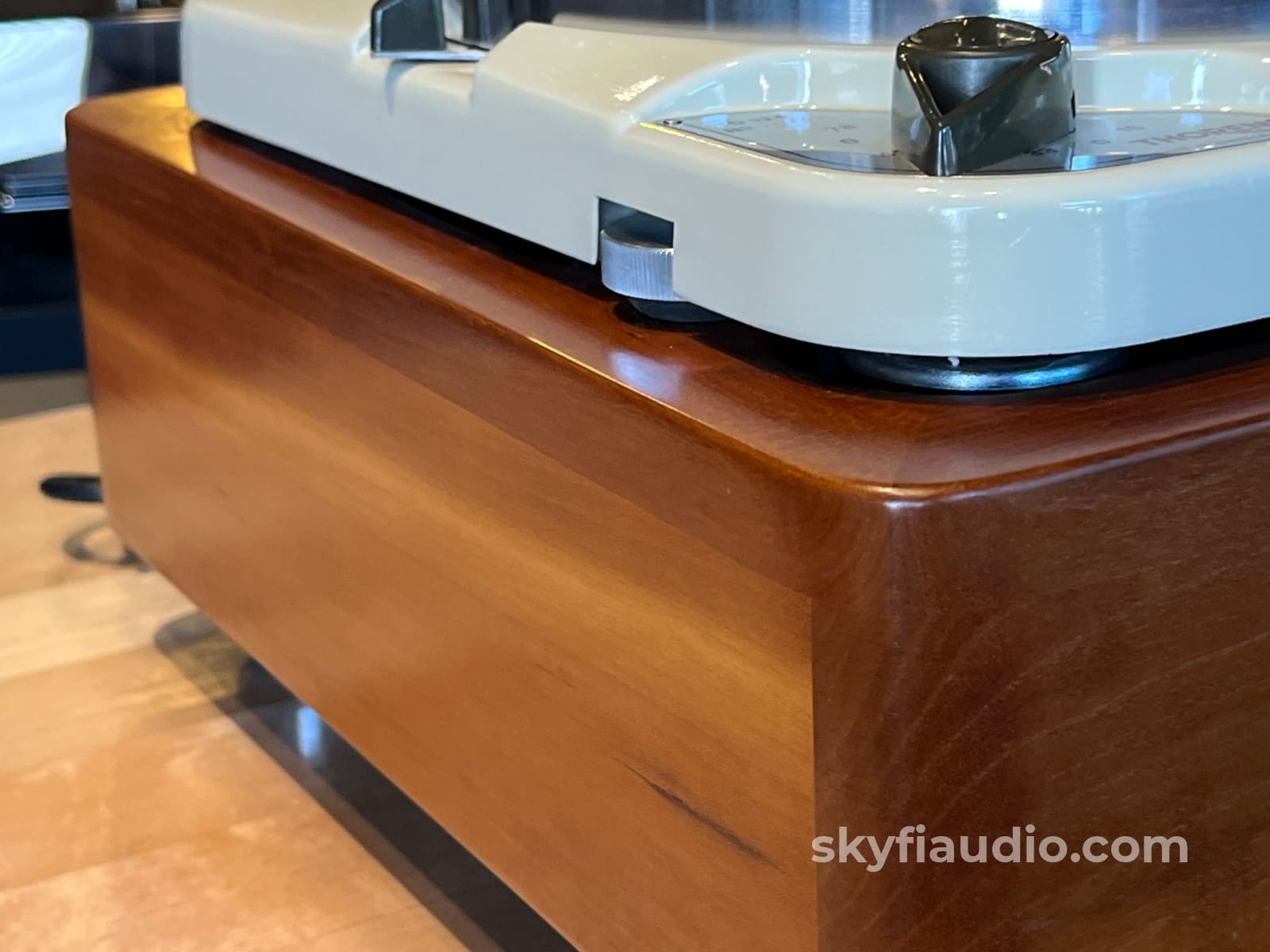

The plinth is a substantial solid wood design finished in a light cherry tone. Its quality construction provides excellent support for the chassis, and we feel the finish complements the classic styling of the turntable exceptionally well.

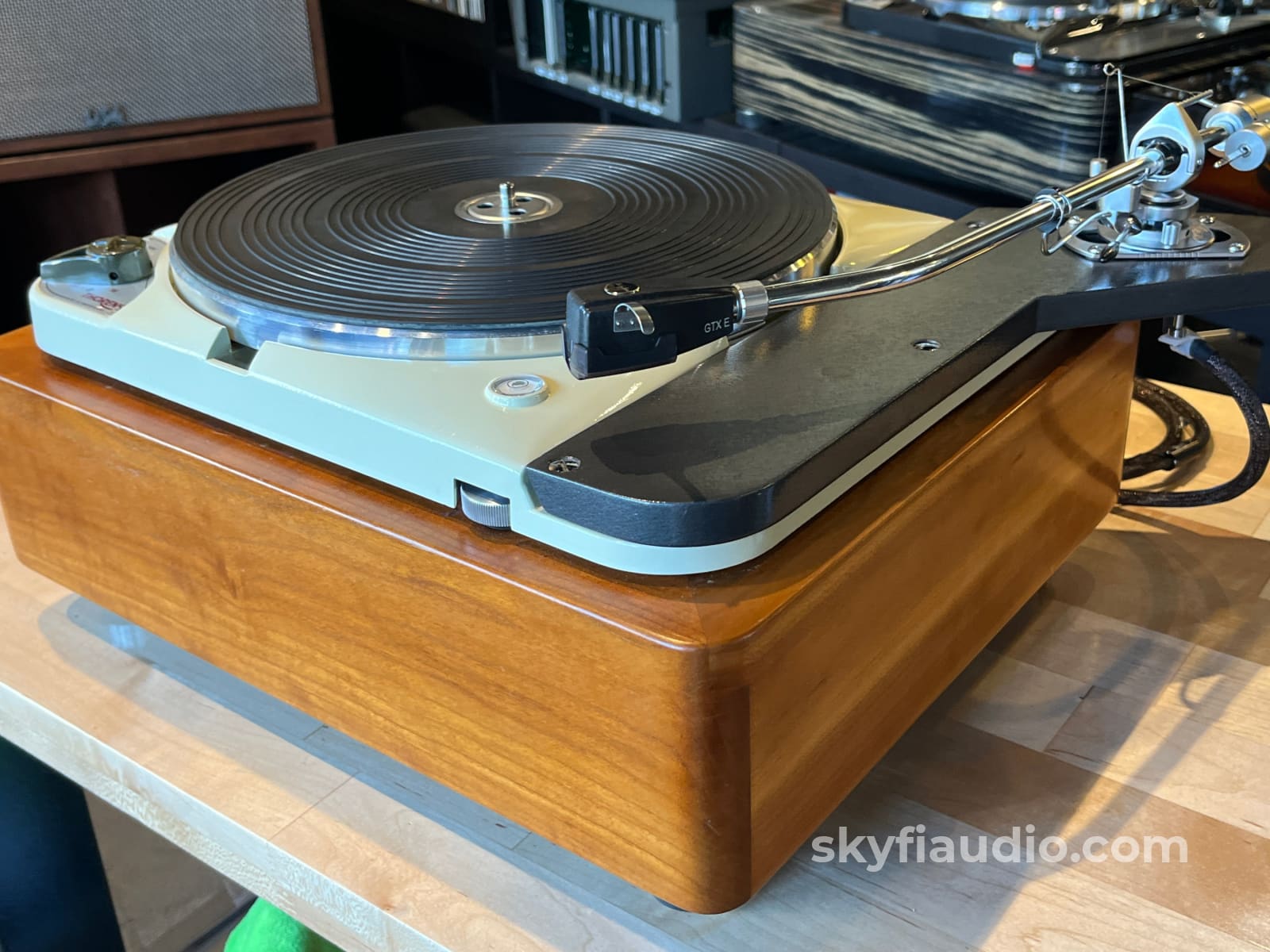

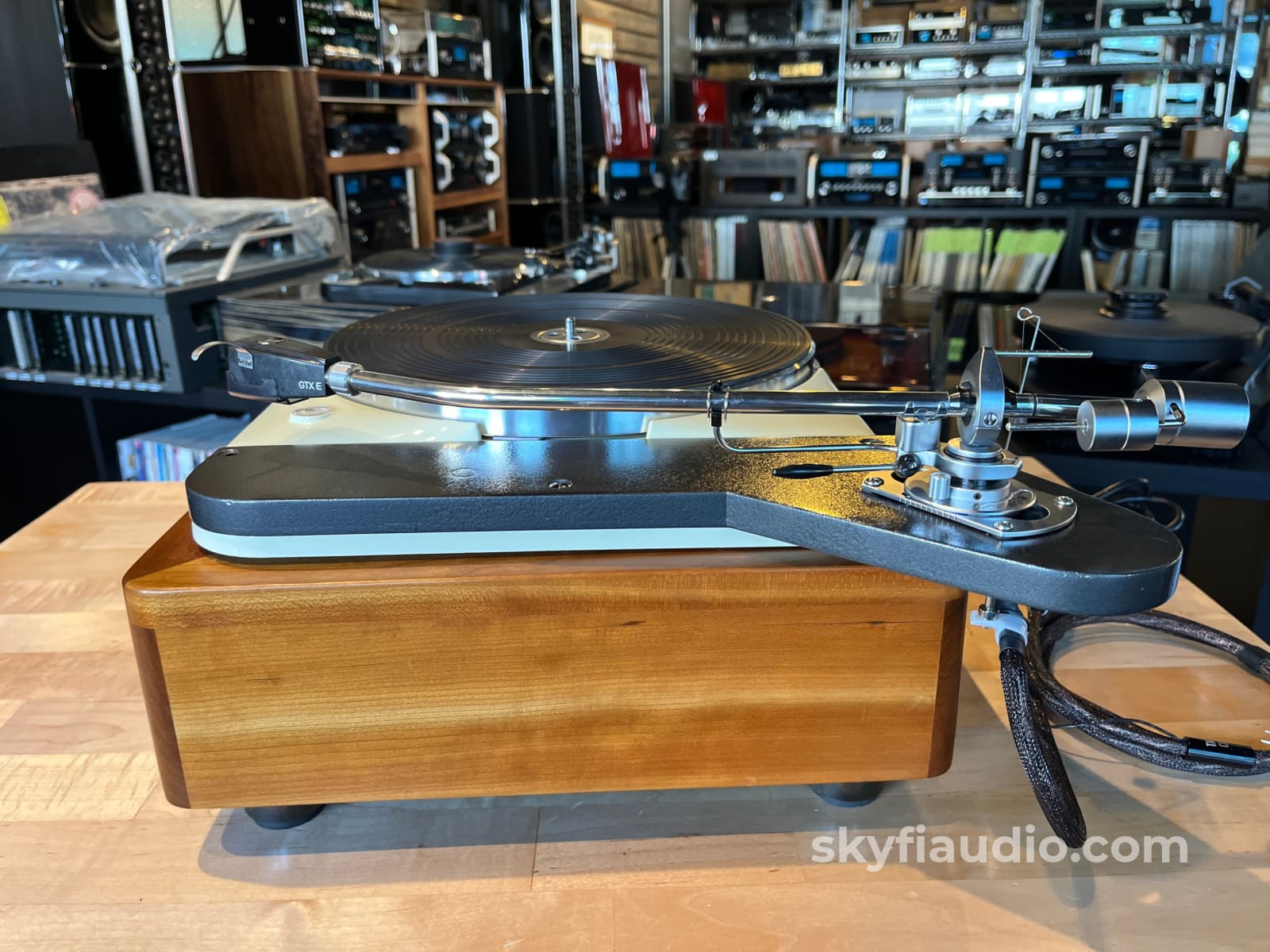

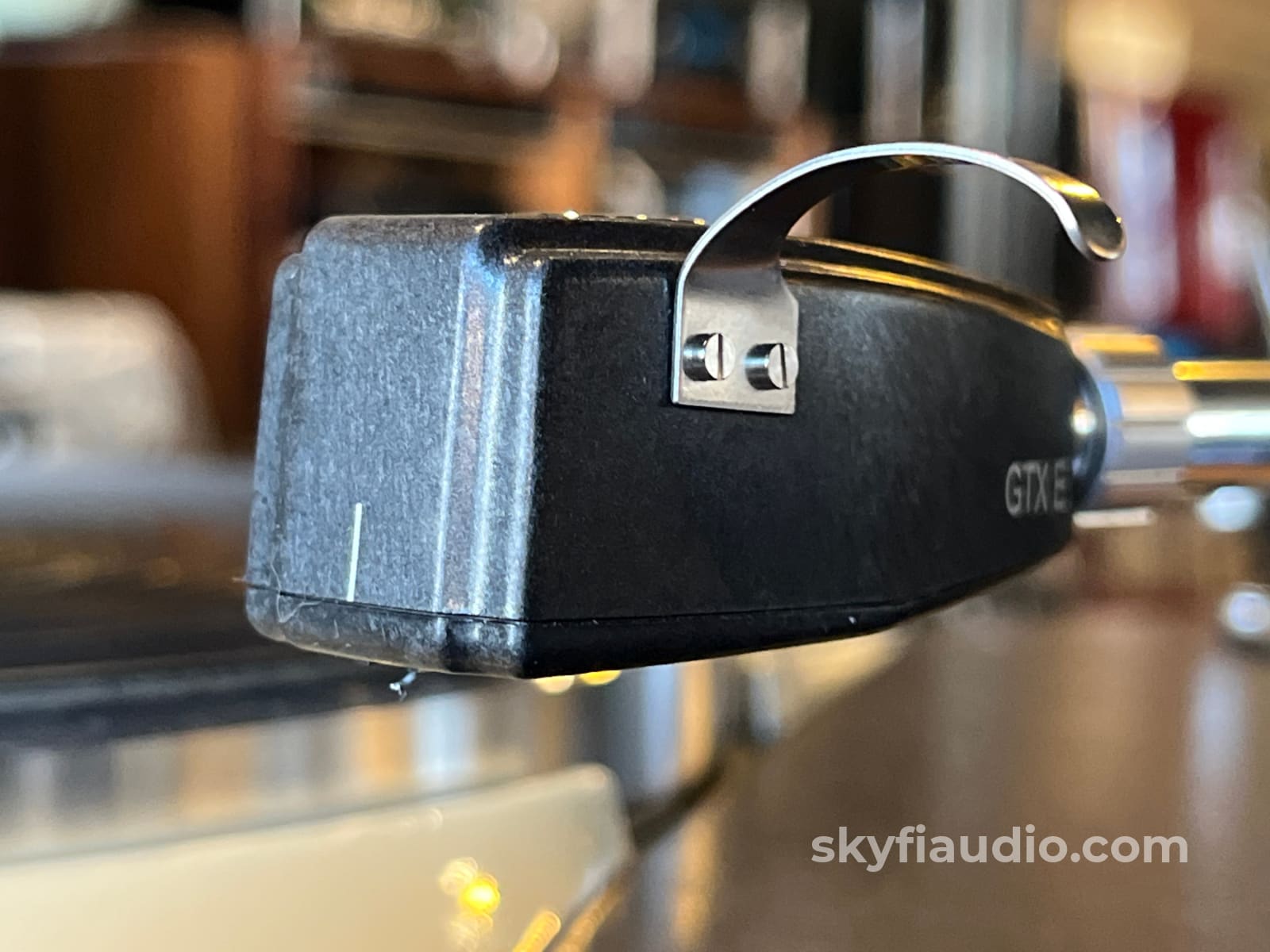

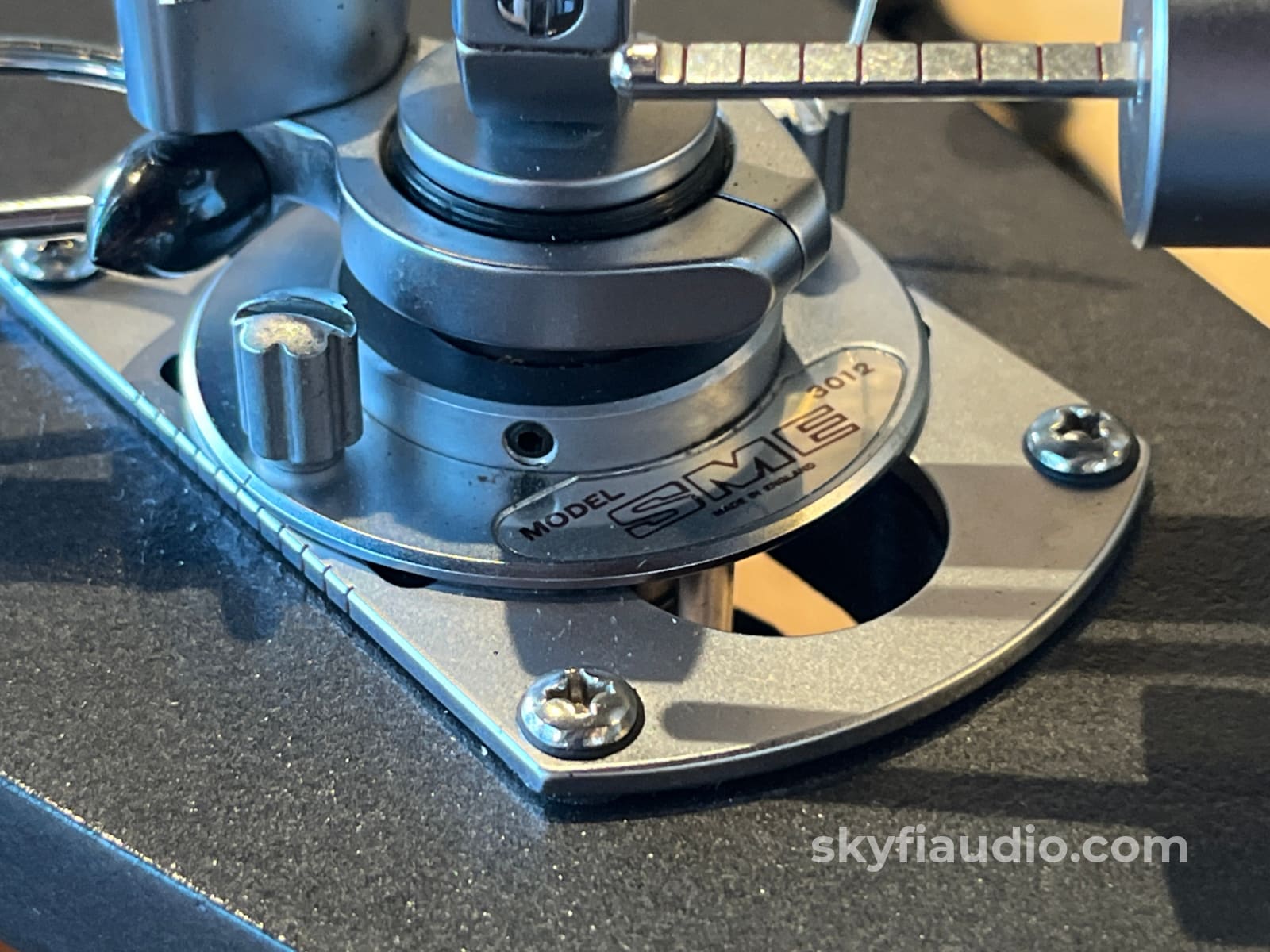

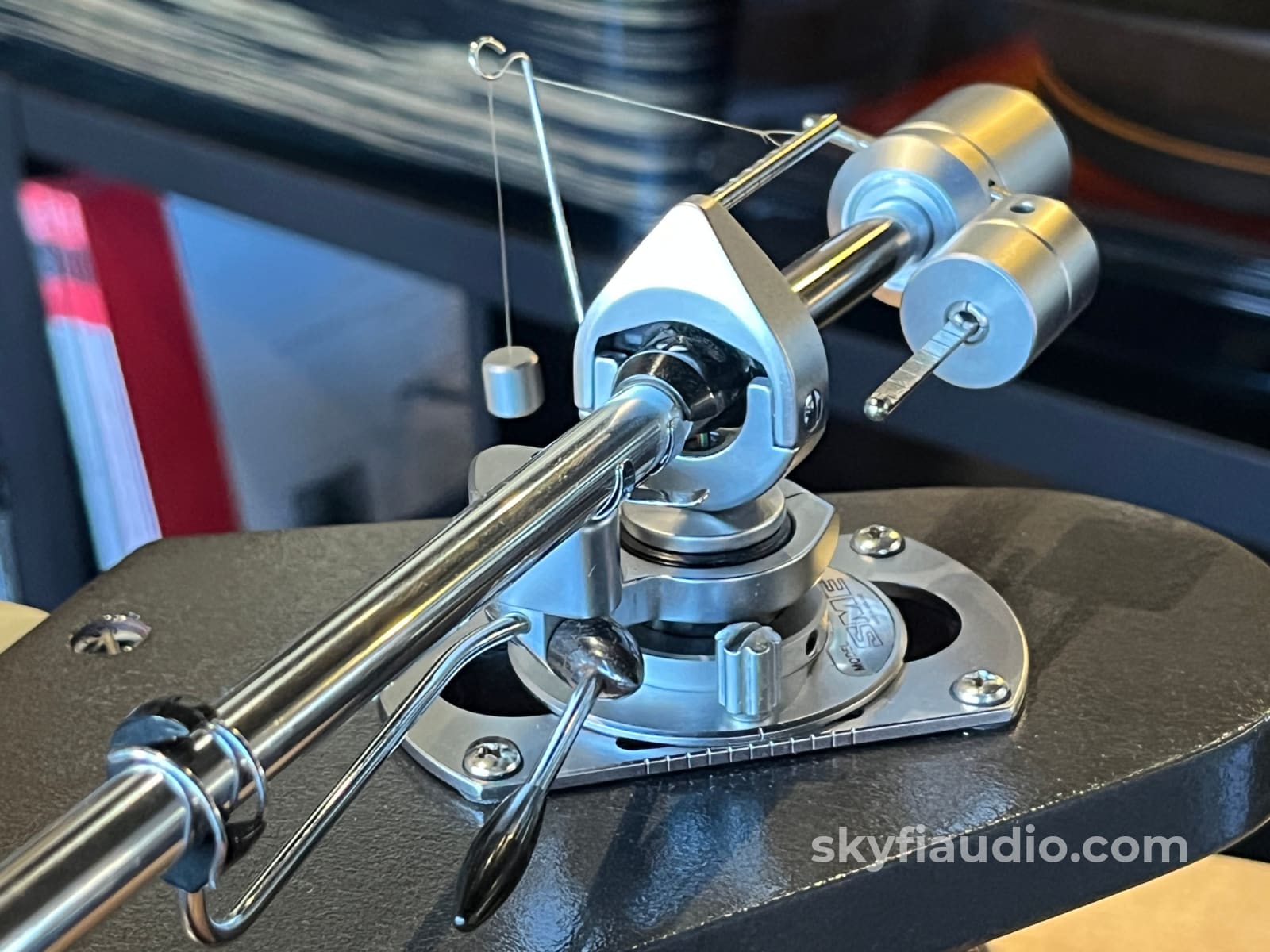

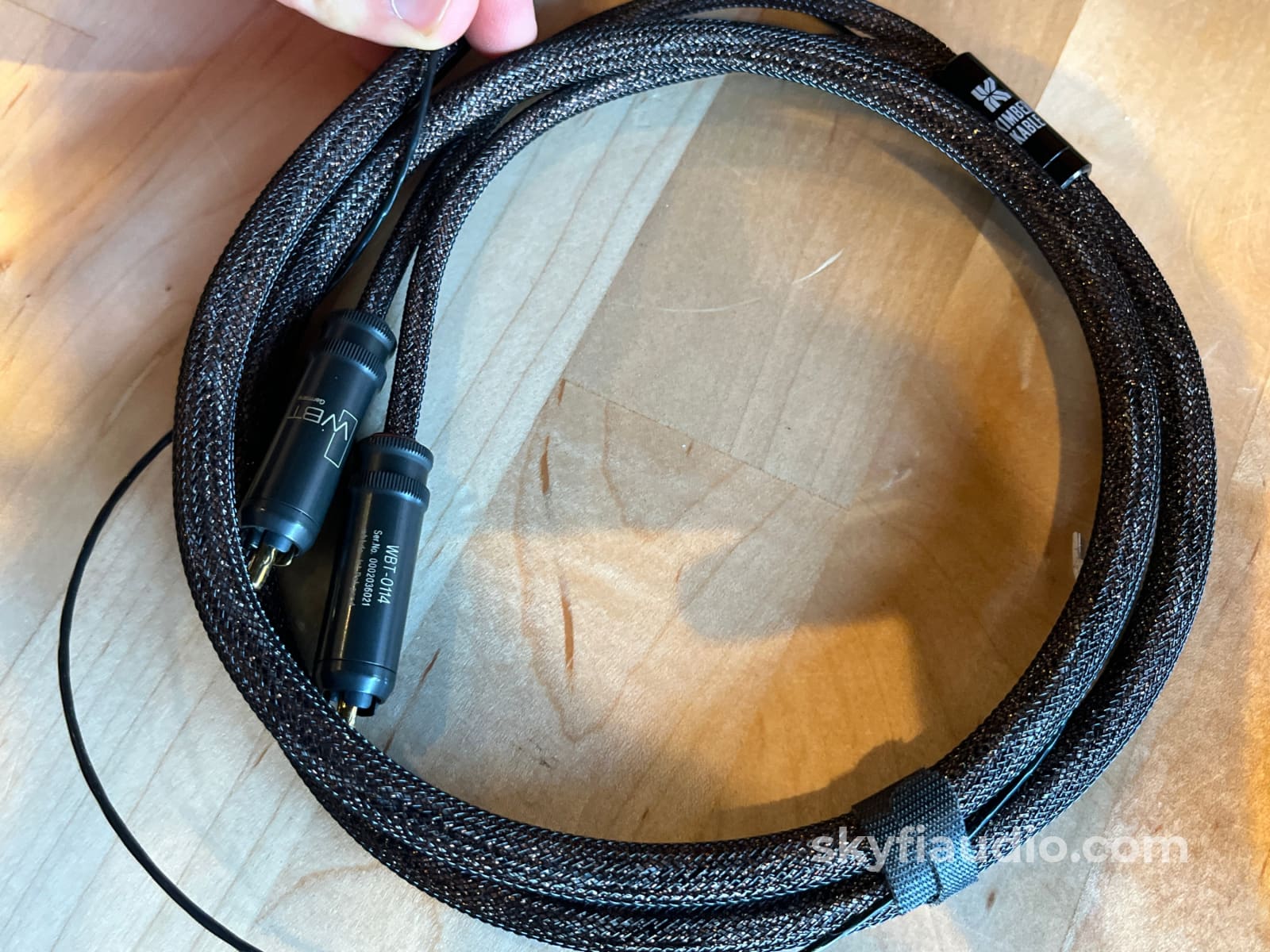

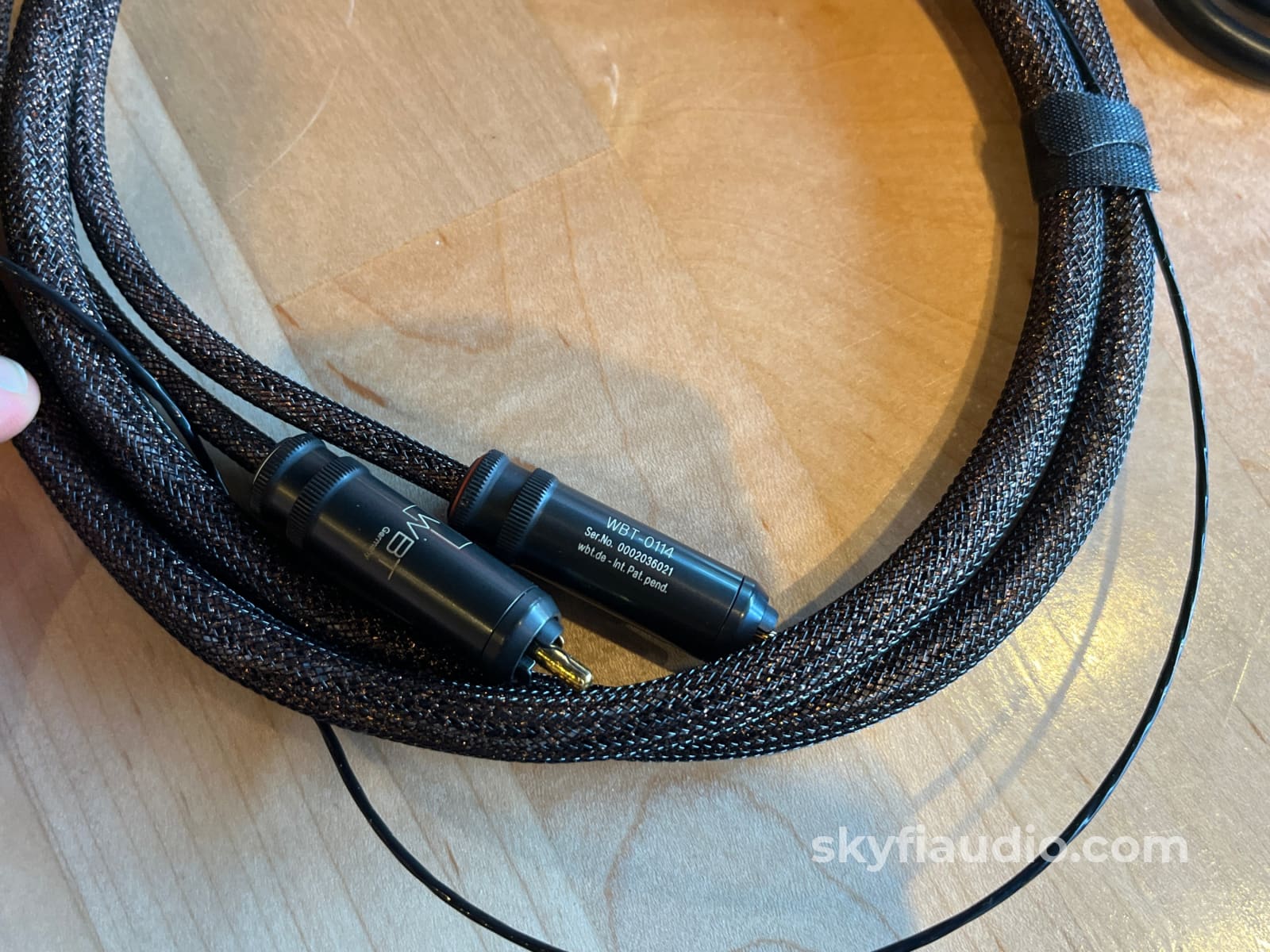

Mounted is an SME 3012 tonearm, the legendary 12-inch transcription arm that pairs exceptionally well with Ortofon SPU cartridges. Mounted on this arm is a brand-new Ortofon GTX E SPU cartridge ($1,363.99), a combination that is both historically appropriate and sounds fantastic. This will be calibrated using our 12-step setup process ($390), ensuring it performs at its full potential right out of the box. As a bonus, attached to the tonearm is our favorite Phono interconnect, a Kimber Kable TAC-CU with WBT locking connectors.

As with every turntable that leaves our shop, this TD-124 will be meticulously packed to protect it during transit, so it arrives ready to be enjoyed.

SkyFi Cosmetic Notes:
Light wear on tonearm and Thorens drive. Overall condition is great.

Brand Background:
Thorens is the oldest name in entertainment electronics, founded in 1883 by Hermann Thorens in Sainte-Croix, Switzerland. The brand is still worldwide known for its high-quality record players.

Thorens is a formerly Swiss manufacturer of high-end audio equipment. Thorens is historically renowned for the range of phonographs (turntables) the manufacturer produces. In addition to audio playback equipment, Thorens is also a historical producer of harmonicas and cigarette lighters, most notably the button actuated "automatic lighter".

Ownership:
Single Owner

Connections:
RCA Phono Cable W/ Ground, Captive Power Cord

General Sound:
Smooth, uncolored, undistorted natural and clean

Cosmetic Condition:
7/10 = Good. One or two minor scratches. Well Maintained. See our detailed rating description here.

Working Condition:
Working perfectly and calibrated on our custom turntable calibration stand.

Included:

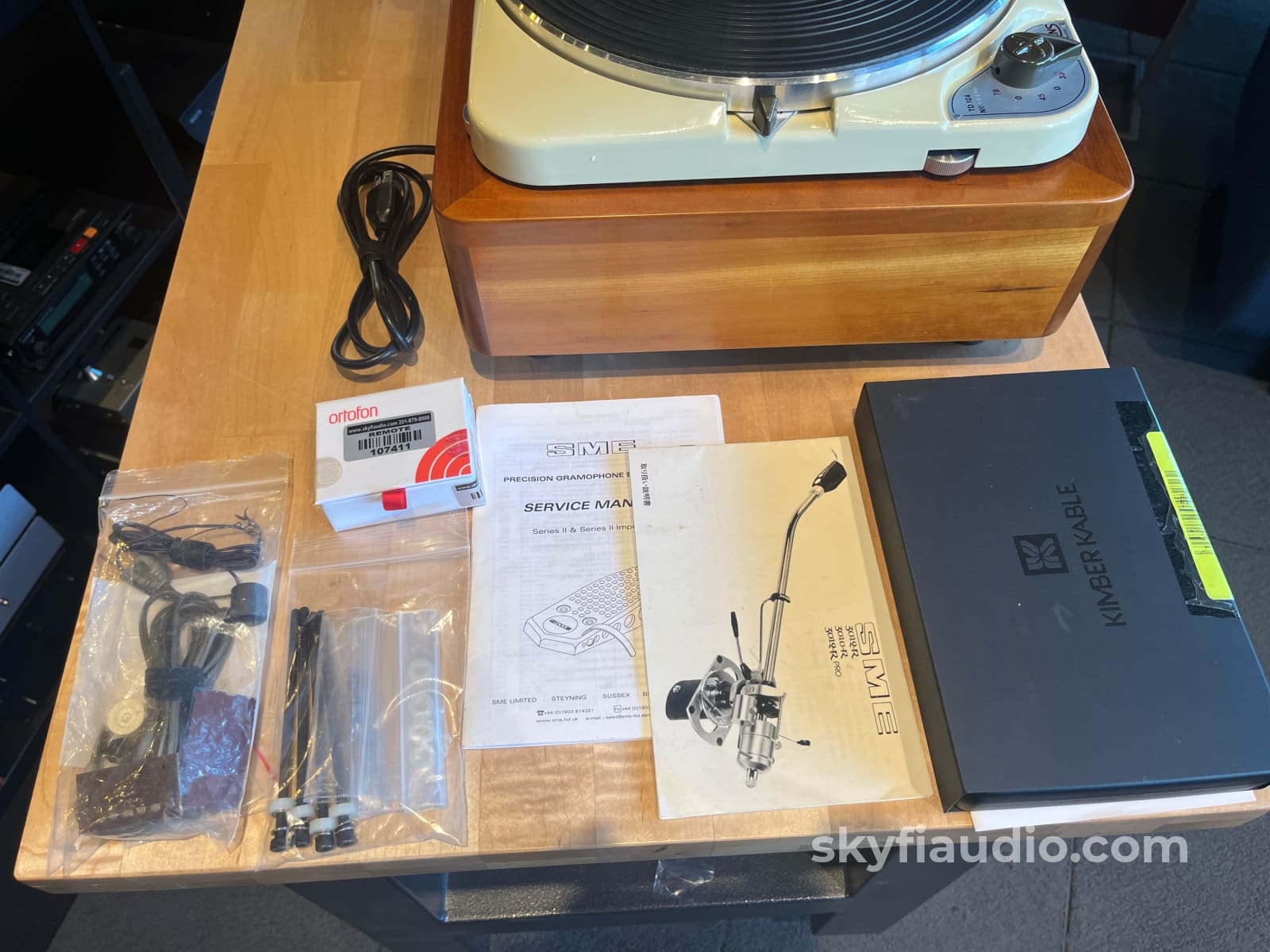

Turntable, Cartridge, Kimber Kable TAC-CU Phono Interconnect

Packing:
Will be packed using our highly developed in-house process and custom packing materials.Specs:

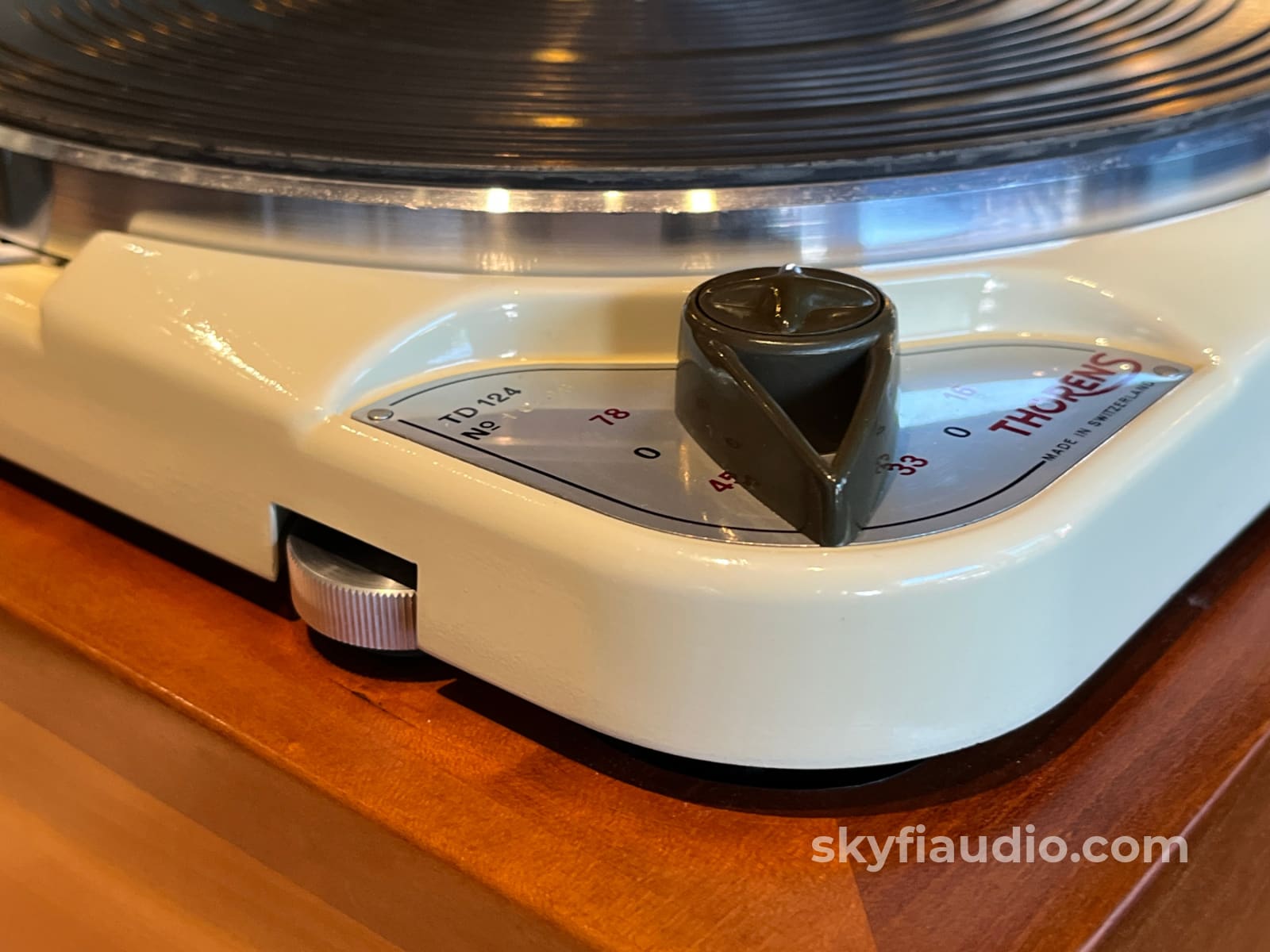

- Speeds: 4-speed variable speed (+/-3%)
- Platter: 12", 11.5lbs table with separate non-magnetic aluminium shell cover
- Drive: precision built motor with extra compliant belt plus idler isolates motor vibration
- Power: 100/250V, 50/60Hz
- Wow / flutter / rumble: exceeds NAB specifications
- Tonearm: replaceable tonearm mounting board for 12" and 16" arms

Dimensions:
20 x 14.25 x 8

Weight:
45 lbs.

Testing Process:
First we try to identify any mechanical issues, particularly in the tonearm bearings. We check for freedom of movement or any resistance on both the horizontal and vertical range. There is a quick test for this which involves placing the table on its front edge and allowing the arm to swing freely like a pendulum. We then make any adjustments necessary to achieve minimal resistance and sometimes adjust the bearing pressure. On gimbal tonearms we inspect the cone tip with a magnifier.

We then assess the platter speed using one of several methods, the most accurate being playing a test tone on a test record and measuring the frequency output with a frequency counter or oscilloscope. We also utilize test equipment to measure the wow and flutter to ensure it is within spec. We do this for all speeds available for that particular model (33 RPM, 45 RPM, 78 RPM).

Adjustments are then made to achieve proper speed which will vary depending on the turntable's drive design. Some require an adjustment of an internal or external potentiometer, some will require a pulley or motor adjustment. We also inspect the platter bearing to ensure it is properly lubricated, keeping in mind that some bearings don't require lubrication at all

We then inspect the power supply and address any issues with overworked capacitors, particularly on Linn and later Thorens machines which tend to need attention.

On fully mechanical vintage tables like the Thorens TD-124 and Garrard 301/401 we will go thought the entire mechanism. Then replace any worn parts and lubricate all components necessary to ensure smooth operation, speed change, and low mechanical noise.

When fitting a new phono cartridge we will go through our detailed calibration process which can involve as many as 12 steps depending on the tonearm design. We perform this work on our custom turntable calibration rig which was developed in-house.

Some of these steps include:
• Pivot to Spindle Adjustment
• Tracking Force
• Anti-Skate
• Tonearm Height
• Lifter Height
• VTA (Vertical Tracking Angle)
• Azimuth
• Stylus Distance and Overhang

We then do a critical listening test using our test records and our test system to ensure proper sonics.
