Nagra T-Audio Reel to Reel Machine - Legendary - Ready to Ship

Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

General:
I have owned just about every professional reel to reel and nothing comes even close to this model. It is truly a work of engineering and art.

This model includes the following notable options:

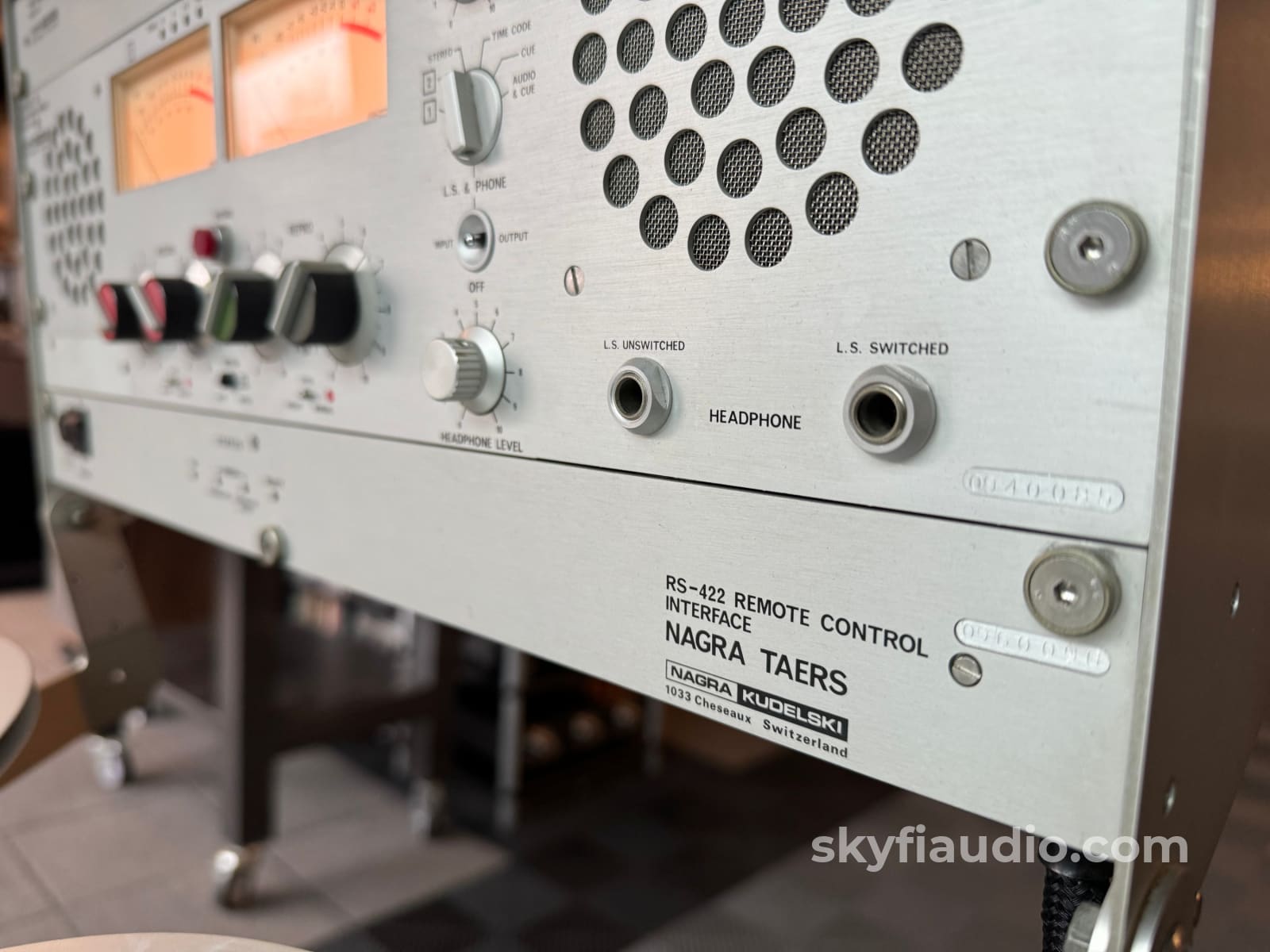

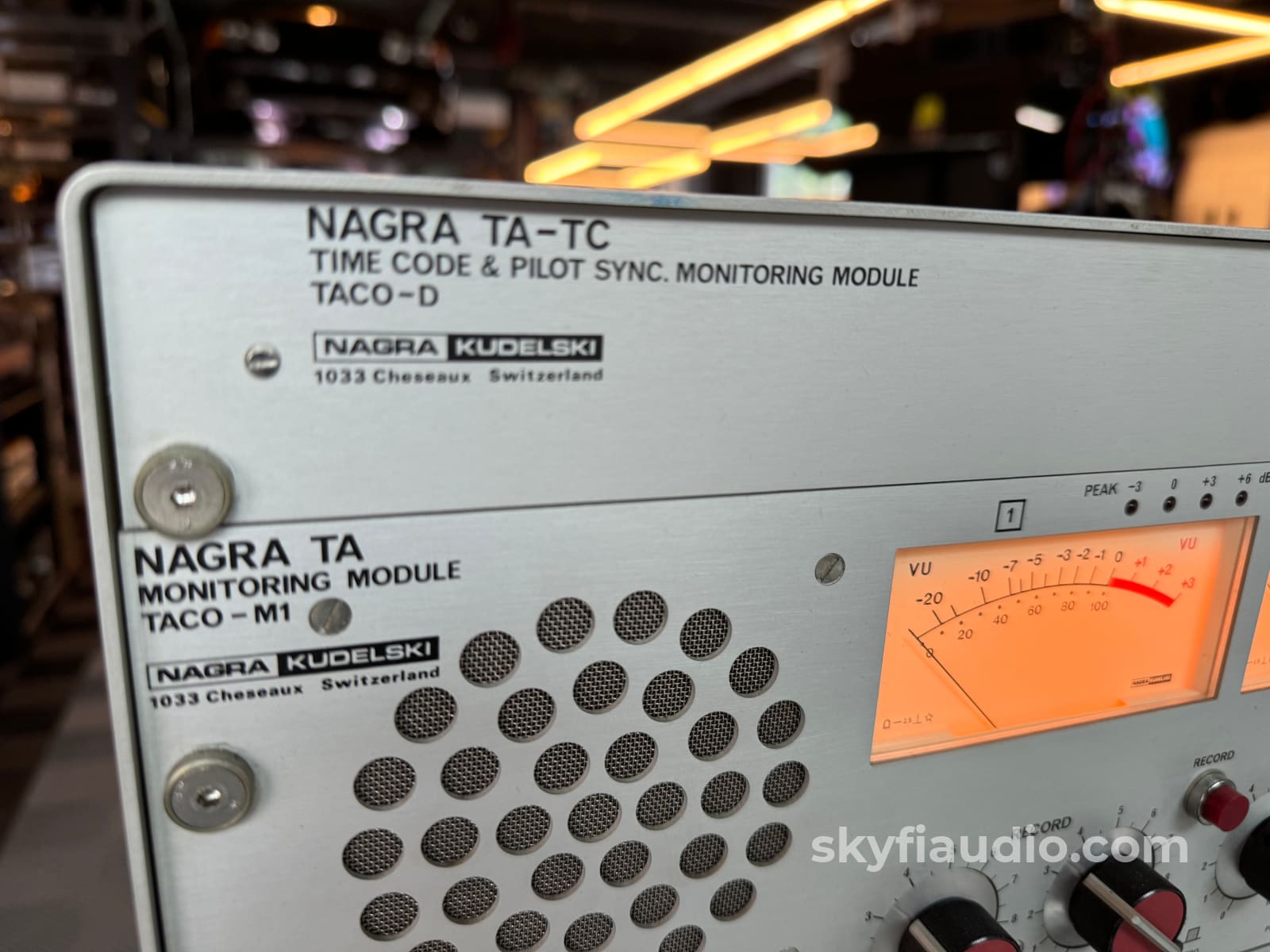

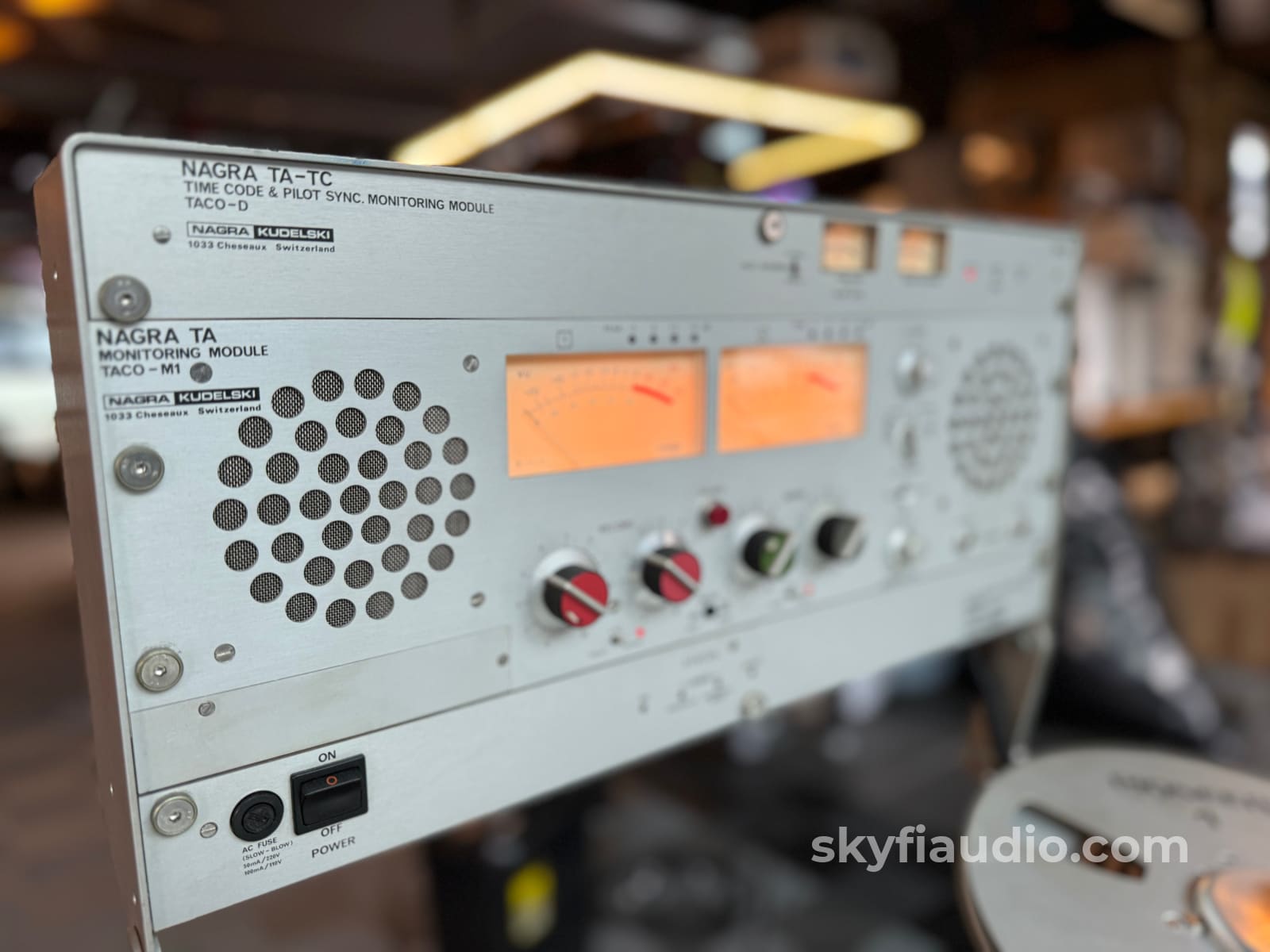

1) TAHP Monitoring Speaker and Headphones
2) TASIM Simultaneous Playback

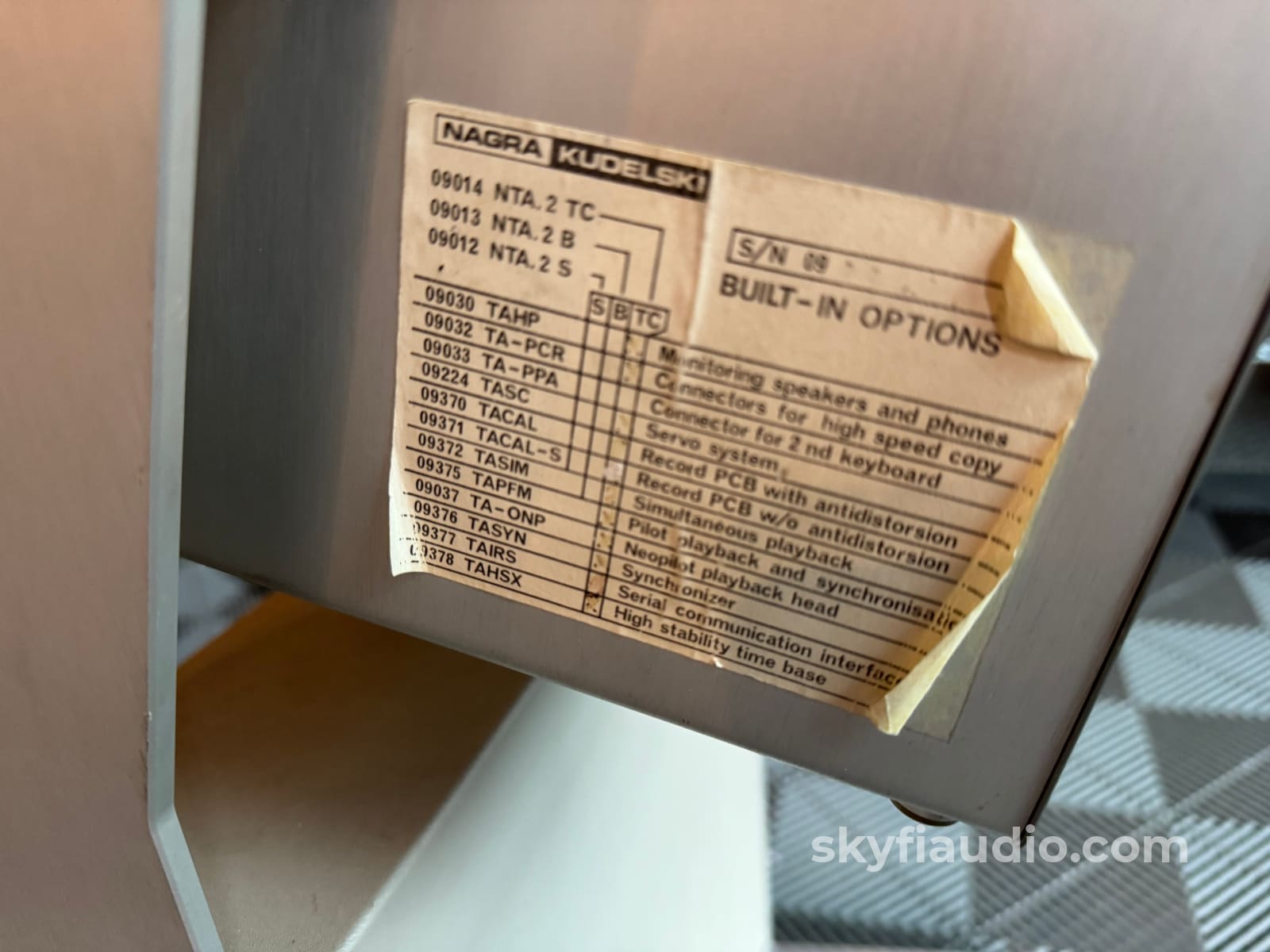

Loaded with just about every available option, see chart on side label for the specifics.

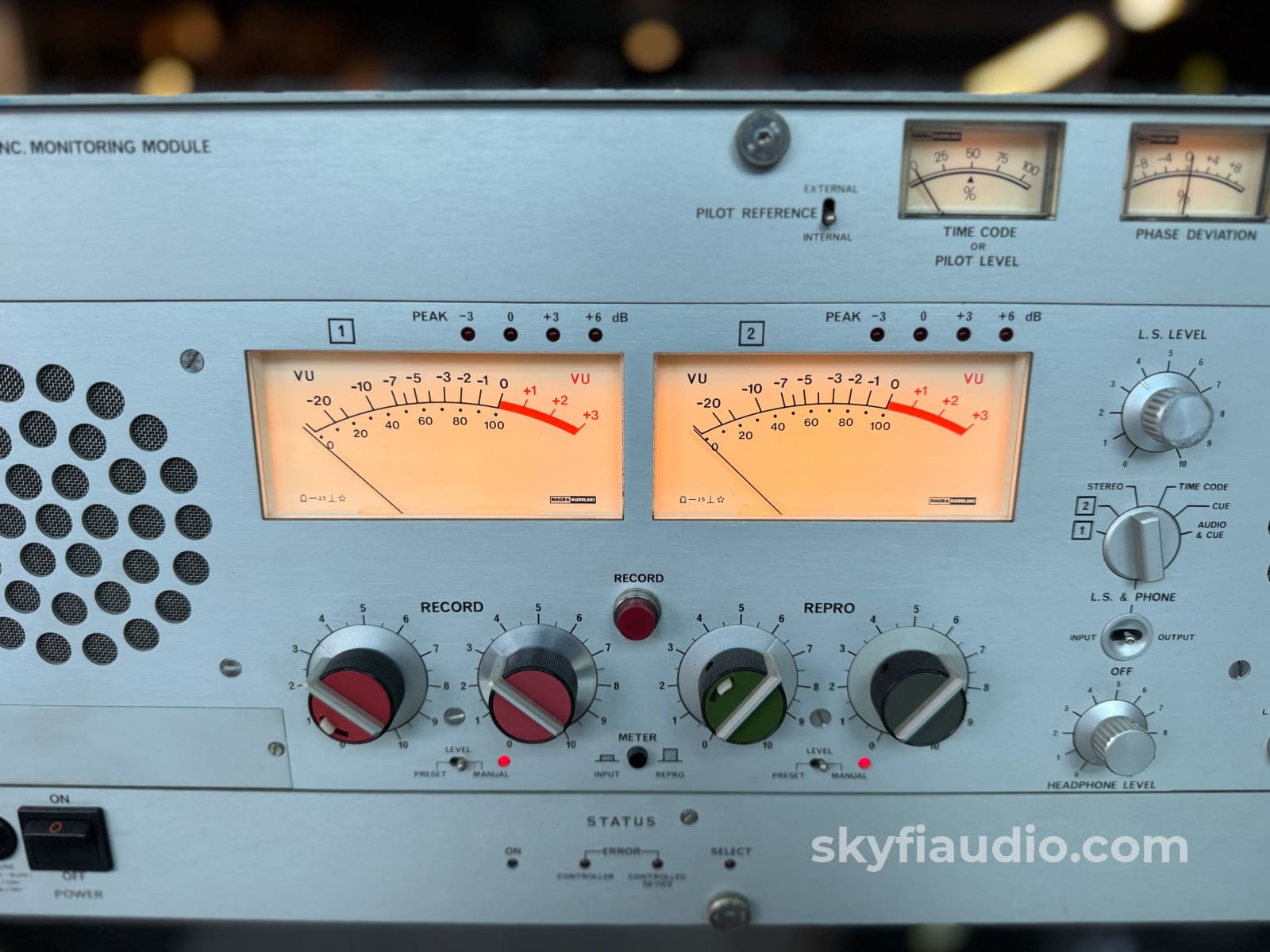

Tested and lightly serviced to its full potential. It plays back beautifully and makes a great tape. Meter lights were upgraded to LED's for a brighter look.

Best of all it is capable of speeds up to 30 IPS (Inches Per Second).

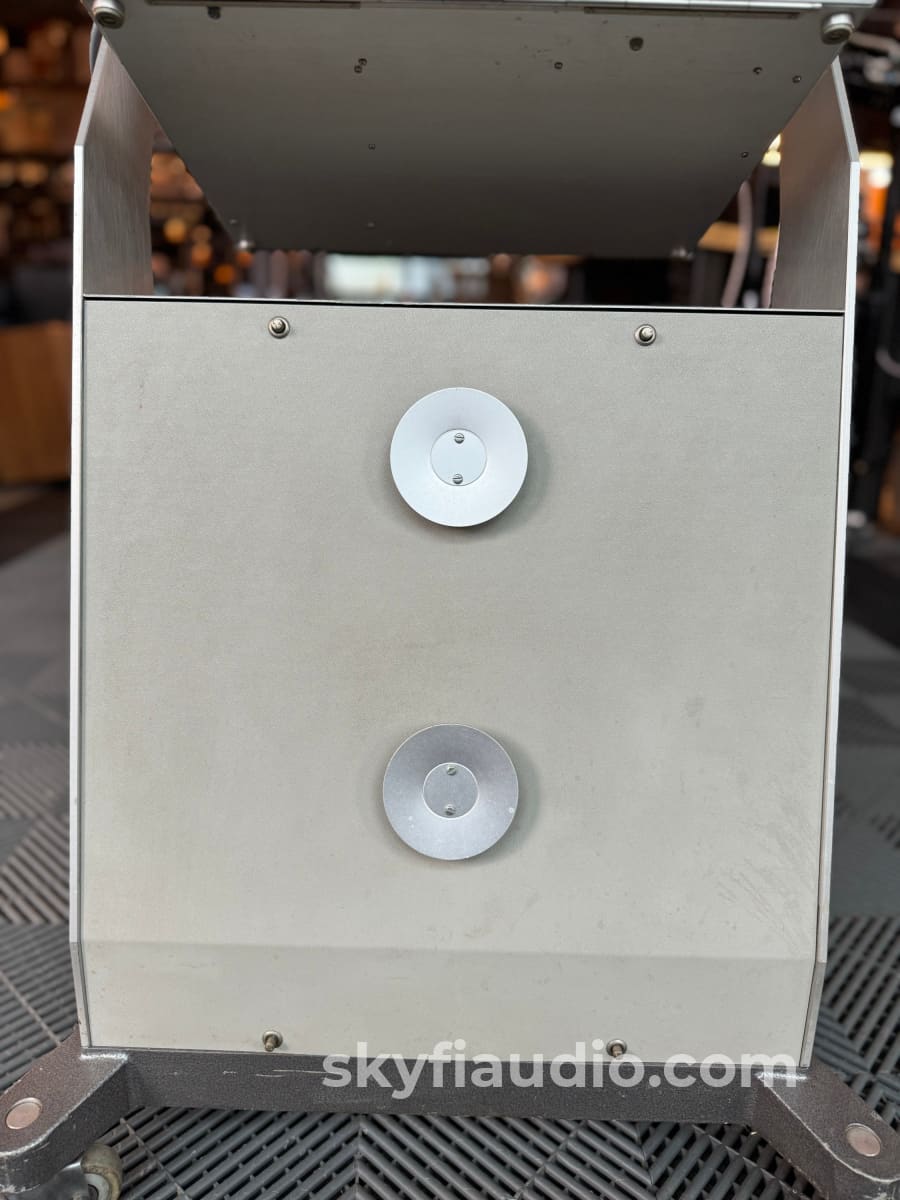

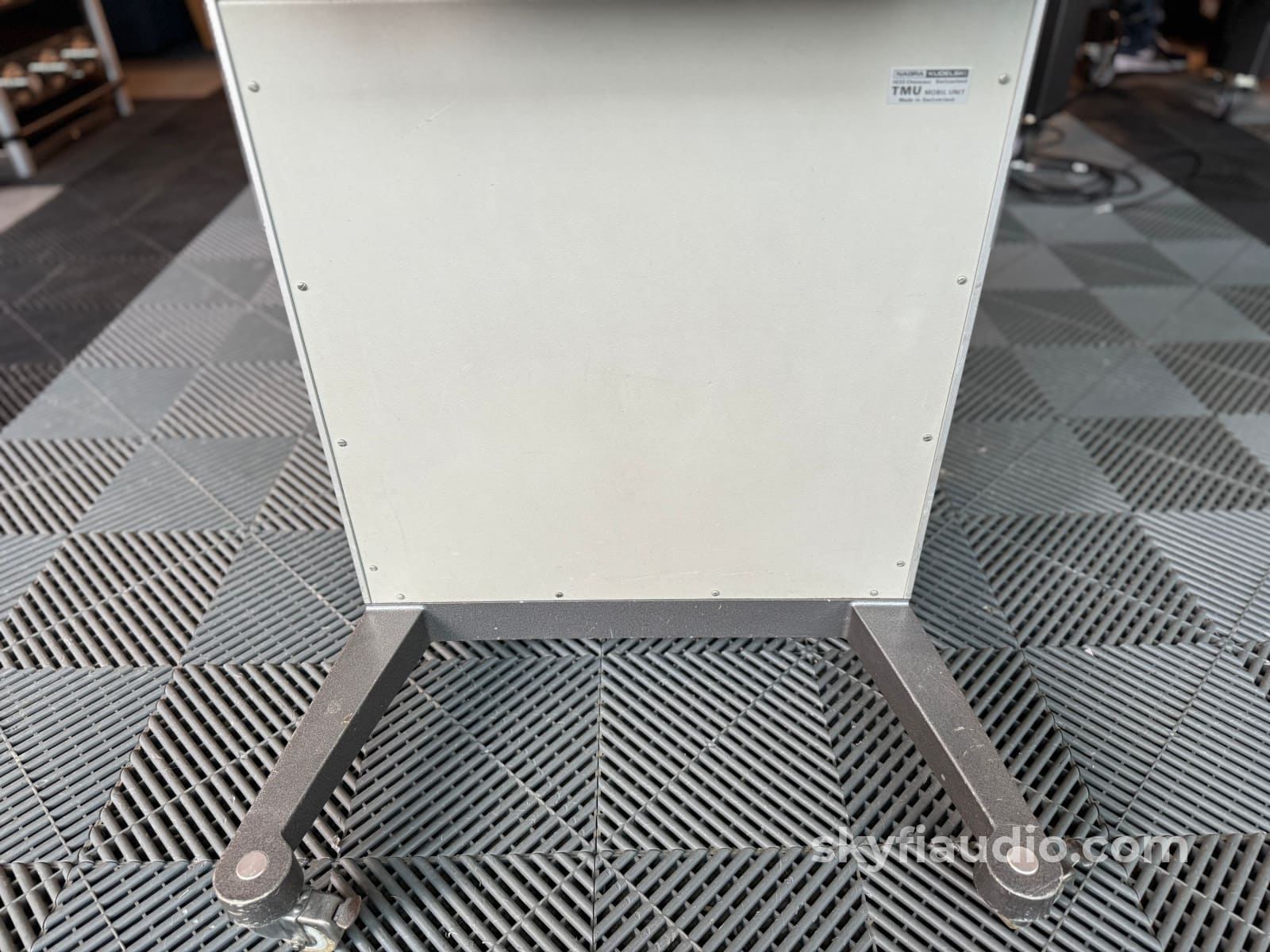

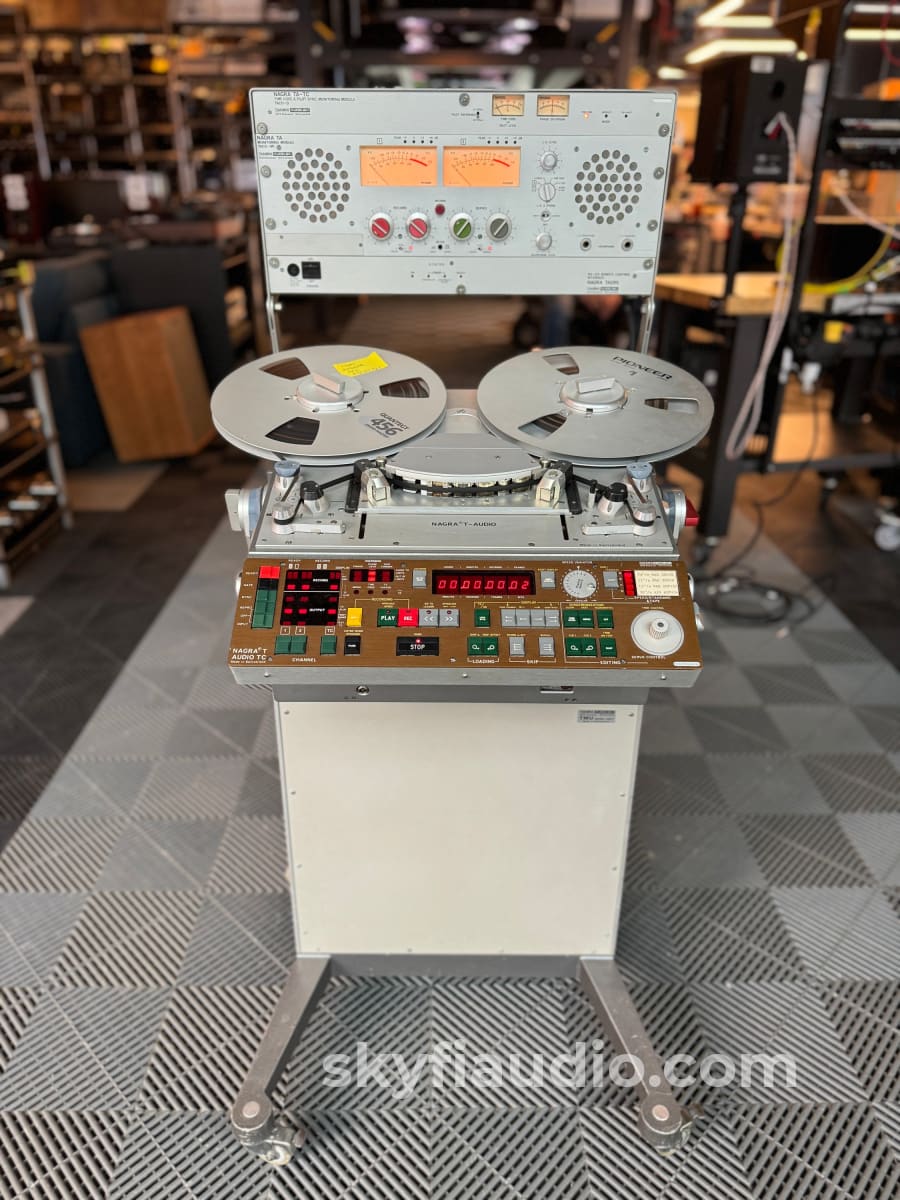

Your purchase Includes the stand, meter bridge, two NAB hub adapters, and a power cord.

This will ship securely wrapped, packed, and strapped on a pallet with custom crating to ensure safe shipping.

More from Nagra:
Manufactured from 1981 to 1994
Click here to view the original T-AUDIO (retro-cool) sales brochure

Two track analogue transportable recorder
First introduced in 1981, the T-Audio is a two track analogue transportable recorder intended for studio recording. It is designed to be trolley-mounted.

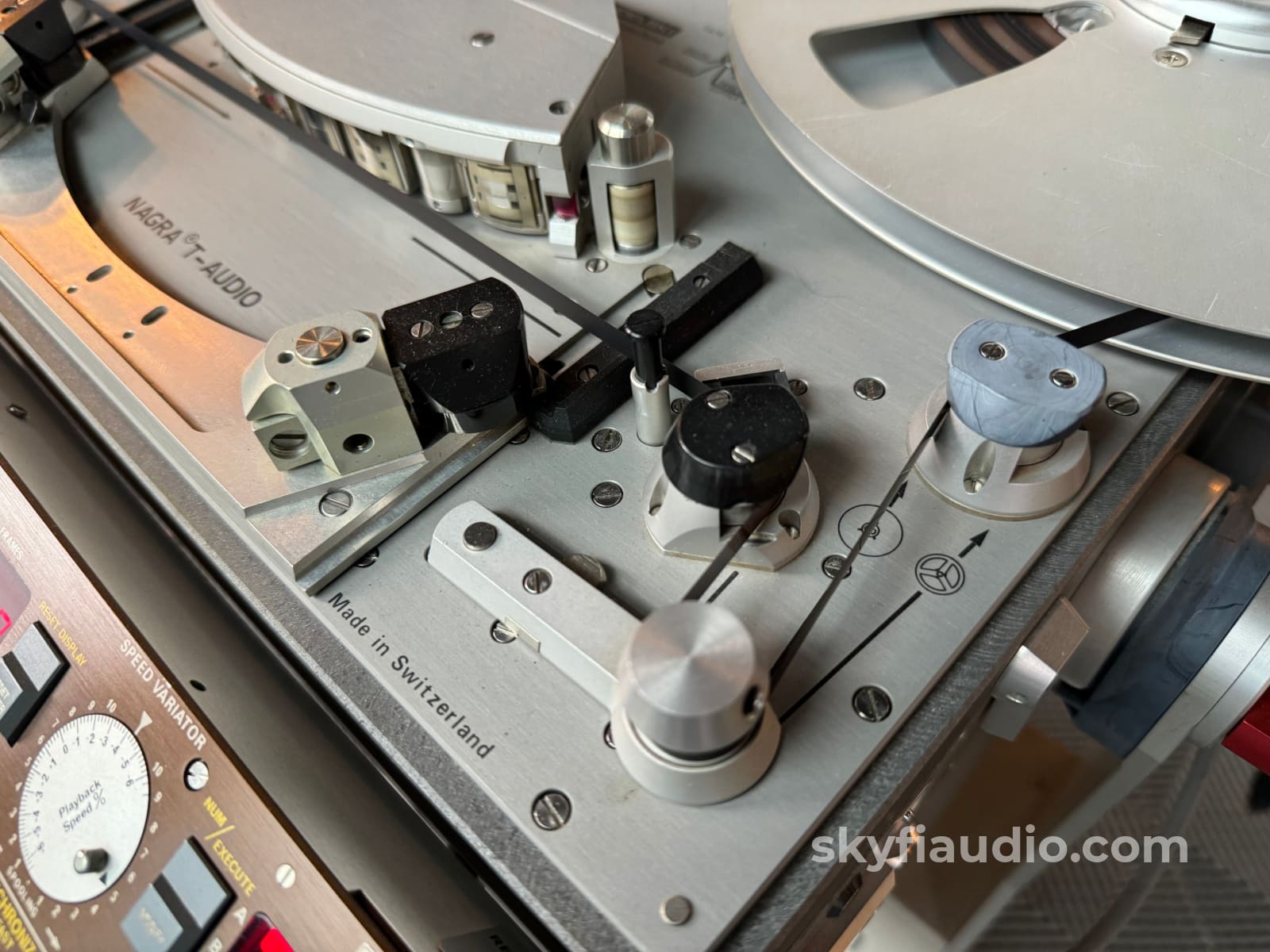

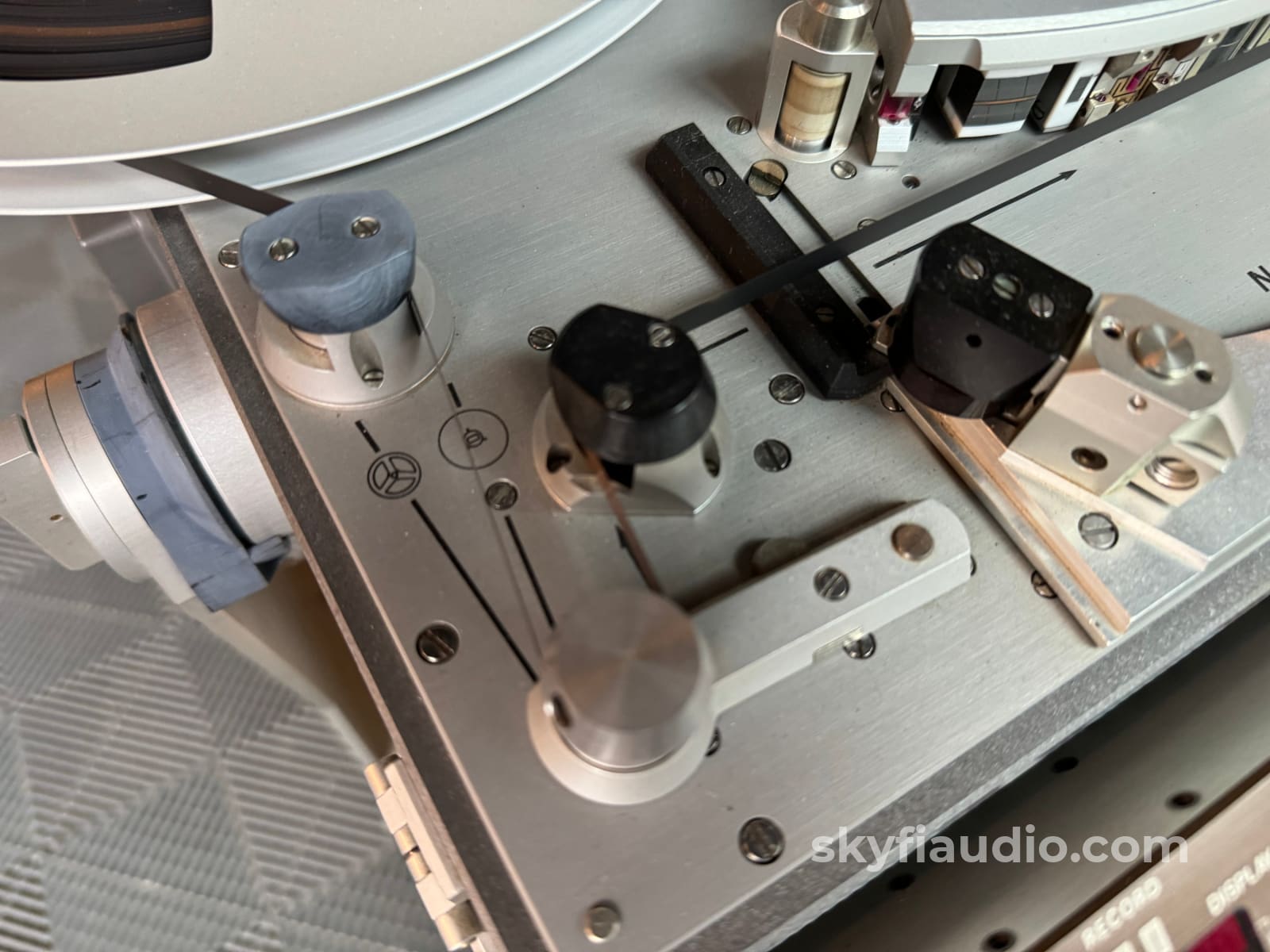

With programmable combinations of up to 4 different tape speeds / EQ settings it can be entirely customized to different tape formulations, speeds and equalization parameters. Using a Twin-capstan tape transport system, it handles master tapes with a delicacy not before seen in a studio recorder.

KEY FEATURES
Initially it was a stereo recorder / player aimed at the disk mastering industry. A monophonic model was also developed. A twin track version with an independent erase head for each track, and was aimed at the radio broadcast industry.

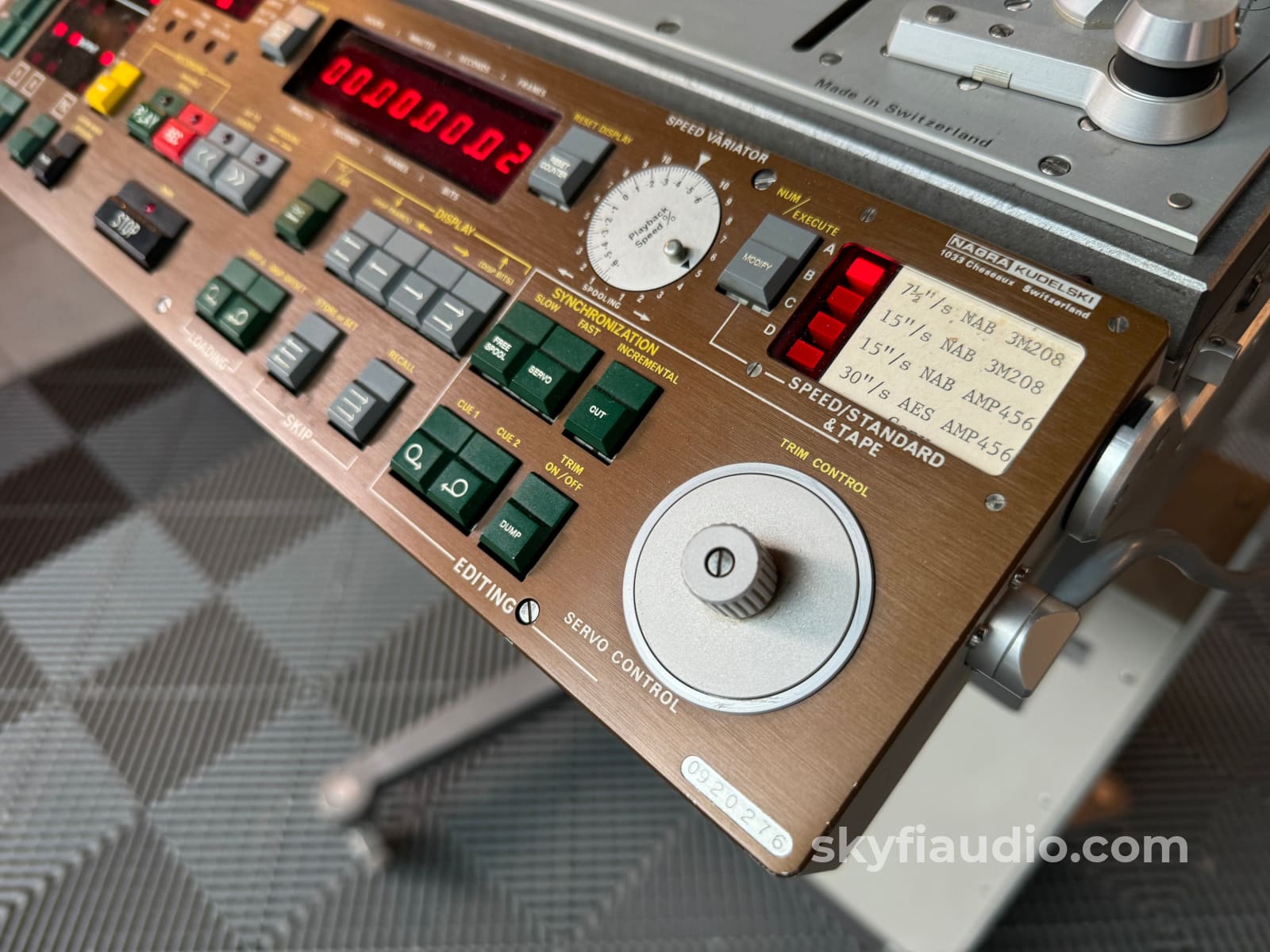

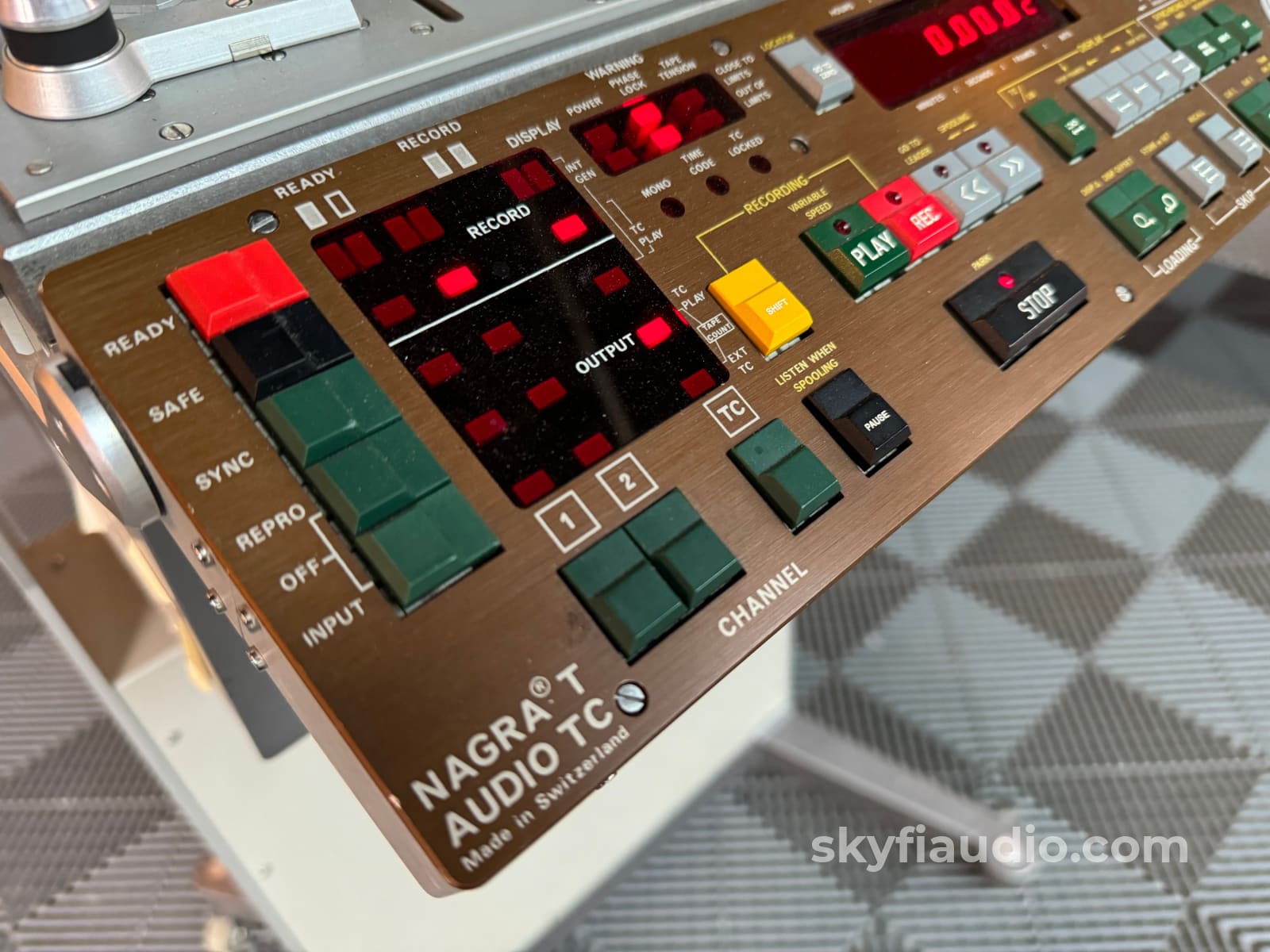

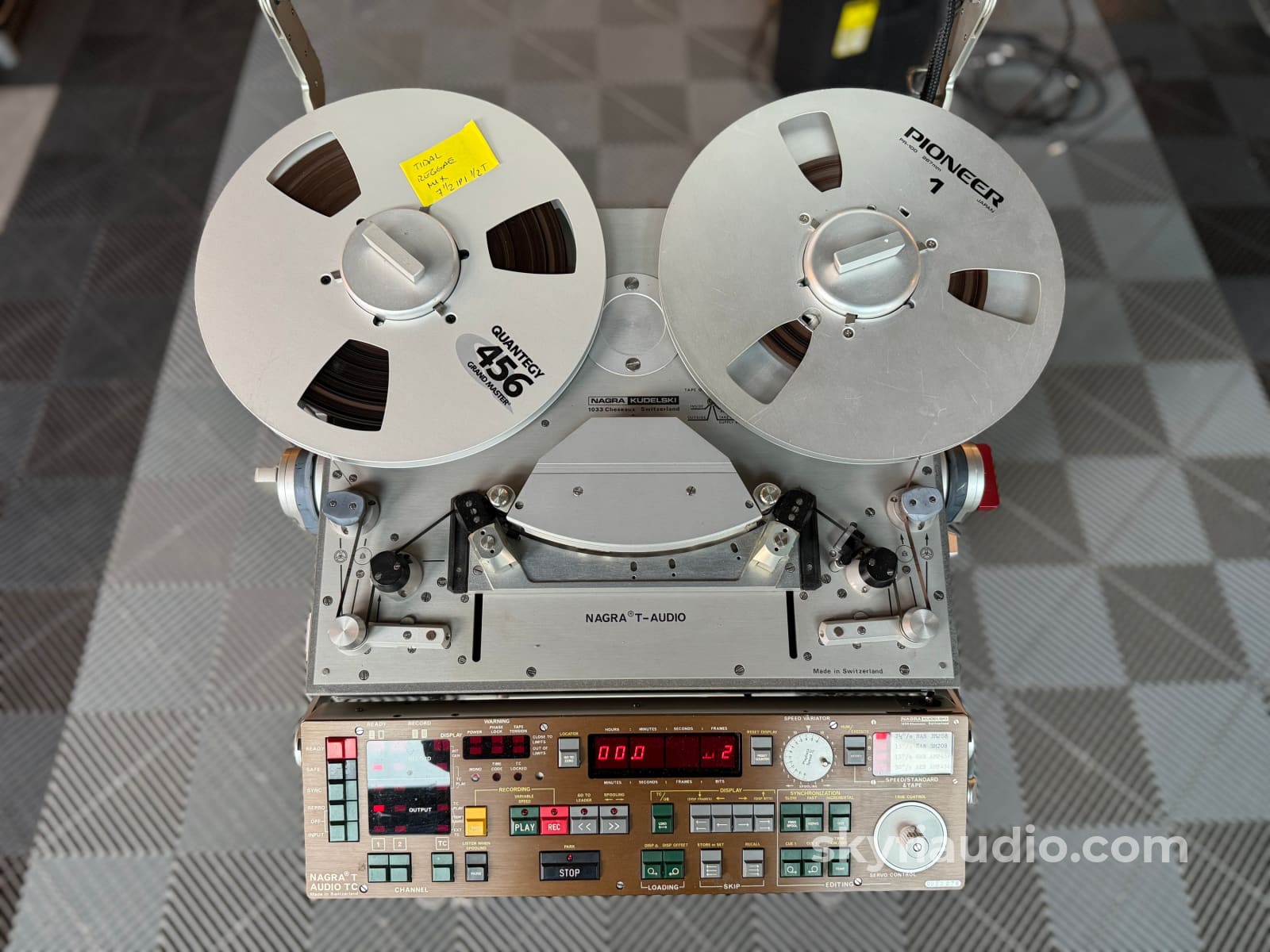

In 1984 a full time coded SMPTE / EBU version was introduced and became the industry standard for audio transfers for film applications around the world. The different models, although mechinically very similar, were easily identifiable by the removable control panel or “keyboard” mounted on the front. (The machine in the above picture is equipped with the TACA-TC keyboard).

The T-Audio manages rells up to 10.5 inches in diameter and can be equipped with a magnitude of different options and accessories for many different applications.

Different models were:
NTA-2S – Stereo Model
NTA-2M – Monophonic version
NTA-2B – Broadcast Model
NTA-2TC – SMPTE Time code model
NTA-3TCN – Time code without internal chase synchronizer
NTS-3TCS – Time code with internal chase synchronizer
NTA-3TCR – Time code with internal chase synchronizer and RS-422 serial contriol

The mechanics of all T-Audio machines are principally the same.

Brand Background:
Nagra is a brand of portable audio recorders produced from 1951 in Switzerland. Beginning in 1997 a range of high-end equipment aimed at the audiophile community was introduced, and Nagra expanded the company’s product lines into new markets.

Originally a product of the Kudelski Group, Nagra recorders are now developed, produced and sold by independently-owned company Audio Technology Switzerland S.A., based in Romanel-sur-Lausanne.

The machines were initially designed by Polish inventor Stefan Kudelski,[1] and his company won numerous technical awards for their precision and reliability.[2] Nagra means "[it] will record" in Polish, Kudelski's mother language.

Nagra-brand tape recorders were the de facto standard sound recording systems for motion picture and (non-video) single-camera television production from the 1960s[3] until the 1990s

Ownership:
Single Owner

General Sound:
Accurate to the recording

Cosmetic Condition:
8/10 = Very Good. Excellent front faceplate, one minor flaw on chassis side or top. See our detailed rating description here.

Working Condition:
Working perfectly and tested in our lab.

Packing:
Will be packed using our highly developed in-house process and custom packing materials.Recommended Cables:

Kimber Kable - XLR Interconnects

Kimber Kable - Power Cords

Testing Process:

First steps are performed to determine if the unit is a candidate for our full restoration process or if it's just in need of a light service.

We first do a  basic functionality test to ensure proper playback fast forward and rewind.  We look for smooth operation of the motors, transport engagement and associated rolling parts.

We then do an internal physical inspection to ensure the belts and rubber consumable parts are up to spec.

Internal components are checked to make sure that there are no signs of heat stress or damage particularly in the power supply section.  Capacitors are checked for telltale signs of predictive failure including bulging, shrunken wrappers, or physical leakage. We also inspect the PCBs for discoloration from resistors or transistors that may have been running hot. On vintage units we often spot check select capacitors for value and ESR.

A light service will involve replacement of belts and rollers, external cleaning of heads, mechanism and boards and basic record and playback tests.

A full restoration will often include disassembly of the drive system and replacement of all consumable and wearable parts including pinch rollers, belts, brakes, bearings.  We then clean lubricate and re-assembly the drive and perform basic mechanical alignment to ensure proper tape path and head alignment.

Final calibration will involved adjustment of playback erase and record heads and optimization of the bias for a specific tape type.  We do this with the aid of a  Soundtech 1510A tape deck analyzer and a Nakamichi T100 unit and reference calibration tapes.

Final listening tests are done while monitoring with our reference Grado HP1 headphones and a variety of factory and custom reference recordings.  We find that there is no better system for critical listening on tapes than the headphones specially when comparing a live feed to a recorded feed.
