McIntosh MDA200 Quad Balanced D/A Converter - NEW
Click here to schedule an appointment to visit our store.
Please note this item must be purchased in store and we will not ship under any circumstances. Click here for more information about this policy.
Please support your local McIntosh Dealer.
Standout Features:
• Premium Digital Performance
• Add digital music playback to an all analog system or replace an older, outdated converter
• Comes with DA2 Digital Audio Module installed
• Supports up to DSD512 and 24-bit/192kHz
• 7 digital inputs: 2 coax, 2 optical, 1 USB, 1 MCT, 1 HDMI (ARC)
• Balanced and unbalanced analog outputs
General:
The MDA200 D/A Converter from McIntosh provides premium digital music capabilities. It can add digital music listening to an otherwise all analog home audio system, or it can also be a useful upgrade to an older D/A Converter that has become outdated and needs to be replaced so you can achieve better playback performance and enjoy current features. It is a stand-alone, outboard D/A Converter that can easily be added to home audio systems of various sizes, ages, and configurations.
At the heart of the MDA200 is the McIntosh DA2 Digital Audio Module. The DA2 has 7 digital audio inputs: 2 coaxial, 2 optical, 1 USB and 1 MCT (for use with our MCT series of SACD/CD Transports), and 1 audio-only HDMI Audio Return Channel (ARC)1 connection. The DA2 is powered by a next generation, Quad Balanced, 8-channel, 32-bit Digital-to-Analog Converter (DAC). This audiophile-grade DAC features improved dynamic range and improved total harmonic distortion. The DA2 supports high resolution digital audio playback, as the USB input supports native playback of up to DSD512 and DXD up to 384kHz, while the coax and optical inputs can decode digital music up to 24-bit/192kHz.
The HDMI (ARC) input allows TVs with a compatible HDMI (ARC) output to be connected to your home stereo system to bring a new level of audio performance to your TV and movie watching that TV speakers or soundbars just can't provide. Popular multi-channel audio formats from Dolby® and DTS® are supported and will be expertly converted to 2-channel audio for proper playback.
The DA2 has received Roon Tested designation from Roon Labs, which can be especially useful if you have an extensive library of digital music. As a Roon Tested partner, McIntosh has provided equipment to Roon for testing with a variety of different operating systems and computers, and shared information about its design and capabilities.
Additionally, since digital music formats and technologies change and improve over time, it is possible to replace the DA2 in the MDA200 with a newer Digital Audio Module should one be introduced in the future. This protects your investment in the MDA200 and provides peace of mind that it can be enjoyed as a valuable part of your home entertainment system for many years to come.
To connect the MDA200 to your sound system's preamplifier or integrated amplifier, it has a pair of both balanced and unbalanced analog outputs. McIntosh offers both balanced cables and unbalanced cables to make these connections.
The MDA200 comes from the factory in fixed output mode, but it does offer the option of setting its output to variable mode. This provides the ability to directly connect the MDA200 to a power amplifier in an audio system that only has digital audio sources; no other preamplifier would be needed in this setup. Volume could then be changed via the front panel ADJUST knob or with the supplied remote control.

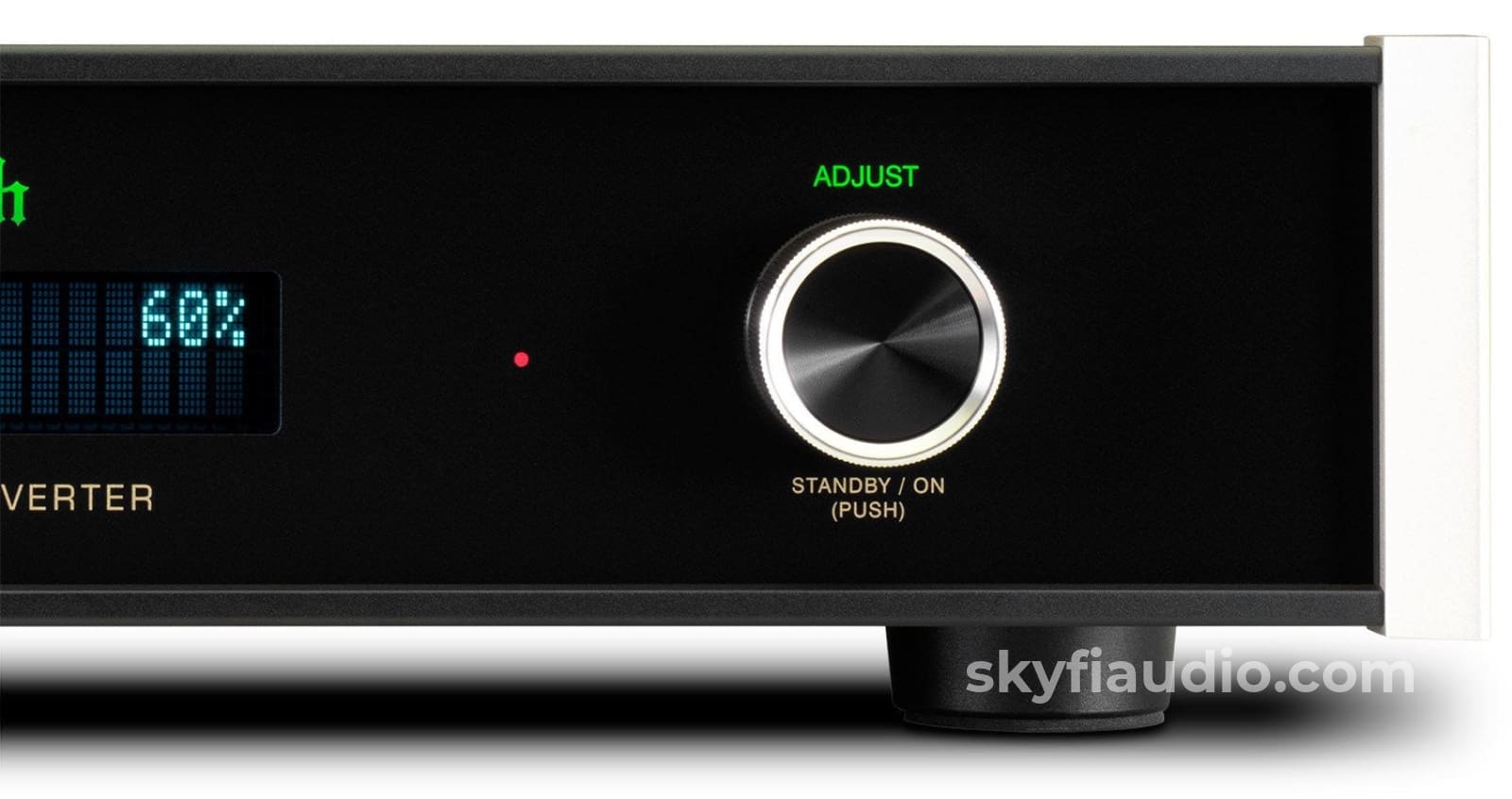

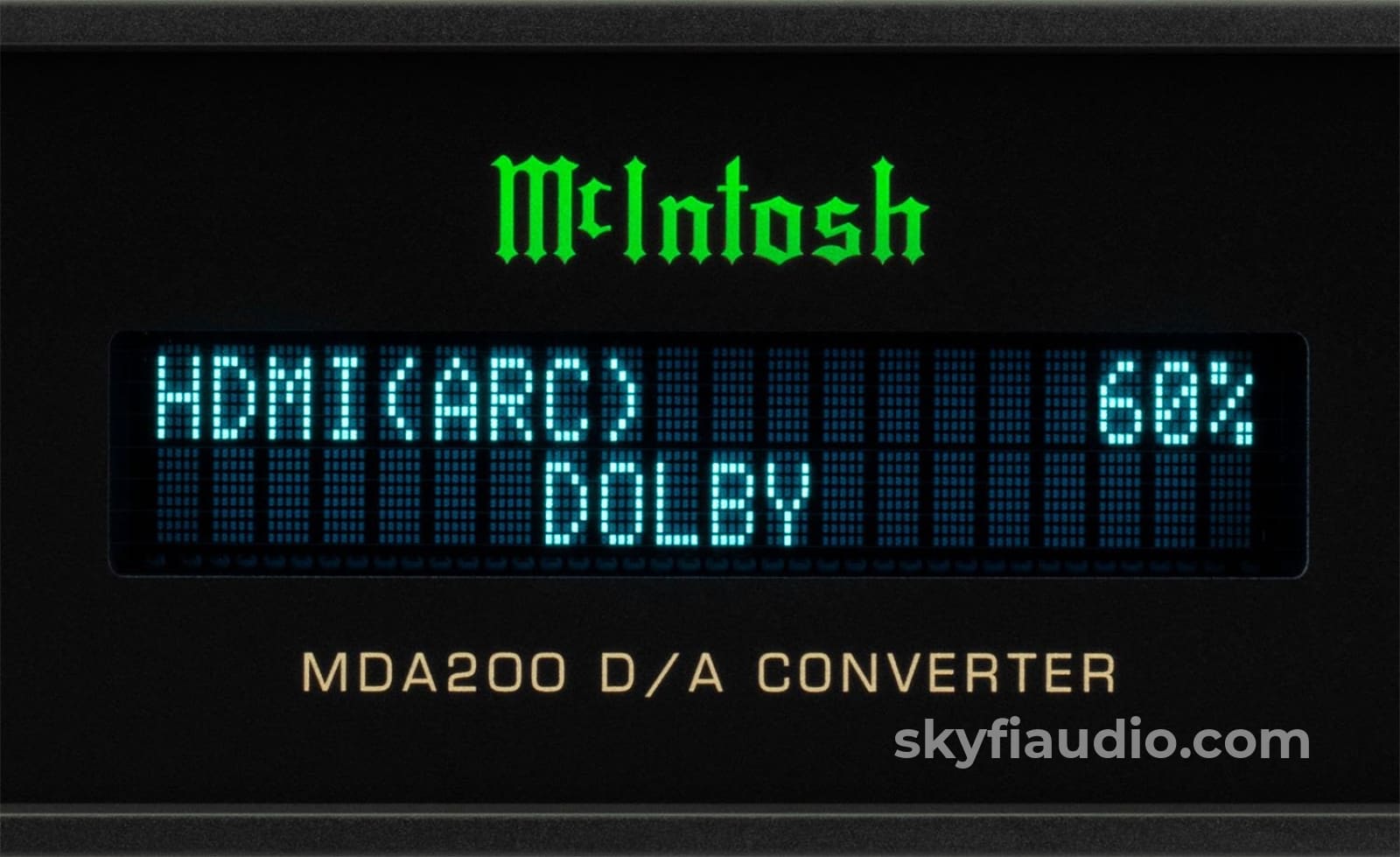

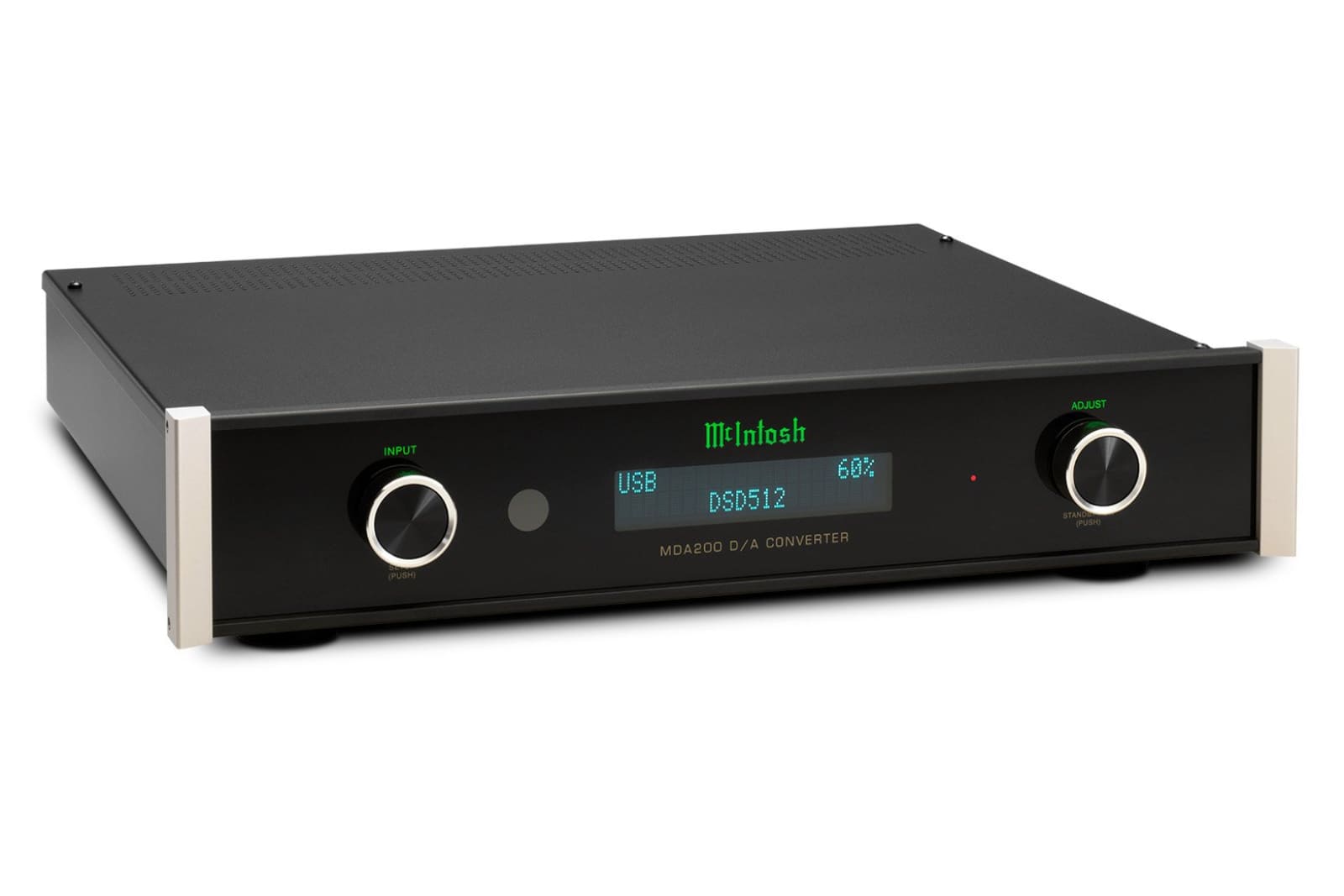

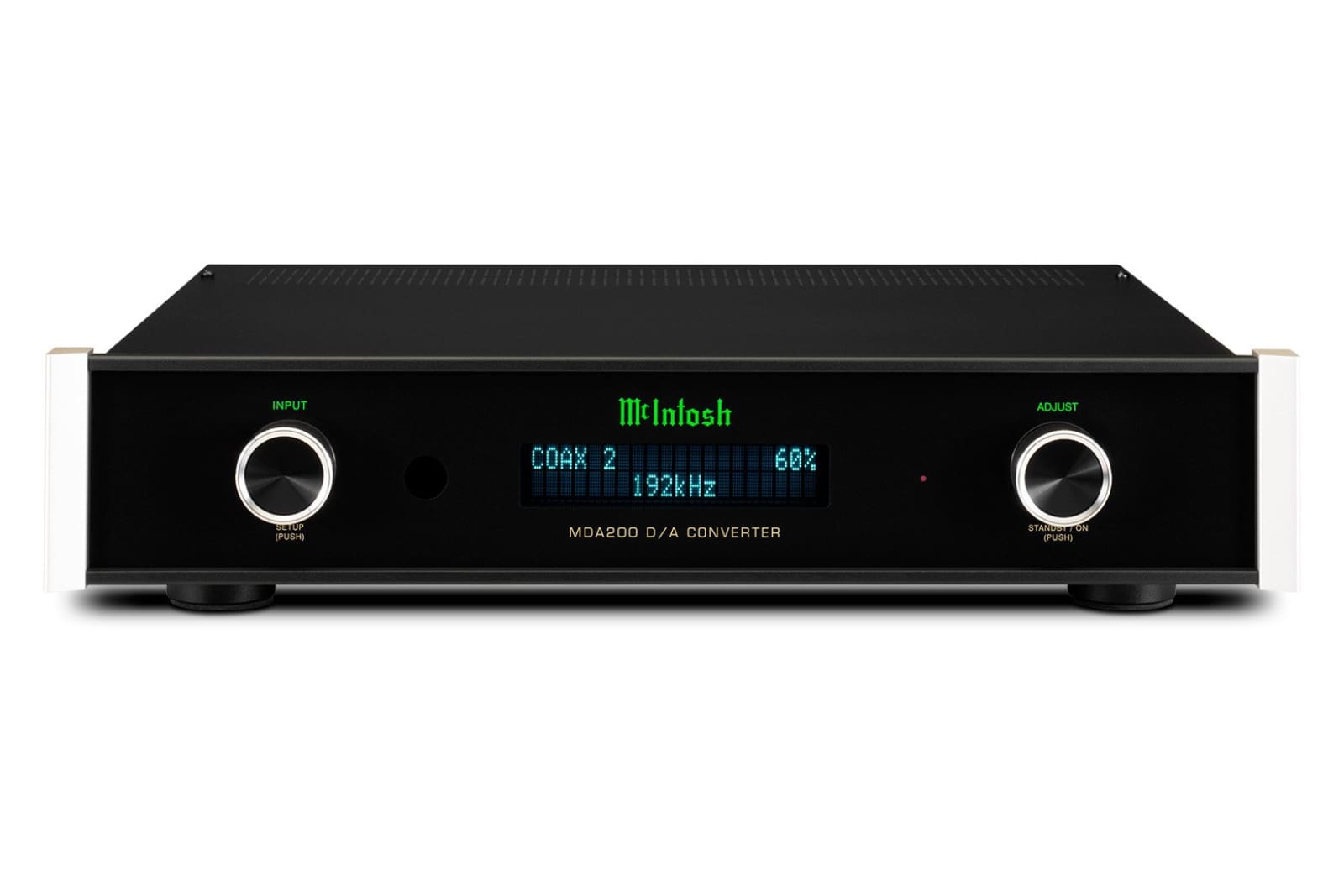

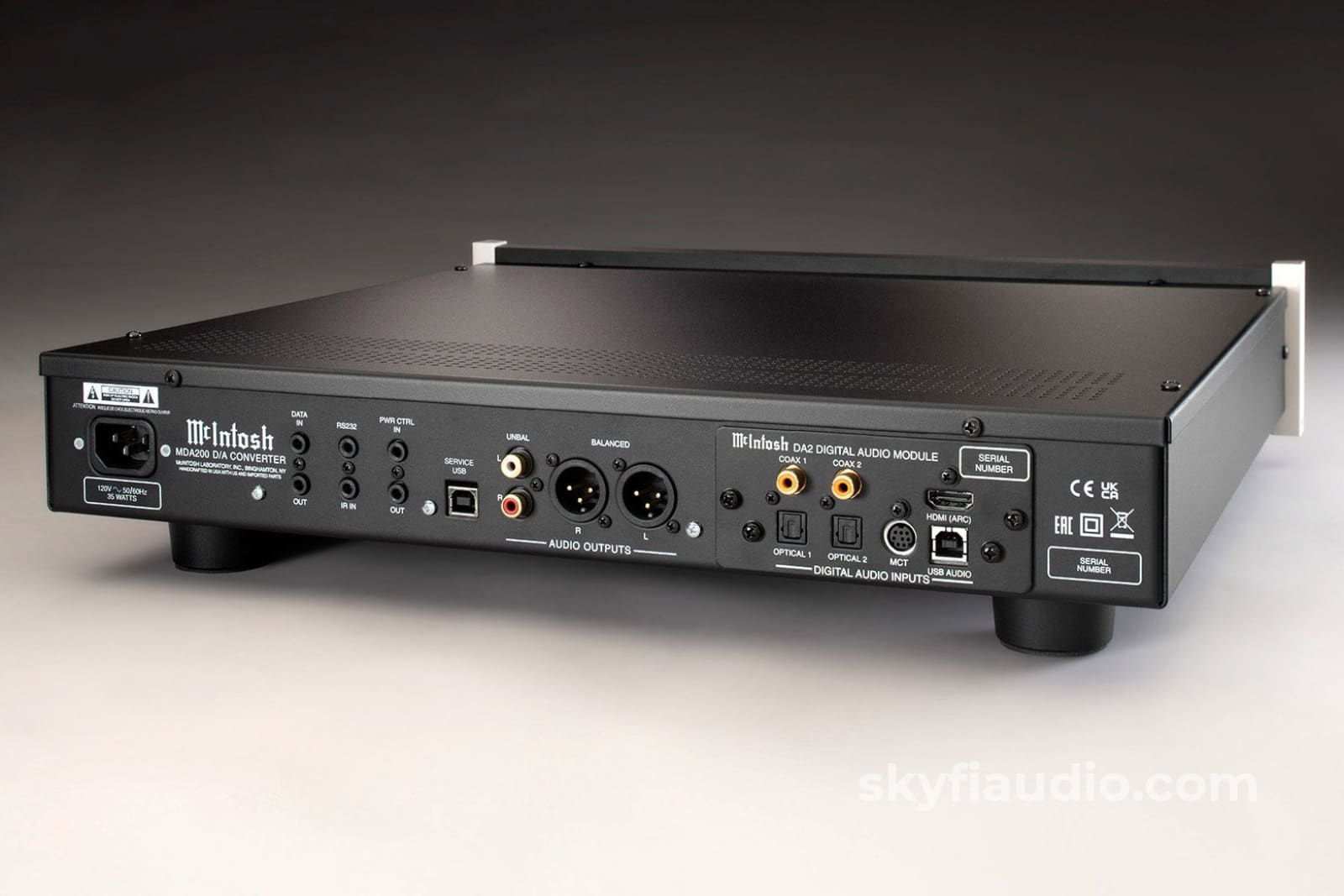

The front of the MDA200 showcases classic McIntosh design cues of a black glass faceplate with an illuminated logo, rotary controls knobs, custom machined aluminum end caps, and an easy-to-read display with adjustable brightness settings. The back panel includes convenient Power Control and data ports.
Brand Background:
Founded in 1949, McIntosh is known for offering distinguished home audio systems that deliver the ultimate experience in music and film. Offering products for two-channel stereo sound systems and multi-channel home theaters with surround sound, McIntosh continues to define the ultimate home audio entertainment experience for discriminating listeners around the world. Our iconic blue Watt output meter is globally recognized as a symbol of quality home audio. With a McIntosh home stereo system or home theater, listeners have the ability to create their own luxury audio experience – and truly live their music.
McIntosh products are designed and handcrafted at our Binghamton, NY factory by our dedicated employees who share a passion for music and the McIntosh heritage. Since our inception, McIntosh has been powering some of the most important moments in music history and pop culture. From President Lyndon Johnson’s inauguration speech to Woodstock to the famous Grateful Dead “Wall of Sound,” McIntosh has not only witnessed history, we have shaped it.
Included:
MDA200, Remote Control, Owner's Manual, Power Cord.
Packing:
Factory Sealed McIntosh Carton
Dimensions:
17-1/2" (44.45cm) x 3-7/8" (9.8cm) x 15-11/16" (39.95cm)
Weight:
13.5 lbs (6.1 kg)
Reviews:
Click Here
Link to Manual:
Click Here
Recommended Cables:
McIntosh Balanced Audio Cables (XLR)
Kimber Kable - Ascent 14 Gauge Power Cord - Better
Kimber Kable - Palladian 14 Gauge Power Cord - Best

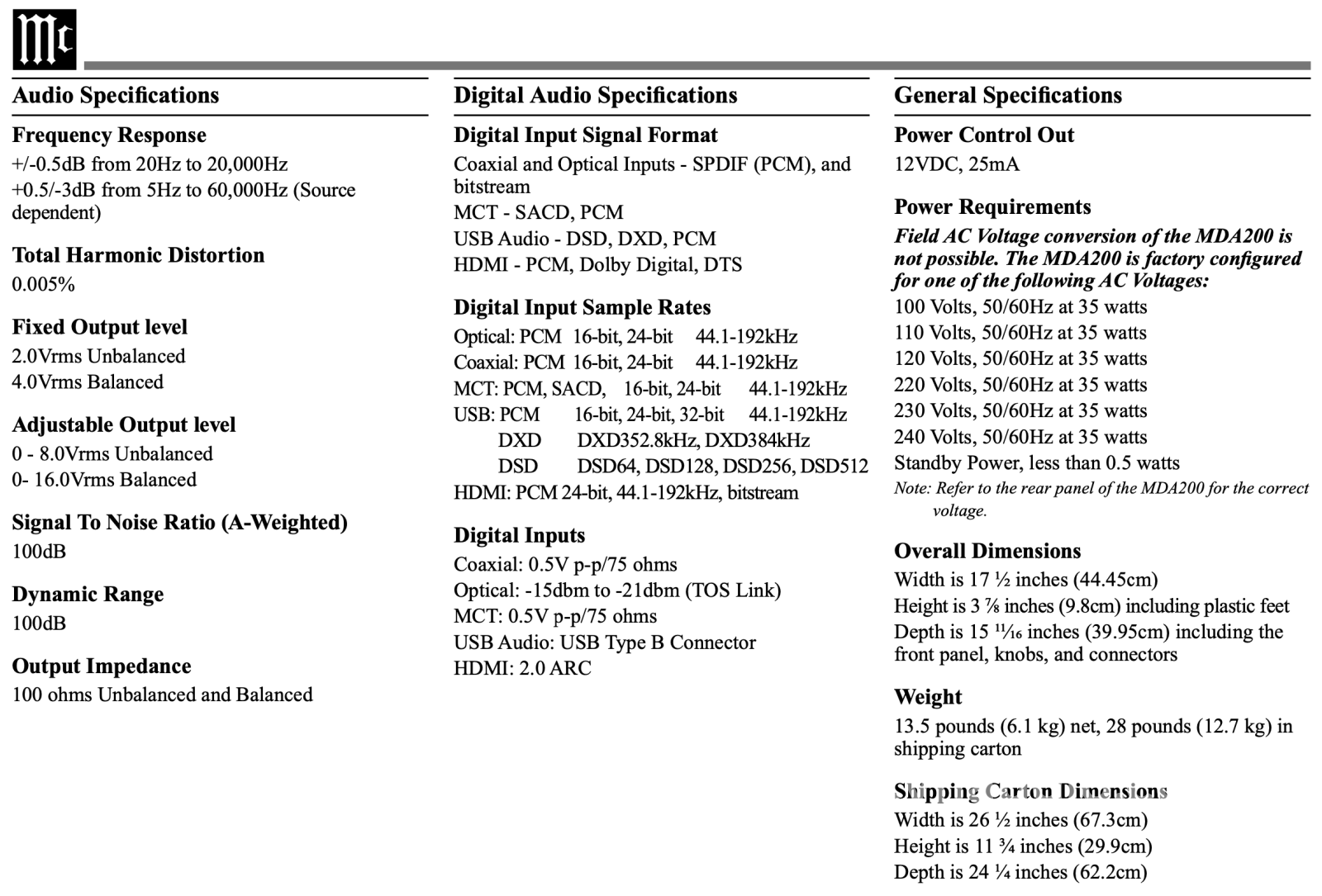

Specs:
ELECTRONIC SPECIFICATIONS
Number of Channels
2
Total Harmonic Distortion
0.005%
Frequency Response
+0, -0.5dB from 20Hz to 20kHz
+0, -3dB from 5Hz to 60kHz (Source dependent)
Maximum Volts Out (Balanced / Unbalanced)
4.0V RMS / 2V RMS (Fixed Output)
0-16V RMS / 0-8V RMS (Adjustable Output)
Signal To Noise Ratio
100dB
Dynamic Range
100dB
Output Impedance
100 Ohms (Balanced and Unbalanced)
GENERAL SPECIFICATIONS
Output Meters
No
Vacuum Tube or Solid State
Solid State
Power Consumption (On)
35 Watts
