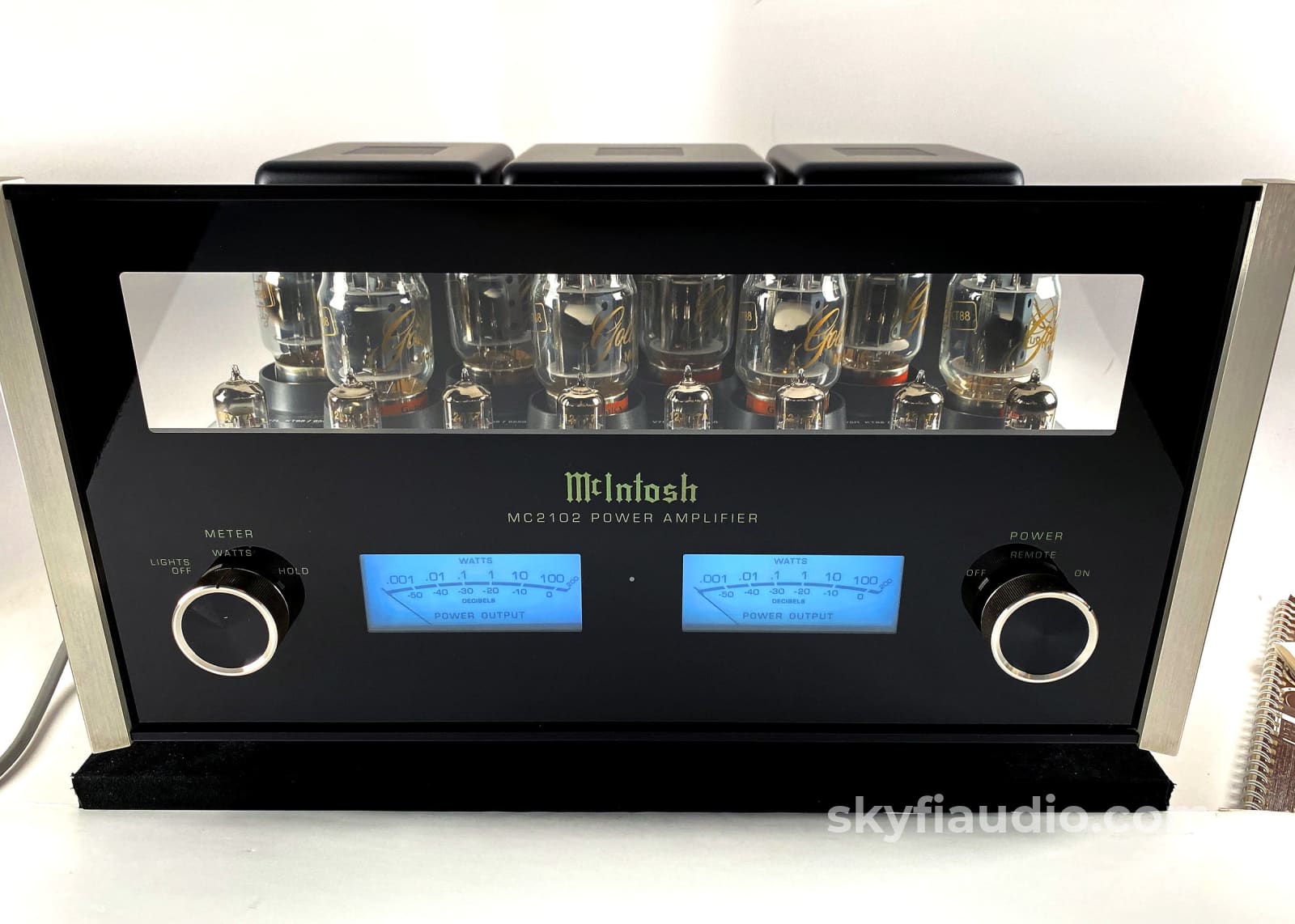

Mcintosh MC2102 Tube Amplifier With Custom Cover

Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

If you like the MC275 then you'll LOVE this MC2102.

The MC2102 features a similar design and topology, but with a bit more power and a better looking form factor in a traditional chassis configuration.

Best of all it sports the legendary McIntosh meters on the faceplate while still showing off the glow of the tubes through a viewing window.

This particular sample is in excellent condition. The only noticeable signs of use is that both of the meters have lightened in the middle presenting a sunburst look.

Tested on our bench to full working power without issues. Visual inspection shows that all caps and internal components are healthy.

Includes a custom made dust cover to keep it looking new.

Please see the linked manuals below for more info:

Click here for a PDF copy of the original MC2102 Sales Brochure

Click here for a PDF copy of the original MC2102 Owner's Manual

Our Testing Process for Tube Amplifiers at SkyFi:
We start with a visual inspection of all internal components to make sure there are no signs of stress or aging. Capacitors are checked for telltale sings of bulging or leaking, resistors are checked for signs of overheating or cracking, and tubes are inspected for signs of stress overheating or cracking.

We then power up the unit carefully and run a simple 1k sine wave while monitoring the output on an oscilloscope for signs of distortion or noise. Finally we run the amplifier to its full rated power into the appropriate resistive load provided by our Sencore amplifier tester. If there is an issue, it will usually be noticeable at this point. If it all looks clean we will often test for THD (Total Harmonic Distortion) measured by our Keithley distortion meter, and compare it against the original manufacturers specifications. The amplifier the remains powered on to "burn in" on our test bench for a few hours to make sure there are no heat related issues. If there are balanced inputs available they will also be tested.

We also test all tubes for output gain and leakage on our modern and professional tube tester against the original manufacturers specifications. If needed, the tubes will be replaced from our vast NOS (New Old Stock) vintage or modern inventory.

Final testing involves pushing actual music thorough the amplifier. We've learned over time that some issues are only noticeable to a trained ear while listening to familiar source material. Our test bench has reference vintage Kef speakers that we're very familiar with which quickly reveal any discrepancies. Some amplifiers will then move into our listening room where they are tested with our in-house reference speakers of choice.

Specifications
Power Output Stereo
Minimum sine wave continuous average power output per channel, all channels operating is:
100 watts into 2 ohm load
100 watts into 4 ohm load
100 watts into 8 ohm load

Power Output Mono Parallel
Minimum sine wave continuous average power output is:
200 watts into 1 ohm, 2 ohm or 4 ohm load

Power Output Mono Bridge
Minimum sine wave continuous average power output is:
200 watts into 4 ohm, 8 ohm or 16 ohm load

Rated Power Band
20Hz to 20,000Hz

Total Harmonic Distortion
Maximum Total Harmonic Distortion at any power level from 250 milliwatts to rated power output is: 0.5% for 2, 4 or 8 ohm loads (Stereo)
0.5% for 1, 2 or 4 ohm loads (Mono Parallel)
0.5% for 4, 8 or 16 ohm loads (Mono Bridge)

Frequency Response
+0, -0.25dB from 20Hz to 20,000Hz
+0, -3dB from 10Hz to 70,000Hz

Sensitivity
2.5 Volt unbalanced inputs
5.0 Volt balanced inputs

A-Weighted Signal To Noise Ratio
100 dB

Intermodulation Distortion
Maximum Intermodulation Distortion if instantaneous peak output does not exceed twice the rated output, for any combination of frequencies from 20Hz to 20,000Hz is:
0.5% for 2, 4 or 8 ohm loads (Stereo)
0.5% for 1, 2 or 4 ohm loads (Mono Parallel)
0.5% for 4, 8 or 16 ohm loads (Mono Bridge)

Input Impedance
20,000 ohms unbalanced inputs
40,000 ohms balanced inputs

Wide Band Damping Factor
Greater than 18

Tube Complement
4 - 12AX7A Inputs and Phase Inverters
4 - 12AT7 Voltage Amplifier and Drivers
8 - KT88/6550 Power Output

Dimensions
Front Panel: 17-3/4 inches (45.54cm) wide, 10-1/8 inches (25.72cm) high.
Depth behind front mounting panel is 16 inches (40.64cm).
Clearance required in front of the Front Panel is 1 inch (2.54cm) for knobs.

Weight
88 pounds (40 kg) net
121 pounds (54.9 kg) in shipping carton
