Altec Lansing 604E 15" Drivers w/Crossovers - Mint Condition - Fully Tested

Sale price$0.00
Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

Pickup currently unavailable at SkyFi 479

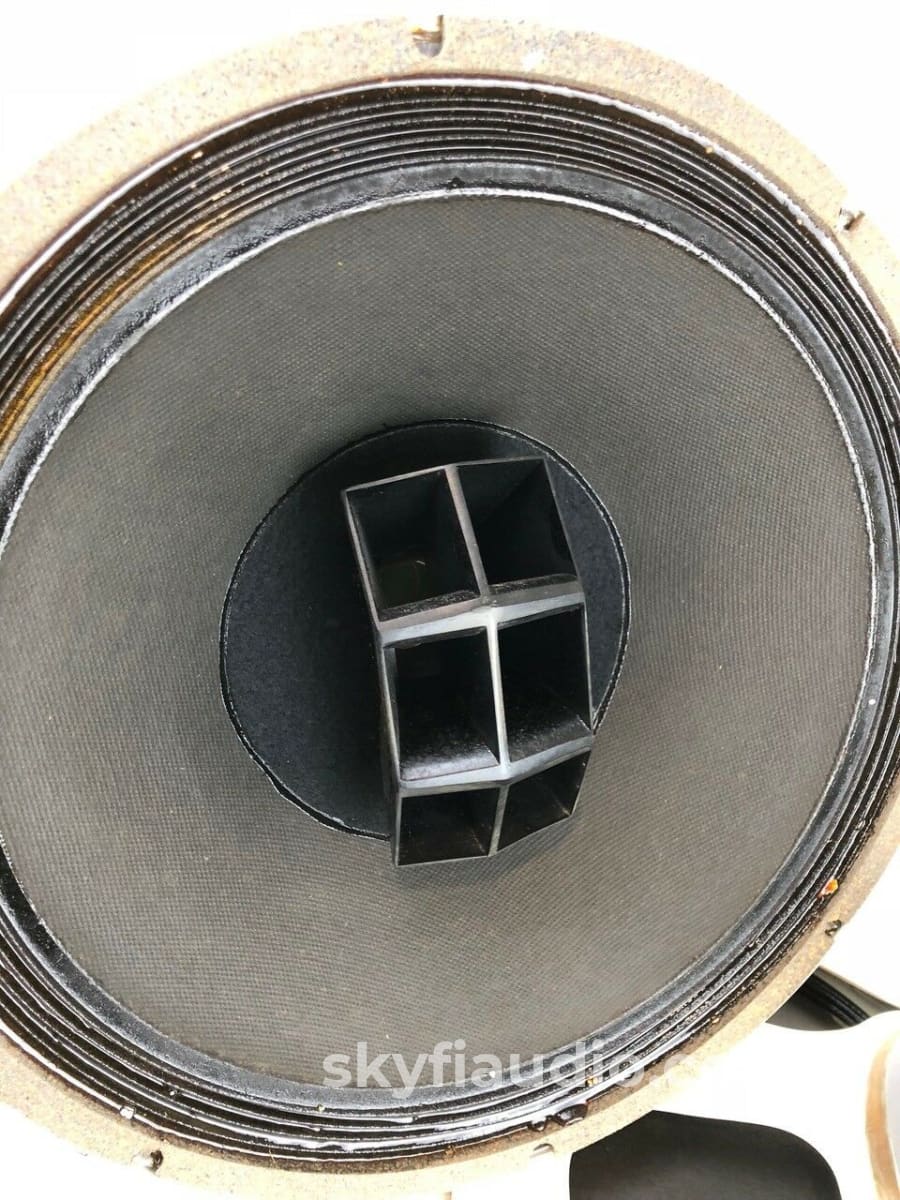

Altec Lansing 604E 15 Drivers W/Crossovers - Mint Condition Fully Tested Speakers

Altec Lansing 604E 15" Drivers w/Crossovers - Mint Condition - Fully Tested

SkyFi 479

Pickup currently unavailable

479 South Broad Street
Glen Rock NJ 07452
United States

+12018790000

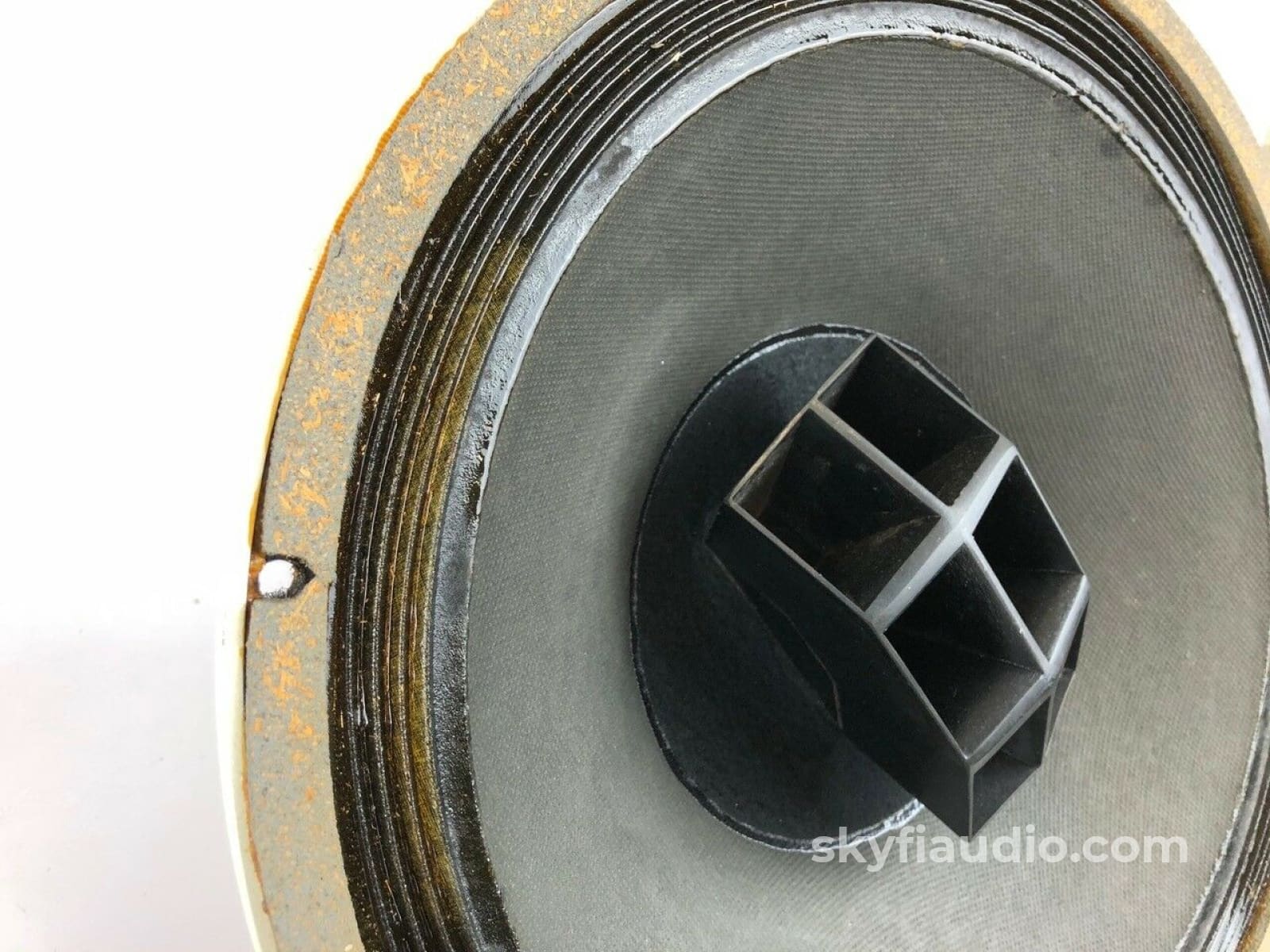

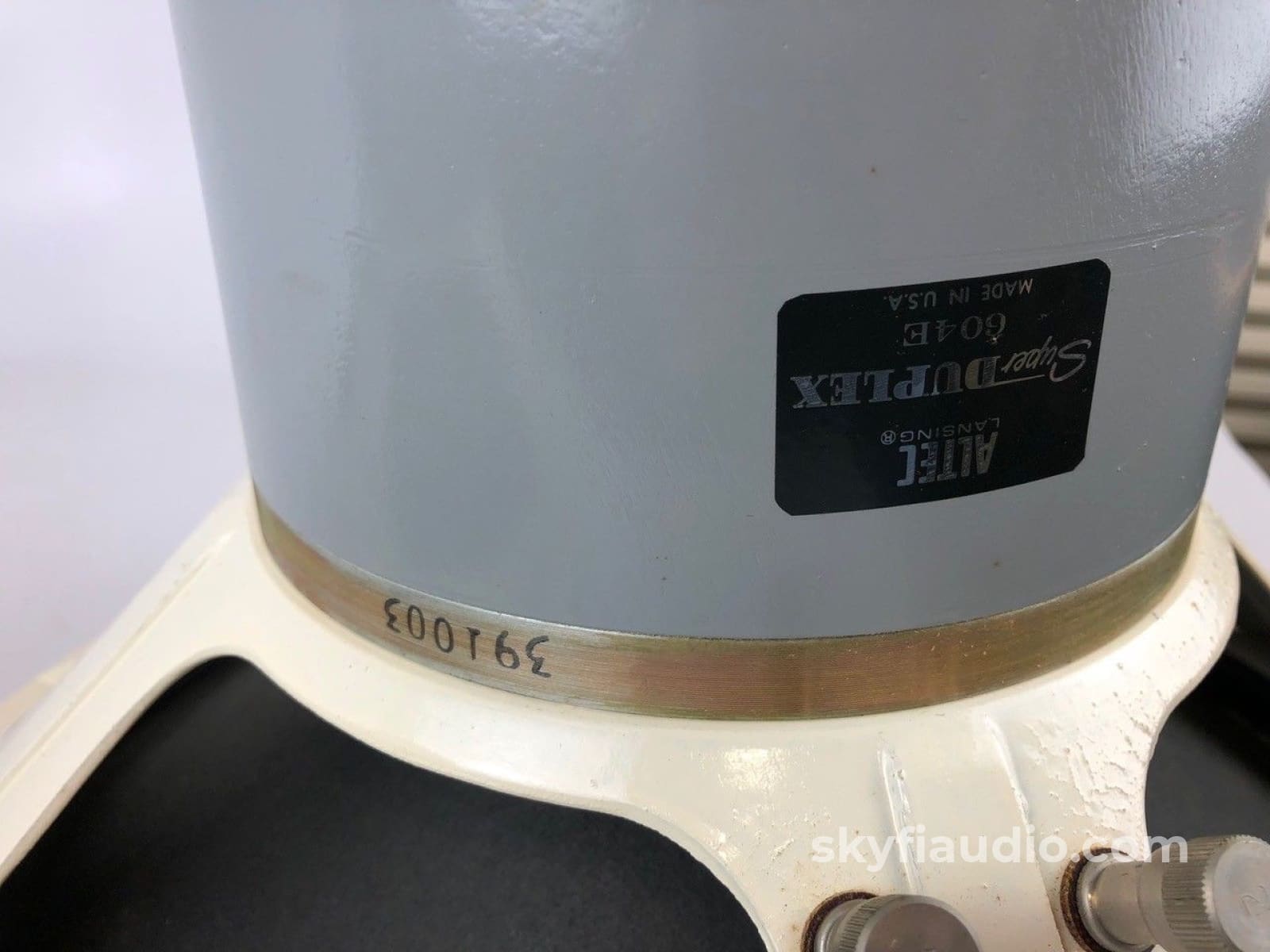

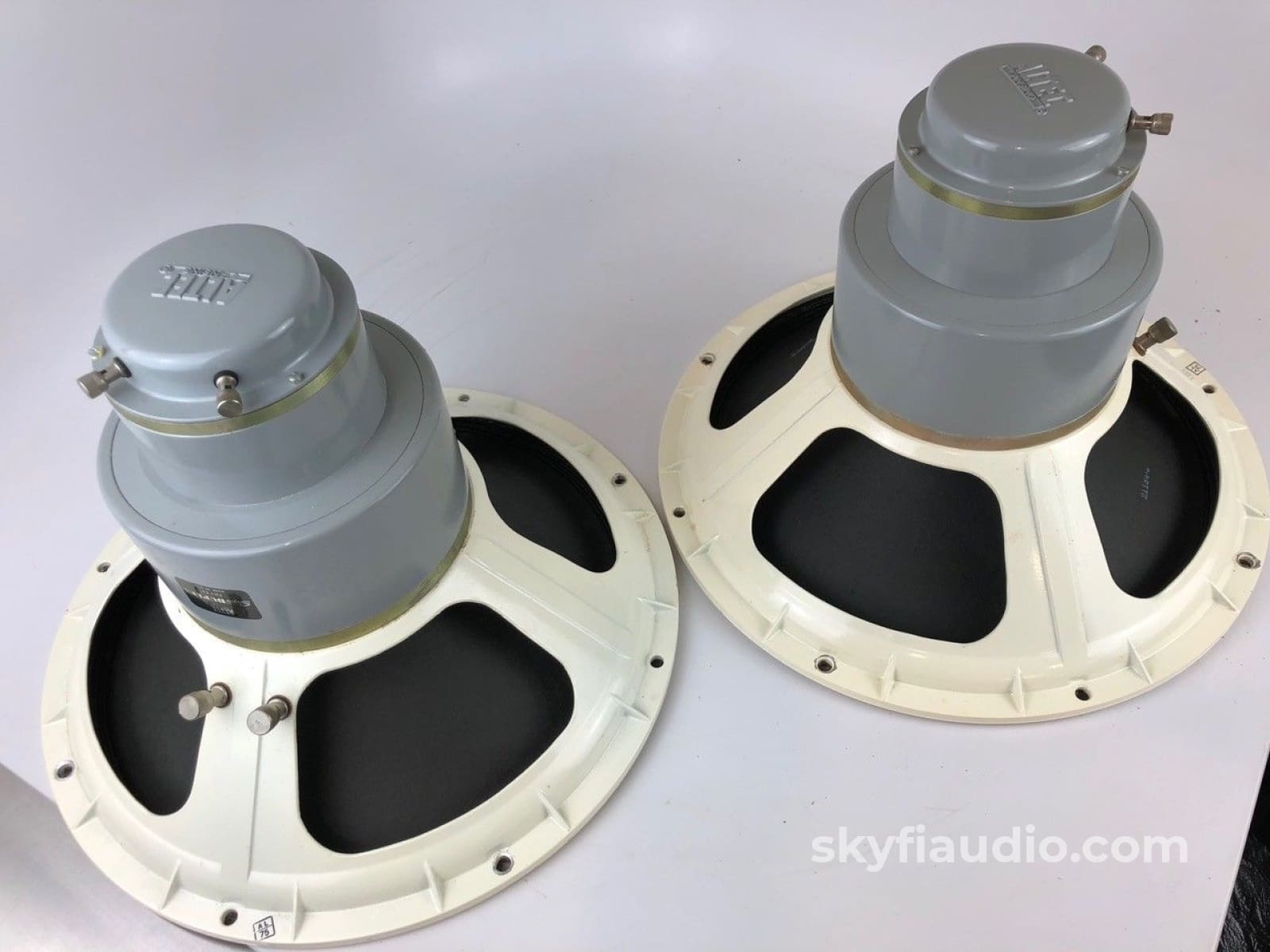

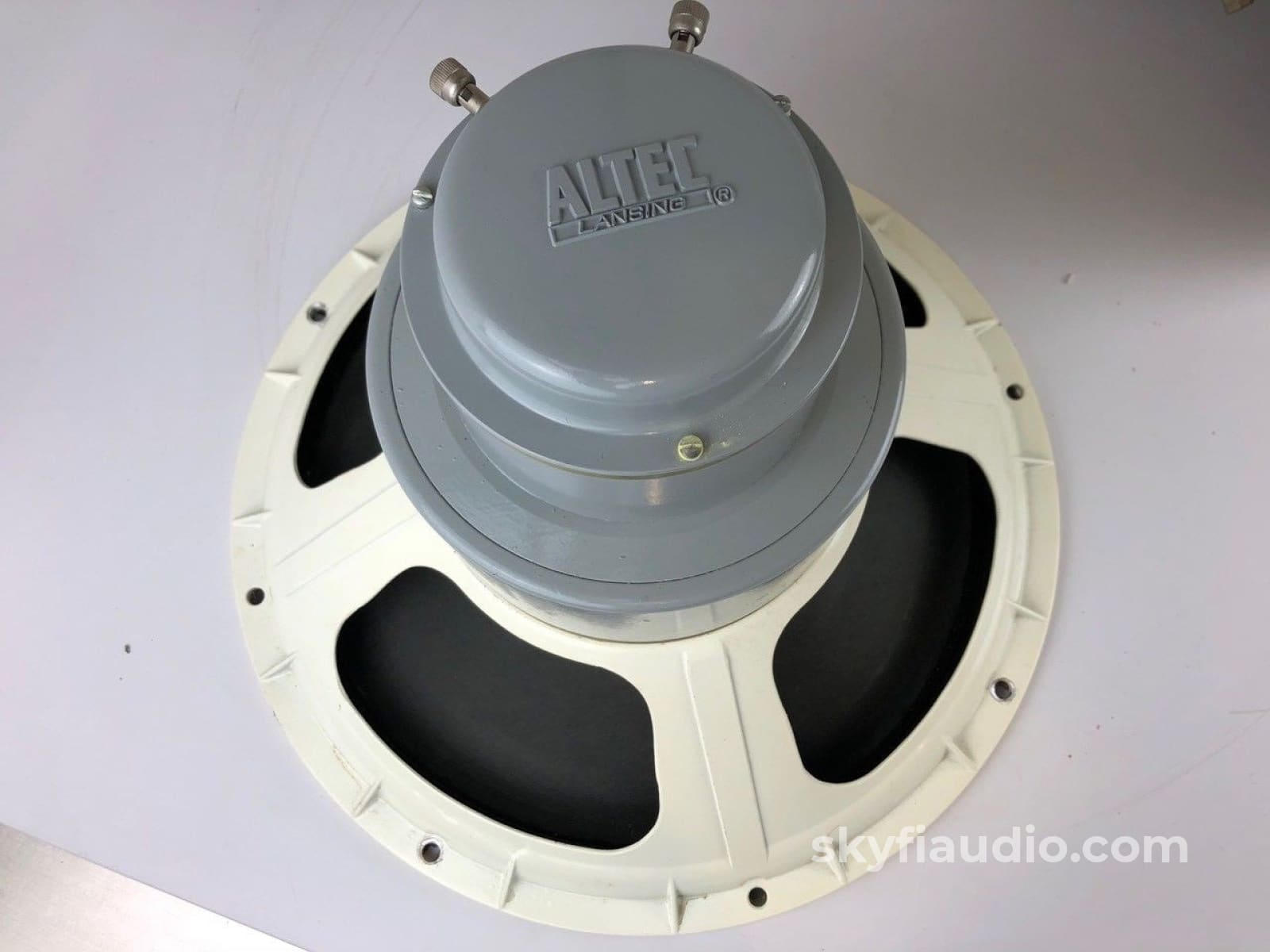

These famous Altec Super Duplex 604E's have been fully tested in our lab using a sweep frequency generator where they passed with flying colors.

They look to be 100% original and unmolested.  No mold, tears, scuffs, or damage of any sort.

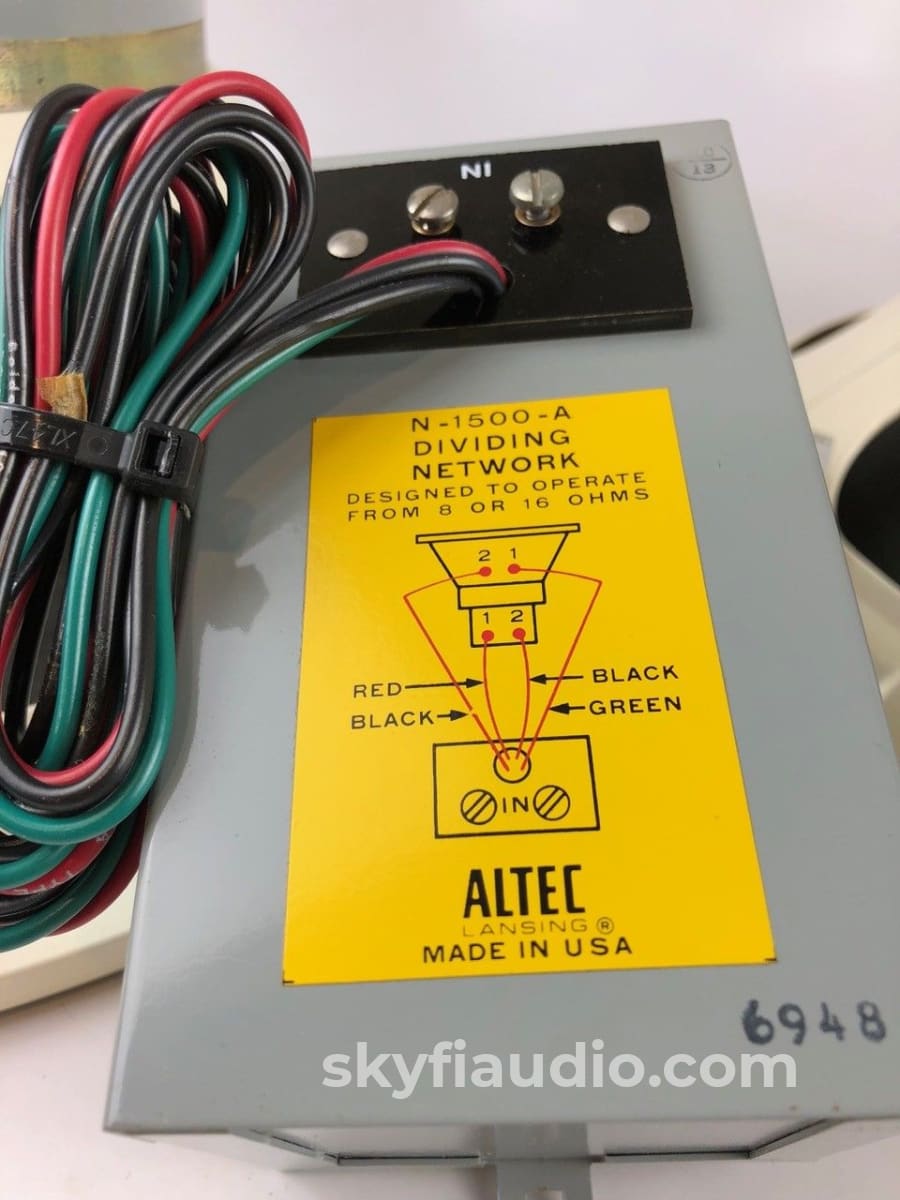

Includes a matching pair of Altec N-1500-A "Dividing Network" crossovers as pictured.

Ready for your next speaker project or if you'd like us to source or make a great cabinet give us a call or email.

Click here for a PDF copy of the original Brochure for these speakers

Specifications:
Power:  35 watts (50 watts peak)
Frequency Response:  From 20 to 22,000 cycles
Pressure Sensitivity:  101 db SPL at 4 ft. from 1 watt* or 116.4 db SPL at 4
ft. from 35 watts *equivalent to EIA rating of 54 db at 30 feet from 1 milliwatt
Impedance:  Designed to operate from 8 ohms or 16 ohms
Cone Resonance:  25 cycles
Voice Coil Diameters:  (LF) 3 inches Mtg. Bolt. (HF) 1-3/4 inches
Horizontal Distribution:  90
Vertical Distribution:  40°
Magnets: Type:  Alnico V, (LF) 4.4 pounds, (HF) 1.2 pounds
Structure Weight:  (LF) 20.31 pounds (HF) 6.5 pounds
Flux:  (LF) 13,000 Gauss (HF) 15,000 Gauss
Crossover Network:  1,500 cycle, dual full-section (furnished with speaker)
Terminals:  Binding post (4)
Diameter:  15-5/16"
Mounting Data:  Baffle opening: 13-1/4 inches, Mtg. Bolt. Cntrs.: 14-9/16 inches (8, equally spaced at 45°), Depth: 11-1/8 inches
Weight:  34 pounds (including network)
Finish:  White and Grey
Accessories:  Altec 100A Bass Energizer
Enclosures:  Altec 855A, 857A, 612A, 614A Cabinets

Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.

Item

Included

Original Box

No

Manual

Yes

Remote

No

Cables

Yes

Physical Condition

9

Working Condition

10

SKU: Altec Lansing 604E
