Linn AV 5105 Dual-Mono Design Amplifier - 100W x 2


Freshly serviced Linn AV5105 ready to rock your system for another 20 years.

Plus this is 230V compatible with the flick of a rear switch and fuse swap.

SkyFi Service Notes:

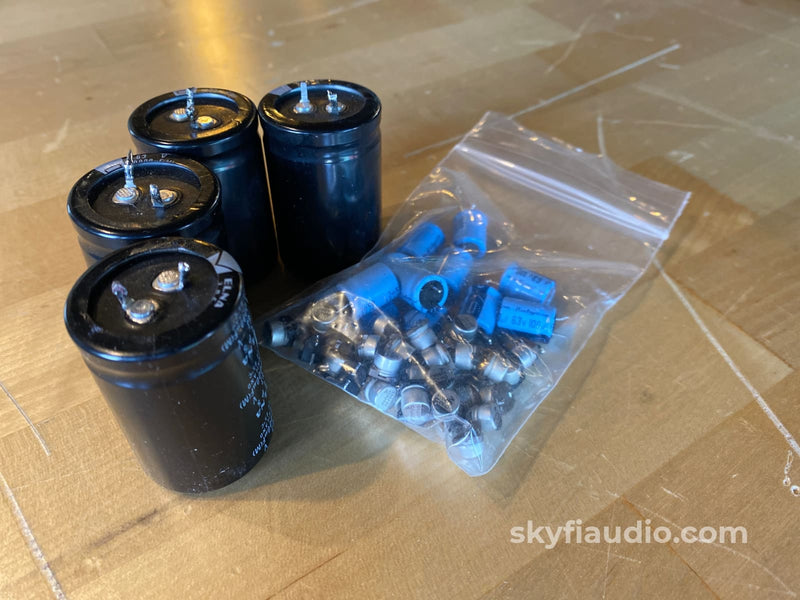

• Replaced main filters, all SMD caps, and a number of other caps.
• Tests with perfect channel balance up to 100W per channel into 8 ohms.
• Sounds excellent on listening tests.

*Please note the Linn speaker adapters/connectors are *not* included with this listing. We don't have any available to include right now but you can easily find them from several sources online. Or if you're like most of our Linn fans you probably already have speaker cables terminated with the proper Linn adapters.

Click below to add our recommended matching cables from Kimber Kable, all brand new as SkyFi is an official Kimber dealer.

Kimber Kable - RCA Interconnects - Better

Kimber Kable - RCA Interconnects - Best

Kimber Kable - Speaker Cables - Better (Linn Adapters Not Included)

Kimber Kable - Speaker Cables - Best (Linn Adapters Not Included)

Kimber Kable - Bi-Wire Speaker Cables - Best If Applicable (Linn Adapters Not Included)

Kimber Kable - Power Cords - Better

Kimber Kable - 14AWG (Gauge) Power Cords - Best

More from Linn:
The new Linn AV 5105 Stereo Power Amplifier is a compact, high quality stereo 400 Watt power amplifier. It is engineered to complement all the other components in an AV 51 System and is constructed to match the AV 5103 System Controller in style and performance.

The AV 5105 Stereo Power Amplifier combines high output power, ruggedness and ease of use with the accuracy that results from Linn’s passion for sound quality, and draws on many years of experience in the design and manufacture of high quality audio power amplifiers.

Power, precision and high signal handling quality mean that the AV 5105 can perfectly reproduce the most dramatic, subtle and complex sound effects simultaneously. It is a versatile, stackable design that can also accommodate active modules internally for optimised loudspeaker control.

The AV 5105’s low operating temperature and sophisticated protection circuitry helps make it flexible. To permit remote location of the amplifier it also has auto turn-on and switch-off signal sensing circuitry, which automatically brings the amplifier out of standby. A fully regulated and integrated power supply makes the AV 5105 immune to mains voltage fluctuation or noise to ensure the accuracy and consistent performance required for the most intensely involving film and music sound experience.

Compact, high quality 400W stereo power amplifier

Dual mono design for maximum separation and performance with active crossover interface

Standard stereo configuration for universal multi-amp and active installations. Alloy die-cast facia and pressed casework

Control Interfaces:
Signal-sensing auto switch-on/off for energy conservation or remote operation

Dual RCA (Line in/out)

Four pairs per channel

Fully protected against overload, over-temperature, full short and overdrive protection

Output Power:
100 W / channel / 8 Ohms
200 W / channel / 4 Ohms

Mains Supply:
115V T6.3A antisurge fuse (230V T3.15A antisurge fuse)

Max Inout Power:
800 VA

Standby Power Consumption:
5 VA

3.20" H (inc. feet)
15.00" W
14.00" D

14.33 lbs

The SkyFi Testing Process for Solid State Amplifiers:
We start with a visual inspection of all internal components to make sure there are no signs of stress or aging. Capacitors are checked for telltale signs of bulging or leaking, resistors are checked for signs of overheating or cracking, and transistors are checked for signs of stress or damage.

We then power up the unit carefully and run a simple 1k sine wave while monitoring the output on an oscilloscope for signs of distortion or noise. Finally, we run the amplifier to its full rated power into the appropriate resistive load provided by our Sencore amplifier tester. If there is an issue, it will usually be noticeable at this point. If everything reads clean, we will often test for THD (Total Harmonic Distortion) measured by our Keithley distortion meter, and compare it against the original manufacturers specifications. The amplifier then remains powered on to "burn in" on our test bench for a few hours to make sure there are no heat related issues. If there are balanced inputs available they will be also be tested.

Final testing involves pushing actual music thorough the amplifier. We've learned over time that some issues are only noticeable to a trained ear while listening to familiar source material. Our test bench has reference vintage KEF speakers that we're very familiar with which quickly reveal any discrepancies. Some amplifiers will then move into our listening room where they are tested with our in-house reference speakers of choice.



Original Box

Not Included


Online Only


Not Applicable


Yes - Power Only

Physical Condition

7 / 10

Working Condition

10 / 10
